CA6P2-100-H
CA6P2-100-H

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

SAFIRE

6 signal conductors + 2 power conductors

SKU: CA6P2-100-H
(0)
In stock
Usually shipped within 24 hours
€106,07 Final price
-9% €116,00 €106,07 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

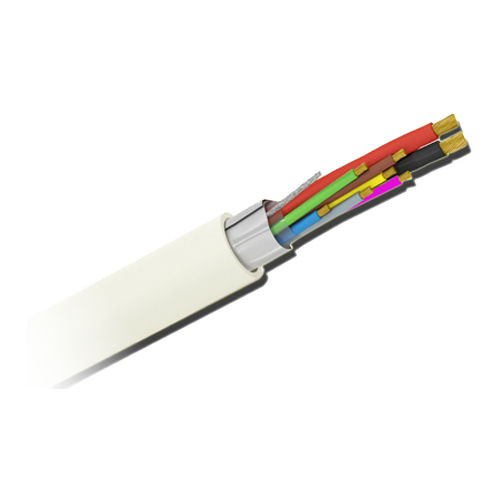

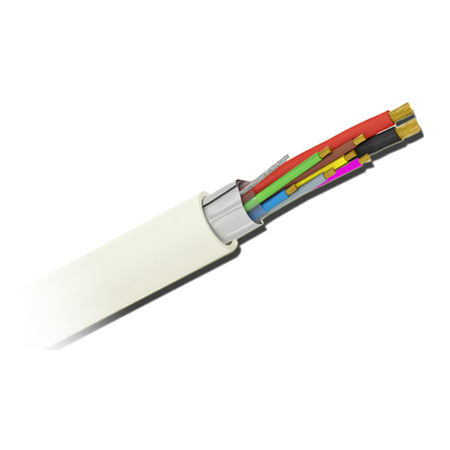

6 signal conductors + 2 power conductors - Class 5 flexible electrolytic copper conductor - Aluminum-polyester shielding + CuSn drain wire - 100-meter reel - CPR certificate: B2ca -s1a, d0, a1 - Low loss

📋 SPECIFICATIONS:
• Length: 100 m
• Inner conductor: AWG24 0.22 mm2 flexible electrolytic copper
• Power conductor: AWG19 0.60 mm2 flexible electrolytic copper
• Insulation: Polyethylene
• Conductor construction: Stranded
• Shield: Aluminum-polyester with 96% coverage + CuSn drain wire
• Sheath: LHS0 polyolefin
• No. of conductors: 6 signal + 2 power
• Conductivity: <10μS/mm
• Electrical resistance: 106 Ohm/km signal / 27 Ohm/km power
• Operating temp.: 0ºC ~ 70ºC
• Certification: CPR (B2ca -s1a, d0, a1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2

📦 INCLUDED:
• Cable reel
Length 100 m
Inner conductor Flexible electrolytic copper AWG24 0.22 mm2
Power conductor Flexible electrolytic copper AWG19 0.60 mm2
Insulation Polyethylene
Conductor formation Stranded
Shield Aluminum polyester with 96% coverage + CuSn drain wire
Sheath Polyolefin LHS0
No. of conductors 6 signal + 2 power
Conductivity &lt;10μS/mm
Electrical resistance 106 Ohm/km signal / 27 Ohm/km power
Operating temp. 0º C ~ 70º C
Certification CPR (B2ca -s1a, d0, a1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2
