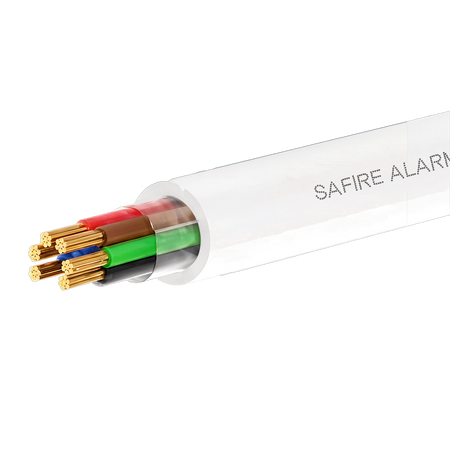

6 signal conductors Safire copper-clad aluminium conductor - 100-meter coil
6 signal conductors Safire copper-clad aluminium conductor - 100-meter coil
Regular price
€27,68
Final price
Regular price
-8%
€30,00
Sale price
€27,68
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
6 signal conductors - Copper-clad aluminum conductor - 100-meter reel - CPR Eca certified - Low loss
📋 SPECIFICATIONS:
• Length: 100 m
• Conductor material: Copper-clad aluminum
• Signal cores (6x): 0.22 mm² (42*0.185 ± 0.005 mm)
• Insulation material: PVC (polyvinyl chloride)
• Insulation thickness: >0.20 mm
• Shielding (Shield): Aluminum and polyester foil
• Rip cord: Included
• Jacket material: LSZH
• Sheath diameter: 4.4 ± 0.30 mm
• Sheath thickness: 0.50 mm
• DC resistance 20° (0.22 mm²): ≤ 265 Ω/1000 m
• Insulation resistance 20°: 200 MΩ·km
• Voltage test (1 min. / 50 Hz): 1200 V (0.22 mm² section)
• Certification: CPR Eca / RoHS 2.0 / Reach
• Sheath color: White
• Weight: 34 kg/km
• Operating temperature: -10° C to 70° C
• Compliant with regulations: IEC 60332-1 & IEC 60332-3-24; IEC 60754-1 /-2 –IEC 61034-1 /-2; EN 50575
📦 INCLUDED:
• 1x Safire CA6-100-PVC-ECA-WHITE cable reel
| Length | 100 m |
|---|---|
| Conductor material | Copper-clad aluminum |
| Signal cores (6x) | 0.22 mm² (42*0.185 ± 0.005 mm) |
| Insulation material | PVC (polyvinyl chloride) |
| Insulation thickness | >0.20 mm |
| Shielding (Shield) | Aluminum and polyester foil |
| Ripcord | Included |
| Jacket material | LSZH |
| Jacket diameter | 4.4 ± 0.30 mm |
| Jacket thickness | 0.50 mm |
| DC resistance at 20° (0.22 mm²) | ≤ 265 Ω/1000 m |
| Insulation resistance at 20° | 200 MΩ·km |
| Voltage test (1 min. / 50 Hz) | 1200 V (0.22 mm² section) |
| Certification | CPR Eca / RoHS 2.0 / Reach |
| Jacket color | White |
| Weight | 34 kg/km |
| Operating temperature | -10° C to 70° C |
| Compliant with standards | IEC 60332-1 & IEC 60332-3-24 IEC 60754-1 /-2 –IEC 61034-1 /-2 EN 50575 |
