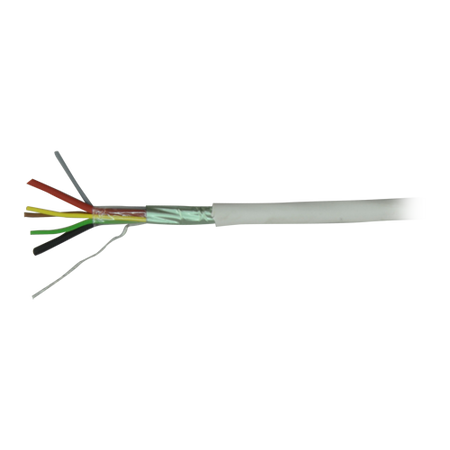

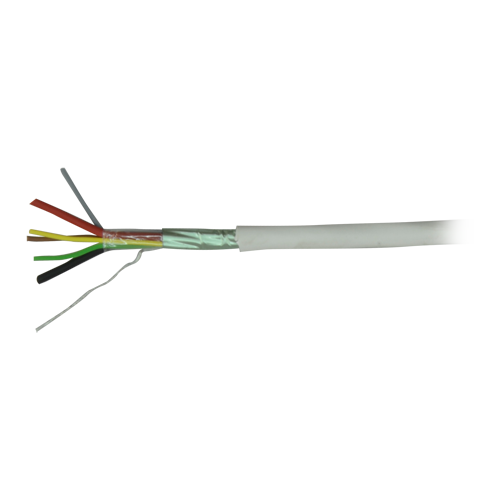

4 signal conductors + 2 power conductors - Flexible electrolytic copper conductor - Aluminum polyester shielding + tinned copper (CuSn) drain wire - 100-meter spool - CPR Cca-s1b, d1, a1 certified - Low loss
📋 SPECIFICATIONS:
• Length: 100 m
• Inner conductor: Flexible electrolytic copper AWG24 0.22 mm2
• Power conductor: Flexible electrolytic copper AWG19 0.60 mm2
• Insulation: Polyethylene
• Conductor configuration: Stranded
• Shield: Aluminum polyester + CuSn drain wire
• Jacket: FRLSHF Polyolefin
• No. of conductors: 4 signal + 2 power
• Conductivity: <10μS/mm
• Electrical resistance: 106 Ohm/km signal / 27 Ohm/km power
• Operating temp.: 0º C ~ 70º C
• Certification: CPR (Cca-s1b, d1, a1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2
📦 INCLUDED:
• Cable coil
| Length | 100 m |
|---|---|
| Inner conductor | Flexible electrolytic copper AWG24 0.22 mm2 |
| Power conductor | Flexible electrolytic copper AWG19 0.60 mm2 |
| Insulation | Polyethylene |
| Conductor formation | Stranded |
| Shield | Aluminum polyester + CuSn drain |
| Jacket | FRLSHF polyolefin |
| No. of conductors | 4 signal + 2 power |
| Conductivity | <10μS/mm |
| Electrical resistance | 106 Ohm/km signal / 27 Ohm/km power |
| Operating temp. | 0º C ~ 70º C |
| Certification | CPR (Cca -1sb, a1, d2), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2 |
