CA12-500-H
CA12-500-H

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Elettricity

12 conductors Flexible electrolytic copper conductor Class 5 - 500-meter reel

SKU: CA12-500-H
(0)
In stock
Usually shipped within 24 hours
€590,00 Final price
-5% €621,42 €590,00 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

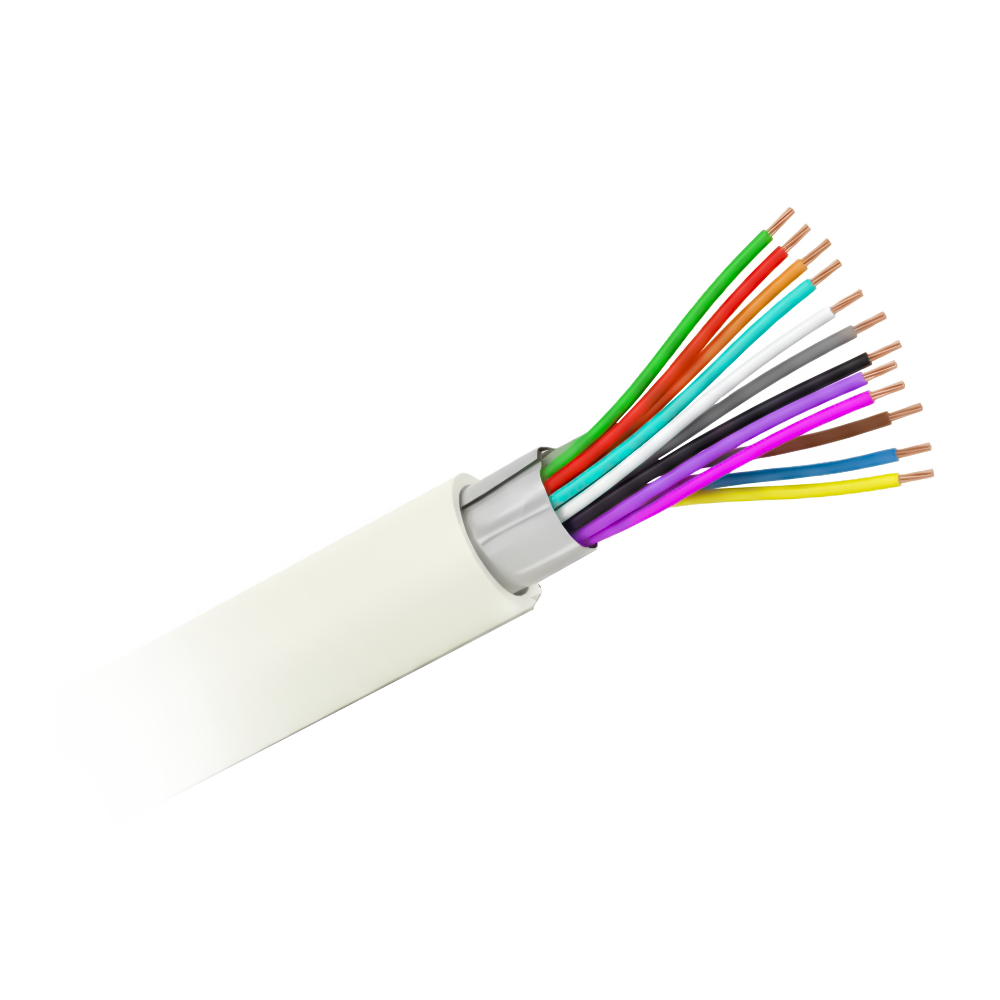

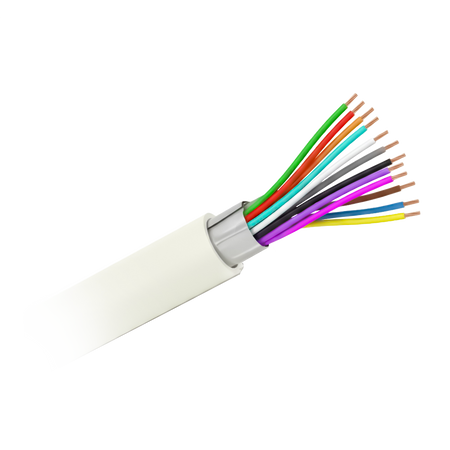

12 conductors - Class 5 flexible electrolytic copper conductor - Aluminum polyester shielding + tinned copper drain wire - 500-meter spool - CPR Certificate: B2ca -s1a, d0, a1 - Low loss

📋 SPECIFICATIONS:
• Length: 1500 m
• Inner conductor: Class 5 flexible electrolytic copper AWG24 0.22 mm2
• Insulation: Polyethylene
• Conductor formation: Stranded
• Shield: Aluminum polyester with 96% coverage + tinned copper drain wire
• Sheath: LSZH polyolefin
• No. of conductors: 12 signal
• Conductivity: CPR (B2ca -s1a, d0, a1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2

📦 INCLUDED:
• Cable coil
Length 1500 m
Inner conductor Flexible electrolytic copper AWG24 0.22 mm2 Class 5
Insulation Polyethylene
Conductor configuration Stranded
Shield Aluminium polyester with 96% coverage + CuSn drain wire
Sheath Polyolefin LHS0
No. of conductors 12 signal
Conductivity CPR (B2ca -s1a, d0, a1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2
