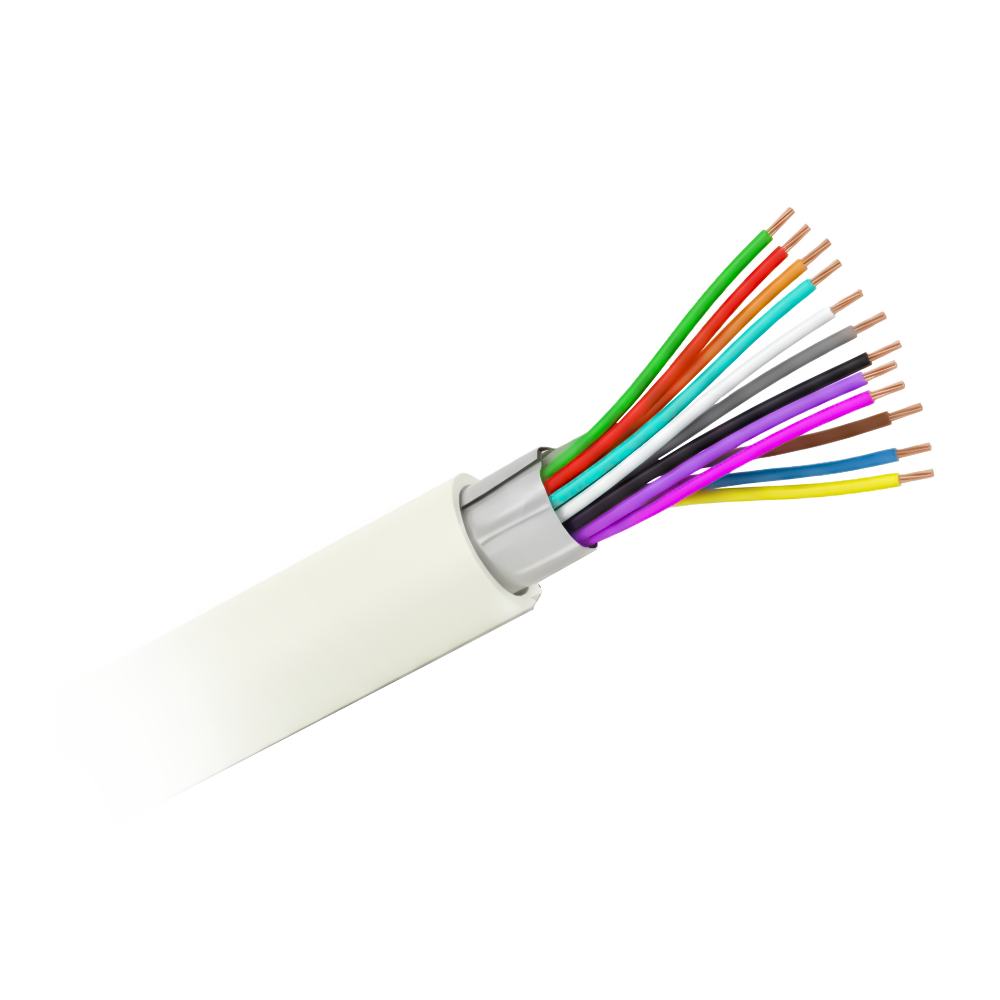

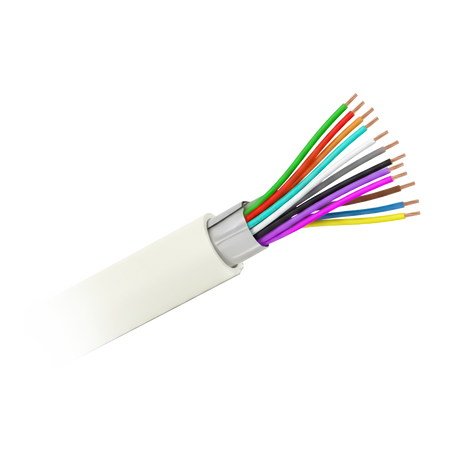

12 conductors Flexible electrolytic copper conductor Class 5 - 100-meter coil
12 conductors Flexible electrolytic copper conductor Class 5 - 100-meter coil
Regular price
€112,98
Final price
Regular price
-6%
€120,00
Sale price
€112,98
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
12 conductors - Class 5 flexible electrolytic copper conductor - Aluminum polyester shielding + CuSn drain wire - 100-meter reel - CPR certificate: B2ca -s1a, d0, a1 - Low loss
📋 SPECIFICATIONS:
• Length: 100 m
• Inner conductor: Flexible electrolytic copper AWG24 0.22 mm2 Class 5
• Insulation: Polyethylene
• Conductor formation: Stranded
• Shield: Aluminum polyester with 96% coverage + CuSn drain wire
• Sheath: LHS0 polyolefin
• No. of conductors: 12 signal
• Conductivity: CPR (B2ca -s1a, d0, a1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2
📦 INCLUDED:
• Cable reel
| Length | 100 m |
|---|---|
| Inner conductor | Flexible electrolytic copper AWG24 0.22 mm2 Class 5 |
| Insulation | Polyethylene |
| Conductor formation | Braided |
| Shield | Aluminum polyester with 96% coverage + CuSn drain wire |
| Sheath | Polyolefin LHS0 |
| No. of conductors | 12 signal |
| Conductivity | CPR (B2ca -s1a, d0, a1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2 |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
