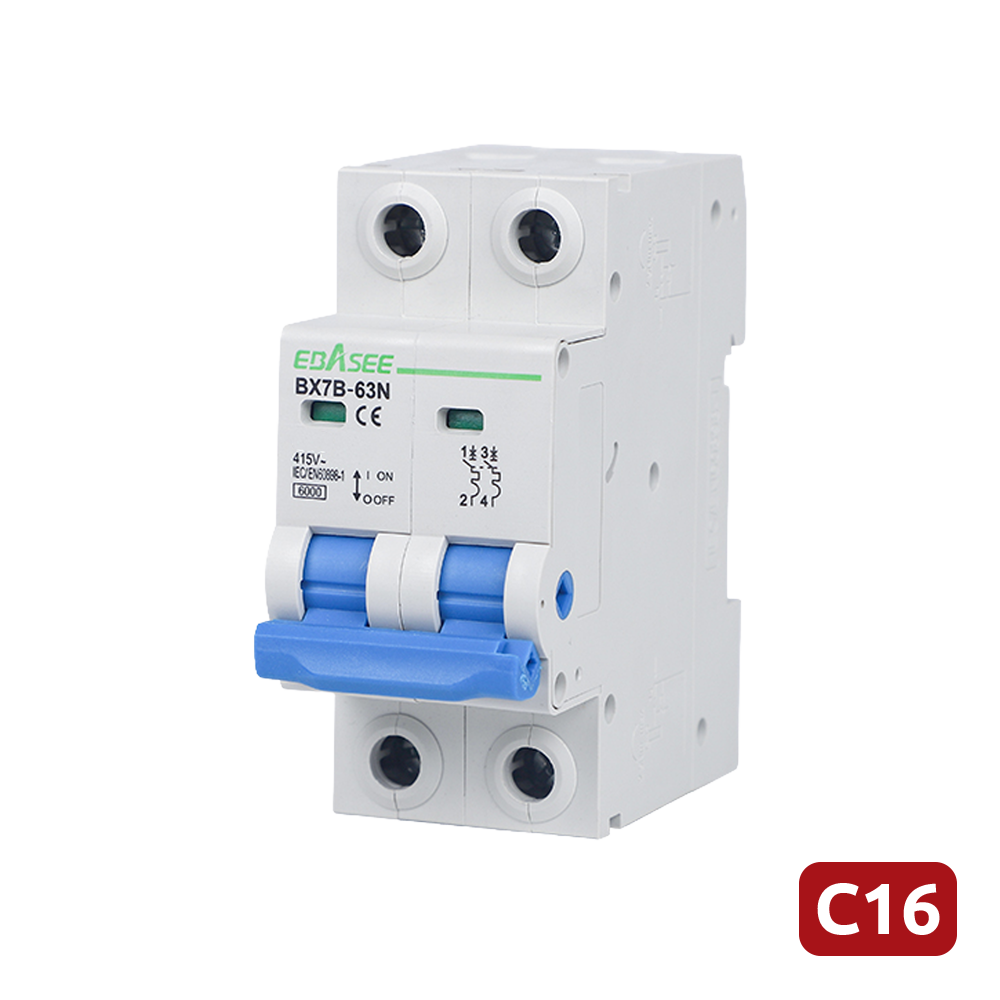

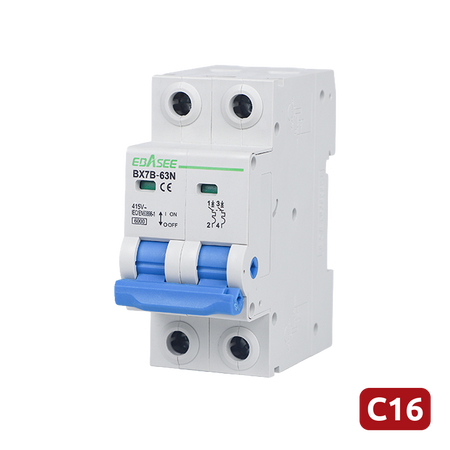

BX7B-63N-16A-2P
BX7B-63N-16A-2P

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Elettricity

Miniature circuit breaker - Rated current 16A - 2 poles (single-phase installations)

SKU: BX7B-63N-16A-2P
(0)
In stock
Usually shipped within 24 hours
€3,69 Final price
-8% €4,00 €3,69 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Miniature circuit breaker - Rated current 16A - 2 poles (single-phase installations) - Type C curve - DIN rail mount

📋 SPECIFICATIONS:
• Range: Miniature circuit breaker
• Mounting: 35mm DIN rail (EN 60175)
• Terminal type: Cable / Pin-type busbar
• Connection: Top / bottom
• Top connection cross-section: 25mm2 AWG 18/3
• Bottom connection cross-section: 25mm2 AWG 18/3
• Tightening torque: 2Nm
• Recommended conductor cross-section: 2.5mm2 (13-20A rated current)
• Dimensions: 35.6 (H) x 81.4 (W) x 79.0 (D) mm
• Rated input current: 16A
• Number of poles: 2P (Single-phase)
• Rated voltage: 240V
• Insulation voltage: 500V
• Rated frequency: 50/60Hz
• Rated breaking capacity: 6000A
• Impulse withstand voltage: 6000V
• Dielectric test voltage at industrial frequency (1 min): 2kV
• Curve type: C
• Pollution degree: 2
• Electrical life: 6000 operations
• Mechanical life: 20000 cycles
• Protection degree: IP20
• Reference temperature: 30ºC
• Operating temperature: -5 - 40ºC
• Storage temperature: -25 - 70ºC

📦 INCLUDED:
• Miniature circuit breaker
Range Miniature circuit breaker
Mounting 35mm DIN rail (EN 60175)
Terminal type Cable / Pin-type busbar
Connection Top / bottom
Top connection cross-section 25mm2 AWG 18/3
Bottom connection cross-section 25mm2 AWG 18/3
Tightening torque 2Nm
Recommended conductor cross-section 2.5mm2 (13-20A rated current)
Dimensions 35.6 (H) x 81.4 (W) x 79.0 (D) mm
Rated input current 16A
Number of poles 2P (Single-phase)
Rated voltage 240V
Insulation voltage 500V
Rated frequency 50/60Hz
Rated breaking capacity 6000A
Impulse withstand voltage 6000V
Power-frequency dielectric test voltage (1 min) 2kV
Curve type C
Pollution degree 2
Electrical life 6000 operations
Mechanical life 20000 cycles
Protection degree IP20
Reference temperature 30ºC
Operating temperature -5 - 40ºC
Storage temperature -25 - 70ºC
