BL-EP760-4xB500
BL-EP760-4xB500

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

BLUETTI

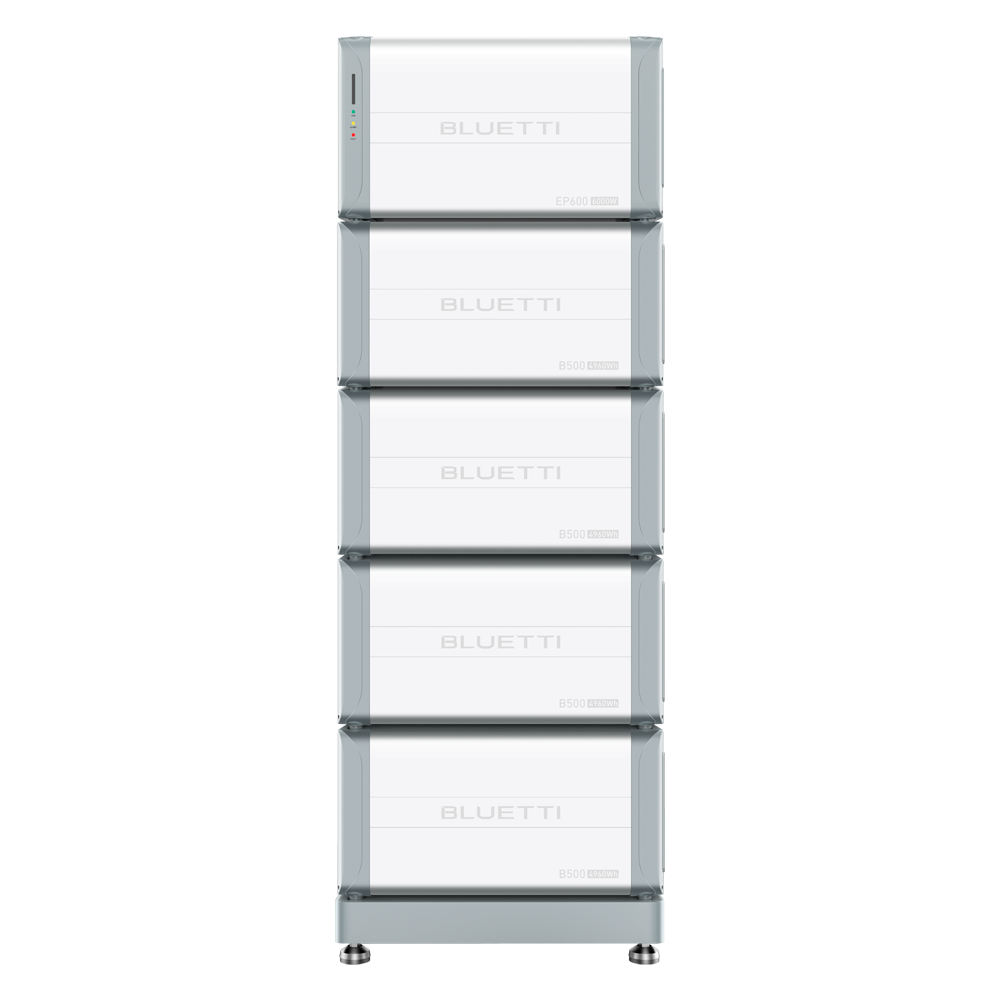

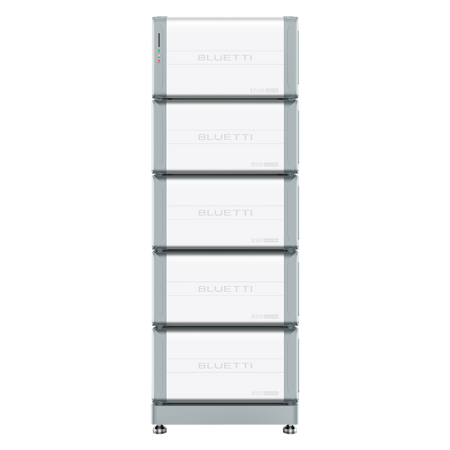

Bluetti Inverter + Battery + Mounting Home Battery Kit - 19840Wh High Capacity - 7600W Power

SKU: BL-EP760-4xB500
(0)
Out of stock
€8.070,30 Final price
-6% €8.600,00 €8.070,30 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Home battery kit - Inverter + Battery + Support - Large capacity 19840Wh - Power 7600W - APP control (WiFi and Bluetooth) - IP65

📋 SPECIFICATIONS:
• Power: 7600W
• Capacity: 19840Wh
• Warranty: 10 years (certified installer)
• Brand: Bluetti
• Capacity: 4960Wh
• Battery type: LiFePO4 99.2V / 50Ah
• Voltage: 77.5~113.65 Vdc
• Life cycle: +4000 (at 80%)
• Operating temp.: -20-40 ℃
• Dimensions: 325 (H) x 636 (D) x 338 (W) mm
• Weight: 58 Kg
• Warranty: 10 years
• Maximum charging voltage: 108.5V
• Minimum discharging voltage: 86.8V
• Maximum charging current: 25A
• Maximum discharging current: 50A
• Brand: Bluetti
• Connection: Single-phase
• Capacity: 9920Wh (at least 2x BL-B500)
• Maximum output power: 7600W
• Output voltage: 230V
• Dimensions: 325 (H) x 370 (W) x 636 (D) mm
• Weight: 44 Kg
• Protection degree: IP65
• Connectivity: App (WiFi / Bluetooth)
• Other: Supports up to 4x BL-B500
• Warranty: 10 years
• PV input: 9,000 W (3 strings: 3,000W + 3,000W + 3,000W)
• Maximum PV input power: 13.5 KWp
• Maximum input power per PV string: 4.5 KWp
• Number of MPPTs: 3
• Strings / MPPT: 1
• MPPT voltage range: 150V - 500V
• Maximum input voltage: 550V
• Maximum input current per MPPT: 12.5A
• Maximum short-circuit current per MPPT: 15A
• Safety Certification: IEC 62109−1, IEC 62109−2, EN 62109−1, EN 62109−2
• Grid Connection Certification: EN 50549−1, UTE C 15−712−1, DIN V VDE V 0126−1−1, Enedis-PRO-RES_10E; version 5, VFR, G99/NI Issue 1, G99 Issue 1 Amendment 9, VDE-AR-N 4105, DIN; VDE V 0124−100 (VDE V 0124−100), RD647, UNE 217002, RD 1699, RD 413 BOE-A,; CEI 0−21−03 + V1, AS/NZS 4777, C10/11, G100 Issue 2 Amendment 2
• Emission Certification: EN/IEC 61000−6−3, EN/IEC 61000−6−1

📦 INCLUDED:
• Home battery kit• Certifications• User manual
Power 7600W
Capacity 19840Wh
Warranty 10 years (certified installer)
Capacity 4960Wh
Battery type LiFePO4 99.2V / 50Ah
Voltage 77.5~113.65 Vdc
Lifecycle +4000 (at 80%)
Operating temp. -20-40 ℃
Dimensions 325 (H) x 636 (D) x 338 (W) mm
Weight 58 Kg
Warranty 10 years
Maximum charging voltage 108.5V
Minimum discharge voltage 86.8V
Maximum charging current 25A
Maximum discharge current 50A
Connection Single-phase
Capacity 9920Wh (at least 2x BL-B500)
Maximum output power 7600W
Output voltage 230V
Dimensions 325 (H) x 370 (W) x 636 (D) mm
Weight 44 Kg
Protection rating IP65
Connectivity App (WiFi / Bluetooth)
Other Supports up to 4x BL-B500
Warranty 10 years
PV input 9,000 W (3 strings: 3,000W + 3,000W + 3,000W)
Maximum PV input power 13.5 KWp
Maximum input power per PV string 4.5 KWp
Number of MPPT 3
Strings / MPPT 1
MPPT voltage range 150V - 500V
Maximum input voltage 550V
Maximum input current per MPPT 12.5A
Maximum short-circuit current per MPPT 15A
Safety Certification IEC 62109−1, IEC 62109−2, EN 62109−1, EN 62109−2
Grid Connection Certification EN 50549−1, UTE C 15−712−1, DIN V VDE V 0126−1−1, Enedis-PRO-RES_10E version 5, VFR, G99/NI Issue 1, G99 Issue 1 Amendment 9, VDE-AR-N 4105, DIN VDE V 0124−100 (VDE V 0124−100), RD647, UNE 217002, RD 1699, RD 413 BOE-A, CEI 0−21−03 + V1, AS/NZS 4777, C10/11, G100 Issue 2 Amendment 2
Emissions Certification EN/IEC 61000−6−3, EN/IEC 61000−6−1
