Infrared beam detector
Regular price
€126,82
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

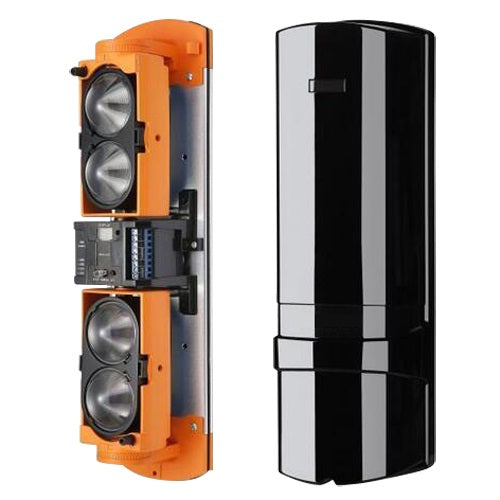

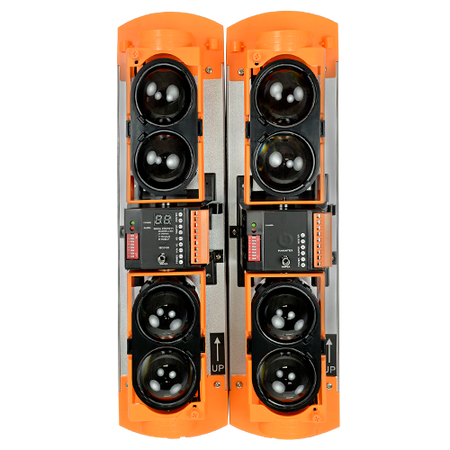

Infrared beam detector - Wired | 4 beams | AND and OR function - Max. detection distance 250 / 750 m - Highly configurable - Tamper | Relay output | LED display - Power supply 12~24VDC/VAC

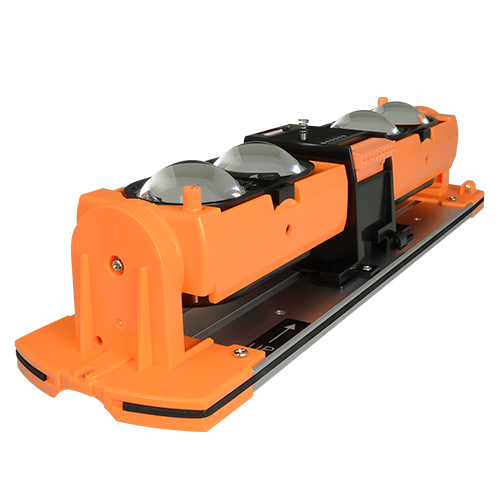

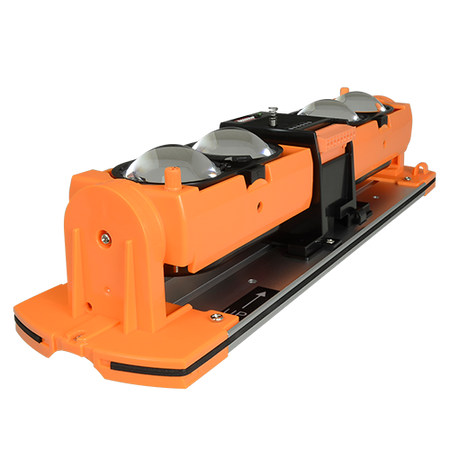

- Four-beam infrared outdoor barrier
- Wired
- Maximum transmitter/receiver detection range 750 m (indoor) and 250 m (outdoor)

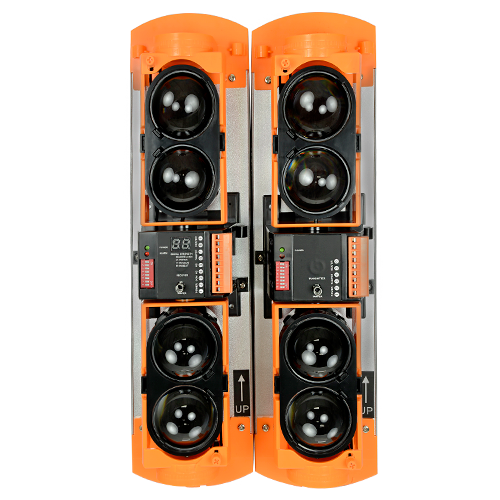

- Adjustable quad lens
- H: ±90º / V: ±10º
- AND/OR function
- DIP Switch for programming
- 4 operating frequencies

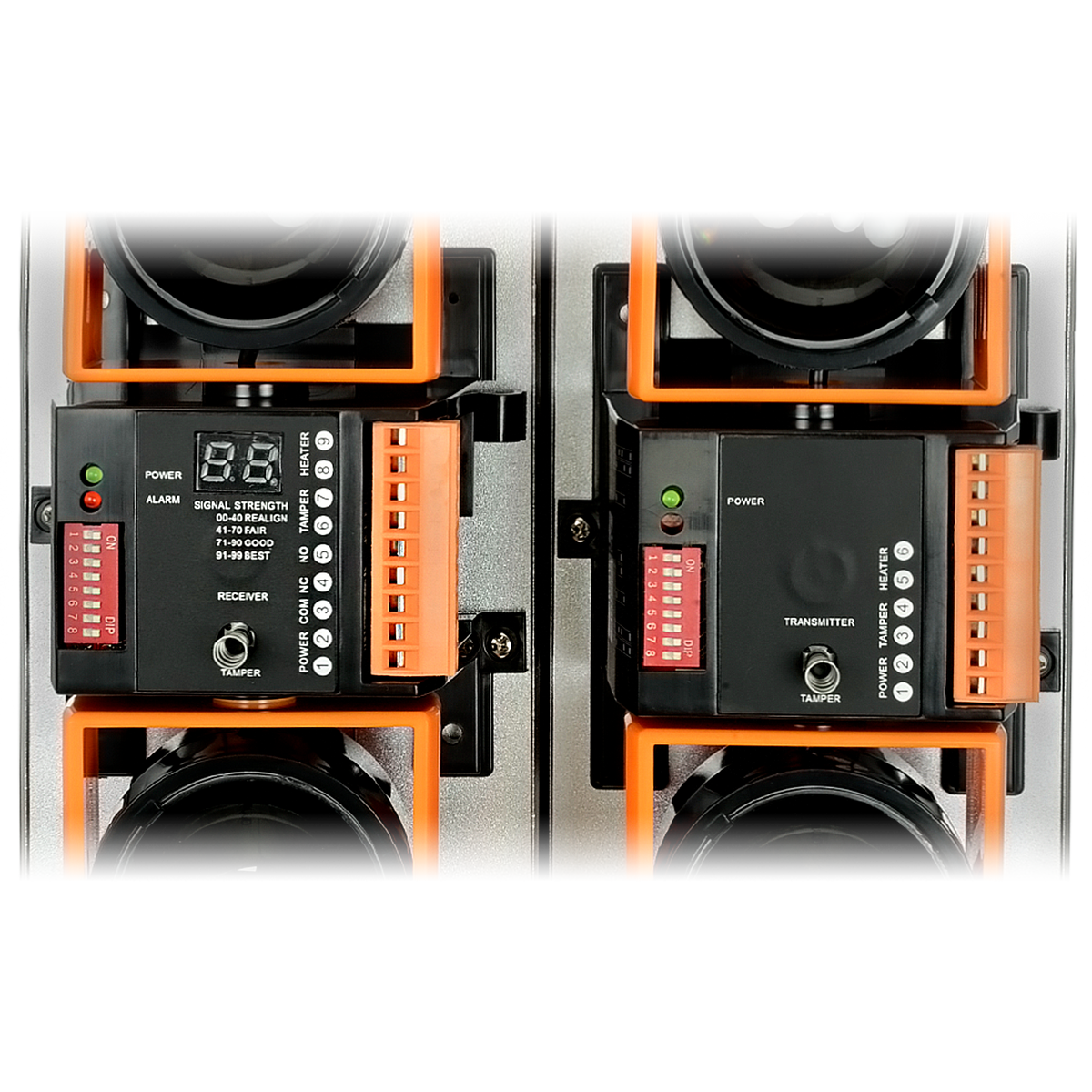

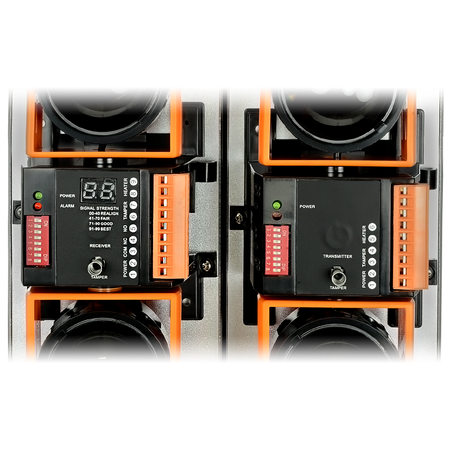

- LED display for easy installation
- Power supply 12-24 VDC/VAC
Technical datasheet
| Detection range | 750m indoor / 250m outdoor |
| Number of beams | 4 |
| Detection method | Interruption of 4 beams simultaneously or only 2 (top or bottom) |
| Interruption time | 50ms, 100ms, 300ms, 700ms (selectable) |
| Frequency channels | 4 different channels via DIP Switch |
| Alarm outputs | 1 relay NO/NC (max. 30VDC/VAC, 0.5A), Tamper NC |
| Adjustment angle | Horizontal 180°(±90°), Vertical 20°(±10°) |
| Adjustment method | Via LCD Display between 0-99 |
| Operating temperature | -25ºC ~ +55ºC |
| Protection rating | IP65 |
| Power supply | 12~24 VDC/VAC, 110 mA max. |
| Dimensions | 291 (W) x 92 (H) x 90 (D) mm |
Technical features
- 4-beam barrier | AND and OR function
- Max. detection distance 250 / 750 m
- Tamper | Relay output | LED display
- Power supply 12~24VDC/VAC
| Detection range | 750m indoor / 250m outdoor |
|---|---|
| Number of beams | 4 |
| Detection method | Interruption of 4 beams simultaneously or only 2 (up or down) |
| Interruption time | 50ms, 100ms, 300ms, 700ms (selectable) |
| Frequency channels | 4 different channels via DIP Switch |
| Alarm outputs | 1 relay NO/NC (max. 30VDC/VAC, 0.5A), Tamper NC |
| Adjustment angle | Horizontal 180°(±90°), Vertical 20°(±10°) |
| Adjustment method | Via LCD Display between 0-99 |
| Operating temperature | -25ºC ~ +55ºC |
| Protection rating | IP65 |
| Power supply | 12~24 VDC/VAC, 110 mA max. |
| Dimensions | 291 (W) x 92 (H) x 90 (D) mm |
- User manual Link
