Infrared beam detector
Regular price
€78,40
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

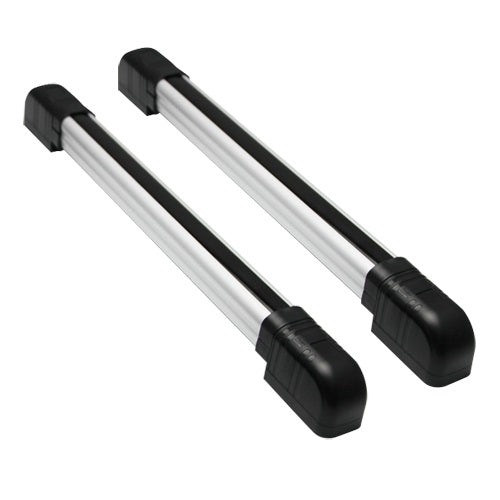

Infrared barrier detector - Wired | 8 beams - Max. detection distance 100 m - Easy installation with LED and buzzer - NC/NO relay output - Power supply 9~30VDC
- 8-beam infrared barrier for outdoor use
- Wired
- Maximum sender / receiver detection distance 100 m (outdoor)

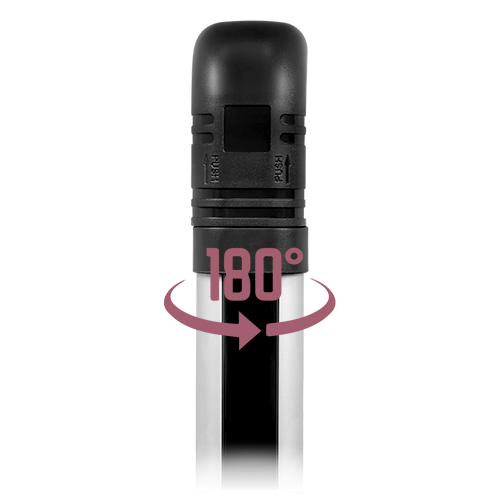

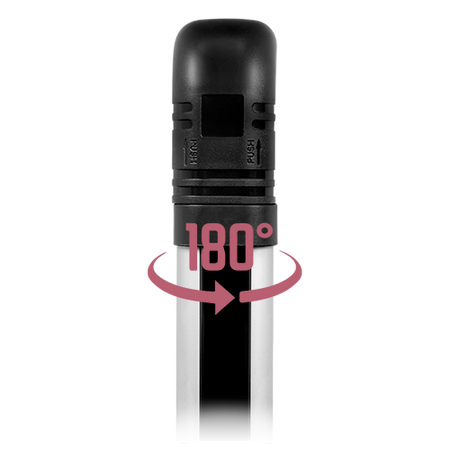

- 180º horizontal adjustment (±90º)
- 2 operating frequencies
- LED and buzzer for easy installation
- Power supply 9~30 VDC
Technical sheet
| Detection range | 100m outdoors |
| Number of beams | 8 |
| Detection method | Interruption of 2 continuous beams at a time |
| Sensitivity | Adjustable between L, M and H |
| Frequency channels | 2 different channels via DIP Switch |
| Alarm outputs | 1 NO/NC relay (max. 30VDC/VAC, 0.5A) |
| Adjustment angle | Horizontal 180°(±90°) |
| Adjustment method | Via LED and buzzer |
| Operating temperature | -25ºC ~ +55ºC |
| Protection rating | IP65 |
| Power supply | 9~30 VDC, 50~120 mA |
| Dimensions | 140 (W) x 4 (H) x 7 (D) cm |
Technical features
- 8-BEAM infrared barrier for outdoor use
- Maximum sender / receiver detection distance 100 m
- LED and buzzer for easy installation
- Power supply 12~18 VDC.
| Detection range | 100m outdoors |
|---|---|
| Number of beams | 8 |
| Detection method | Interruption of 2 continuous beams at a time |
| Sensitivity | Adjustable between L, M and H |
| Frequency channels | 2 different channels via DIP Switch |
| Alarm outputs | 1 NO/NC relay (max. 30VDC/VAC, 0.5A) |
| Adjustment angle | Horizontal 180° (±90°) |
| Adjustment method | Via LED and buzzer |
| Operating temperature | -25ºC ~ +55ºC |
| Protection rating | IP65 |
| Power supply | 9~30 VDC, 50~120 mA |
| Dimensions | 140 (W) x 4 (H) x 7 (D) cm |
- User manual Link
