Infrared beam detector
Regular price
€48,42
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

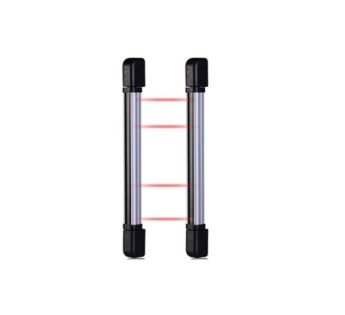

Infrared barrier detector - Wired | 4 beams - Max. detection distance 30 m - Easy installation with LED and buzzer - NC/NO relay output - Power supply 9~30VDC
- 4-beam outdoor infrared barrier
- Wired
- Maximum transmitter/receiver detection 30 m (outdoor)

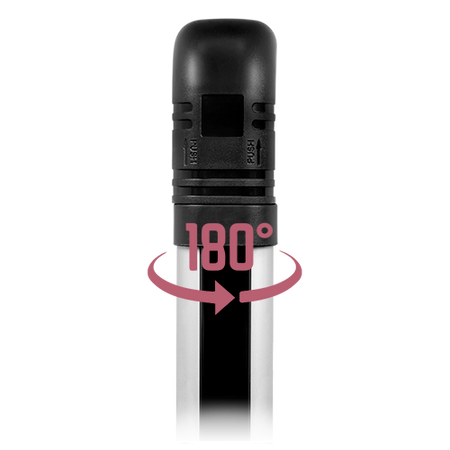

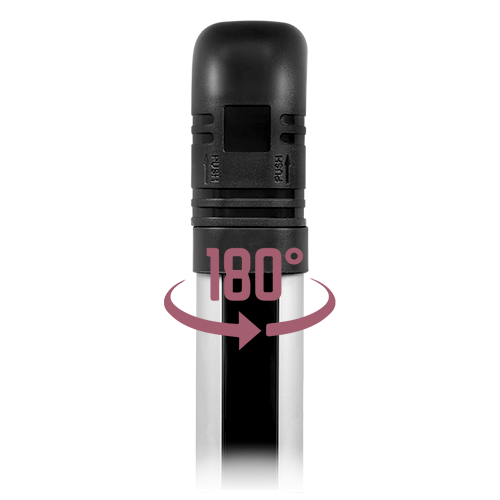

- 180º horizontal adjustment (±90º)
- 2 operating frequencies
- LED and buzzer for easy installation
- Power supply 9~30 VDC
Technical specifications
| Detection range | 30m outdoor |
| Number of beams | 4 |
| Detection method | Interruption of 2 continuous beams at a time |
| Sensitivity | Adjustable between L, M, H |
| Frequency channels | 2 different channels via DIP Switch |
| Alarm outputs | 1 NO/NC relay (max. 30VDC/VAC, 0.5A) |
| Adjustment angle | Horizontal 180°(±90°) |
| Adjustment method | Via LED and buzzer |
| Operating temperature | -25ºC ~ +55ºC |
| Protection rating | IP65 |
| Power supply | 9~30 VDC, 50~120 mA |
| Dimensions | 76 (W) x 4 (H) x 7 (D) cm |
Technical features
- Wired 4-beam outdoor infrared barrier.
- Max. detection distance 30m, power supply 12-18 VDC.
- 180º horizontal adjustment. 2 operating frequencies.
- LED and buzzer for easy installation
| Detection range | 30m outdoor |
|---|---|
| Number of beams | 4 |
| Detection method | Interruption of 2 adjacent beams at a time |
| Sensitivity | Adjustable between L, M, H |
| Frequency channels | 2 different channels via DIP Switch |
| Alarm outputs | 1 relay NO/NC (max. 30VDC/VAC, 0.5A) |
| Adjustment angle | Horizontal 180°(±90°) |
| Alignment method | Via LED and buzzer |
| Operating temperature | -25ºC ~ +55ºC |
| Protection rating | IP65 |
| Power supply | 9~30 VDC, 50~120 mA |
| Dimensions | 76 (W) x 4 (H) x 7 (D) cm |
- User manual Link
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
