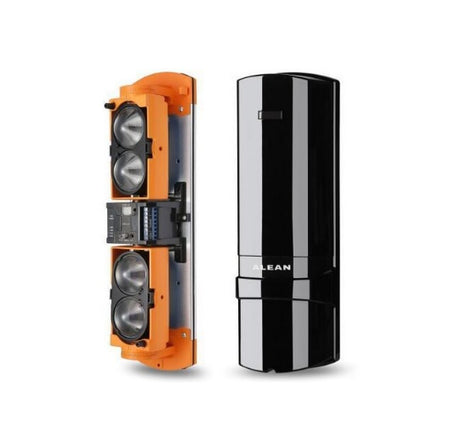

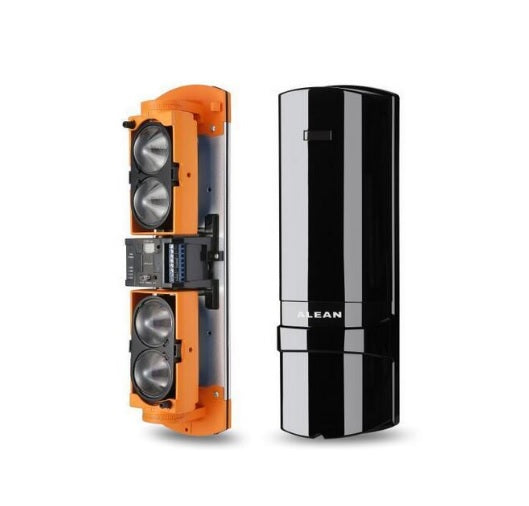

Infrared beam detector

SKU: ABH-150L
(0)
In stock
Usually shipped within 24 hours
€112,98 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Infrared beam detector - Wired | 4 beams | AND and OR function - Max. detection distance 150 / 450 m - Highly configurable - Tamper | Relay output | LED Display - Power supply 12~24VDC/VAC

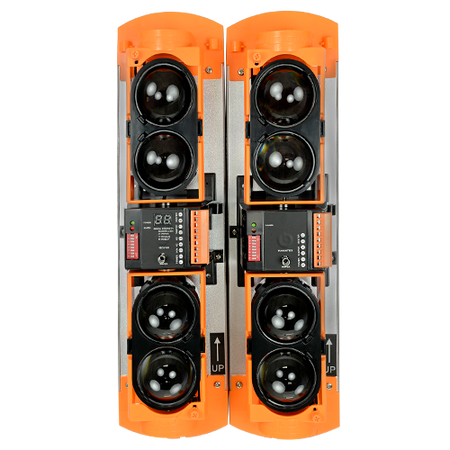

  • Four-beam infrared barrier for outdoor use
  • Wired
  • Maximum transmitter / receiver detection 450 m (indoor) and 150 m (outdoor)

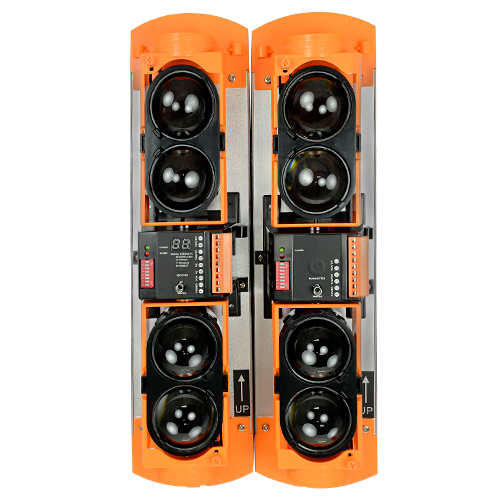

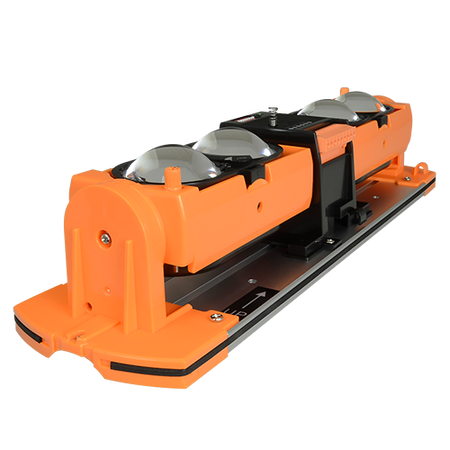

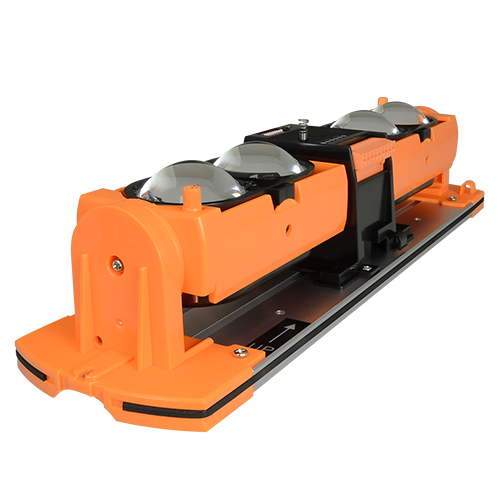

  • Adjustable quad lens
  • H: ±90º / V: ±10º
  • AND/OR function
  • DIP Switch for programming
  • 4 operating frequencies

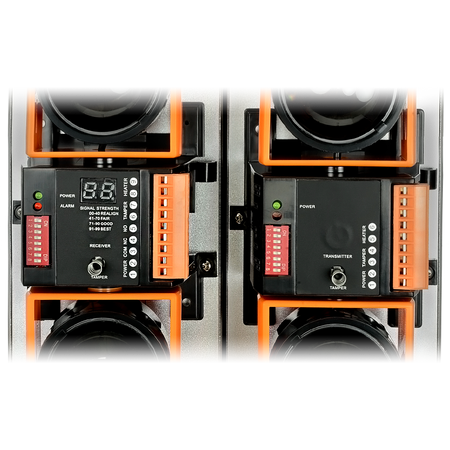

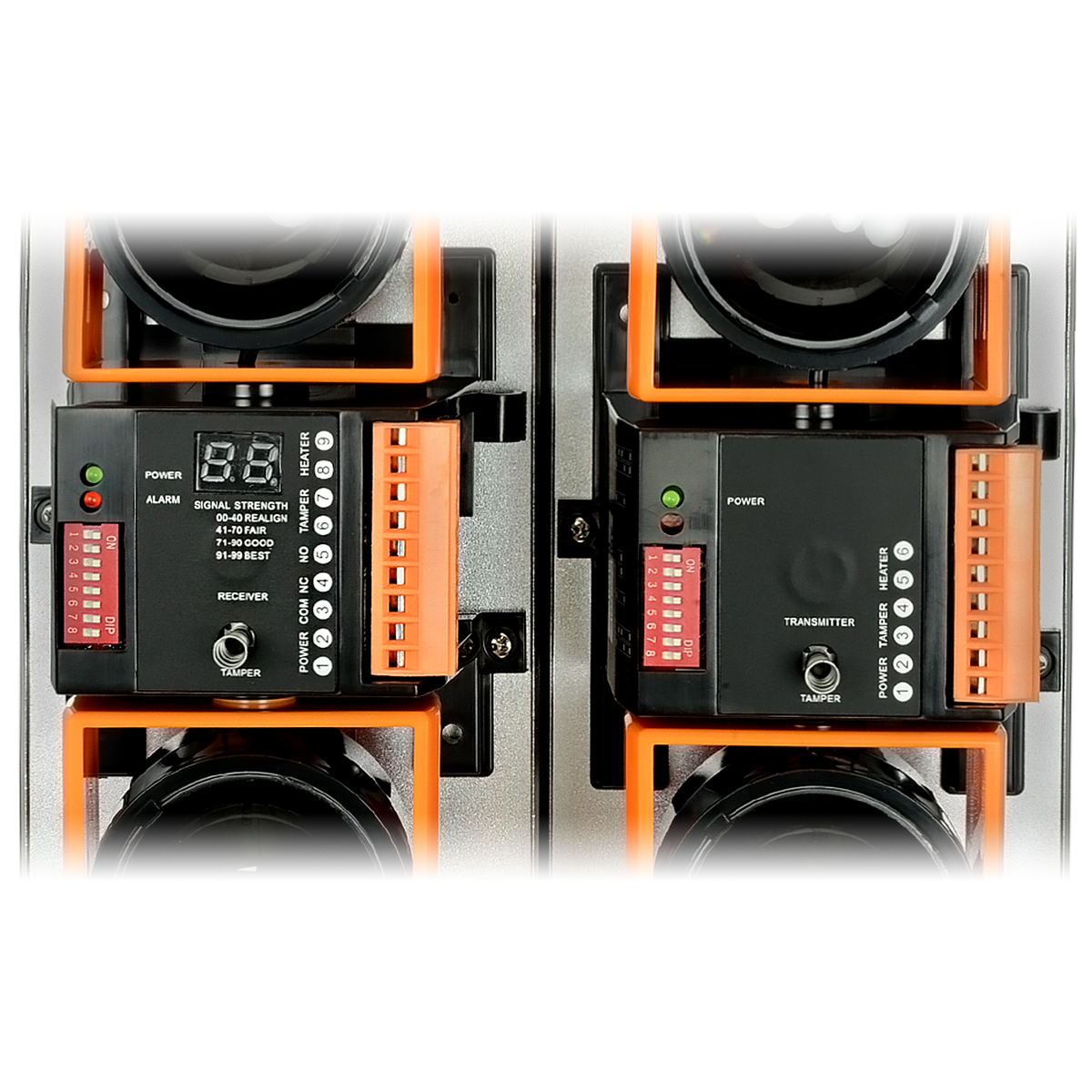

  • LED display for easy installation
  • Power supply 12~24 VDC/VAC

Technical datasheet

Detection range 450m indoor / 150m outdoor
Number of beams 4
Detection method Interruption of 4 beams simultaneously or only 2 (upper or lower)
Interruption time 50ms, 100ms, 300ms, 700ms (selectable)
Frequency channels 4 different channels via DIP Switch
Alarm outputs 1 NO/NC relay (max. 30VDC/VAC, 0.5A), NC Tamper
Adjustment angle Horizontal 180°(±90°), Vertical 20°(±10°)
Adjustment method Via LCD display from 0-99
Operating temperature -25ºC ~ +55ºC
Protection rating IP65
Power supply 12~24 VDC/VAC, 90 mA max.
Dimensions 291 (W) x 92 (H) x 90 (D) mm

Technical features

  • 4-beam barrier | AND and OR function.
  • Detection distance 150m outdoor 450m indoor.
  • Tamper | Relay output | LED Display. Power supply
  • 12~24VDC/VAC. Dim. H 29 x W 9.0 x D 9.2 cm.

Download user manual (PDF)
Detection range 450m indoor / 150m outdoor
Number of beams 4
Detection method Interruption of 4 beams simultaneously or only 2 (top or bottom)
Interruption time 50ms, 100ms, 300ms, 700ms (selectable)
Frequency channels 4 different channels via DIP Switch
Alarm outputs 1 relay NO/NC (max. 30VDC/VAC, 0.5A), Tamper NC
Adjustment angle Horizontal 180°(±90°), Vertical 20°(±10°)
Adjustment method Via LCD Display between 0-99
Operating temperature -25ºC ~ +55ºC
Protection rating IP65
Power supply 12~24 VDC/VAC, 90 mA max.
Dimensions 291 (W) x 92 (H) x 90 (D) mm
