SAFIRE passive twisted pair transmitter - 4N1 (HDTVI, HDCVI, AHD and CVBS)
SAFIRE passive twisted pair transmitter - 4N1 (HDTVI, HDCVI, AHD and CVBS)
Regular price
€11,18
Final price
Regular price
-17%
€13,50
Sale price
€11,18
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

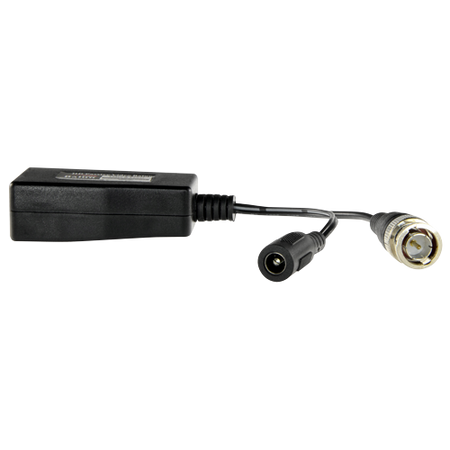

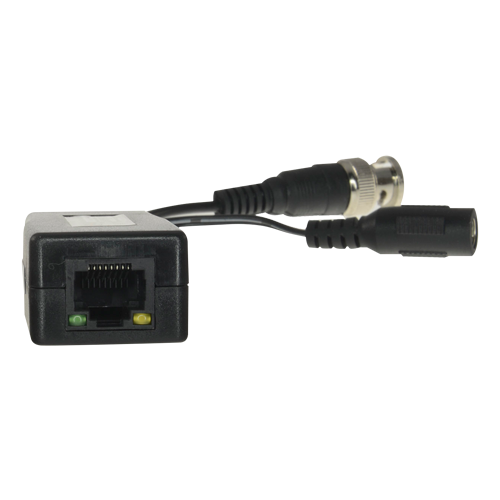

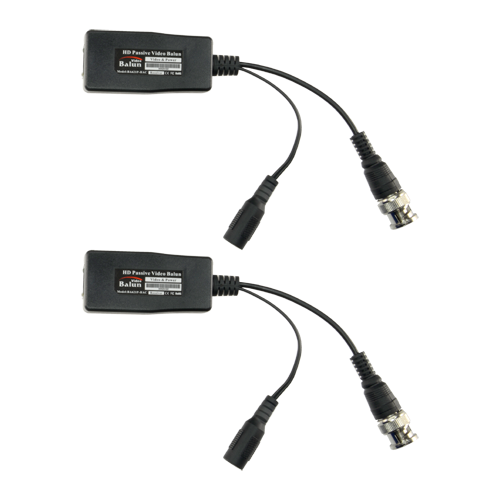

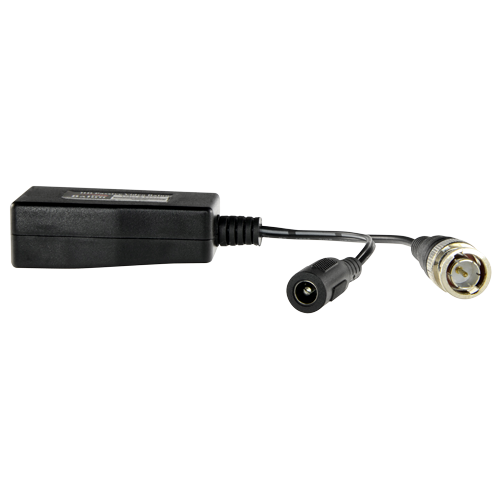

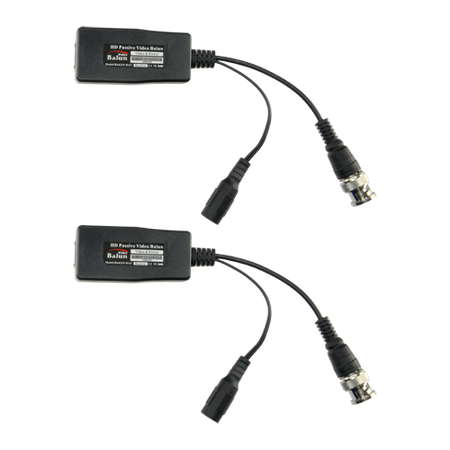

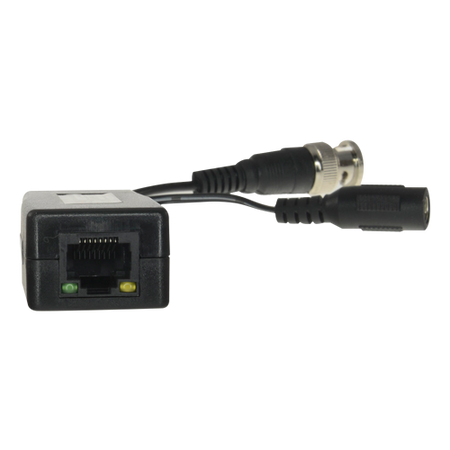

SAFIRE passive twisted pair transmitter - 4N1 (HDTVI, HDCVI, AHD and CVBS) - 1 video and power channel - RJ45, BNC and Jack connector - Distance: 190 ~ 440 m - 2 units
📋 SPECIFICATIONS:
• Brand: Safire
• Number of channels: 1 channel
• Power supply: Not required (passive)
• Video input / output: BNC (male)
• Power input / output: Standard Jack (male/female)
• Transmission distance: HDTVI 200/200/200/200 m (720p/1080p/4Mpx/4K), HDCVI 400/250/200/200 m (720p/1080p/4Mpx/4K), AHD 350/200/200 m (720p/1080p/4Mpx), CVBS 350 m
• Twisted pair connector: RJ45
• Crosstalk: 60 dB
• Input impedance: 75 Ohm
• Output impedance: 100 Ohm
• Cable category: UTP category 5E/6
📦 INCLUDED:
• - Pair of passive HD transceivers
| Number of channels | 1 channel |
|---|---|
| Power supply | Not required (passive) |
| Video Input / Output | BNC (male) |
| Power Input/Output | Standard jack (male/female) |
| Transmission distance | HDTVI 200/200/200/200 m (720p/1080p/4Mpx/4K), HDCVI 400/250/200/200 m (720p/1080p/4Mpx/4K), AHD 350/200/200 m (720p/1080p/4Mpx), CVBS 350 m |
| Twisted pair connector | RJ45 |
| Crosstalk | 60 dB |
| Input impedance | 75 Ohm |
| Output impedance | 100 Ohm |
| Cable category | UTP category 5E/6 |
