SAFIRE passive twisted pair transmitter - Optimized for HDTVI, HDCVI, AHD and CVBS - 8Mpx
SAFIRE passive twisted pair transmitter - Optimized for HDTVI, HDCVI, AHD and CVBS - 8Mpx
Regular price
€3,35
Final price
Regular price
-4%
€3,50
Sale price
€3,35
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

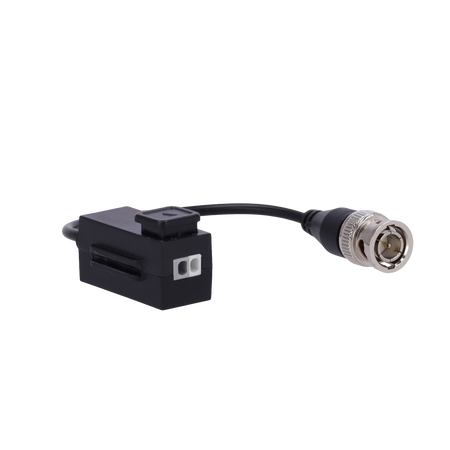

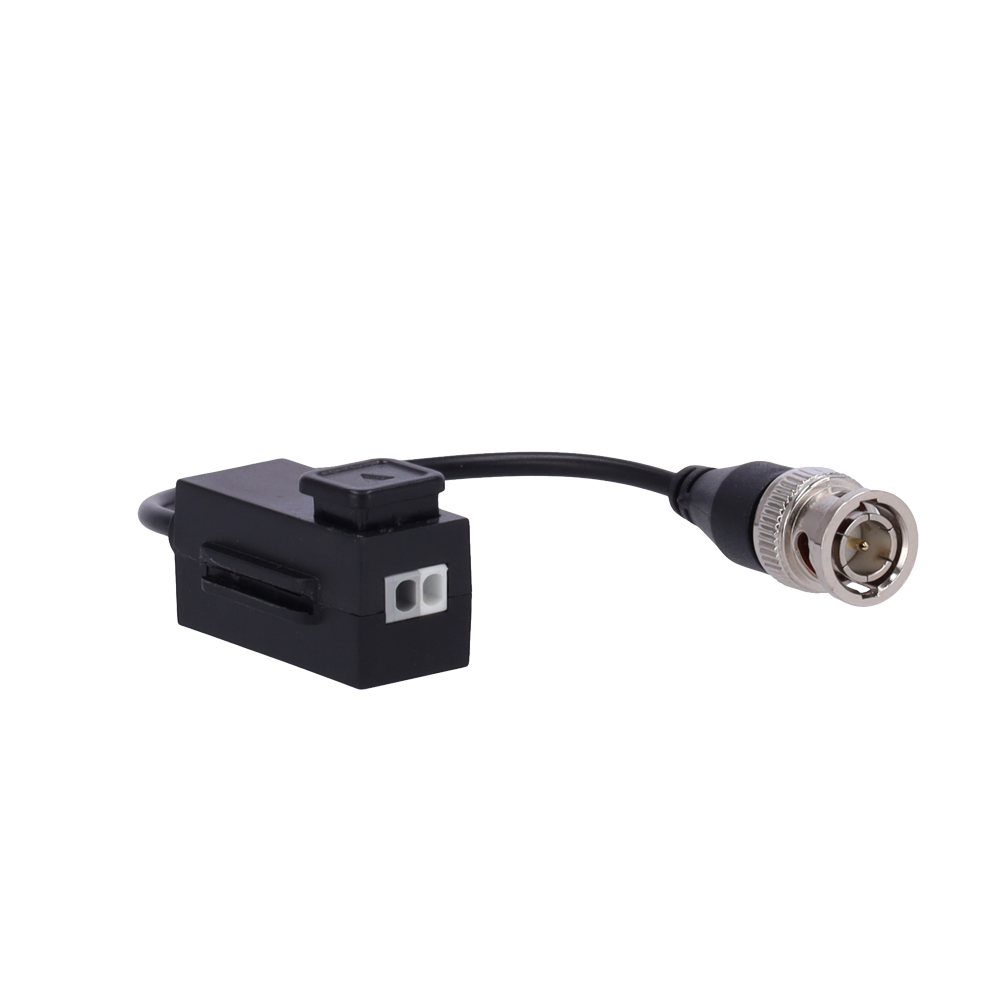

SAFIRE passive twisted pair transceiver - Optimized for HDTVI, HDCVI, AHD and CVBS - 1 video channel - Includes a set consisting of a transmitter and receiver - Distance: 150 ~ 350 m - Resolution 8Mpx, 5Mpx, 4Mpx, 3Mpx, 1080p, 720p
📋 SPECIFICATIONS:
• Number of channels: 1 channel
• Power supply: Not required (passive)
• Video Input / Output: BNC (male)
• Resolution: 8Mpx, 5Mpx, 4Mpx, 3Mpx, 1080p, 720p
• Transmission distance for TVI: 720p - 200 m; 1080p - 200 m; 5 Mpx - 180 m; 8 Mpx - 150 m
• Transmission distance for CVI: 720p - 350 m; 1080p - 350 m; 5 Mpx - 250 m; 8 Mpx - 200 m
• Transmission distance for AHD: 720p - 350 m; 1080p - 350 m; 5 Mpx - 250 m; 8 Mpx - 200 m
• Transmission distance for CVBS: 720p - 350 m; 1080p - 350 m; 5 Mpx - 250 m; 8 Mpx - 200 m
• Twisted pair connector: Two-pin connector
• Transmission medium: CAT5, CAT5e, CAT6 network cables
• Dimensions: Length 150 mm
• Protection: 2000 V surge protection
📦 INCLUDED:

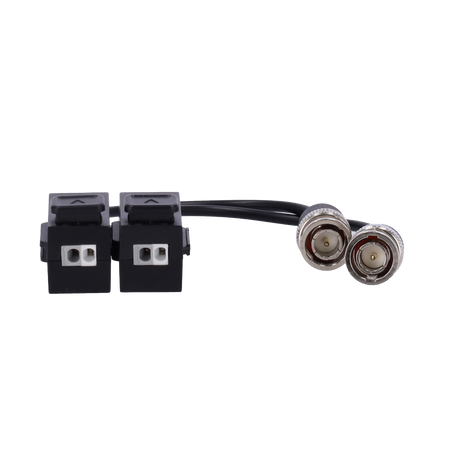

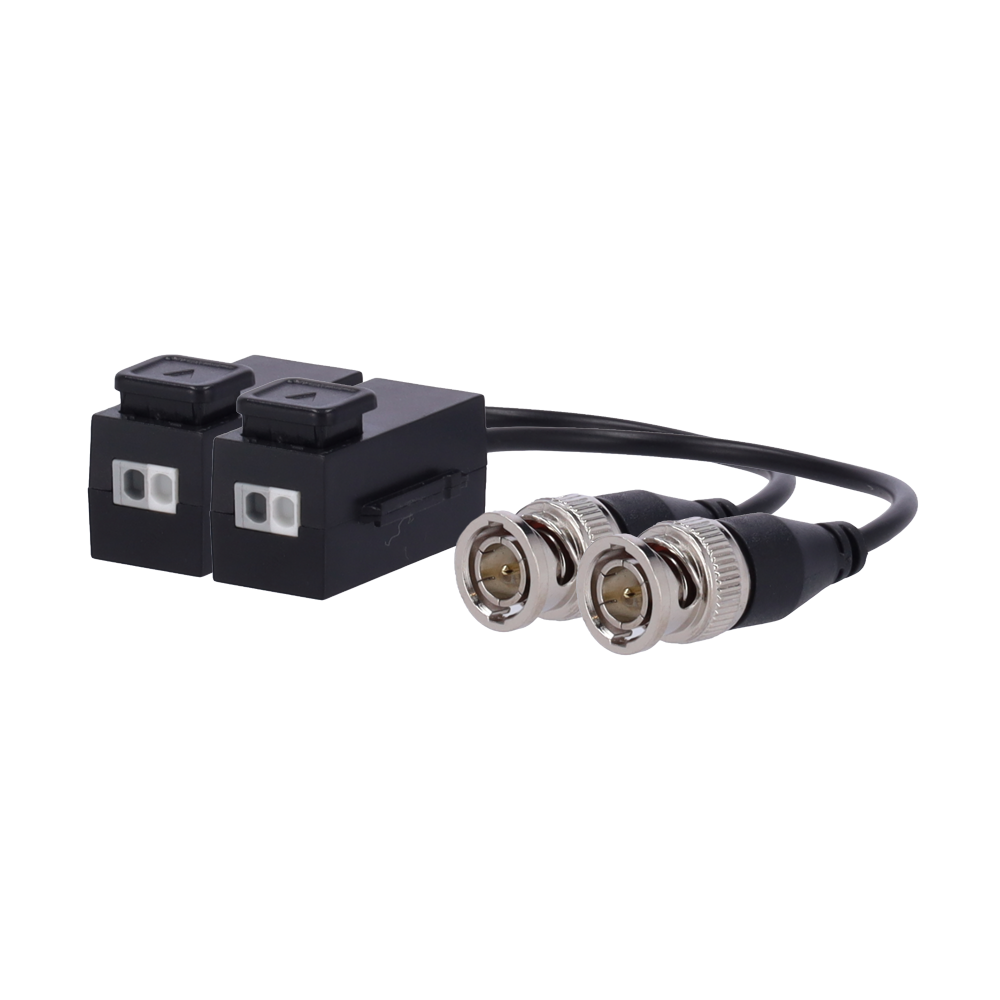

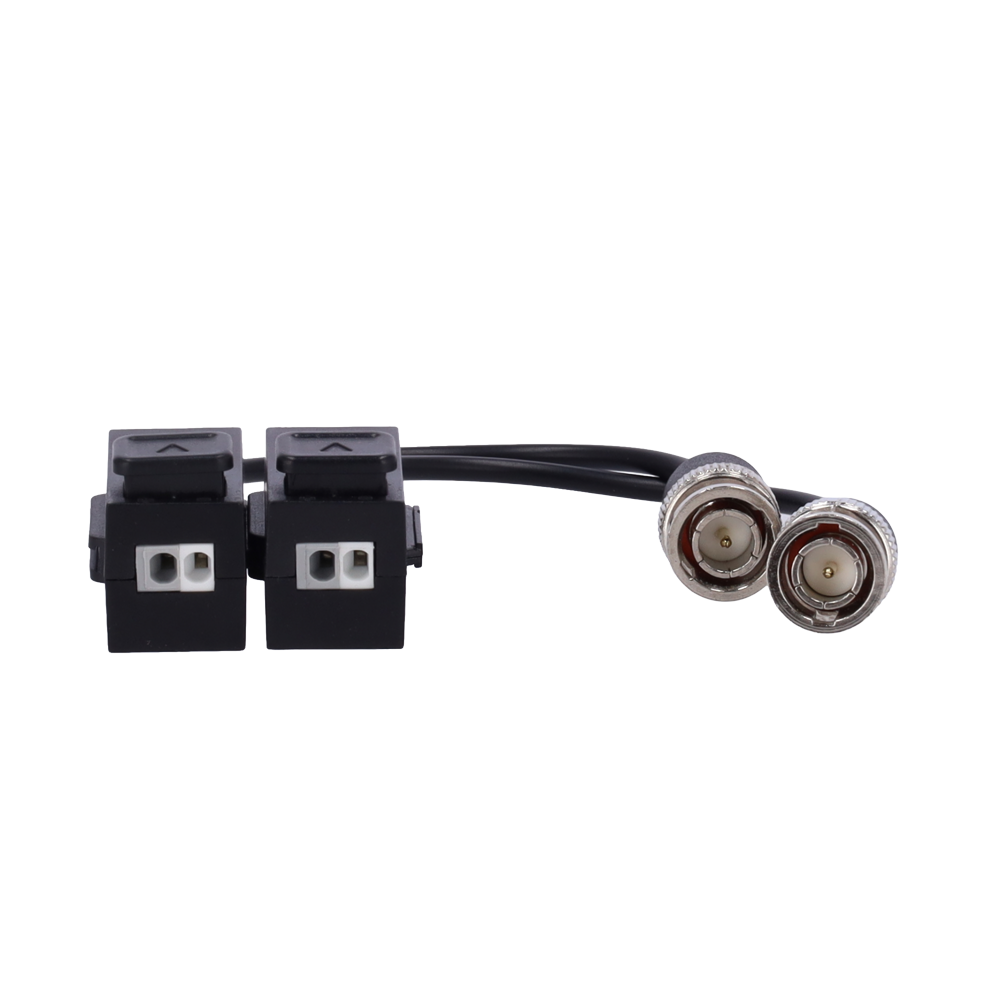

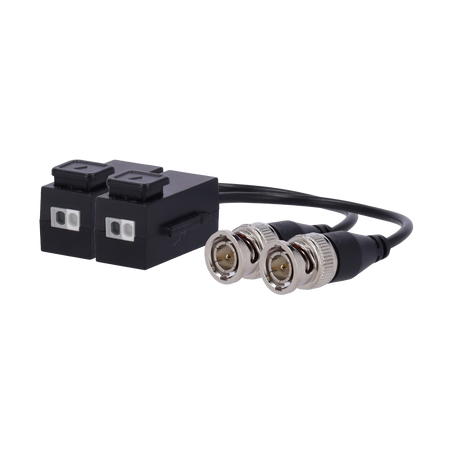

• Pair of HD passive transceivers (transmitter and receiver)
| Number of channels | 1 channel |
|---|---|
| Power supply | Not required (passive) |
| Video Input / Output | BNC (male) |
| Resolution | 8Mpx, 5Mpx, 4Mpx, 3Mpx, 1080p, 720p |
| Transmission distance for TVI | 720p - 200 m 1080p - 200 m 5 Mpx - 180 m 8 Mpx - 150 m |
| Transmission distance for CVI | 720p - 350 m 1080p - 350 m 5 Mpx - 250 m 8 Mpx - 200 m |
| Transmission distance for AHD | 720p - 350 m 1080p - 350 m 5 Mpx - 250 m 8 Mpx - 200 m |
| Transmission distance for CVBS | 720p - 350 m 1080p - 350 m 5 Mpx - 250 m 8 Mpx - 200 m |
| Twisted pair connector | Two-pin connector |
| Transmission medium | CAT5, CAT5e, CAT6 network cables |
| Dimension | Length 150 mm |
| Protection | Surge protection 2000 V |
- User manual Link
