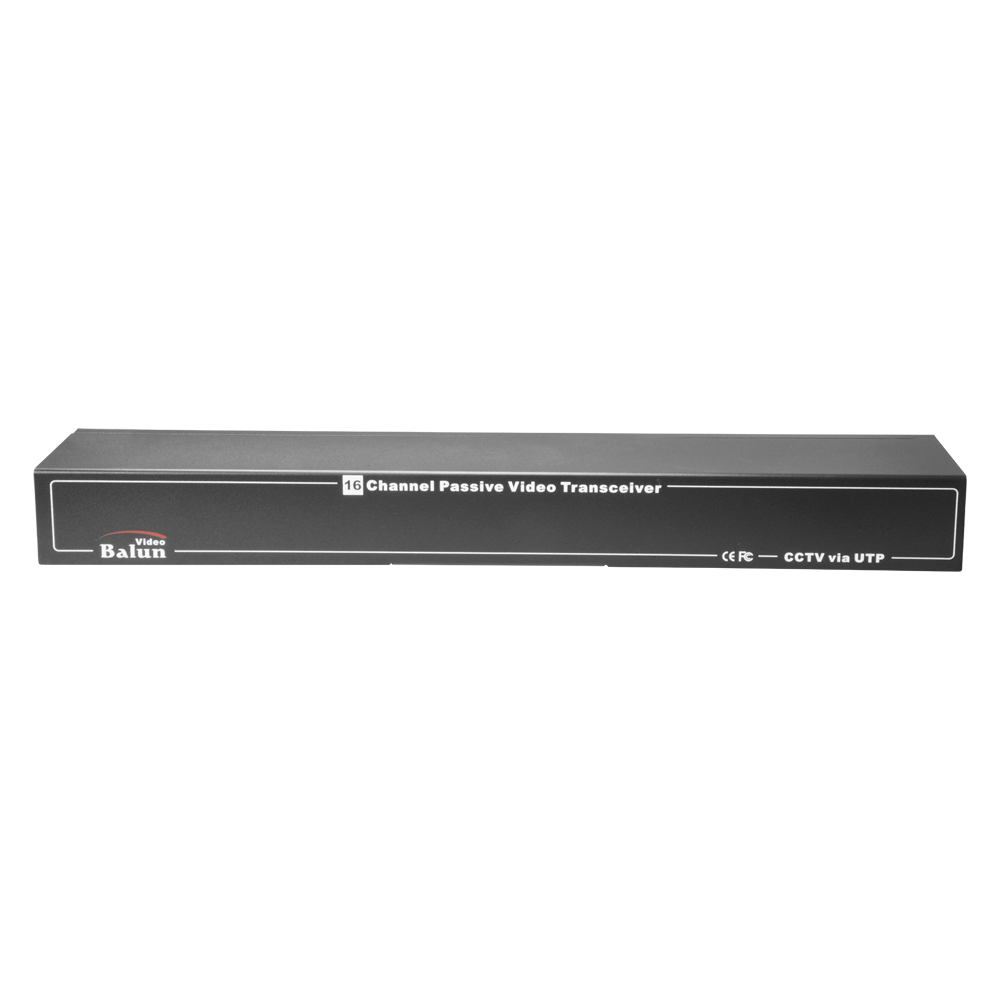

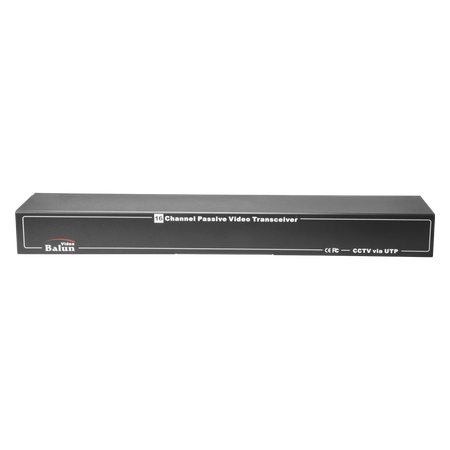

4N1 Video Balun (HDTVI, HDCVI, AHD and CVBS) - 16 passive channels
4N1 Video Balun (HDTVI, HDCVI, AHD and CVBS) - 16 passive channels
Regular price
€117,60
Final price
Regular price
-8%
€128,00
Sale price
€117,60
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
4-in-1 Video Balun (HDTVI, HDCVI, AHD, and CVBS) - 16 passive channels - Includes 16 BA612P-HAC - BNC and RJ45 connection - Distance: 180 ~ 440 m
📋 SPECIFICATIONS:

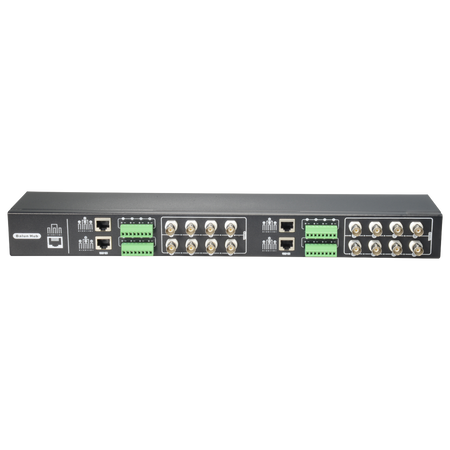

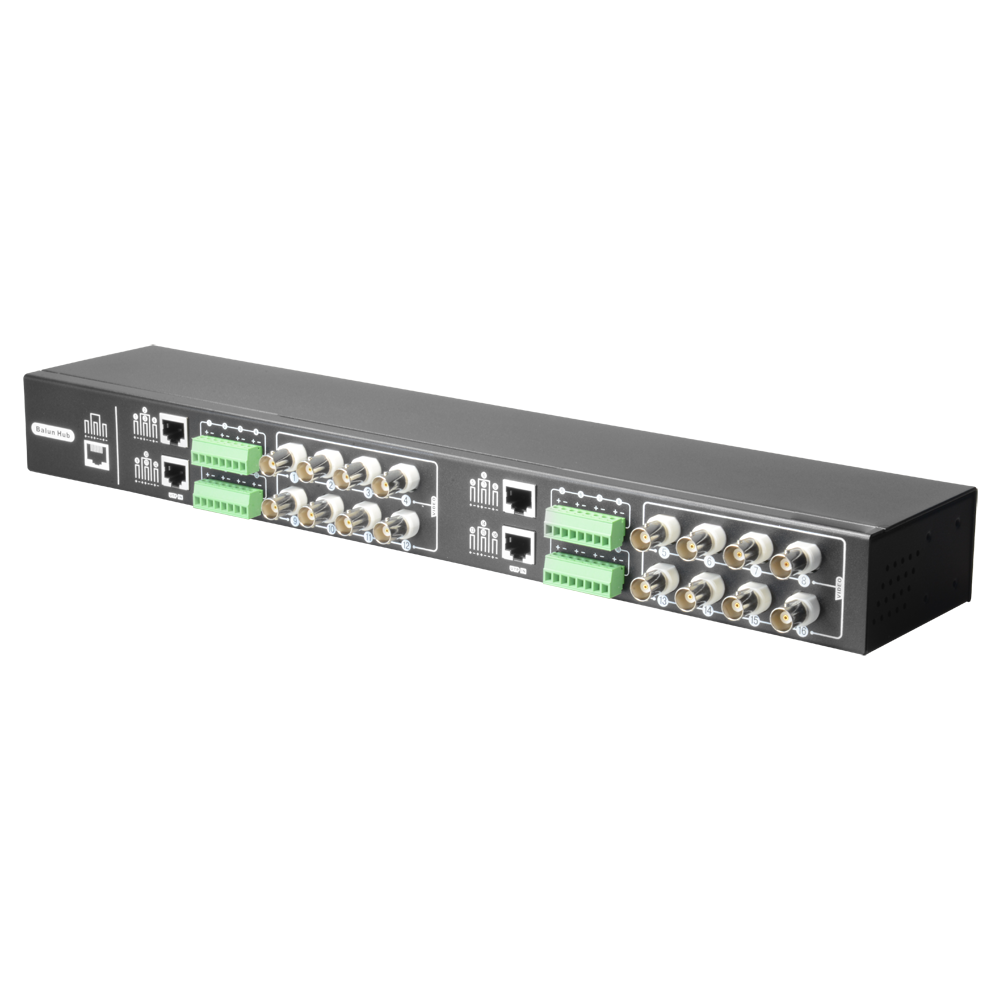

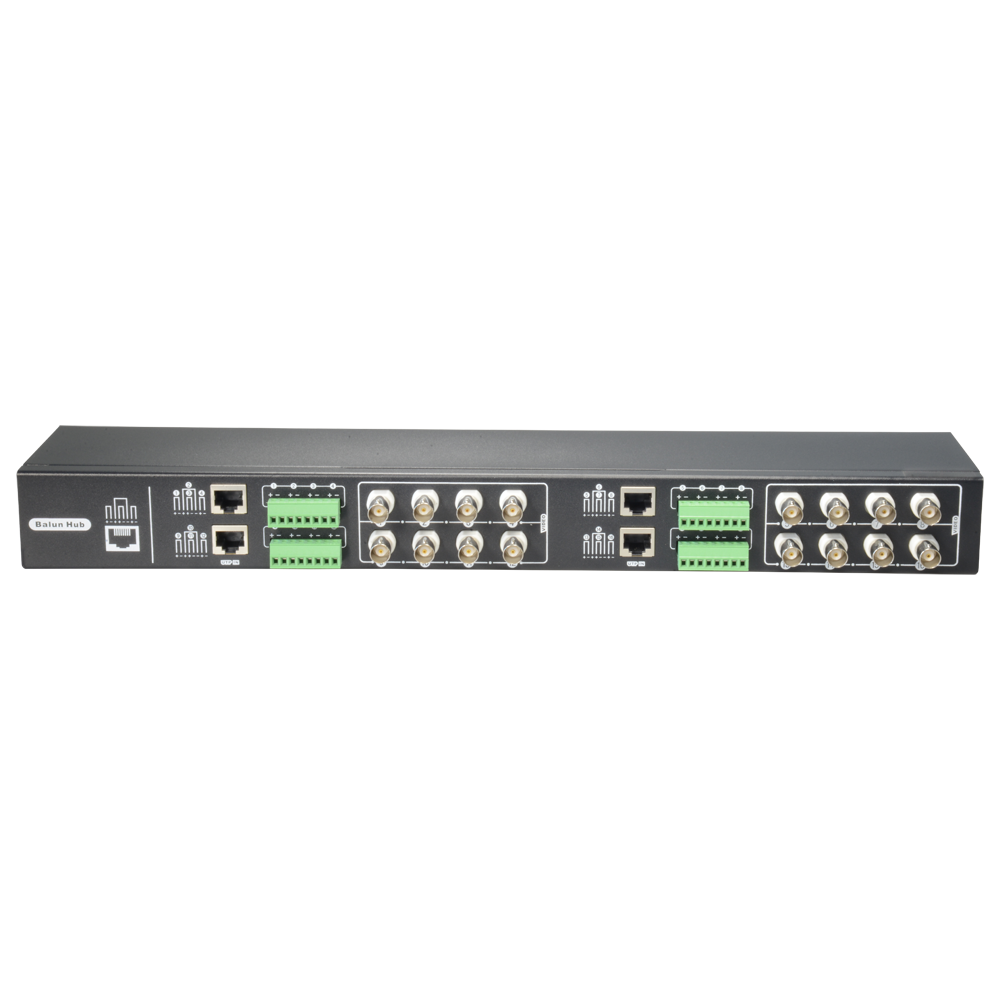

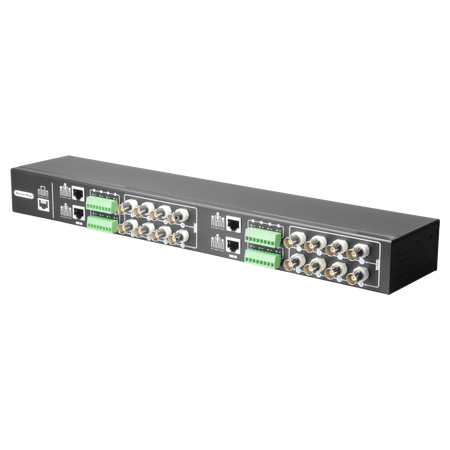

• Tx Input / Rx Output: 16 BNC female connectors for video
• Tx Output / Rx Input: 4 RJ45 connectors or 16 connectors via UTP CAT5 cable clips
• Bandwidth: DC to 42 MHz
• Video format: NTSC, PAL, SECAM
• Impedance: BNC 75 Ω, UTP 100 Ω
• Distance: HDTVI 190/190/180/180 m (720p/1080p/5Mpx/4K), HDCVI 440/230/230/190 m (720p/1080p/4Mpx/4K); AHD 320/250/200 m (720p/1080p/5Mpx) CVBS 400 m
• Power supply: Passive (Not required)
• Dimensions: 45 (W) x 430 (H) x 85 (D) mm
• Weight: 1250 g
📦 INCLUDED:
• 16-channel balun• Installation material• 16 BA612P-HAC baluns• Instructions• Rack-mount brackets
| Tx Input / Rx Output | 16 female BNC connectors for video |
|---|---|
| Tx Output / Rx Input | 4 RJ45 connectors or 16 connectors via UTP CAT5 cable clips |
| Bandwidth | DC to 42 MHz |
| Video format | NTSC, PAL, SECAM |
| Impedance | BNC 75 Ω, UTP 100 Ω |
| Distance | HDTVI 190/190/180/180 m (720p/1080p/5Mpx/ 4K), HDCVI 440/230/230/190 m (720p/1080p/4Mpx/ 4K) AHD 320/250/200 m (720p/1080p/5Mpx) CVBS 400 m |
| Power supply | Passive (Not required) |
| Dimensions | 45 (H) x 430 (W) x 85 (D) mm |
| Weight | 1250 g |
- User manual Link
