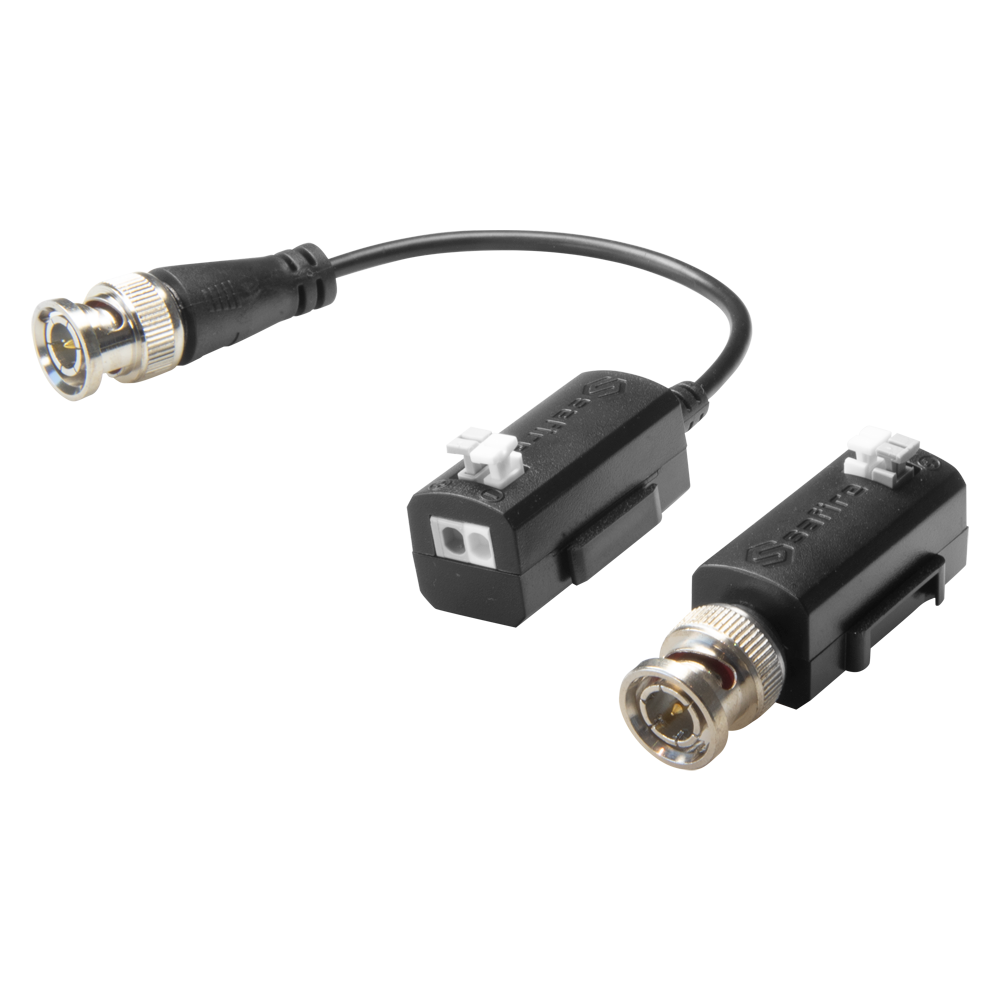

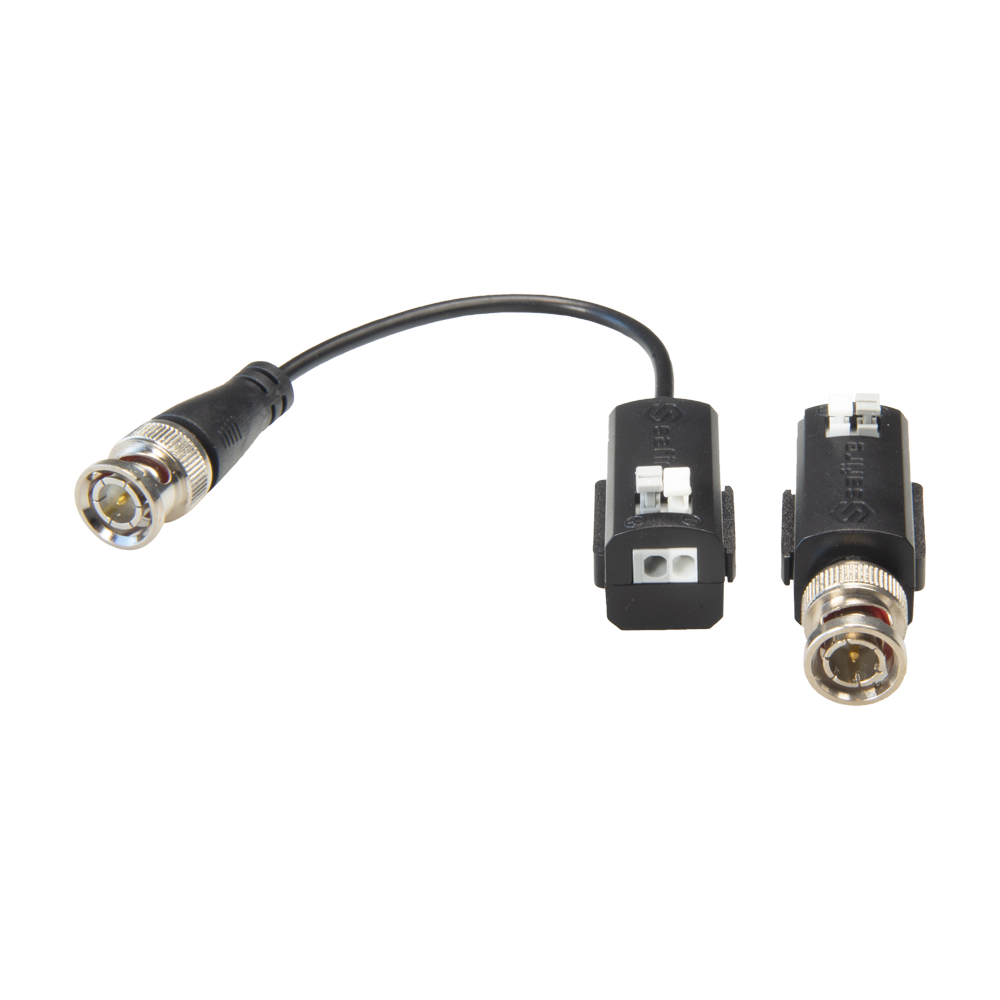

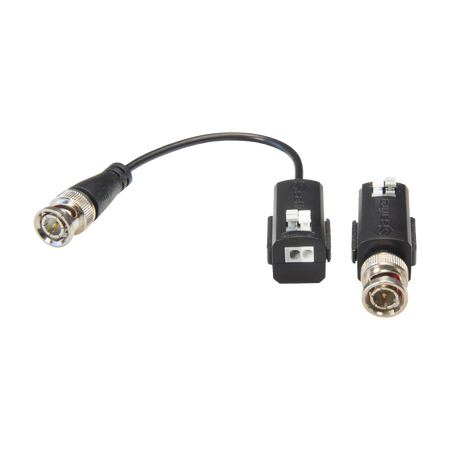

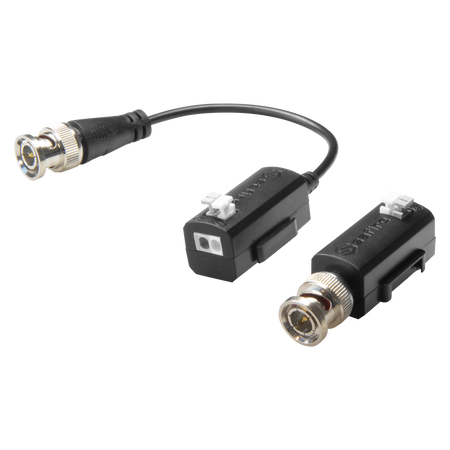

SAFIRE passive twisted pair transmitter - 4 in 1 (HDTVI HDCVI AHD CVBS)
SAFIRE passive twisted pair transmitter - 4 in 1 (HDTVI HDCVI AHD CVBS)
Regular price
€4,15
Final price
Regular price
-10%
€4,60
Sale price
€4,15
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
SAFIRE passive twisted pair transmitter - 4 in 1 (HDTVI HDCVI AHD CVBS) - 1 video channel - Passive, 2-pin connector - Distance: 150 ~ 400 m - 2 units
📋 SPECIFICATIONS:
• Brand: SAFIRE
• Number of channels: 1 channel
• Power supply: Not required (passive)
• Video Input / Output: BNC (male)
• Transmission distance: HDTVI 150/250 m (3Mpx/1080p), HDCVI 150/250/400 m (4Mp/1080p/720p) and AHD 200/350 m (1080p/720p)
• Twisted pair connector: 2-pin connector
• Operating temp.: -10º C ~ +55º C
• Humidity: 0 ~ 95 %
• Input impedance: 75 Ohm
• Output impedance: 100 Ohm
• Cable category: UTP category 5E/6
📦 INCLUDED:
• Passive HD transmitter with pigtail cable• Passive HD transmitter without pigtail cable
| Number of channels | 1 channel |
|---|---|
| Power supply | Not required (passive) |
| Video input / output | BNC (male) |
| Transmission distance | HDTVI 150/250 m (3Mpx/1080p), HDCVI 150/250/400 m (4Mp/1080p/720p) and AHD 200/350 m (1080p/720p) |
| Twisted pair connector | 2-pin connector |
| Operating temp. | -10º C ~ +55º C |
| Humidity | 0 ~ 95 % |
| Input impedance | 75 Ohm |
| Output impedance | 100 Ohm |
| Cable category | UTP category 5E/6 |
- User manual Link
