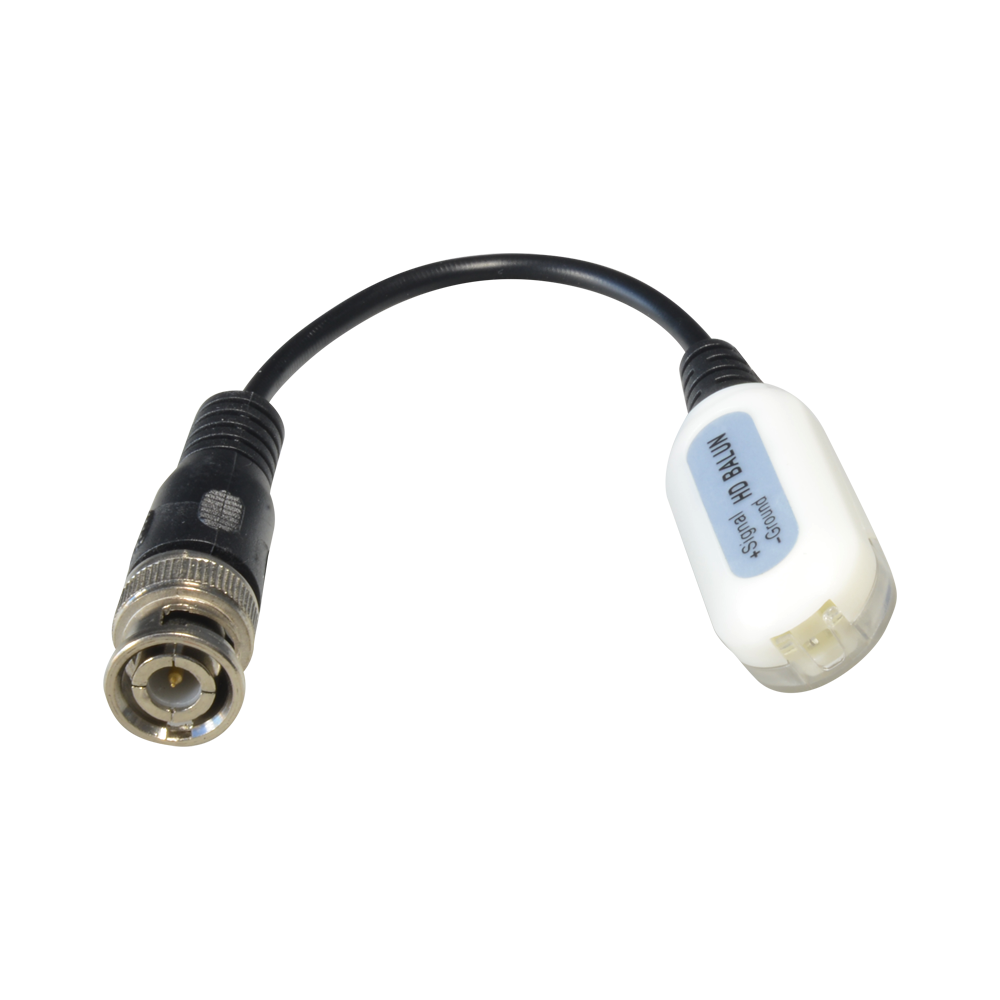

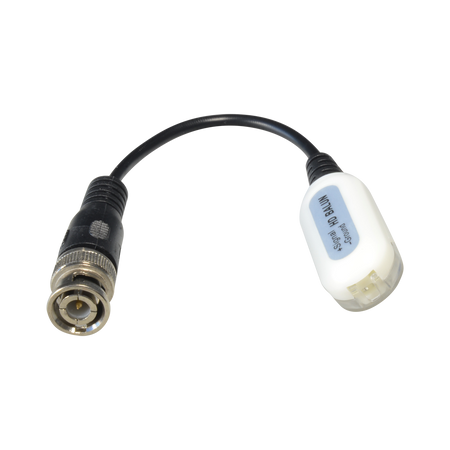

SAFIRE passive twisted pair transmitter - Optimized for HDTVI / HDCVI / AHD
SAFIRE passive twisted pair transmitter - Optimized for HDTVI / HDCVI / AHD
Regular price
€5,76
Final price
Regular price
-23%
€7,50
Sale price
€5,76
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
SAFIRE passive twisted pair transmitter - Optimized for HDTVI / HDCVI / AHD - 1 video channel - Passive, 2-pin connector - Distance: 200 ~ 400 m - 2 units | Quick connection
📋 SPECIFICATIONS:
• Brand: Safire
• Number of channels: 1 channel
• Power supply: Not required (passive)

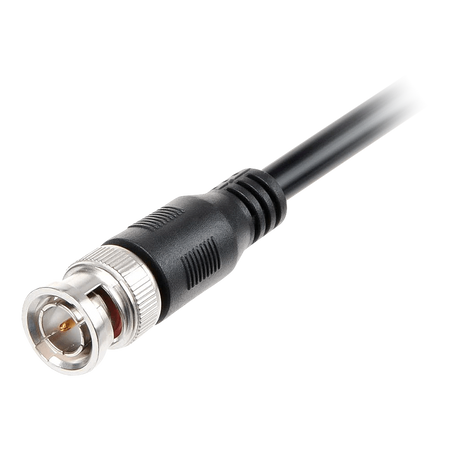

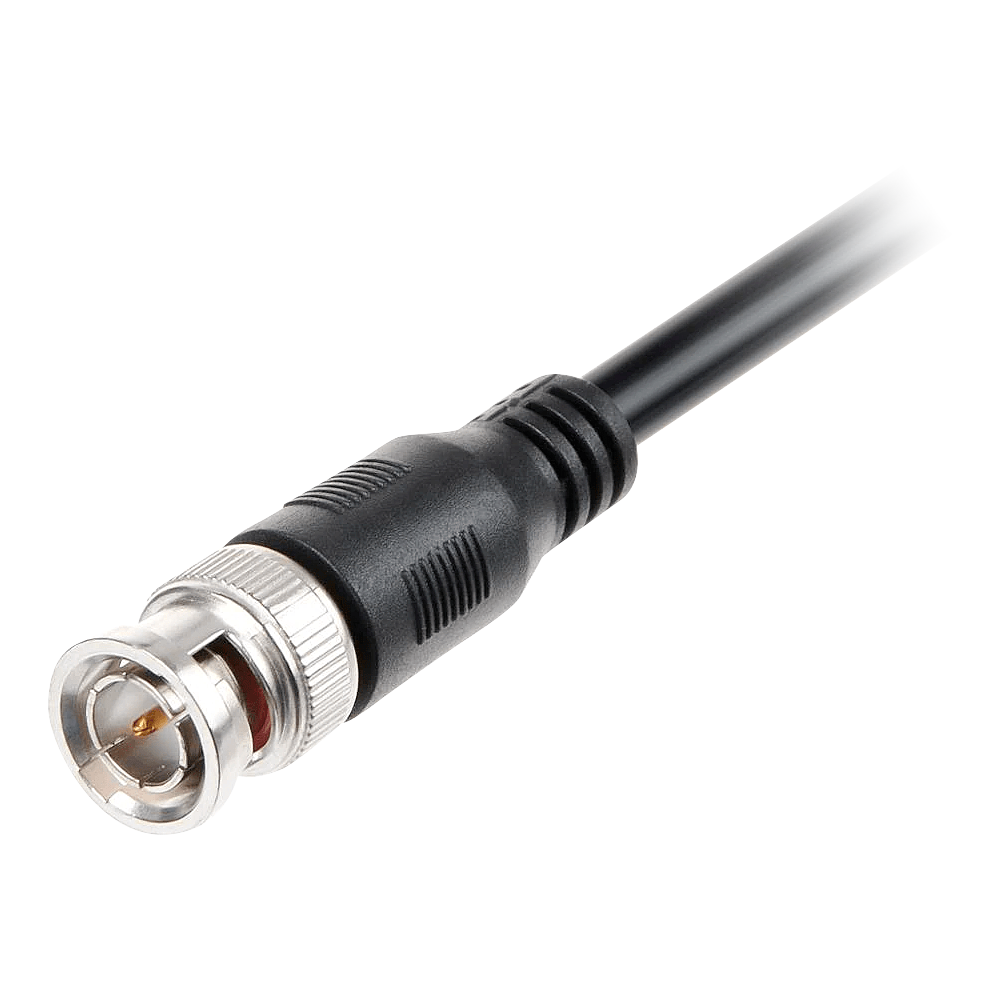

• Video Input / Output: BNC (male)
• Transmission distance: HDTVI 250/250/100/100m (720p/1080p/4 Mpx/4K) HDCVI 400/250/200/200m (720p/1080p/4 Mpx/4K); AHD 350/200/200m (720p/1080p/4 Mpx)
• Twisted pair connector: 2-pin connector
• Crosstalk: 60 dB
• Input impedance: 75 Ohm
• Output impedance: 100 Ohm
• Cable category: UTP category 5/5E/6
📦 INCLUDED:

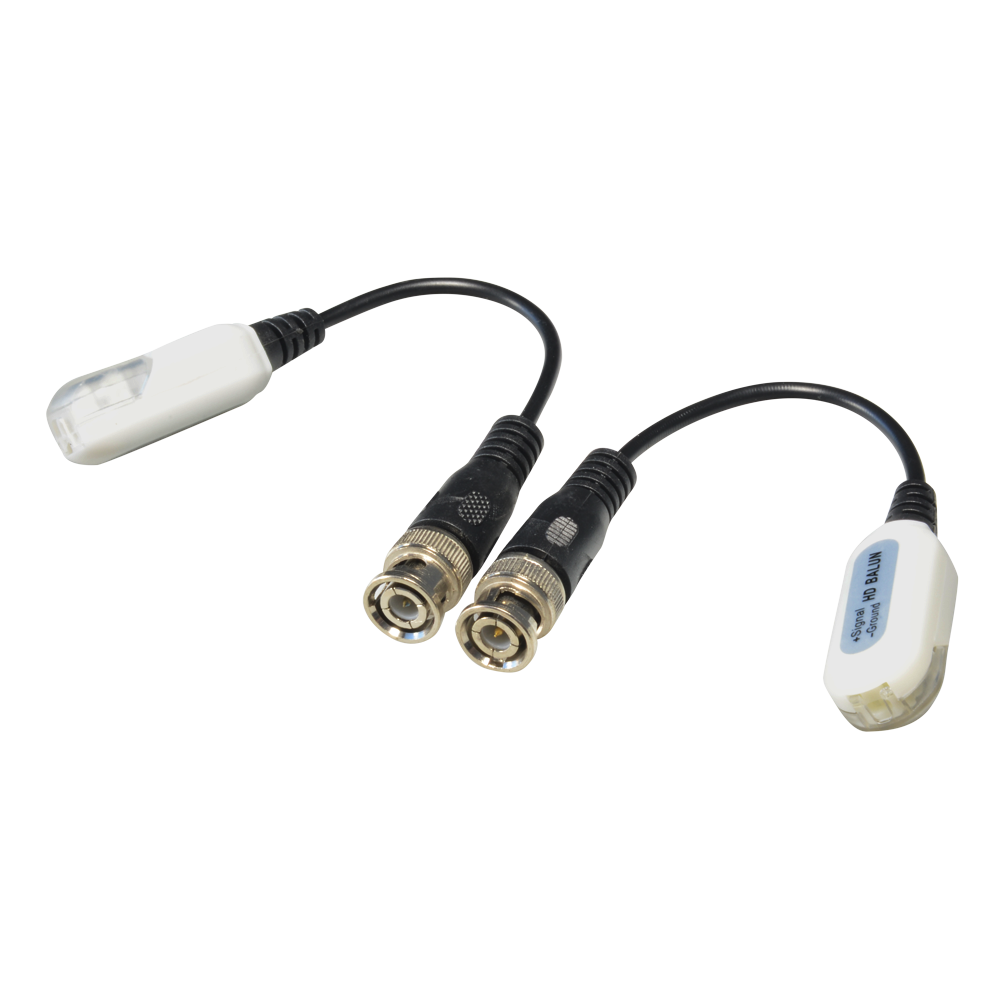

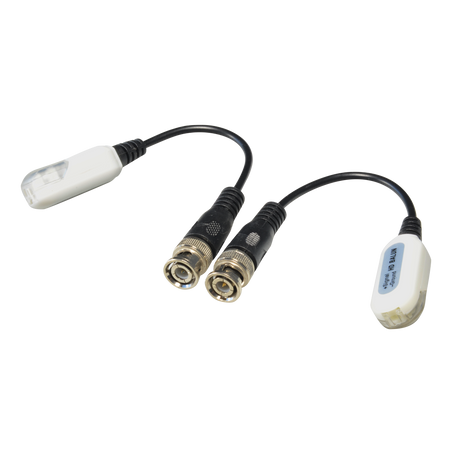

• Pair of passive HD transceivers
| Number of channels | 1 channel |
|---|---|
| Power supply | Not required (passive) |
| Video Input / Output | BNC (male) |
| Transmission distance | HDTVI 250/250/100/100m (720p/1080p/4 Mpx/4K) HDCVI 400/250/200/200m (720p/1080p/4 Mpx/4K) AHD 350/200/200m (720p/1080p/4 Mpx) |
| Twisted pair connector | 2-pin connector |
| Crosstalk | 60 dB |
| Input impedance | 75 Ohm |
| Output impedance | 100 Ohm |
| Cable category | UTP category 5/5E/6 |
- User manual Link
