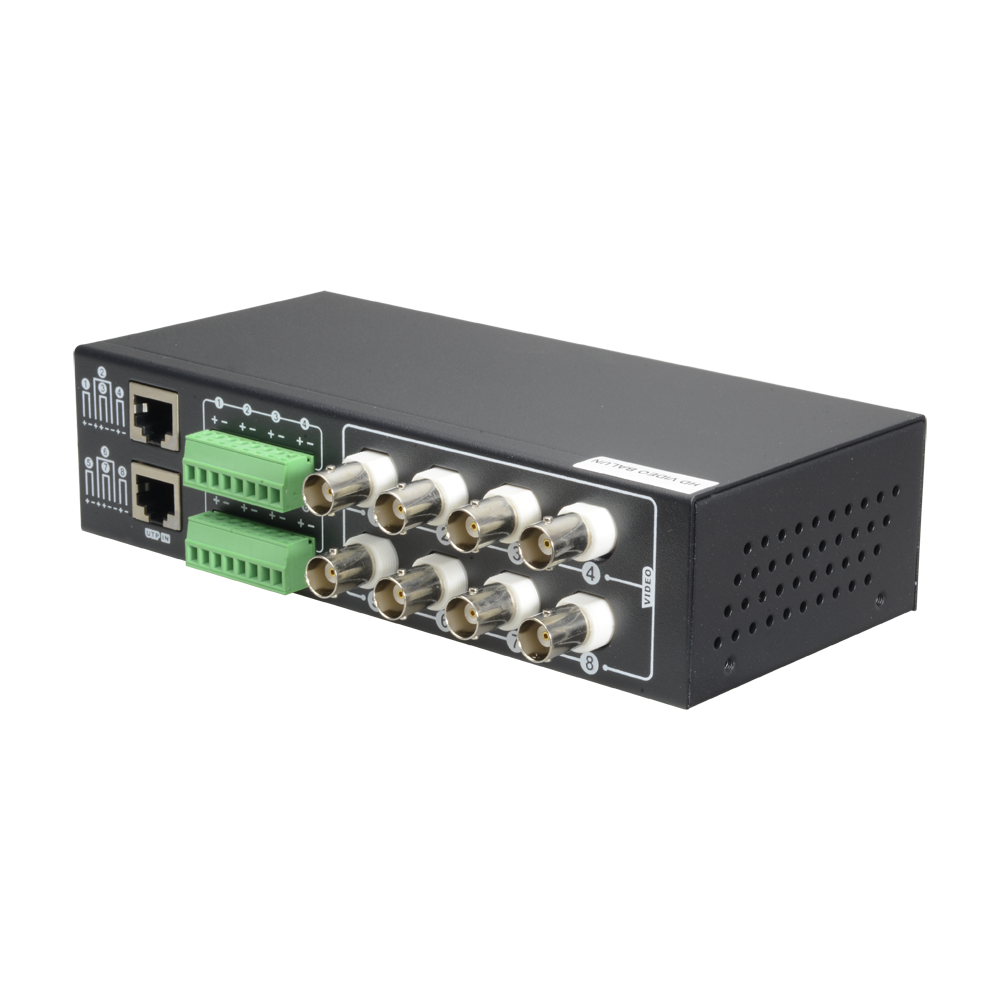

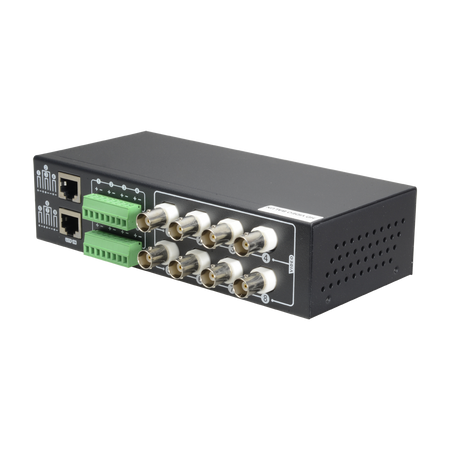

4-in-1 Video Balun (HDTVI, HDCVI, AHD, and CVBS) - 8 passive channels
4-in-1 Video Balun (HDTVI, HDCVI, AHD, and CVBS) - 8 passive channels
Regular price
€66,87
Final price
Regular price
-7%
€72,00
Sale price
€66,87
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
4-in-1 Video Balun (HDTVI, HDCVI, AHD, and CVBS) - 8 passive channels - Includes 8 BA612P-HAC - BNC and RJ45 connection - Distance: 180 ~ 440 m - 19" rack-mountable
📋 SPECIFICATIONS:

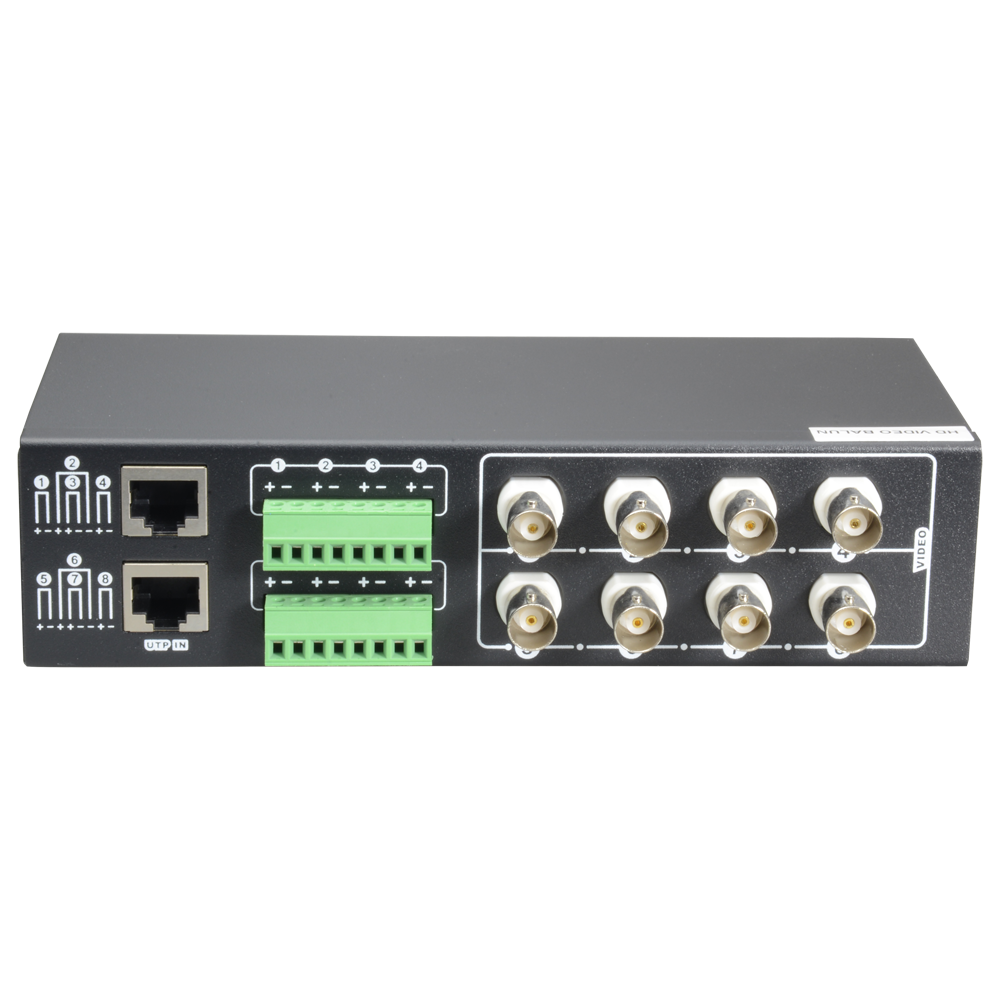

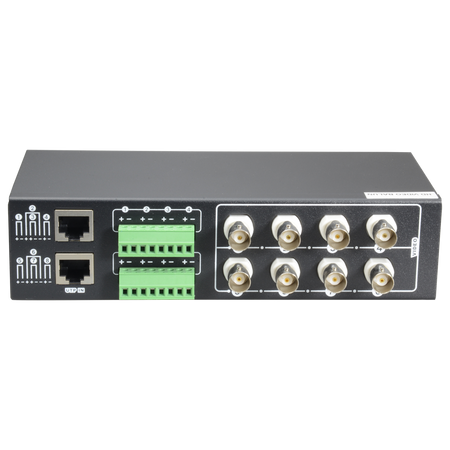

• Tx Input / Rx Output: 8 female BNC connectors for video
• Tx Output / Rx Input: 2 RJ45 connectors or 8 connectors via terminal block for UTP CAT5 cable
• Bandwidth: DC to 42 MHz
• Video format: NTSC, PAL, SECAM
• Impedance: BNC 75 Ω, UTP 100 Ω
• Distance: HDTVI 190/190/180 m (720p/1080p/5Mpx), HDCVI 440/230/230 m (720p/1080p/4Mpx), and AHD 320/250/200 m (720p/1080p/5Mpx)
• Power supply: Passive (Not required)
• Operating Temp.: -20 ºC ~ 70º C
• Dimensions: 45 (H) x 180 (W) x 85 (D) mm
• Weight: 580 g
📦 INCLUDED:
• 8-channel balun• Installation material• 8 BA612P-HAC baluns• Instructions
| Tx Input / Rx Output | 8 female BNC connectors for video |
|---|---|
| Tx Output / Rx Input | 2 RJ45 connectors or 8 connectors via UTP CAT5 cable clips |
| Bandwidth | DC to 42 MHz |
| Video format | NTSC, PAL, SECAM |
| Impedance | BNC 75 Ω, UTP 100 Ω |
| Distance | HDTVI 190/190/180 m (720p/1080p/5Mpx), HDCVI 440/230/230 m (720p/1080p/4Mpx) and AHD 320/250/200 m (720p/1080p/5Mpx) |
| Power supply | Passive (Not required) |
| Operating temp. | -20 ºC ~ 70º C |
| Dimensions | 45 (W) x 180 (H) x 85 (D) mm |
| Weight | 580 g |
- User manual Link
