Passive twisted pair transmitter - Optimized for HDTVI, HDCVI and AHD
Passive twisted pair transmitter - Optimized for HDTVI, HDCVI and AHD
Regular price
€13,84
Final price
Regular price
-8%
€15,00
Sale price
€13,84
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

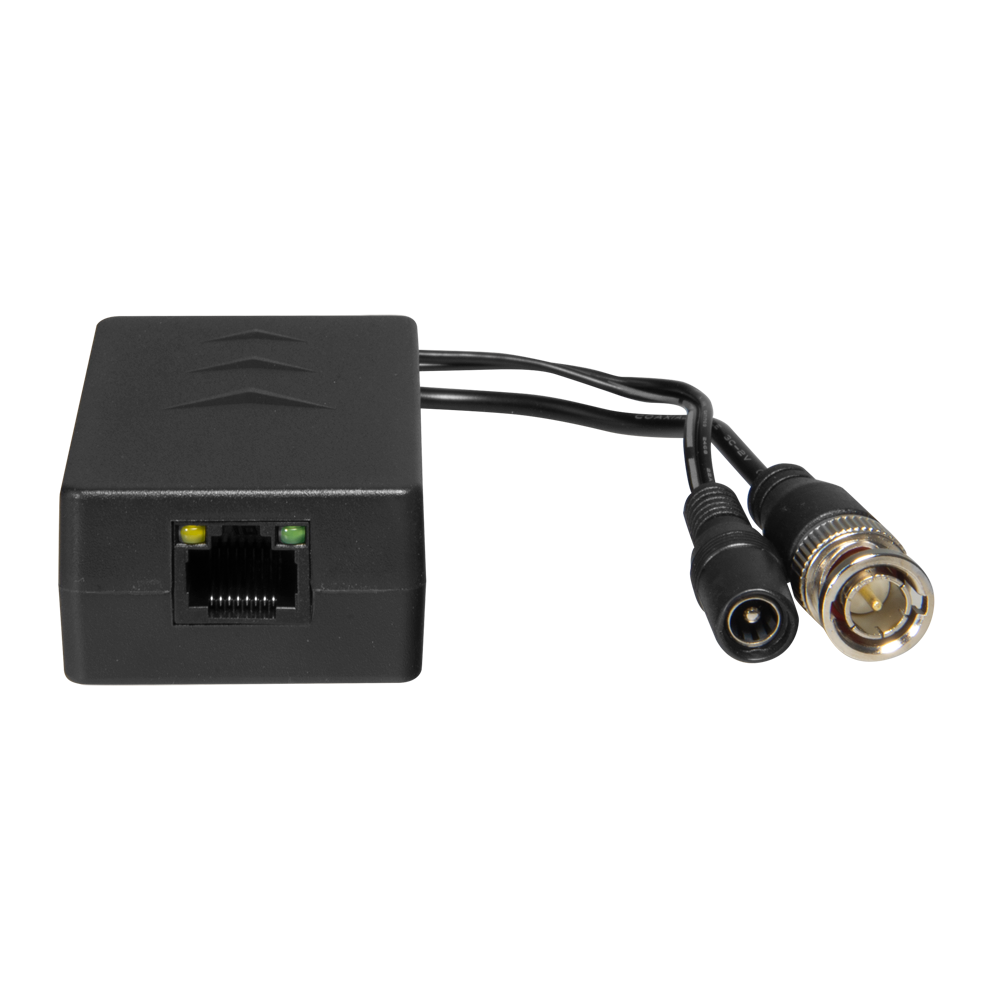

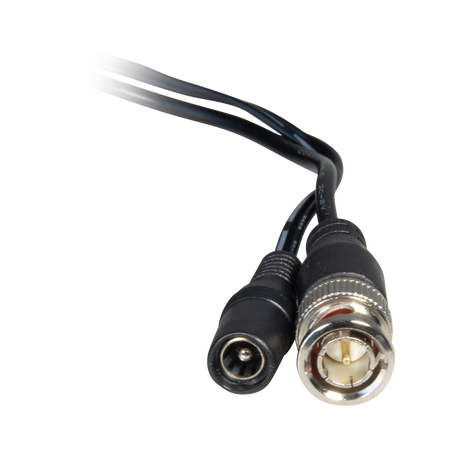

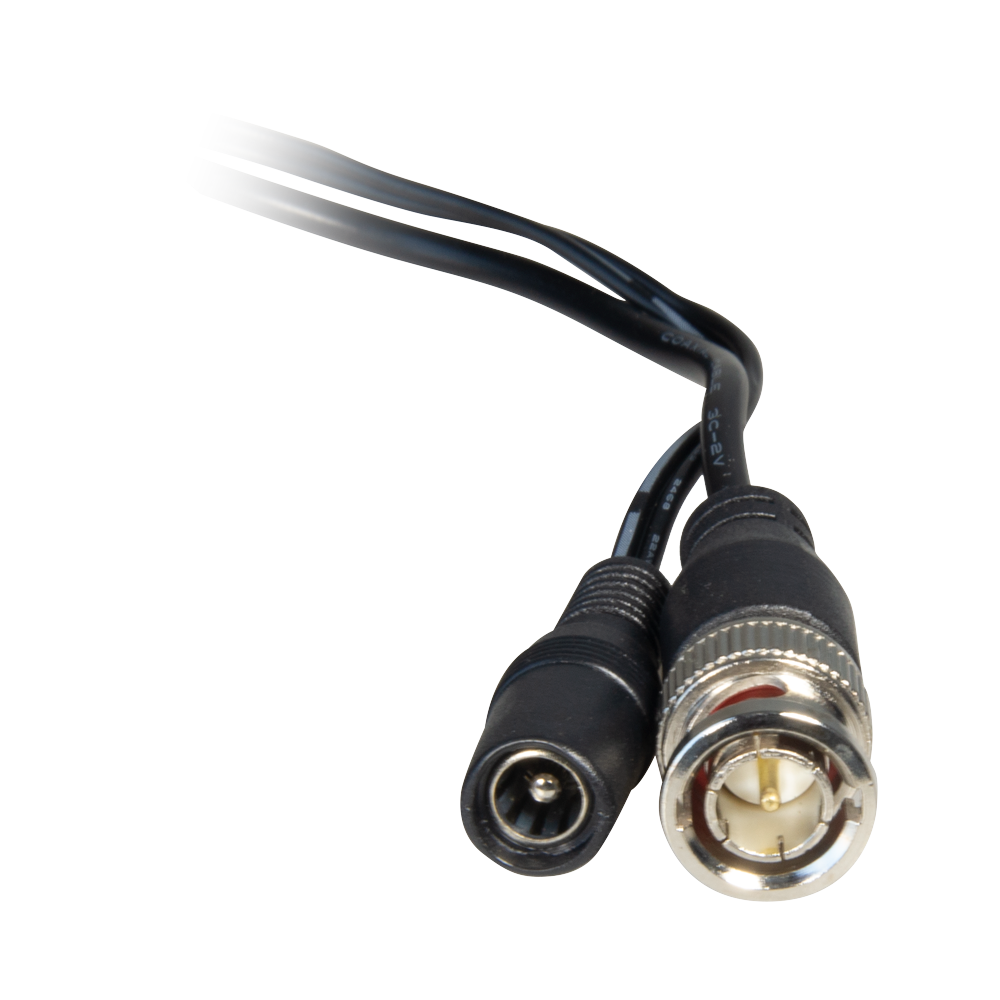

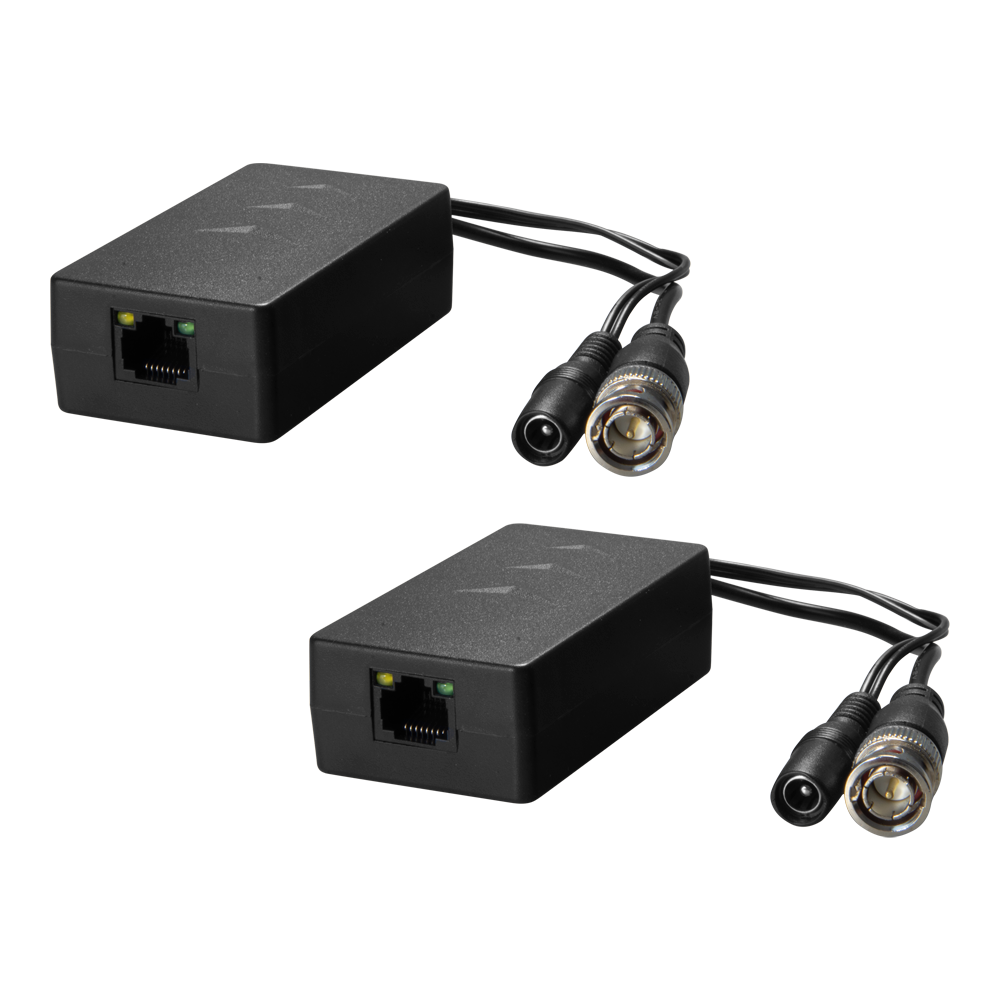

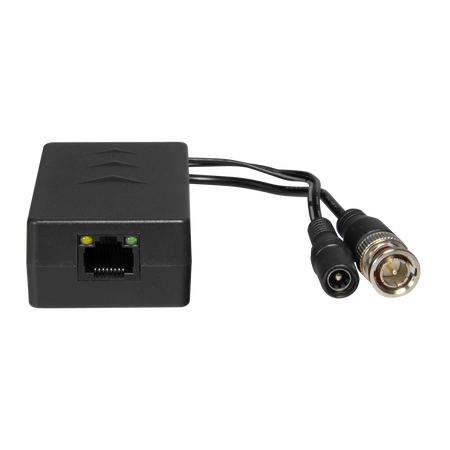

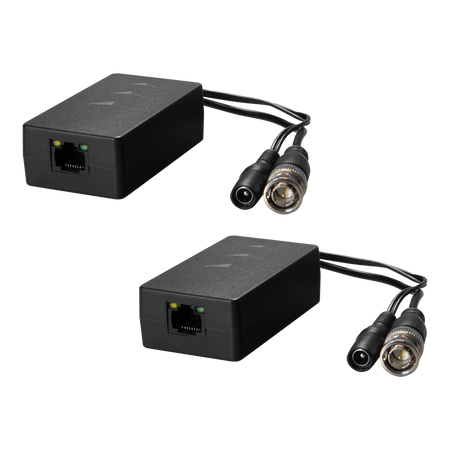

Passive twisted pair transmitter - Optimized for HDTVI, HDCVI and AHD - 1 video and power channel - RJ45 (UTP), BNC and Jack connector - Distance: 200 ~ 400 m - 2 units, emitter and receiver
📋 SPECIFICATIONS:
• Number of channels: 1 channel
• Video input / output: BNC (male)
• Power input/output: Standard Jack (male/female)
• Input/output voltage: Input: 24-36 V DC / output: 12V DC 10W
• Transmission distance: HDTVI 200/200/100/100 m (720p/1080p/4 Mpx/4K), HDCVI 400/200/200/200 m (720p/1080p/4 Mpx/4K); AHD 300/200/200 m (720p/1080p/4 Mpx), CVBS 300 m
• Twisted pair connector: RJ45
• Crosstalk: 60 dB
• BNC impedance: 75 Ohm
• UTP impedance: 100 Ohm
• Cable category: UTP category 5/6
📦 INCLUDED:
• Pair of passive HD transceivers
| Number of channels | 1 channel |
|---|---|
| Video Input / Output | BNC (male) |
| Power Input / Output | Standard jack (male/female) |
| Input/Output voltage | Input: 24-36 V DC / output: 12V DC 10W |
| Transmission distance | HDTVI 200/200/100/100 m (720p/1080p/4 Mpx/4K), HDCVI 400/200/200/200 m (720p/1080p/4 Mpx/4K) AHD 300/200/200 m (720p/1080p/4 Mpx), CVBS 300 m |
| Twisted pair connector | RJ45 |
| Crosstalk | 60 dB |
| BNC impedance | 75 Ohm |
| UTP impedance | 100 Ohm |
| Cable category | UTP category 5/6 |
