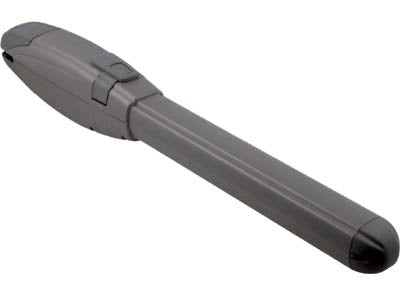

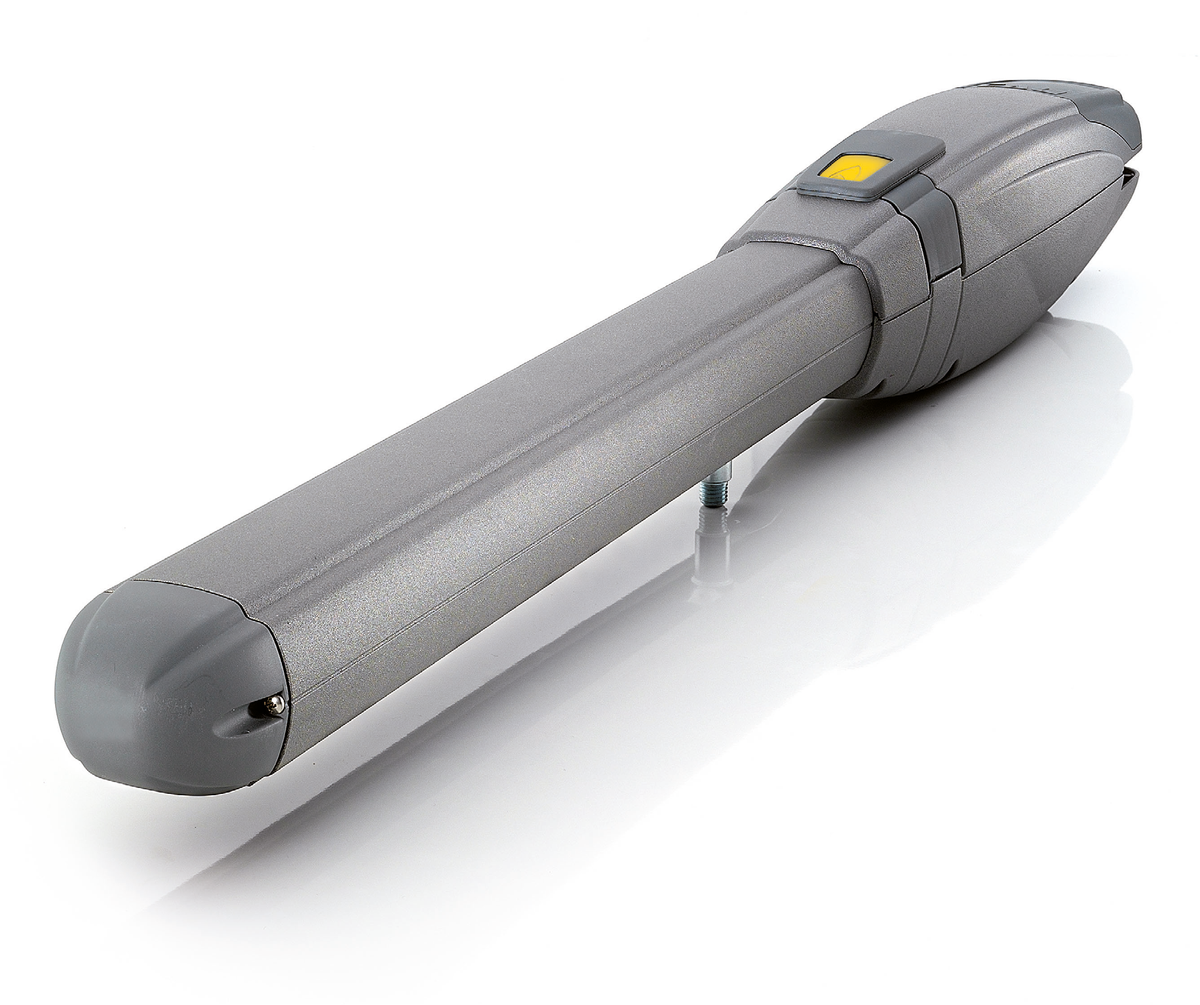

TAU ARM2000BR 24 V DC actuator for gates up to 2.5 m
Regular price
€352,23
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
High-speed irreversible electromechanical low-voltage actuator with encoder and mechanical stops for opening and closing. Designed for the automation of swing gates up to 2.5 m. It operates with a 24 V DC motor and is designed for connection to the D749MA-R control unit.
Compatible with: D749MA-R.
Technical data:
- Power supply: 230 V AC (50-60 Hz)
- Motor power supply: 24 V DC
- Motor current consumption: 1.1 A
- Rated power: 120 W
- 90° opening time: 9 s*
- Duty cycle: 100%
- Operating temperature: -20° C ÷ +55° C
- Protection rating: IP 44
- Effective travel: 396 mm
- Actuator weight: 6.0 kg
TAU code: 650ARM2000BR
- User manual Link
