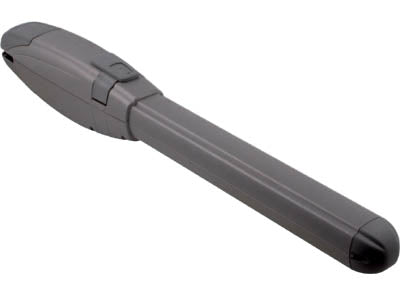

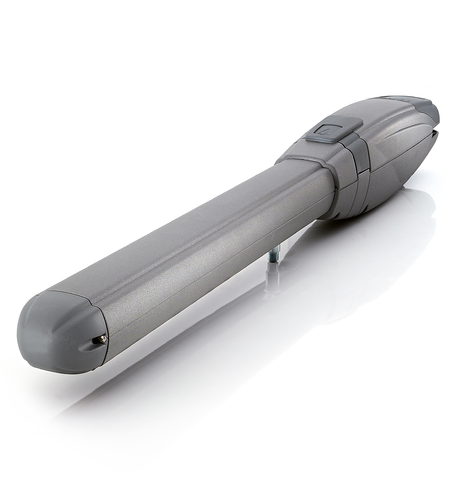

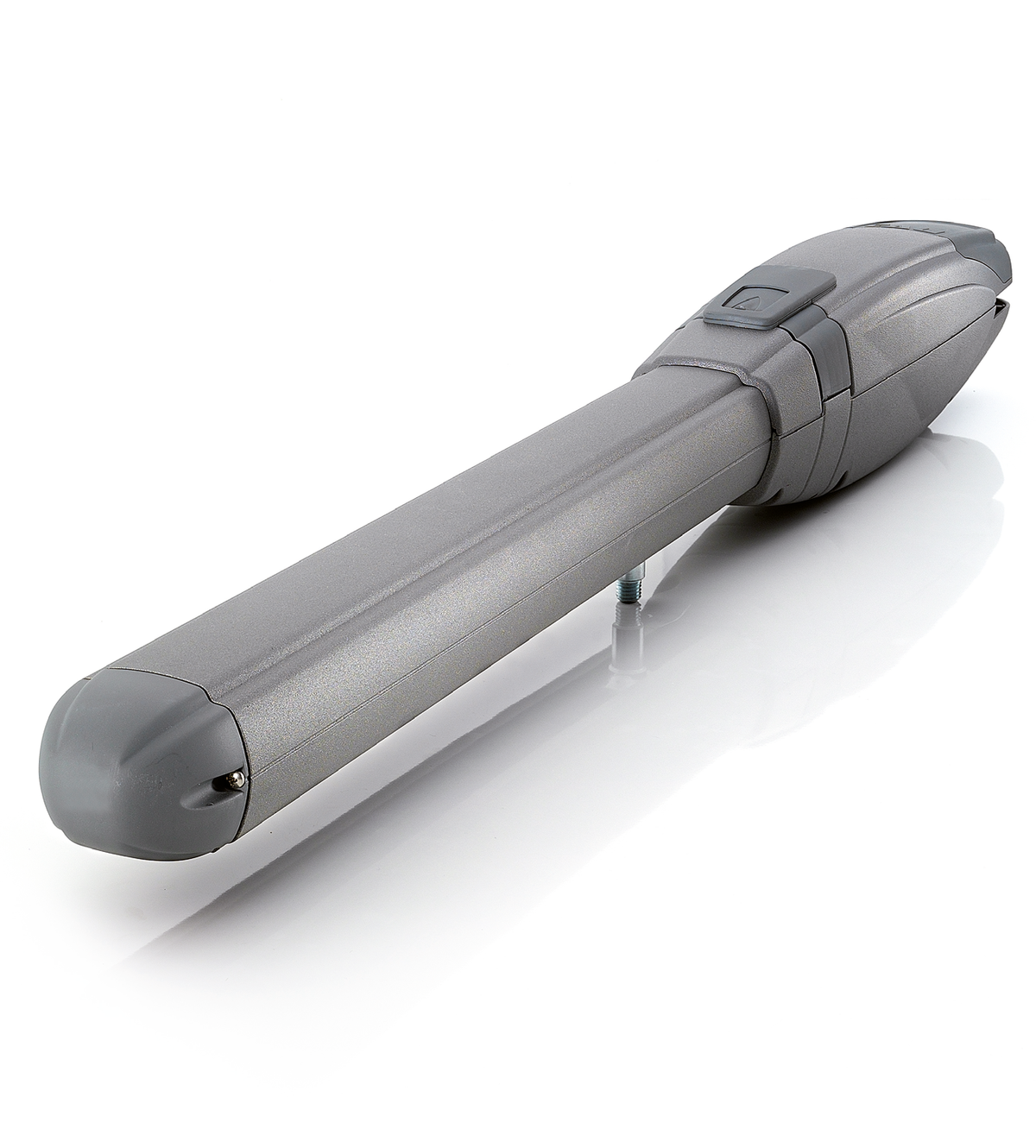

TAU ARM2000BI 18V actuator for gates up to 3 m

Irreversible low-voltage electromechanical actuator with encoder and mechanical stops for opening and closing, for swing gates up to 3 m. Intended for residential and apartment building use, it features off-axis thrust, a bronze nut, and a manual release with a personalized metal key. It offers obstacle detection, anti-crushing safety, and the possibility of battery-powered operation in the event of a power failure via optional batteries.

Compatible with: D749MA.

Technical data:

• Motor power supply: 18 V DC
• Power supply: 230 V AC (50-60 Hz)
• Motor consumption: 1.1 A
• Rated power: 120 W
• Max. leaf length: 3 m
• Opening time 90°: 12 s*
• Duty cycle: 100 %
• Useful stroke: 396 mm
• Protection rating: IP 44
• Operating temperature: -20° C ÷ +55° C
• Actuator weight: 6.0 kg

TAU code: 650ARM2000BI
