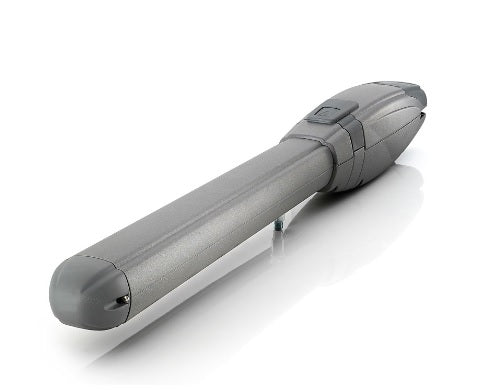

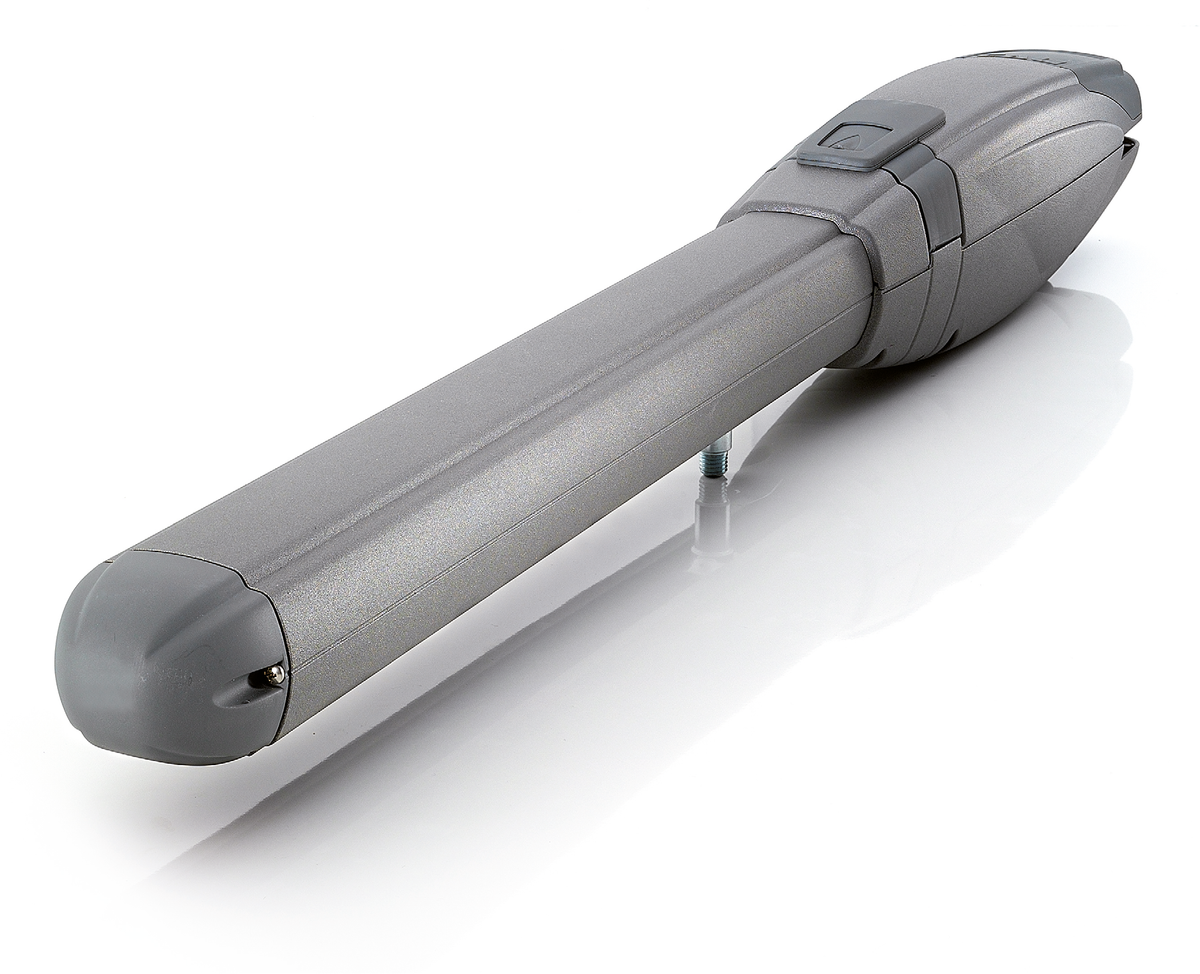

TAU ARM3000IFC 230V actuator for gate leaves up to 4 m

Irreversible 230 V AC electromechanical actuator for swing gates up to 4 m, equipped with electrical limit switches for opening and closing. Features an off-axis thrust mechanism with a bronze nut to ensure strength and quiet operation. Installation is facilitated by top-mounted electrical connections, and it is provided with a manual release with a personalized key.

Compatible with: D770M.

Technical data:

• Power supply: 230 V AC (50 - 60 Hz)
• Motor power supply: 230 V AC
• Motor consumption: 1.5 A
• Rated power: 350 W
• 90° opening time: 21 s
• Duty cycle: 36%
• Operating temperature: -20°C ÷ +55°C
• Motor thermal protection: 160°C
• Protection rating: IP44
• Useful stroke: 456 mm
• Control unit to be paired: D770M
• Actuator weight: 7.7 kg

TAU code: 650ARM3000IFC
