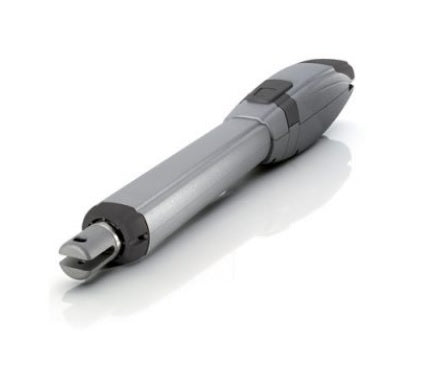

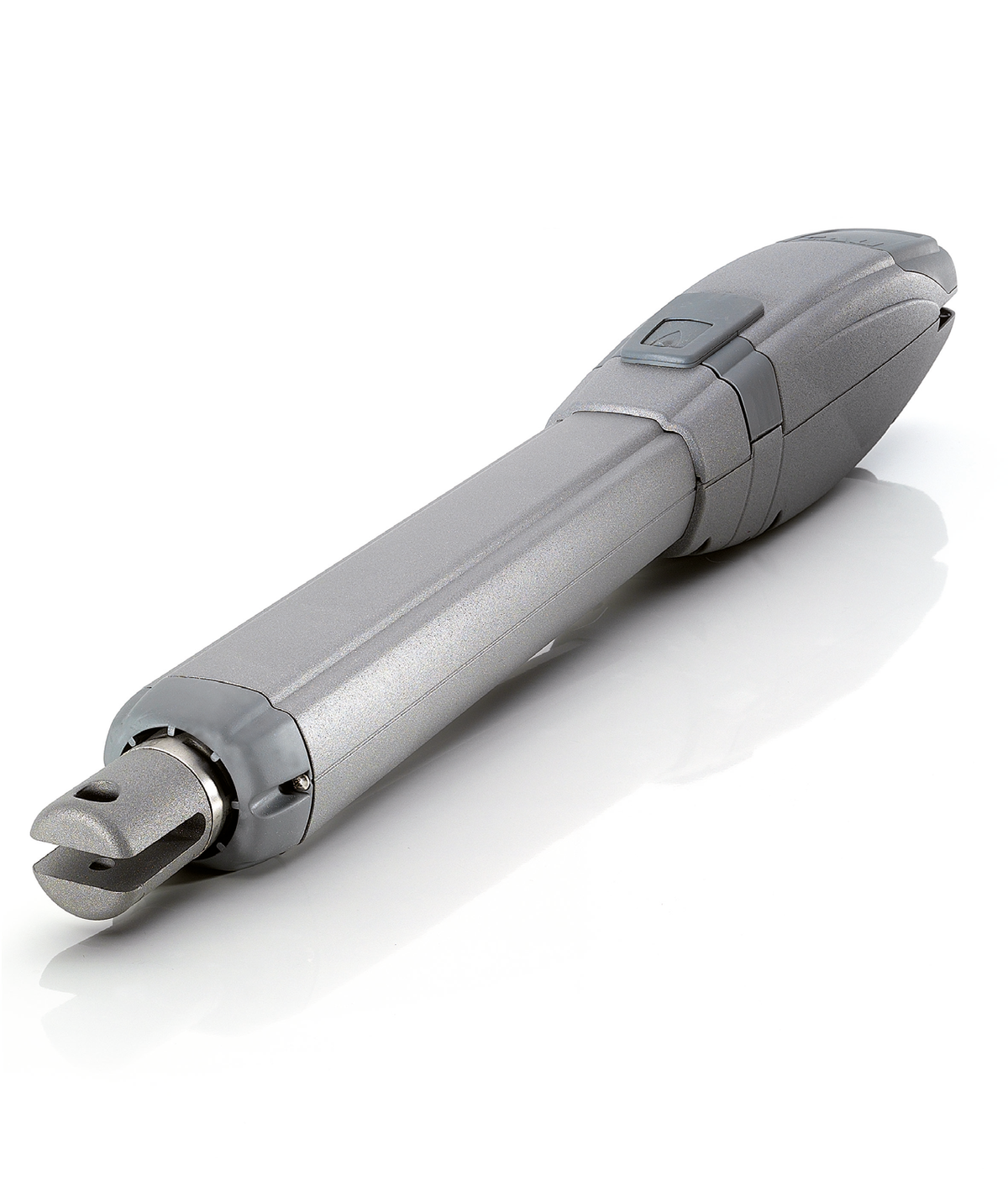

TAU VECTI-T 230V electromechanical actuator for gate leaves up to 3 m

Irreversible electromechanical linear thrust actuator with extending rod, powered at 230 V AC and 1400 rpm, ideal for swing gates up to 3 meters. Designed for residential, apartment complex, and industrial use, it guarantees a quick opening time of 16 seconds at 90°. Equipped with weld-on brackets, top electrical connections to facilitate installation, and a manual release system with a customized key.

Compatible with: D770M.

Technical data:

• Power supply: 230 V AC (50 - 60 Hz)
• Motor power supply: 230 V AC
• Motor no-load current: 1.5 A
• Rated power: 350 W
• 90° opening time: 16 s
• Duty cycle: 36 %
• Operating temperature: -20° C ÷ +55° C
• Motor thermal protection: 160° C
• Protection rating: IP 44
• Effective stroke: 290 mm
• Actuator weight: 8.0 kg
• Compatible control unit: D770M

TAU code: 650VECTI-T
