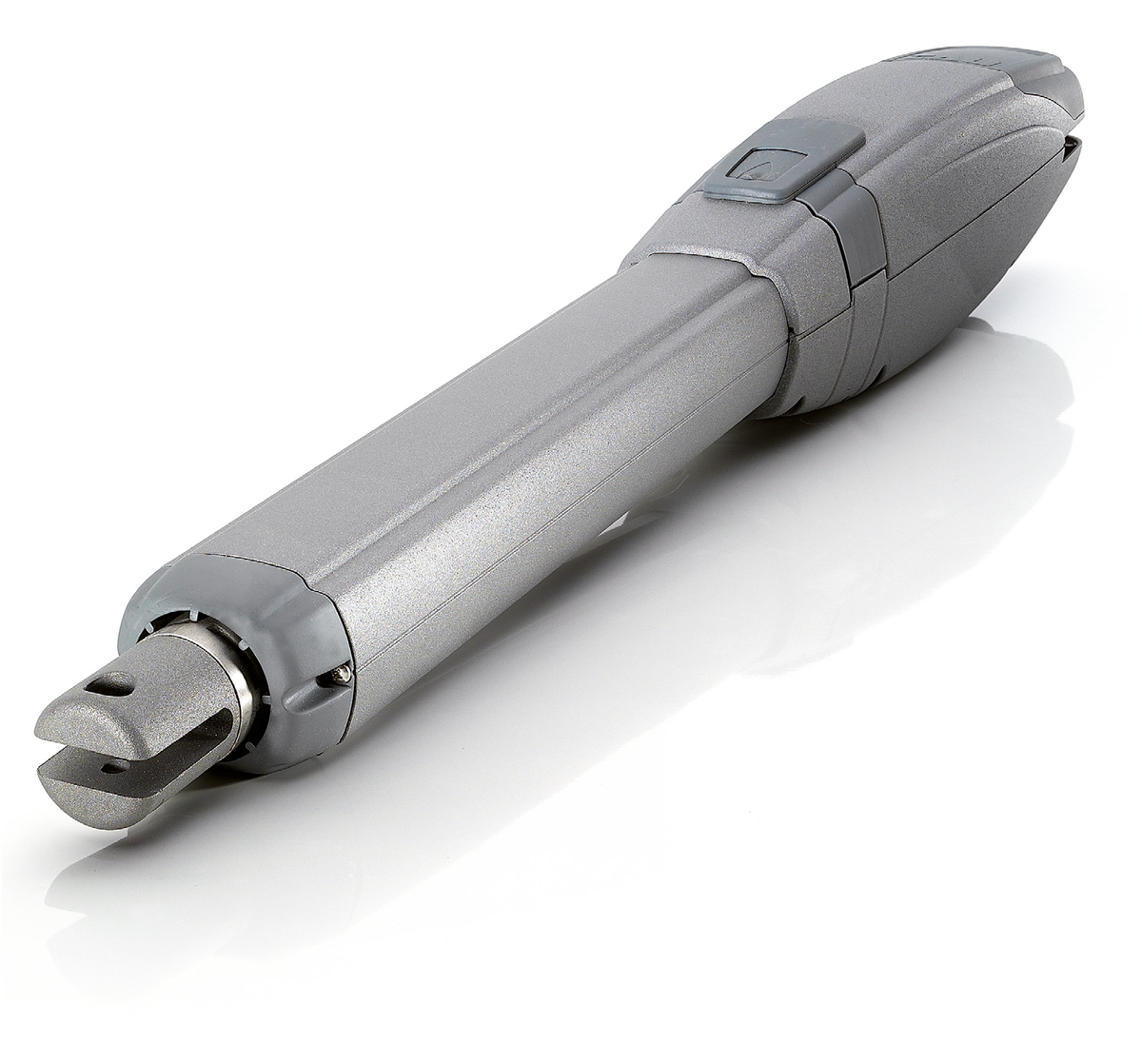

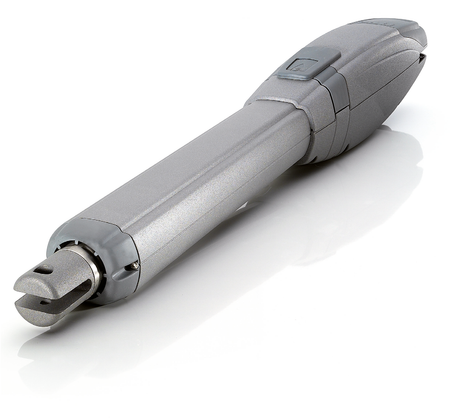

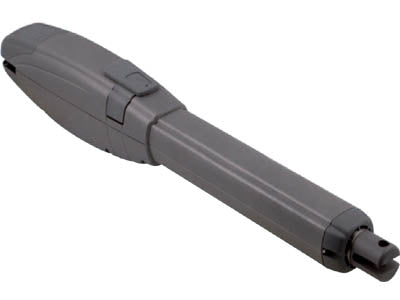

TAU ARM250I 230V actuator for gate leaves up to 4 m

Irreversible electromechanical actuator with extending rod, 230 V AC powered for swing gates up to 4 meters. It features axial thrust with weld-on brackets included and is designed for top electrical connections. Equipped with a manual release with a customized key, it is suitable for residential, apartment complex, and industrial use, even on large pillars.

Compatible with: D770M.

Technical data:

• Power supply: 230 V AC (50 - 60 Hz)
• Motor power supply: 230 V AC
• No-load motor current draw: 1.5 A
• Rated power: 350 W
• 90° opening time: 25 s
• Duty cycle: 36 %
• Operating temperature: -20° C ÷ +55° C
• Motor thermal protection: 160° C
• Protection rating: IP 44
• Useful stroke: 425 mm
• Control unit to be paired: D770M
• Actuator weight: 8.8 kg

TAU code: 650ARM250I
