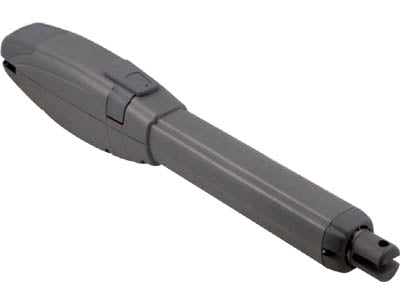

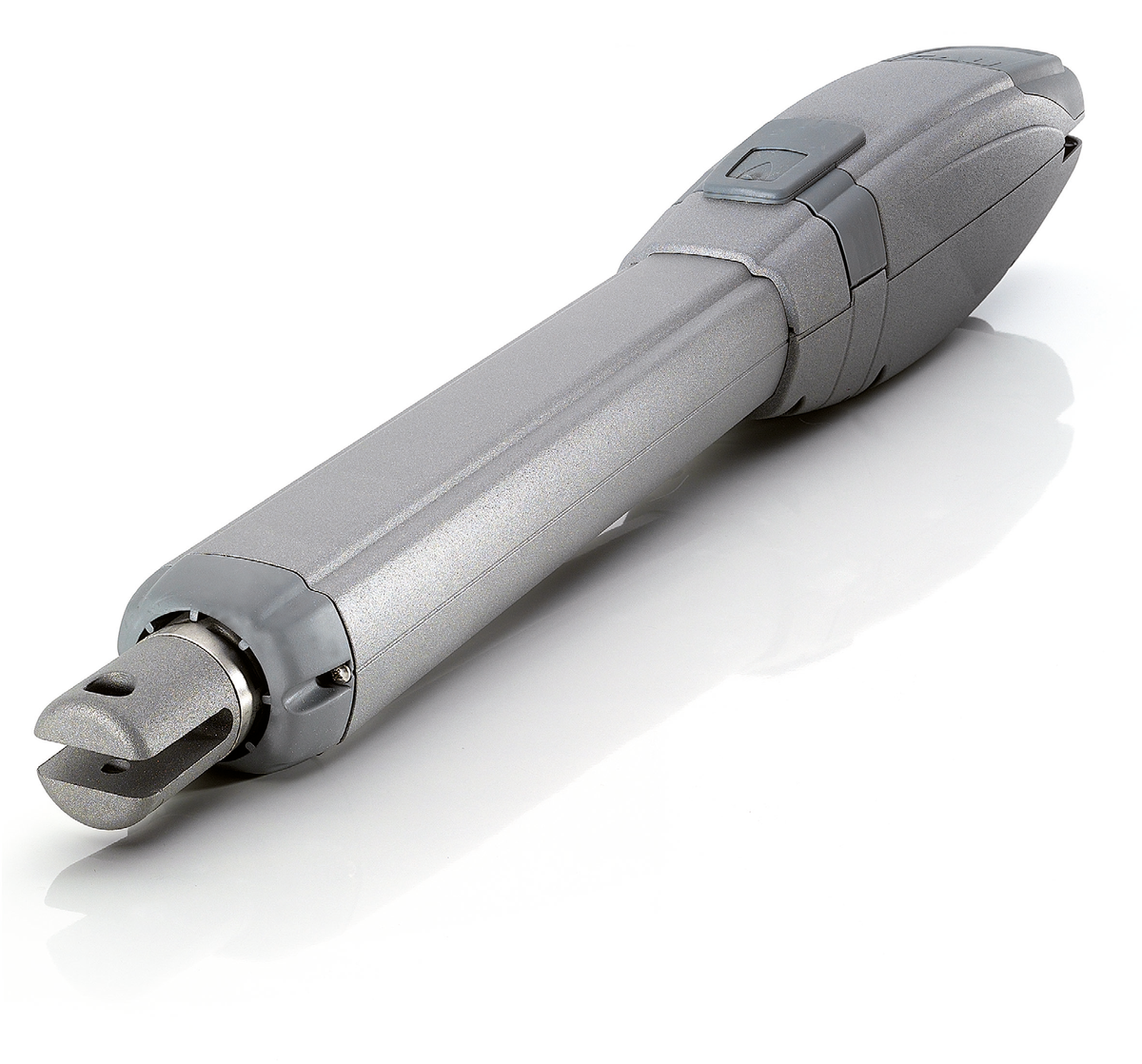

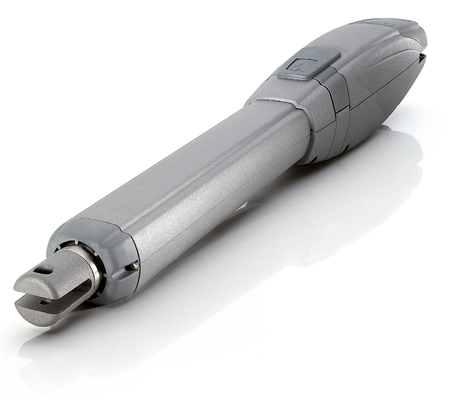

TAU ARM290BI 18V actuator for leaves up to 6 m

Irreversible electromechanical actuator with telescopic rod, 18 V DC low voltage with optical encoder, for swing leaves up to 6 meters. Designed for intensive residential, apartment building, and industrial use, it is also suitable for use on large gate posts. Equipped with a manual release with a customized key and top-entry electrical connections to facilitate installation; fixing brackets are excluded.

Compatible with: D749MA.

Technical data:

• Power supply: 230 V AC (50 - 60 Hz)
• Motor power supply: 18 V DC
• No-load motor consumption: 1 A
• Nominal power: 120 W
• Opening time 90°: 21 s
• Duty cycle: 100 %
• Operating temperature: -20° C ÷ +55° C
• Protection rating: IP 44
• Useful stroke: 853 mm
• Control unit to be paired: D749MA
• Actuator weight: 8.9 kg

TAU Code: 650ARM290BI
