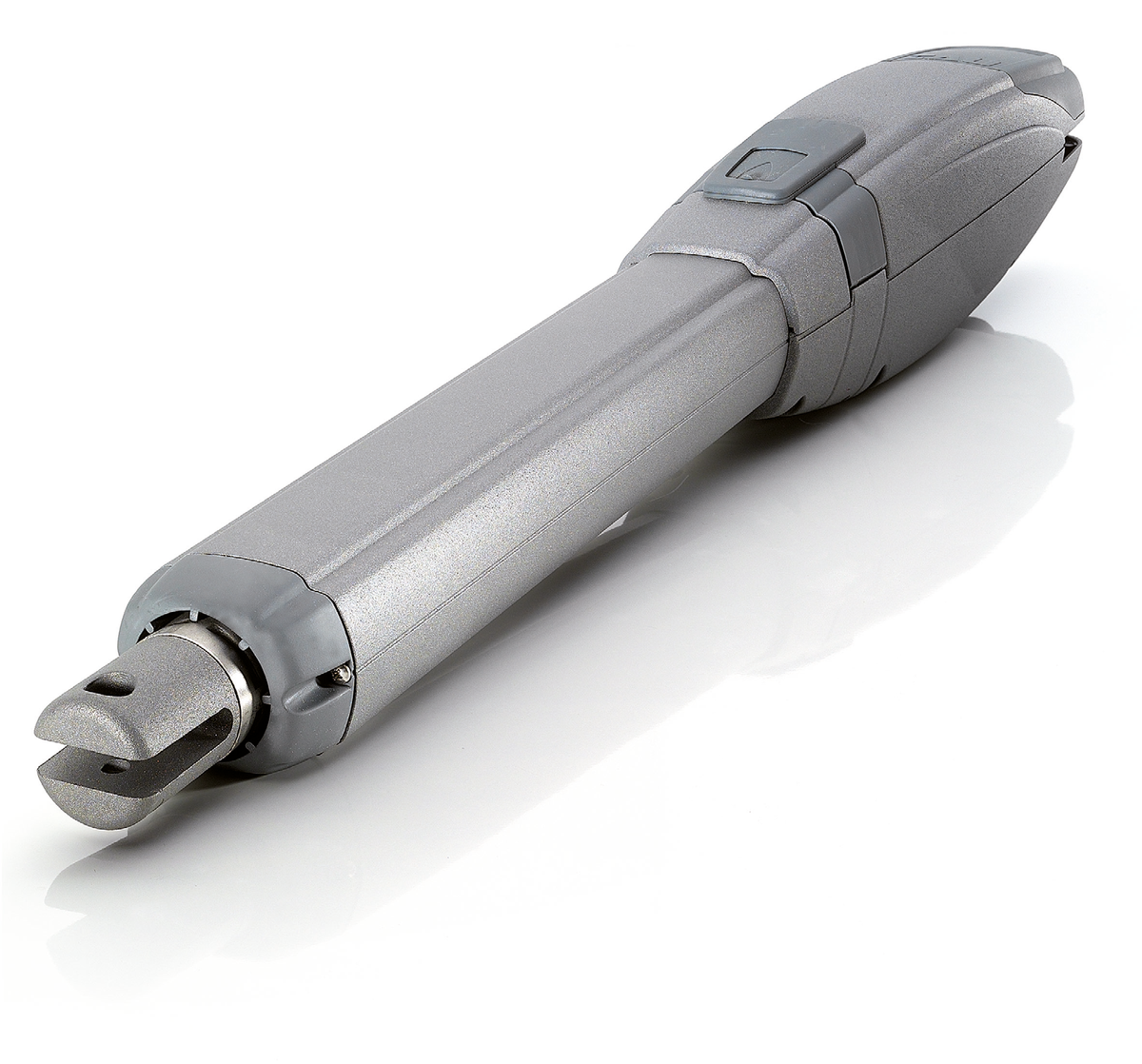

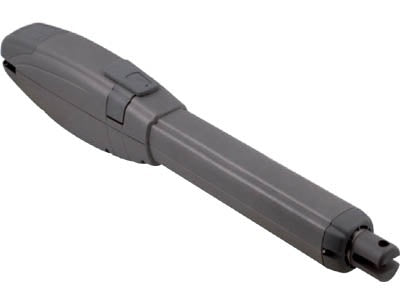

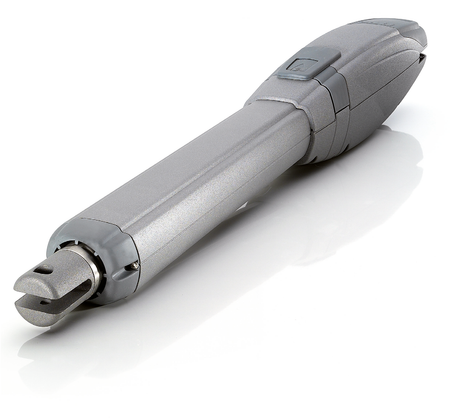

TAU ARM270BI 18 V DC actuator for leaf max 5 m

Irreversible electromechanical actuator with telescopic rod, 18 V DC powered with optical encoder for swing gates up to 5 meters. Designed for intensive and continuous use in residential, apartment building and industrial settings, ideal for large gates or those with large pillars. Equipped with axial thrust, manual release with customized key, obstacle detection, and slowing down during opening and closing. It also operates during power outages via optional batteries and is designed for electrical connections from the top.

Kit contents:

• Weld-on brackets

Compatible with: D749MA.

Technical data:

• Motor power supply: 18 V DC
• Line power supply: 230 V AC (50 - 60 Hz)
• Max gate leaf length: 5 m
• Rated power: 120 W
• No-load motor consumption: 1 A
• Opening time at 90°: 13 s
• Duty cycle: 100%
• Useful stroke: 530 mm
• Protection rating: IP 44
• Operating temperature: -20 °C ÷ +55 °C
• Actuator weight: 8.2 kg

TAU code: 650ARM270BI
