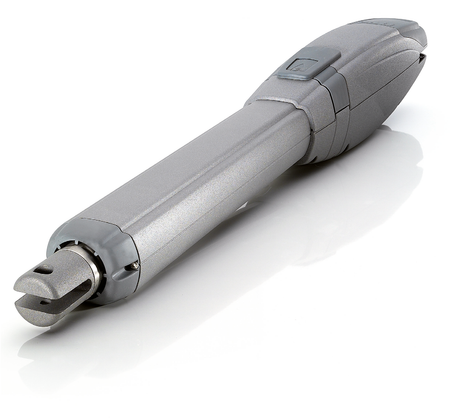

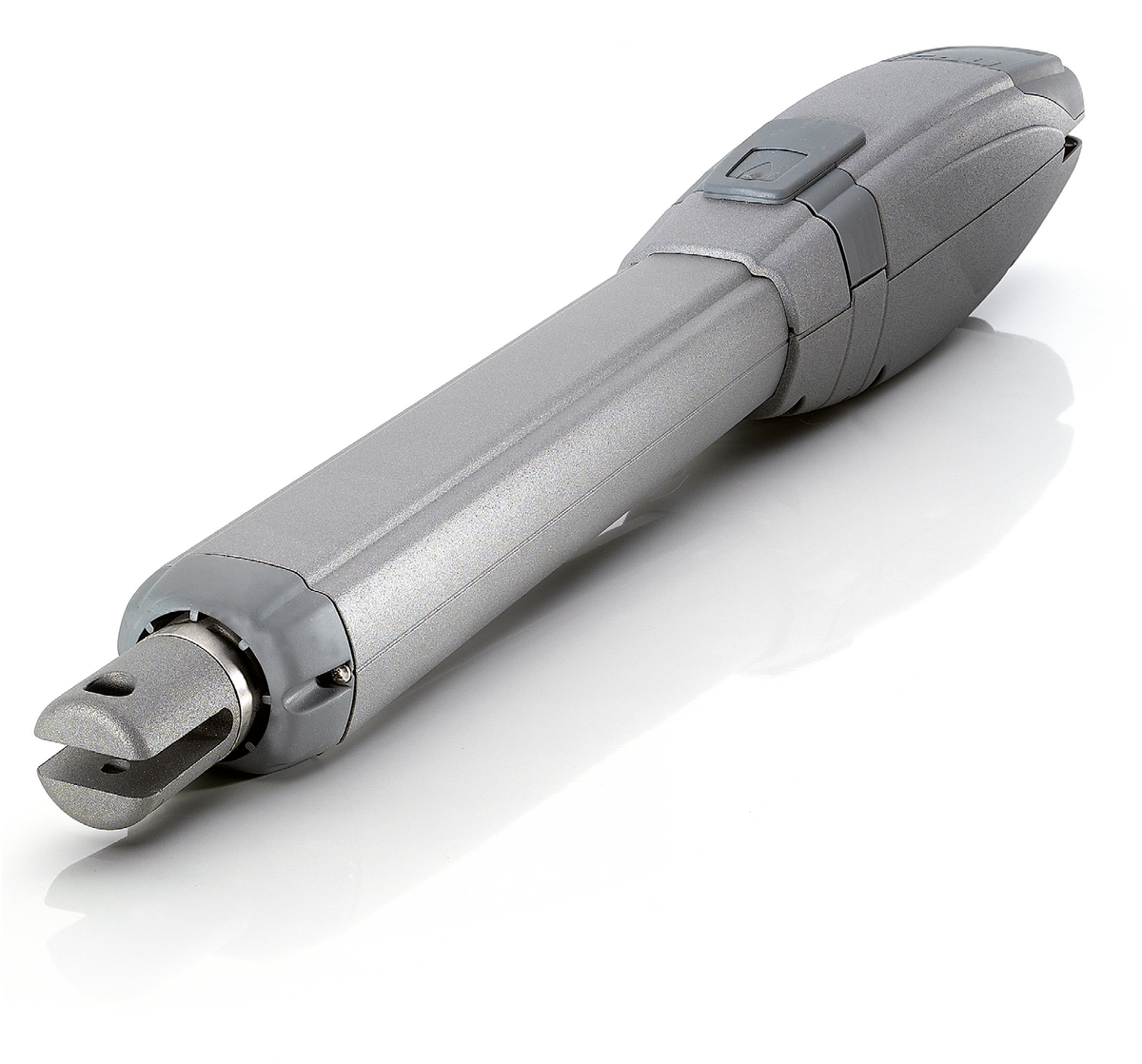

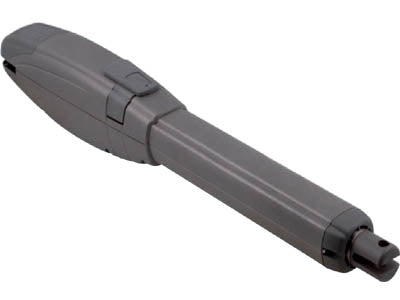

TAU ARM250BI 18 V DC actuator for gate leaves up to 4 m

18 V DC low-voltage irreversible electromechanical actuator with telescopic rod and encoder, for swing gates up to 4 meters. Designed for intensive, continuous, residential, condominium, and industrial use, it is suitable for large gates and substantial pillars. Equipped with axial thrust, manual release with a personalized key, weld-on brackets included, and top electrical connections to facilitate installation. It integrates obstacle detection with crush prevention safety and slowdowns during opening and closing.

Compatible with: D749MA.

Technical data:

• Power supply: 230 V AC (50 - 60 Hz)
• Motor power supply: 18 V DC
• No-load motor current draw: 1 A
• Rated power: 120 W
• Opening time 90°: 12.5 s*
• Duty cycle: 100 %
• Operating temperature: -20° C ÷ +55° C
• Protection rating: IP 44
• Effective stroke: 425 mm
• Actuator weight: 7.7 kg

TAU code: 650ARM250BI
