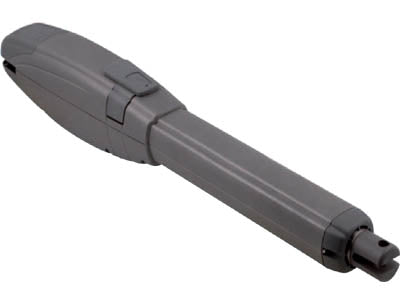

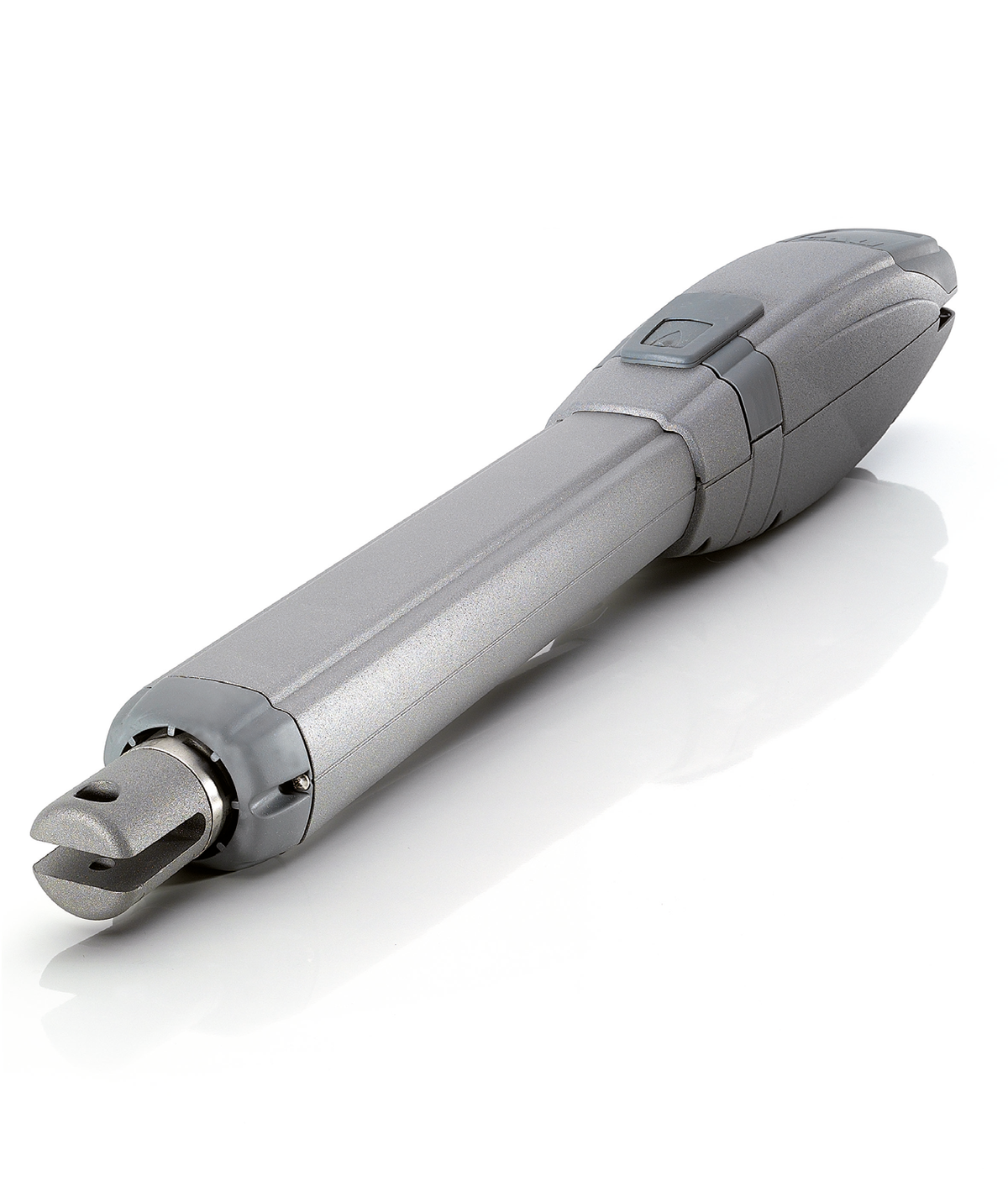

TAU ARM225BI 18 V DC actuator for leaves up to 3 m

Irreversible electromechanical actuator with axial thrust rod extension, powered at 18 V DC with encoder. Designed for swing gates up to 3 meters for residential, apartment complex, and intensive industrial use. Equipped with manual release via customized key and included weld-on brackets, with top electrical connections for easy installation. Ensures obstacle detection, anti-crushing safety, and slowdown during opening and closing.

Compatible with: D749MA.

Technical data:

• Power supply: 230 V AC (50 - 60 Hz)
• Motor power supply: 18 V DC
• No-load motor current draw: 1 A
• Rated power: 120 W
• 90° opening time: 12 s*
• Duty cycle: 100 %
• Operating temperature: -20° C ÷ +55° C
• Protection rating: IP 44
• Useful stroke: 290 mm
• Control unit to be paired: D749MA
• Actuator weight: 6.8 kg
• Max gate leaf length: 3 m

TAU code: 650ARM225BI
