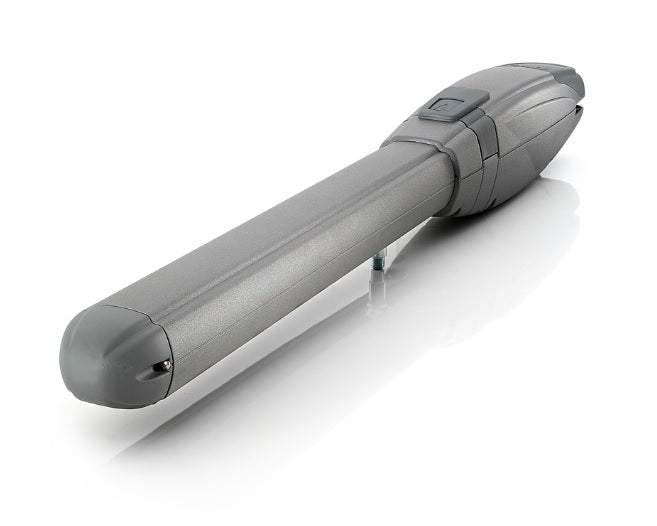

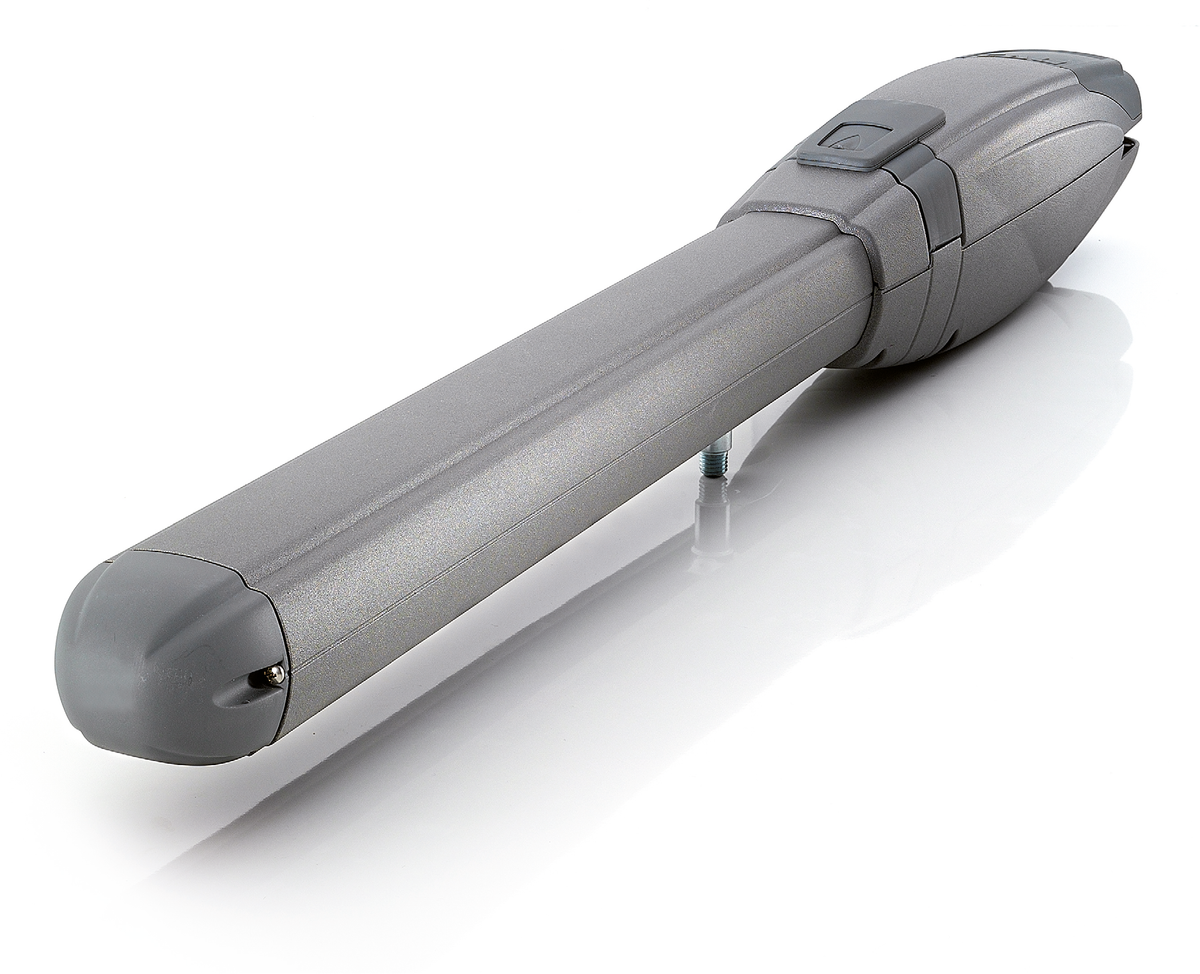

TAU ARM3000BI 18V actuator for swing gates up to 4 m

Irreversible 18 V DC low-voltage electromechanical actuator with encoder and mechanical stops for opening and closing, ideal for residential or apartment building use on swing leaves up to 4 meters. Equipped with an off-axis thrust transmission, bronze nut to ensure quiet operation and durability, and manual release with a personalized key. Installation is facilitated by top-accessible electrical connections and the included weld-on brackets.

Compatible with: D749MA.

Technical data:

• Power supply: 230 V AC (50-60 Hz)
• Motor power supply: 18 V DC
• Rated power: 120 W
• Motor current consumption: 1.1 A
• Useful stroke: 506 mm
• 90° opening time: 13 s
• Duty cycle: 100 %
• Protection rating: IP 44
• Operating temperature: -20 °C ÷ +55 °C
• Actuator weight: 6.5 kg
• Control unit to be paired: D749MA

TAU code: 650ARM3000BI
