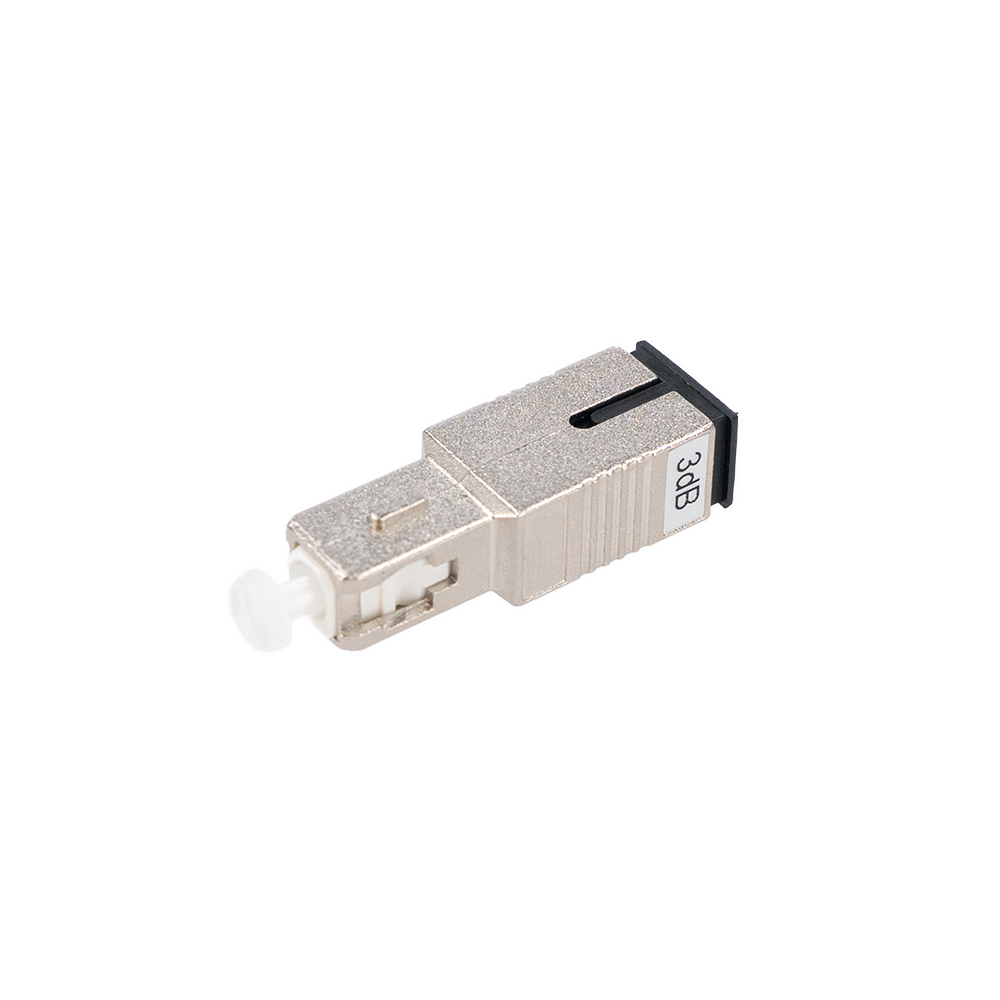

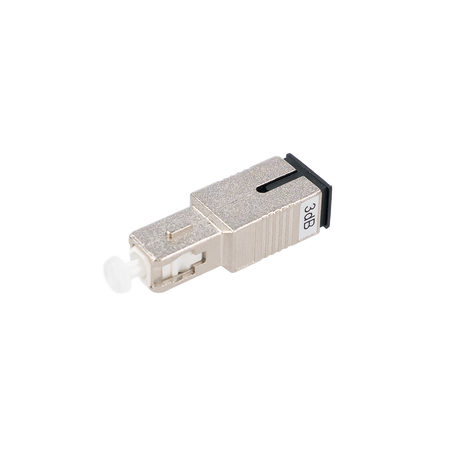

Exact 3dB attenuation in the optical signal - High-density compact SC connector
Exact 3dB attenuation in the optical signal - High-density compact SC connector
Regular price
€4,95
Final price
Regular price
-18%
€6,00
Sale price
€4,95
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Precise 3dB attenuation in the optical signal. - Compact high-density SC connector. - UPC polishing that reduces reflections. - Thermal stability in critical environments. - Direct Plug and Play installation. - Universal OS2 single-mode compatibility.
📋 SPECIFICATIONS:
• Component type: Fixed optical attenuator
• Connector type: SC / UPC (male to female)
• Attenuation value: 3 dB
• Attenuation accuracy: ±0.5 dB
• Compatible fiber type: Single-mode (SMF) OS1/OS2 9/125 µm
• Operating wavelengths: 1310 nm, 1550 nm, and 1490 nm
• Return Loss: ≥ 50 dB
• Polarization Dependent Loss (PDL): ≤ 0.2 dB
• Maximum optical input power: 200 mW / +23 dBm
• Ferrule material: Zirconium oxide (ZrO2)
• Housing material: Engineering plastic (UL94V-0 polymer)
• Housing color: Blue (UPC standard)
• Operating temperature: -40 °C to +75 °C
• Storage temperature: -40 °C to +85 °C
• Operating relative humidity: 95% RH (non-condensing)
• Connection stability: > 1000 matings
• Approximate dimensions: 34 mm x 12 mm x 8 mm
• Environmental compliance: RoHS / REACH
📦 INCLUDED:
• 1x Fixed optical attenuator SC/UPC 3dB
| Component type | Fixed optical attenuator |
|---|---|
| Connector type | SC / UPC (male to female) |
| Attenuation value | 3 dB |
| Attenuation accuracy | ±0.5 dB |
| Compatible fiber type | Singlemode (SMF) OS1/OS2 9/125 µm |
| Operating wavelengths | 1310 nm, 1550 nm, and 1490 nm |
| Return loss | ≥ 50 dB |
| Polarization Dependent Loss (PDL) | ≤ 0.2 dB |
| Maximum optical input power | 200 mW / +23 dBm |
| Ferrule material | Zirconium oxide (ZrO2) |
| Housing material | Engineering plastic (UL94V-0 polymer) |
| Housing color | Blue (UPC standard) |
| Operating temperature | -40 °C to +75 °C |
| Storage temperature | -40 °C to +85 °C |
| Operating relative humidity | 95% RH (non-condensing) |
| Connection stability | > 1000 matings |
| Approximate dimensions | 34 mm x 12 mm x 8 mm |
| Environmental compliance | RoHS / REACH |
