SECURITON

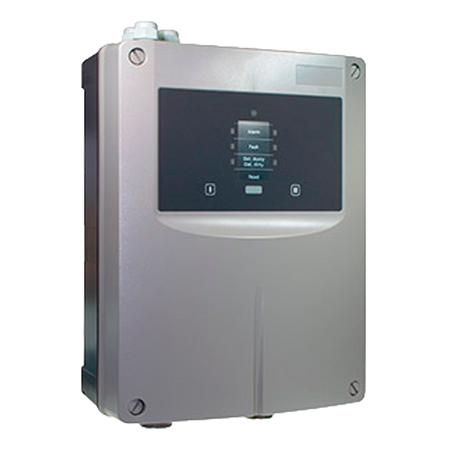

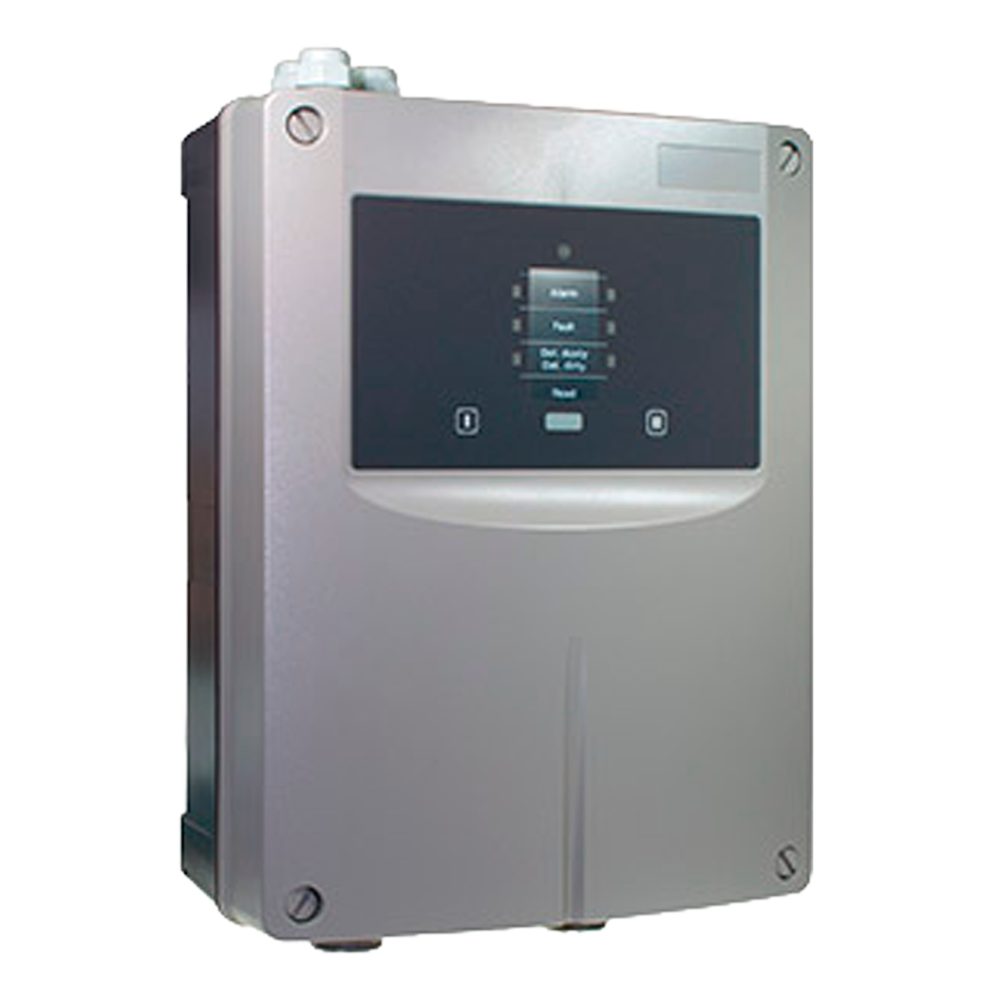

Securiton single-channel aspirating smoke detector

SKU: ASD533-1
(0)
Disponibile su richiesta
Available upon request
€2.140,94 Final price
-6% €2.285,40 €2.140,94 Final price
Su richiesta · chiedi all'assistente

Articolo ordinato su richiesta: prezzo definitivo e tempi li conferma il nostro tecnico.

Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Single-channel aspirating smoke detector - SSD533 sensor included - Up to 200m of pipe - Flexible configuration - Approved according to EN 54-20 standard

📋 SPECIFICATIONS:
• Supply voltage range: 10.5 to 30 V-DC (UL/FM = 12.4 to 27 V-DC)
• Current consumption (ASD 533-1): Standby/Fault: ~265 mA (10.5V) / ~160 mA (18V) / ~130 mA (24V) Alarm: ~340 mA (10.5V) / ~210 mA (18V) / ~160 mA (24V)
• Alarm sensitivity range: 0.02 %/m to 10 %/m
• Approvals: EN 54-20 (classes A, B, C), FM 3230-3250, UL 268 7th Ed, ULC-S529 4th Ed, VdS G 212163
• Housing material: ABS-Blend, UL 94-V0
• Max. relay contact rating: 50 V-DC (UL max. 30 V-DC), 1 A, 30 W
• Max. OC output rating: 100 mA (dielectric strength 30 V-DC)
• Sound pressure: 34 dB(A) / 1 m
• Cable glands: For Ø 5 – 12 mm (M20) / Ø 9 – 18 mm (M25)
• Connection terminals: Connectors, 2.5 mm²
• Dimensions: 265 x 397 x 148 mm
• Weight: 3,535 g

📦 INCLUDED:
• ASD533-1 detector
Supply voltage range 10.5 to 30 V DC (UL/FM = 12.4 to 27 V DC)
Current consumption (ASD 533-1) Standby/Fault: ~265 mA (10.5V) / ~160 mA (18V) / ~130 mA (24V) Alarm: ~340 mA (10.5V) / ~210 mA (18V) / ~160 mA (24V)
Alarm sensitivity range 0.02 %/m to 10 %/m
Approvals EN 54-20 (classes A, B, C), FM 3230-3250, UL 268 7th Ed, ULC-S529 4th Ed, VdS G 212163
Housing material ABS-Blend, UL 94-V0
Max. relay contact rating 50 V DC (UL max. 30 V DC), 1 A, 30 W
Max. OC output rating 100 mA (dielectric strength 30 V DC)
Acoustic pressure 34 dB(A) / 1 m
Cable glands For Ø 5 – 12 mm (M20) / Ø 9 – 18 mm (M25)
Connection terminals Connectors, 2.5 mm²
Dimensions 265 x 397 x 148 mm
Weight 3,535 g
