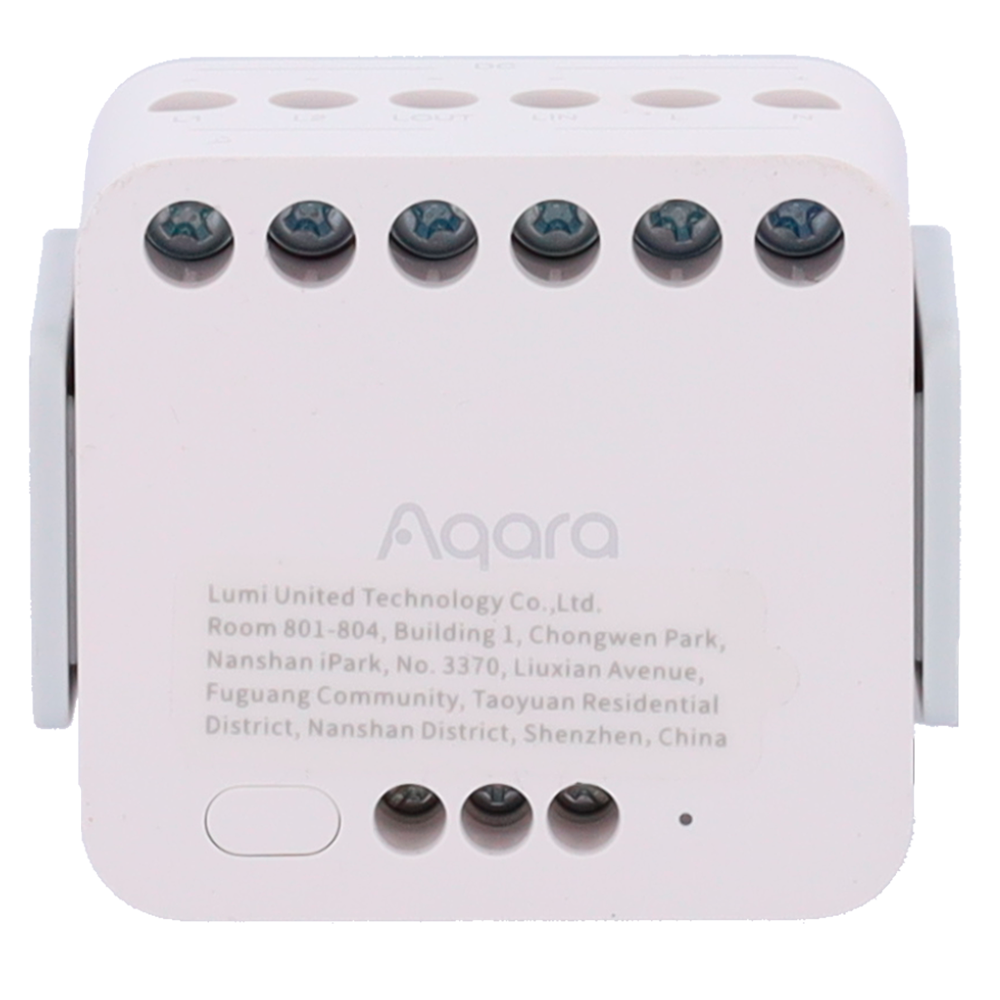

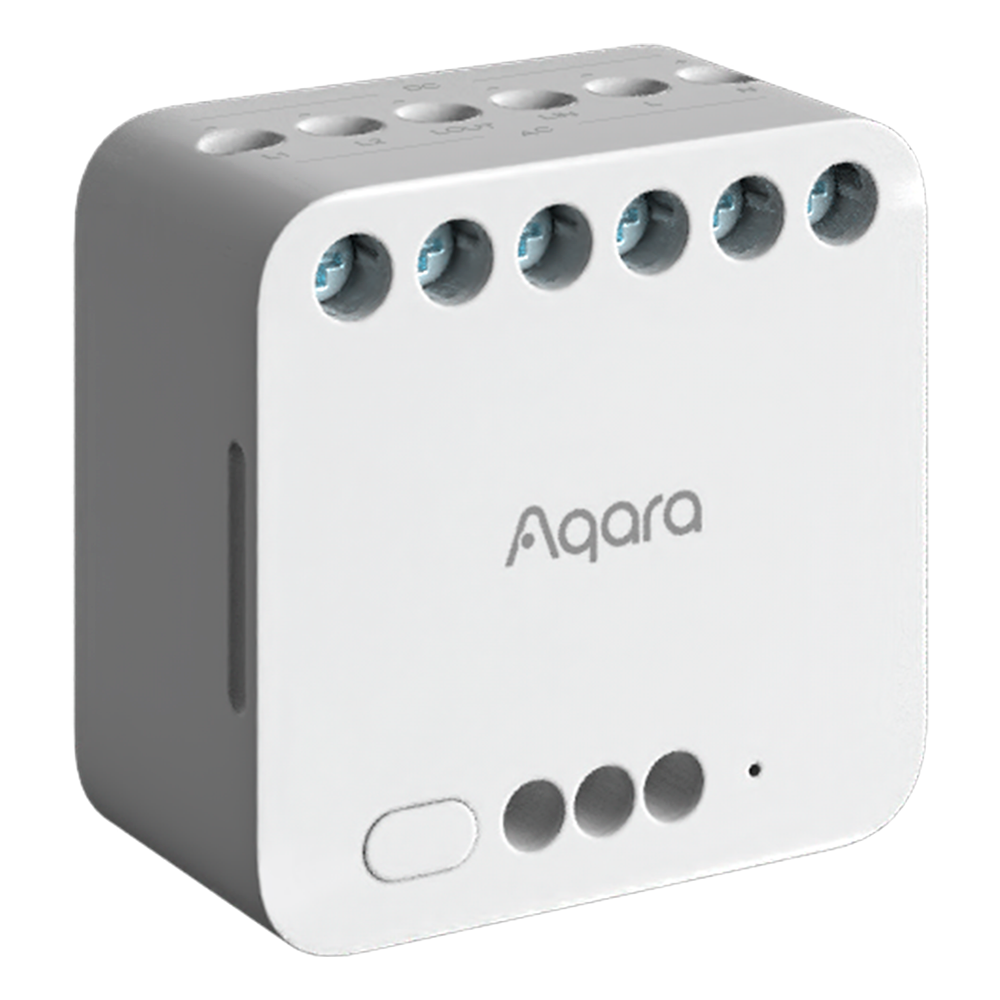

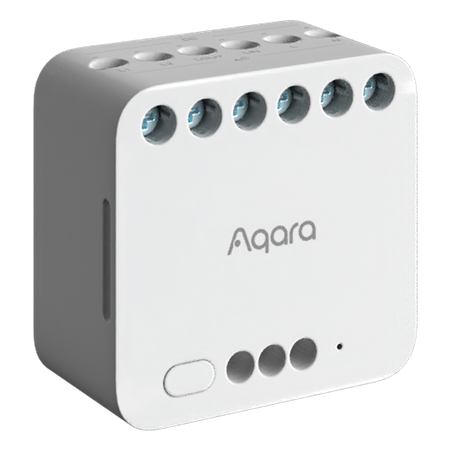

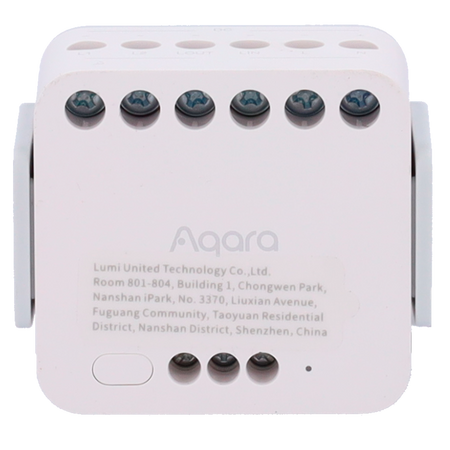

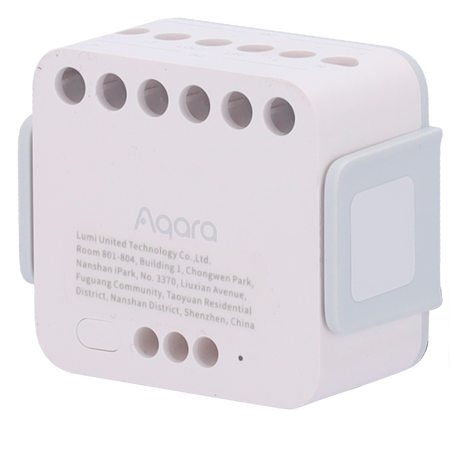

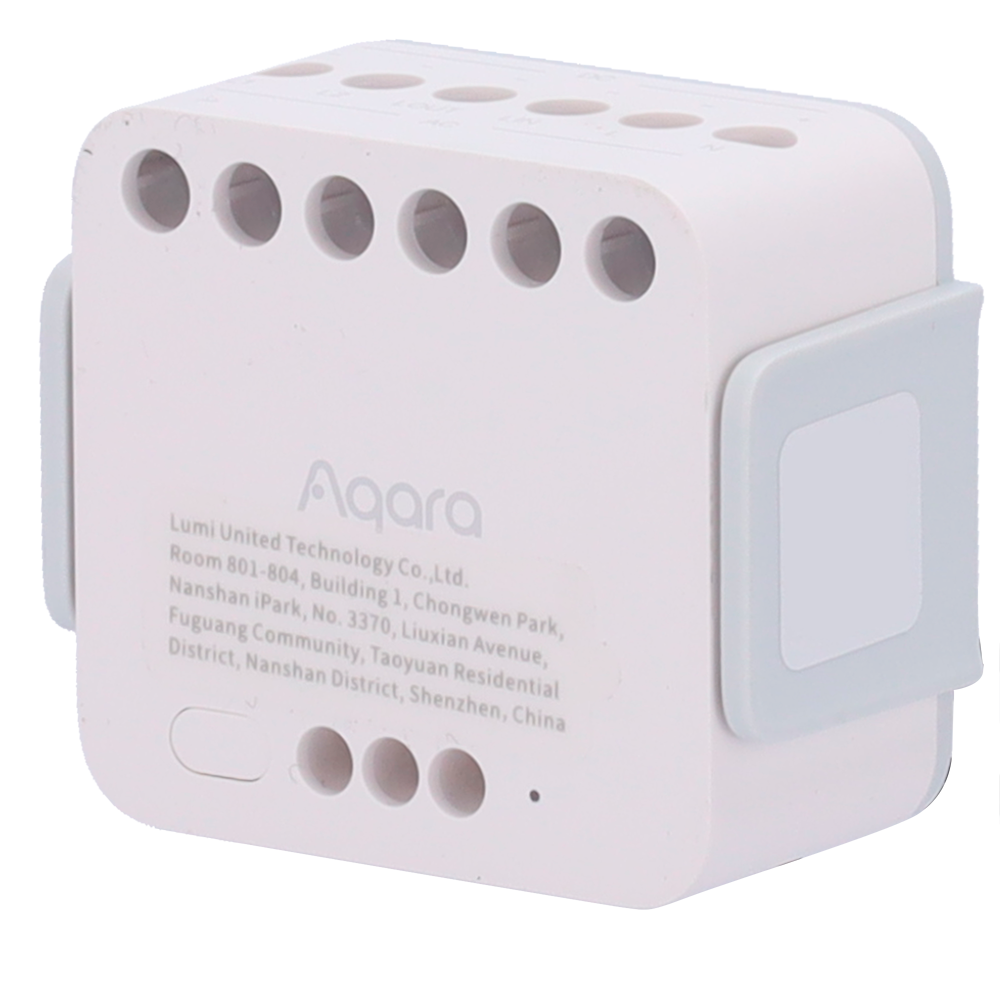

Aqara Dual Relay Module T2
Regular price
€49,57
Final price
Regular price
-5%
€52,20
Sale price
€49,57
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

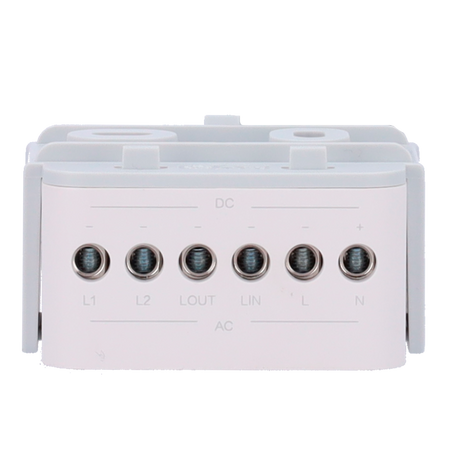

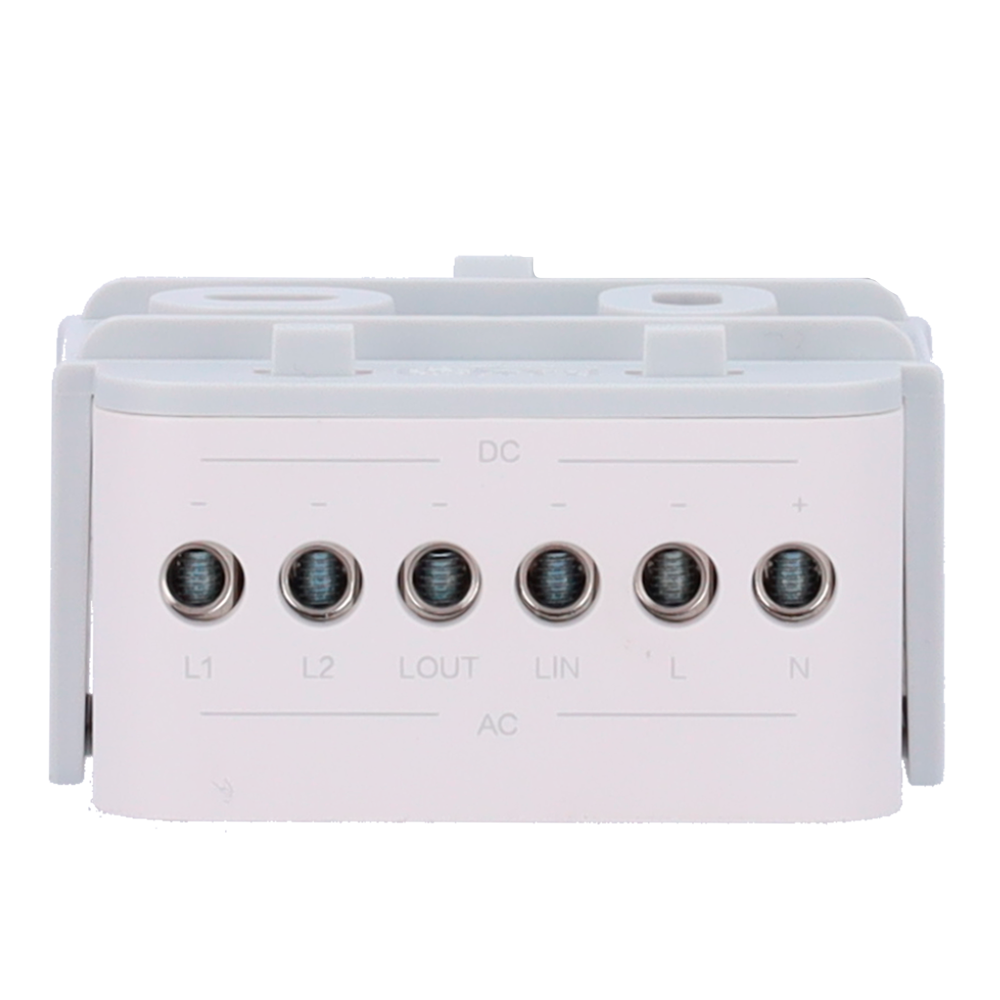

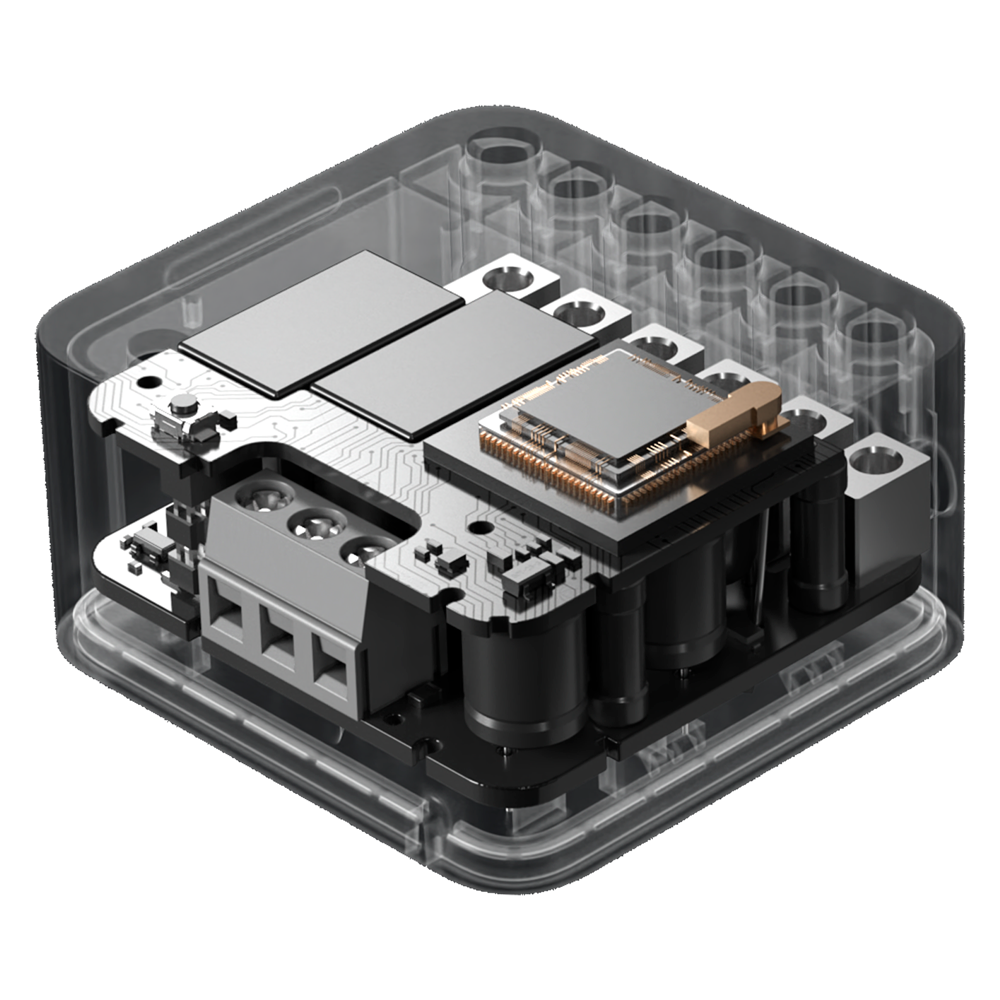

Aqara Dual Relay Module T2 - Independent control of two channels or circuits - Versatile modes: dry contact and powered - Zigbee / Matter / Hub or Border Router - Supports AC 100-240V (50/60Hz) or DC 24-60V - Compatible with Apple HomeKit / Alexa and Google
📋 SPECIFICATIONS:
• Brand: Aqara
• Model: Dual Relay Module T2 | DCM-K01
• Wireless protocols: Zigbee 3.0
• Operating temperature: -10 °C ~ 40 °C (14 °F ~ 104 °F)
• Humidity: 5 ~ 95% RH
• Energy monitoring: Available only in powered contact mode
• Power supply: AC: 100-250V, 50/60Hz/Max.10A, Max 2500W (Incandescent lamp); Max.1A, Max 250W (LED, CFL fluorescent lamp); 1A max., 1/4 HP max. (motor) M.1; DC: 24-30V: Max.10A, Max 300W (resistive load); 30-60V: Max. 1A, Max. 60W (resistive load)
• Dimensions: 45.5 × 48 × 24 mm (1.79 × 1.89 × 0.94 in.)
• Weight: 60 g
📦 INCLUDED:

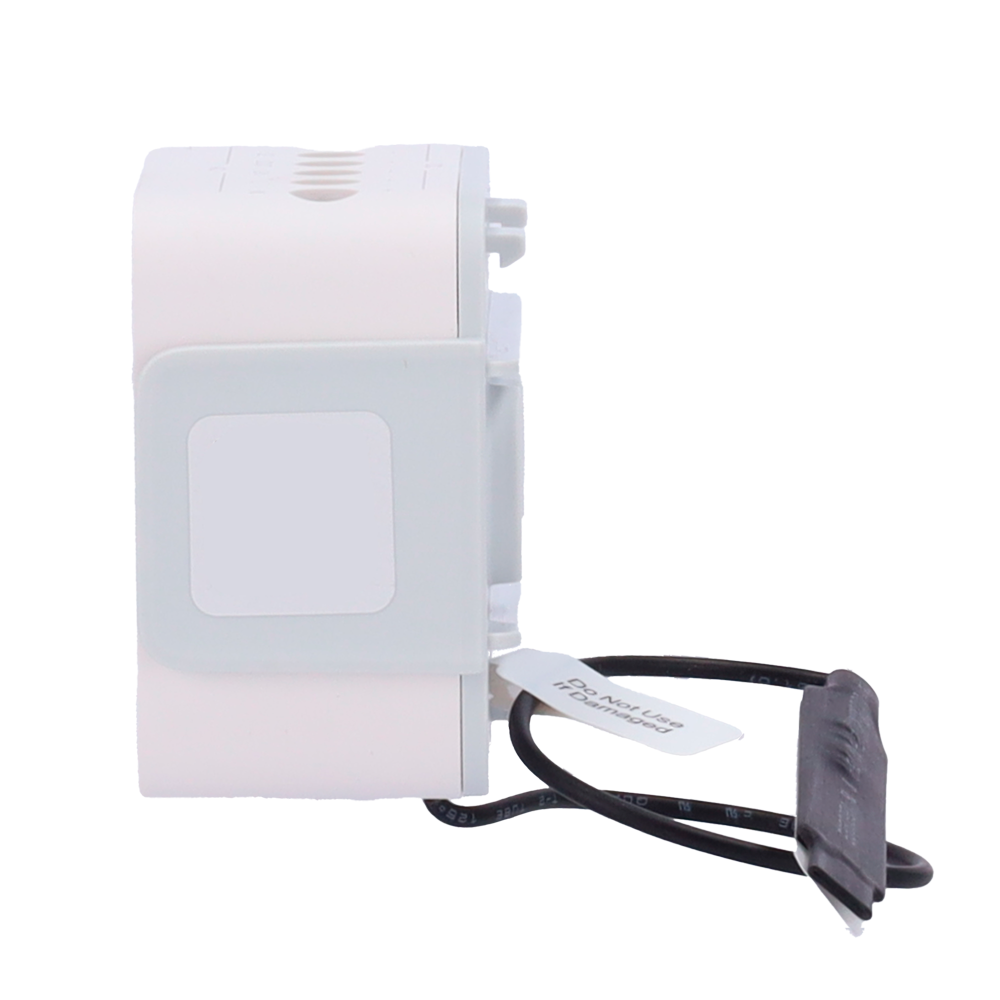

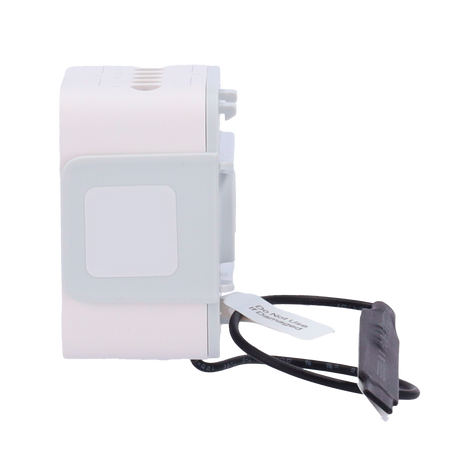

• 1x Aqara Dual Relay Module T2• 1x DIN rail mount support• 1x Connection cable (for mode configuration)• 1x Instruction manual
| Model | Dual Relay Module T2 | DCM-K01 |
|---|---|
| Wireless protocols | Zigbee 3.0 |
| Operating temperature | -10 °C ~ 40 °C (14 °F ~ 104 °F) |
| Humidity | 5 ~ 95% RH |
| Energy monitoring | Only available in Powered Contact mode |
| Power supply | AC: 100-250V, 50/60Hz/Max.10A, Max 2500W (Incandescent lamp) Max.1A, Max 250W (LED, CFL Fluorescent lamp) 1A max., 1/4 HP max. (motor) M.1 DC: 24-30V: Max.10A, Max 300W (resistive load) 30-60V: Max. 1A, Max. 60W (resistive load) |
| Dimensions | 45.5 × 48 × 24 mm (1.79 × 1.89 × 0.94 in.) |
| Weight | 60 g |
