TELTONIKA

4G network antenna 4G frequency of 850-960 / 1710-2700 MHz

SKU: ANT-4G-05D-0-M-200
(0)
In stock
Usually shipped within 24 hours
€7,38 Final price
-8% €8,00 €7,38 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

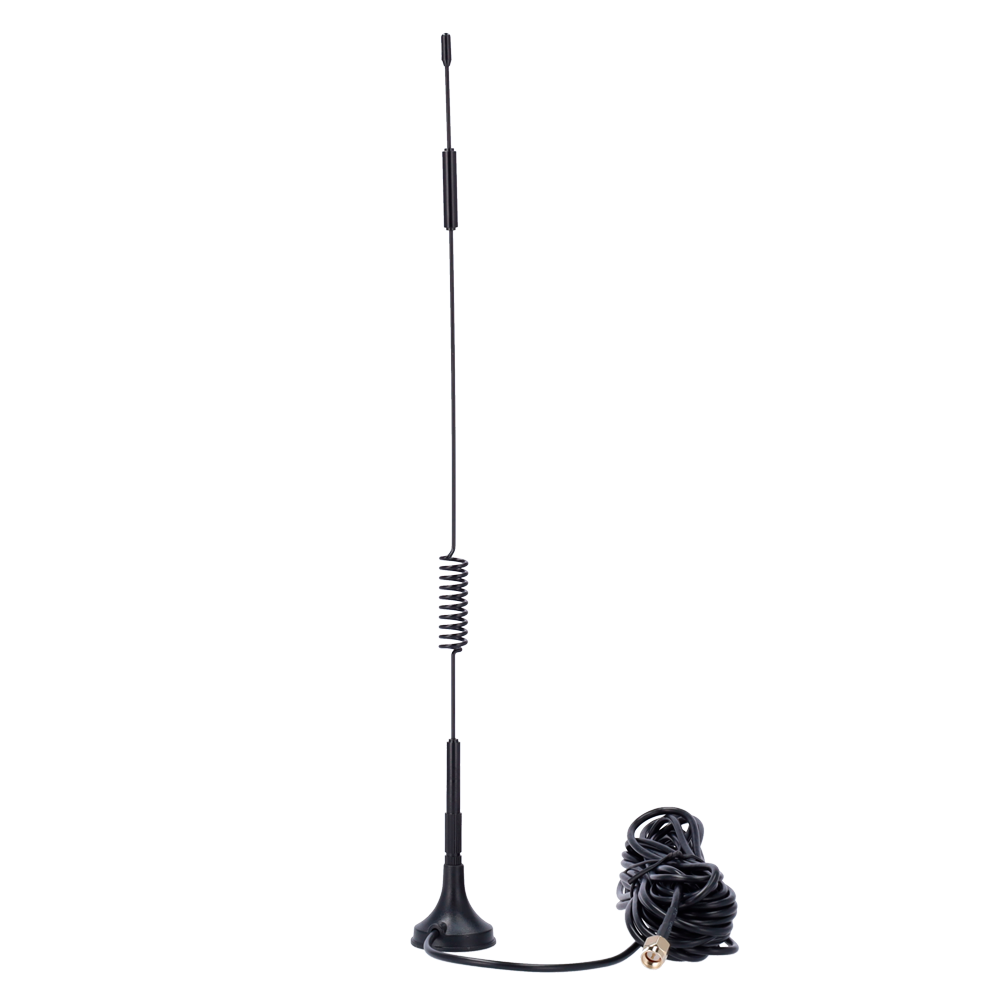

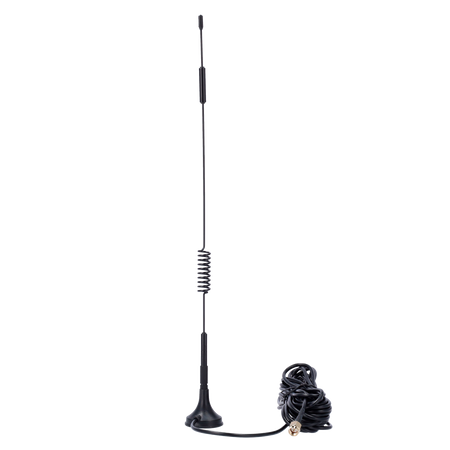

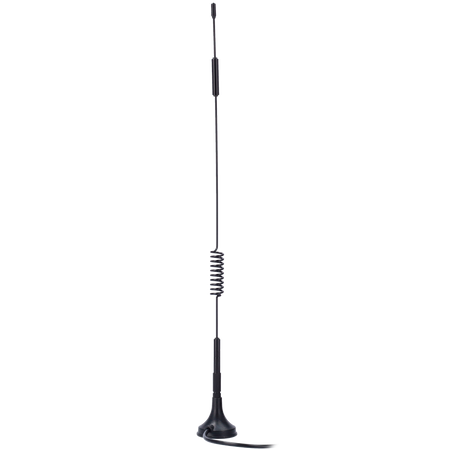

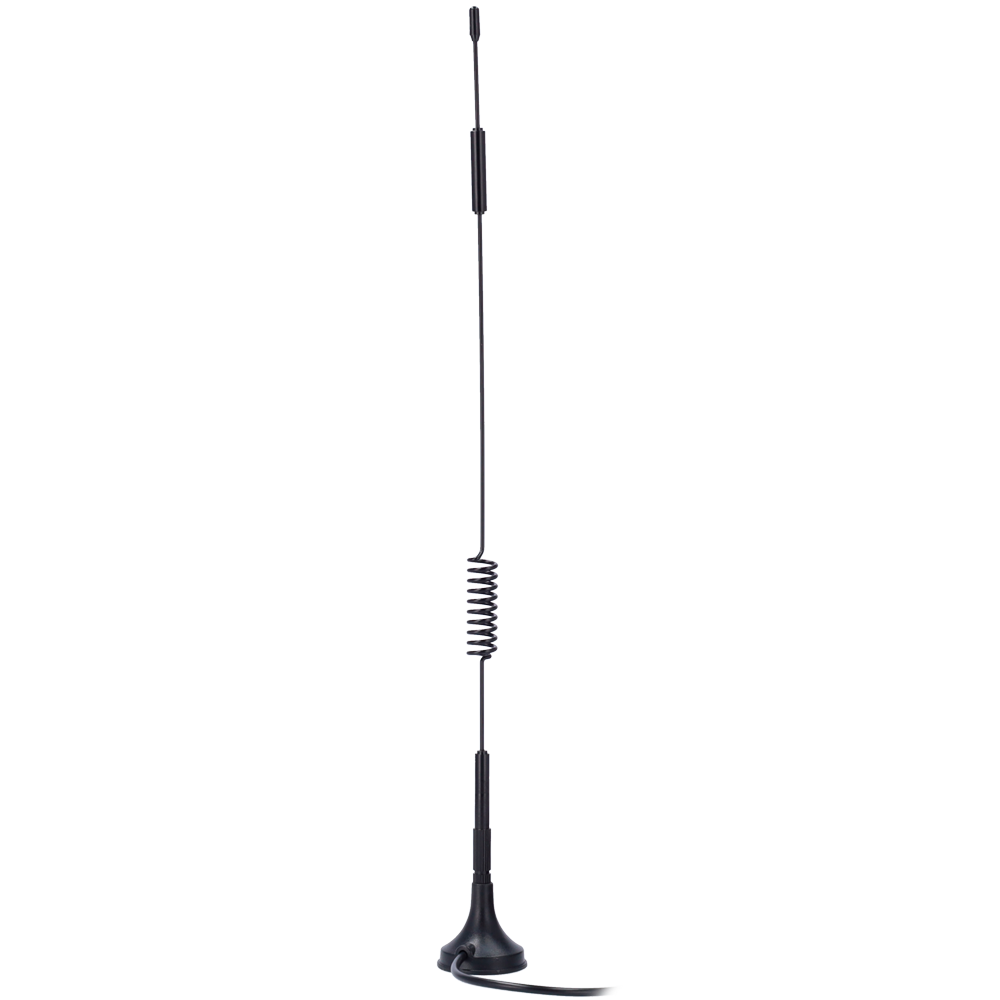

4G network antenna. - 4G frequency of 850-960 / 1710-2700 MHz. - Interface with SMA male connector. - Designed for indoor installation. - 4G antenna gain of 5 dBi. - Includes a 2-meter RG174 cable.

📋 SPECIFICATIONS:
• Device type: Indoor cellular antenna
• Compatible technology: 4G LTE / 3G / 2G
• Cellular frequency band: 850 - 960 MHz / 1710 - 2700 MHz
• Signal gain: 5 dBi
• Voltage Standing Wave Ratio (V.S.W.R.): < 3.0
• Nominal output impedance: 50 Ω

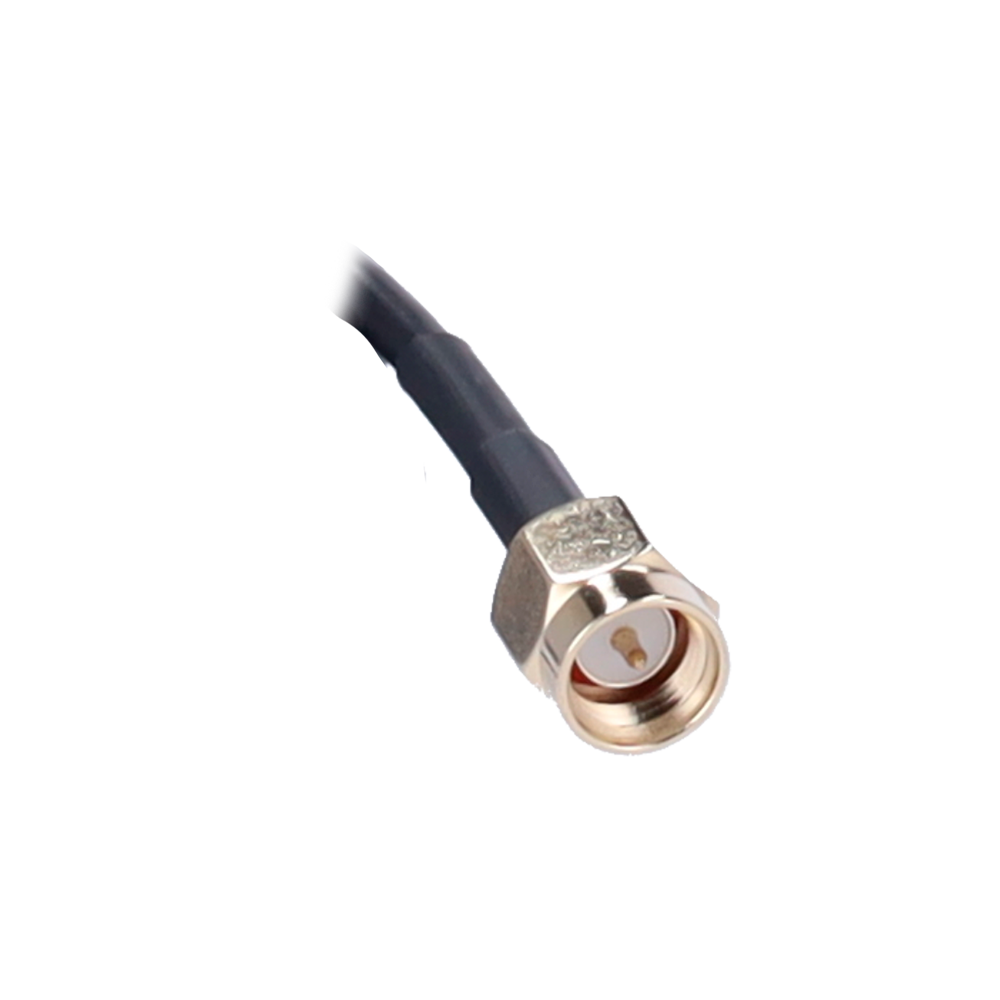

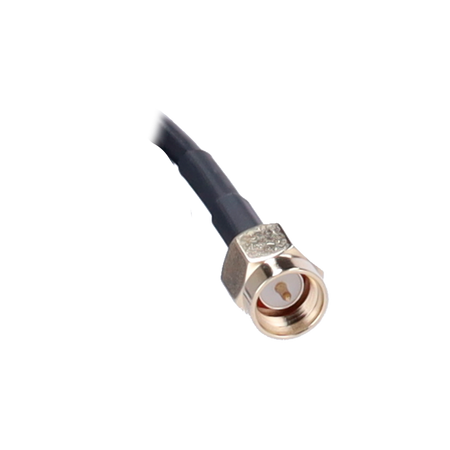

• Connection interface: 1x SMA male connector
• Coaxial cable type: Low-attenuation RG174
• Integrated cable length: 2 meters
• Usage and installation: For indoor use only
• Operating temperature: -20°C to ~ 85°C

📦 INCLUDED:
• 1x 4G antenna ANT-4G-05D-0-M-200 with 2m cable
Device type Indoor cellular antenna
Compatible technology 4G LTE / 3G / 2G
Cellular frequency band 850 - 960 MHz / 1710 - 2700 MHz
Signal gain 5 dBi
Voltage Standing Wave Ratio (V.S.W.R.) &lt; 3.0
Nominal output impedance 50 Ω
Connection interface 1x SMA male connector
Coaxial cable type Low-loss RG174
Integrated cable length 2 meters
Use and installation Exclusively for indoor environments
Operating temperature -20°C to ~ 85°C
