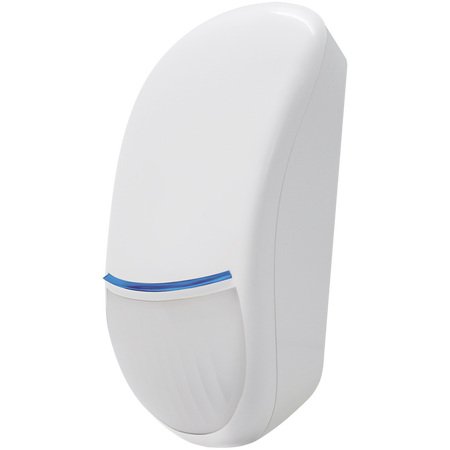

AMC analog PIR detector
Regular price
€11,37
Final price
Regular price
-9%
€12,44
Sale price
€11,37
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

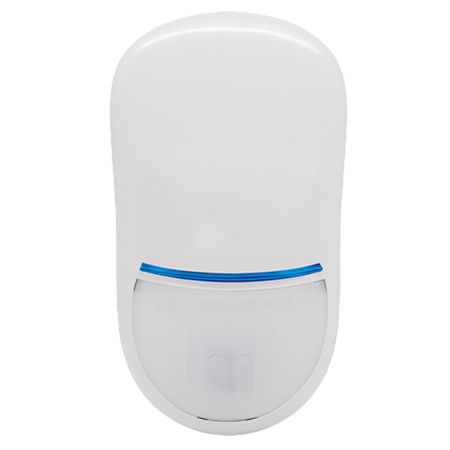

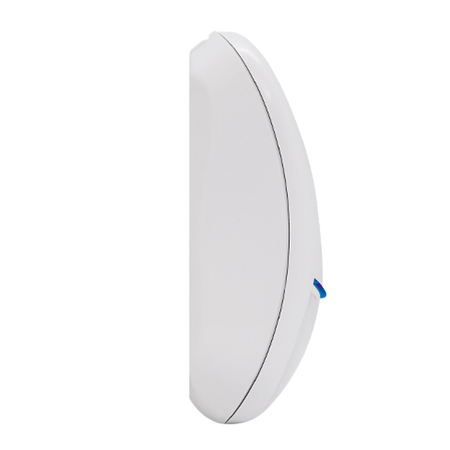

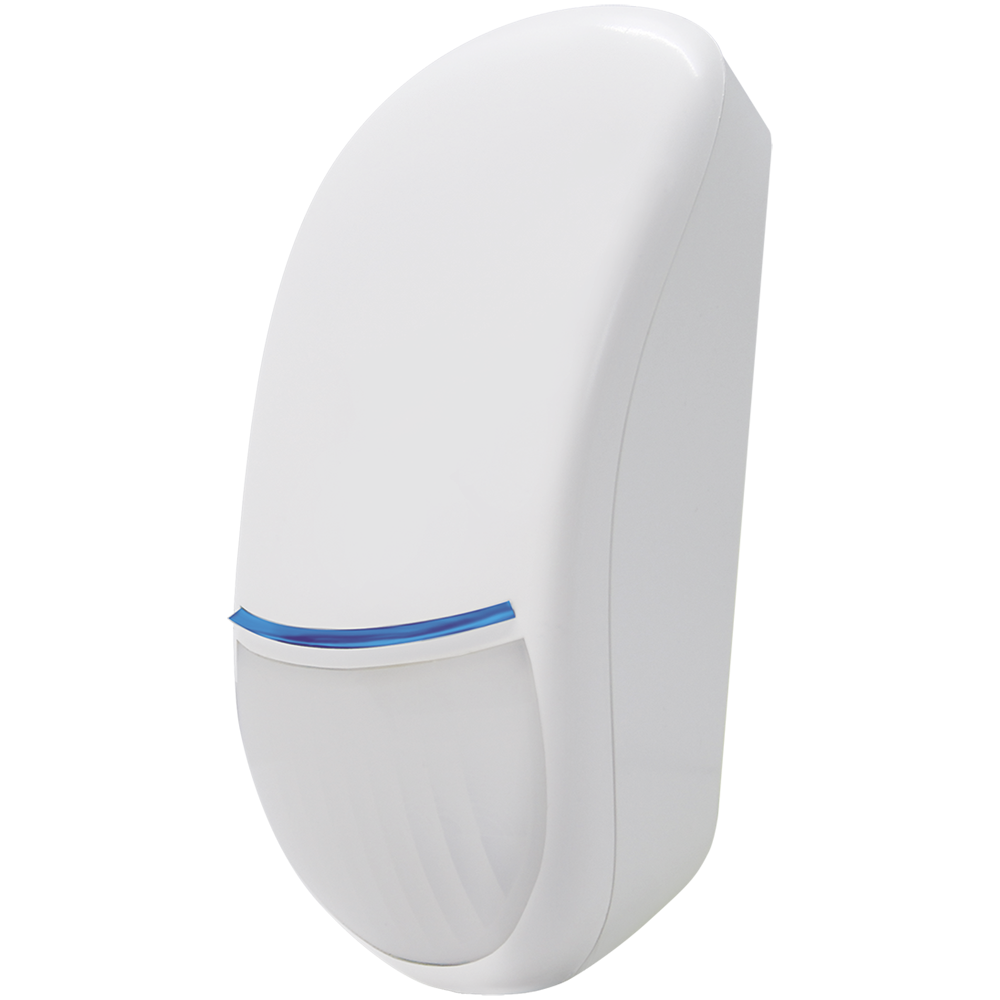

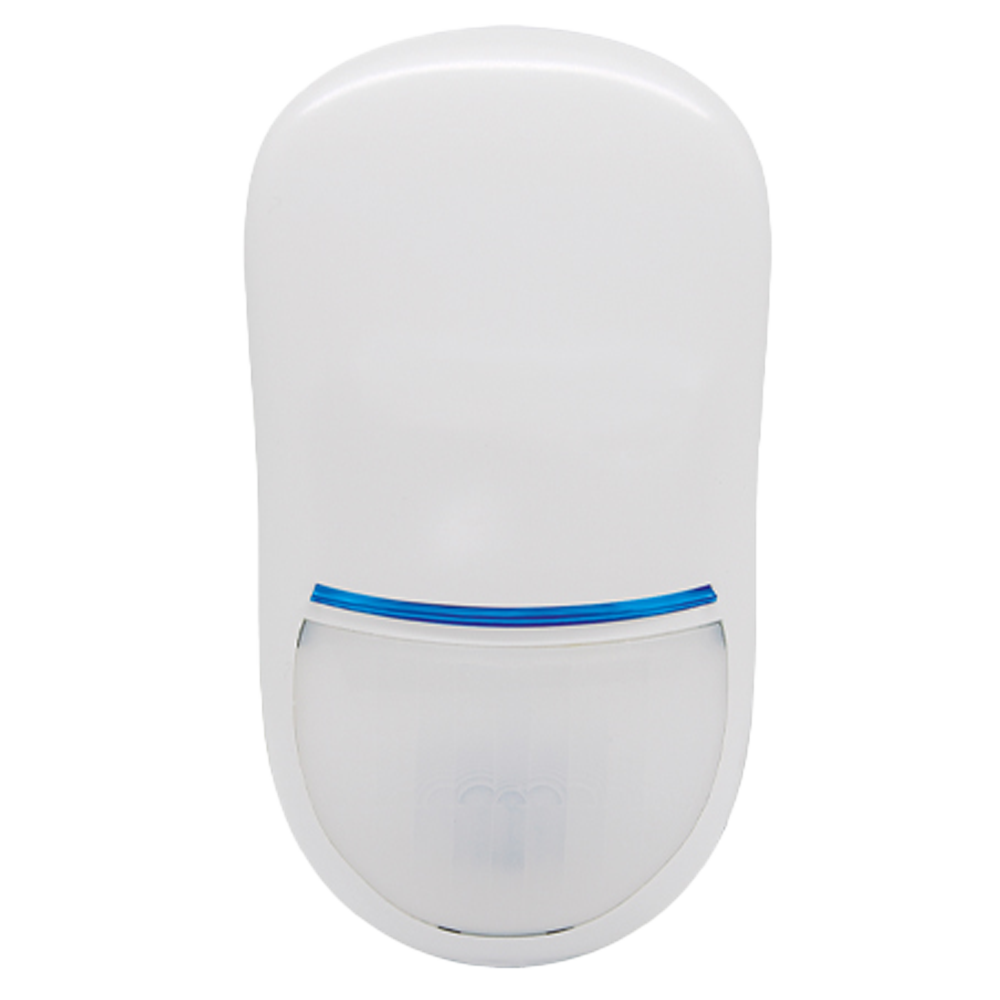

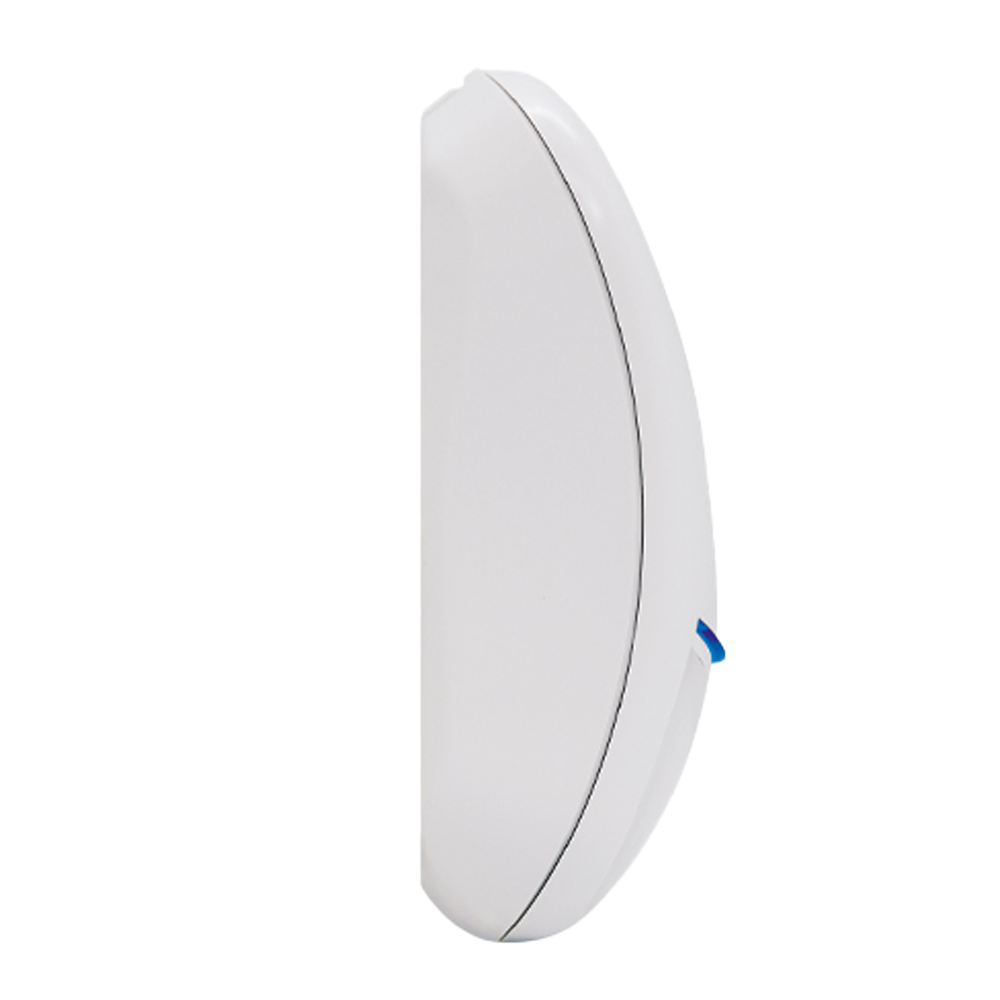

Analog PIR detector - Pet immunity - Wired - Detection range 12 m - Suitable for indoor use
📋 SPECIFICATIONS:
• Brand: AMC
• Technology: Volumetric PIR
• Security level: Not available

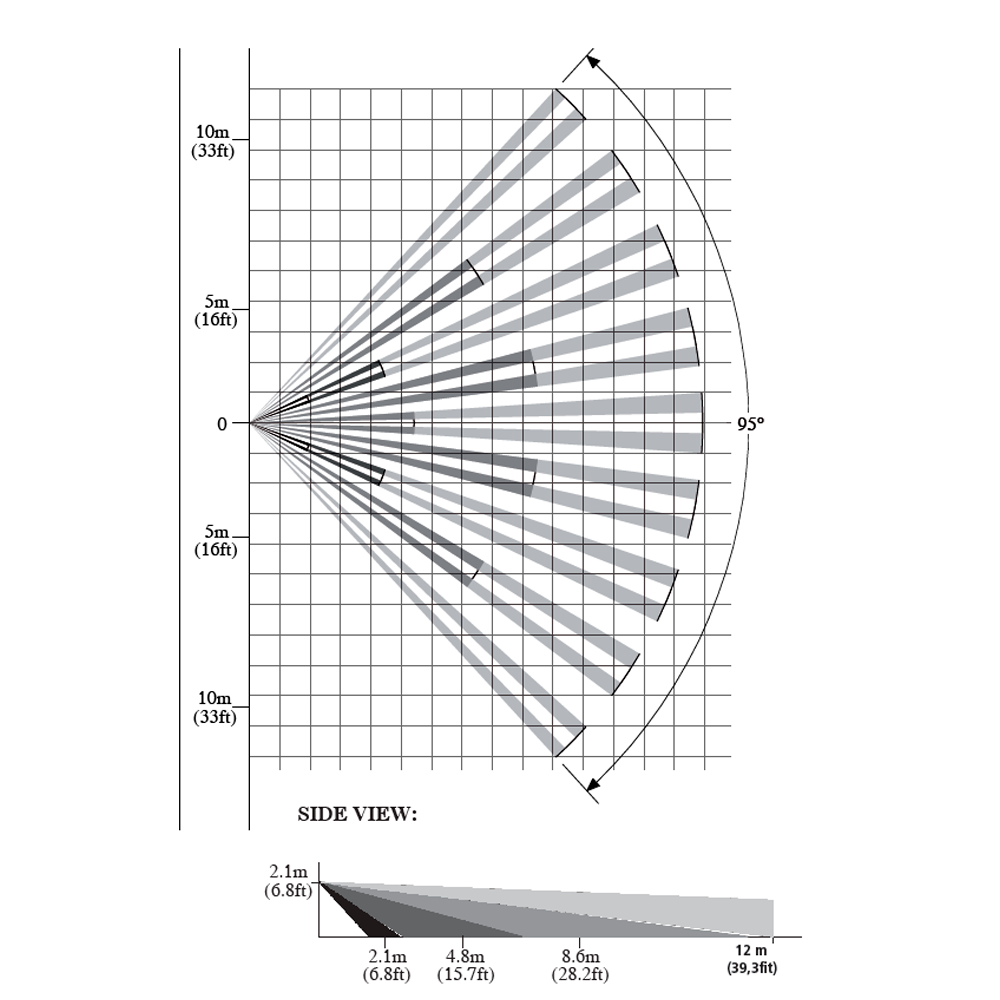

• Detection range: 12 m / 100º H
• Pet immune: ≤15 Kg
• Installation height: From 1.8 to 2.2 m
• Anti-masking: Not available
• Detection test: Available; PIR (flashing green LED)
• Self-test: Not available
• DIP Switch configuration: Not available
• LED indication: Alarm (blue)

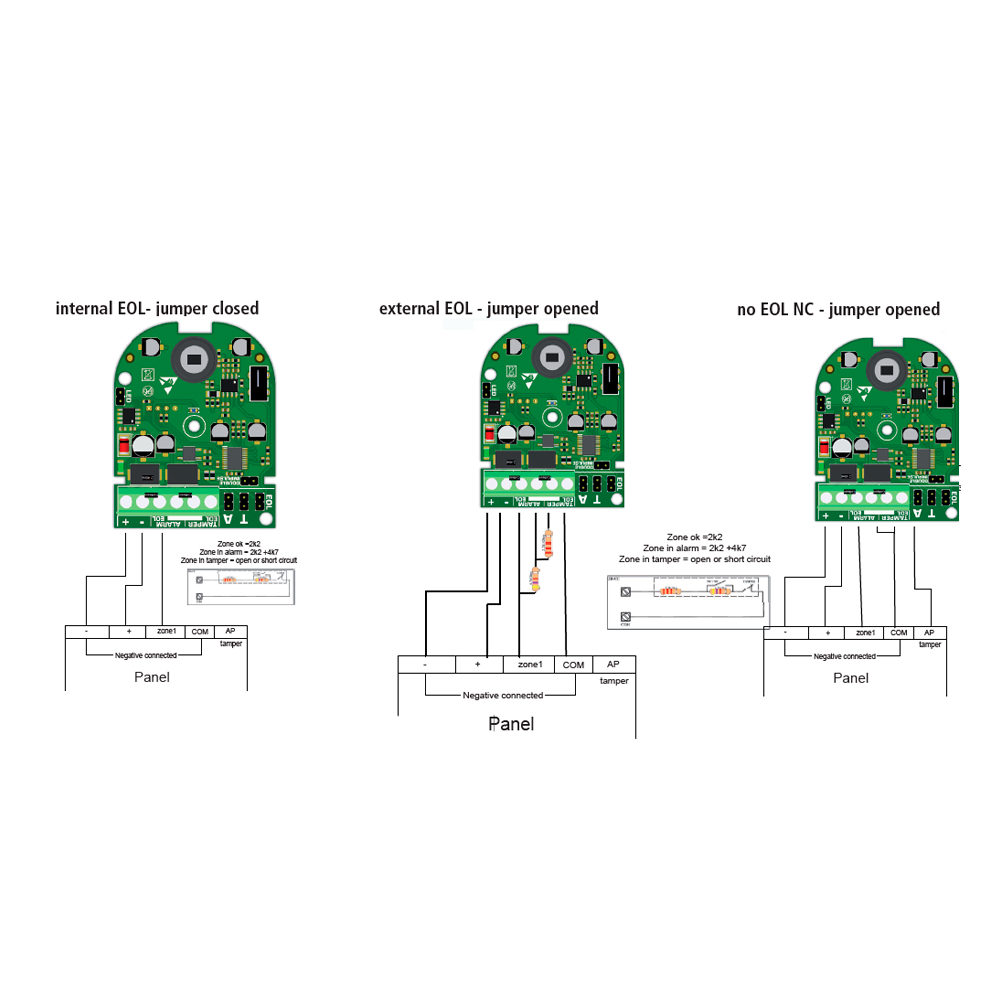

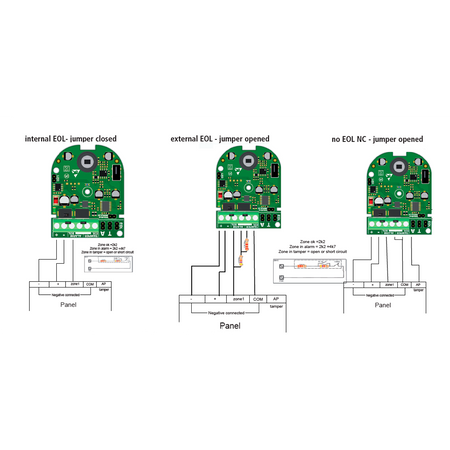

• Connection mode: End-of-line resistors: 2EOL
• End-of-line resistor values: With 3 jumpers:; Standby 2k2; Alarm 2k2+4k7; Tamper for open circuit
• Installation: Wall mounting or with AM-SN1 wall bracket
• Power supply: 9~15 VDC / 19 mA
• Operating temp.: -10º C ~ 40º C
• Dimensions (without bracket): 114 (H) x 63 (W) x 40 (D) mm
• Color: White
📦 INCLUDED:
• Indoor PIR detector• Jumpers
| Technology | Volumetric PIR |
|---|---|
| Security level | Not available |
| Detection range | 12 m / 100º H |
| Pet immune | ≤15 Kg |
| Installation height | 1.8 to 2.2 m |
| Anti-masking | Not available |
| Detection test | Available PIR (flashing green LED) |
| Self-test | Not available |
| DIP Switch configuration | Not available |
| LED indication | Alarm (blue) |
| Connection mode | End-of-line resistors: 2EOL |
| End-of-line resistor values | With 3 jumpers: Standby 2k2 Alarm 2k2+4k7 Tamper for open circuit |
| Installation | Wall mount or with wall bracket AM-SN1 |
| Power supply | 9~15 VDC / 19 mA |
| Operating temp. | -10º C ~ 40º C |
| Dimensions (without bracket) | 114 (H) x 63 (W) x 40 (D) mm |
| Color | White |
