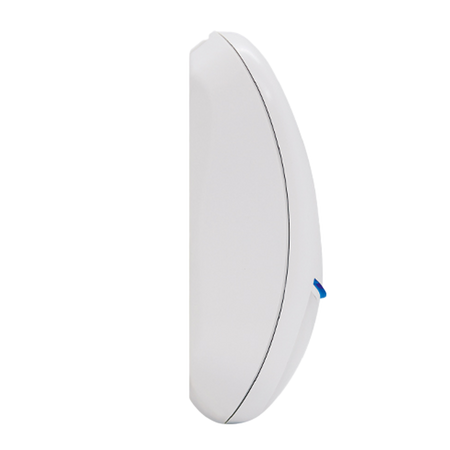

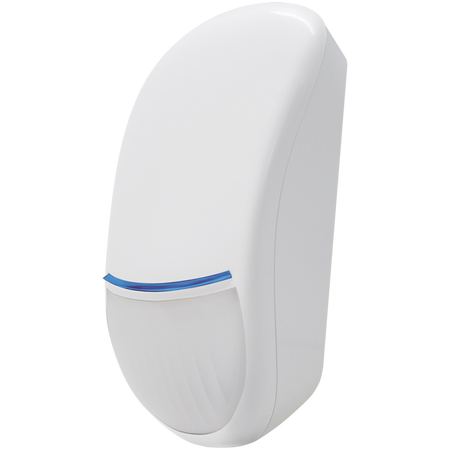

AMC dual-technology PIR detector - Pet immunity and antimasking
AMC dual-technology PIR detector - Pet immunity and antimasking
Regular price
€33,50
Final price
Regular price
-9%
€36,68
Sale price
€33,50
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

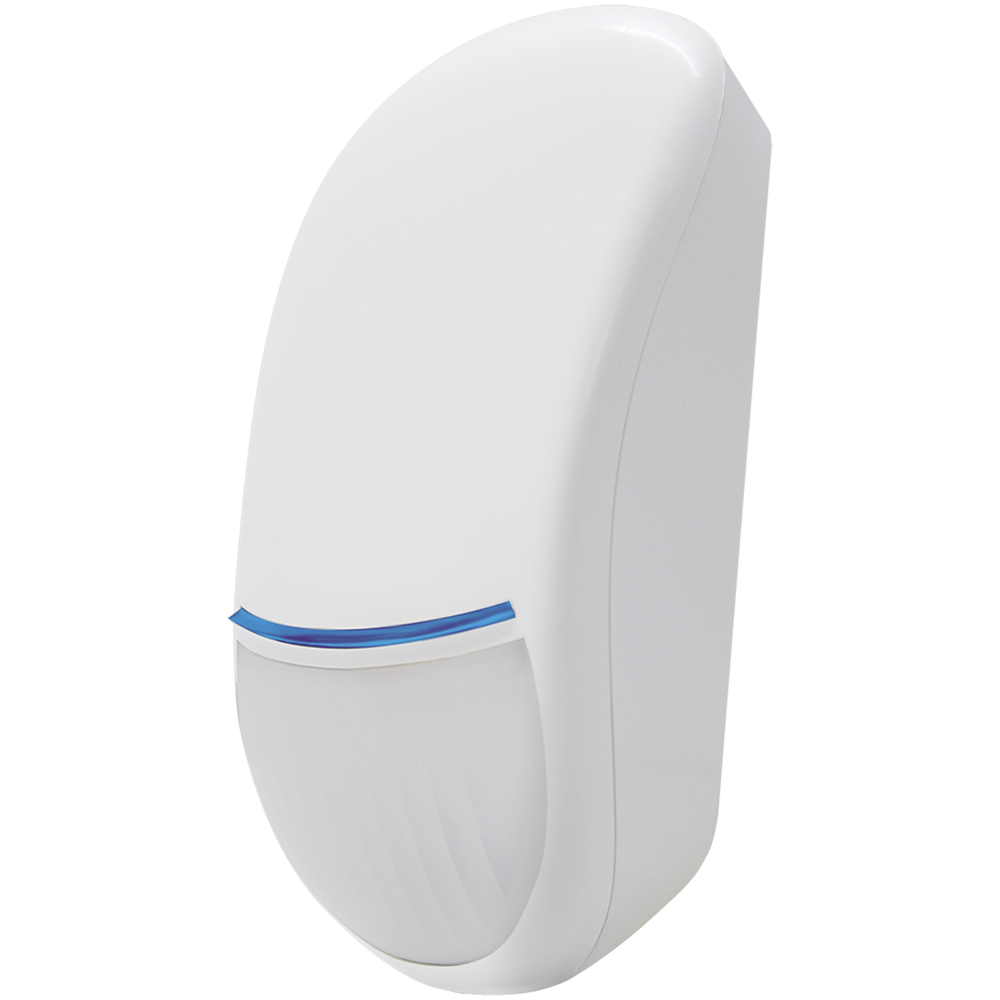

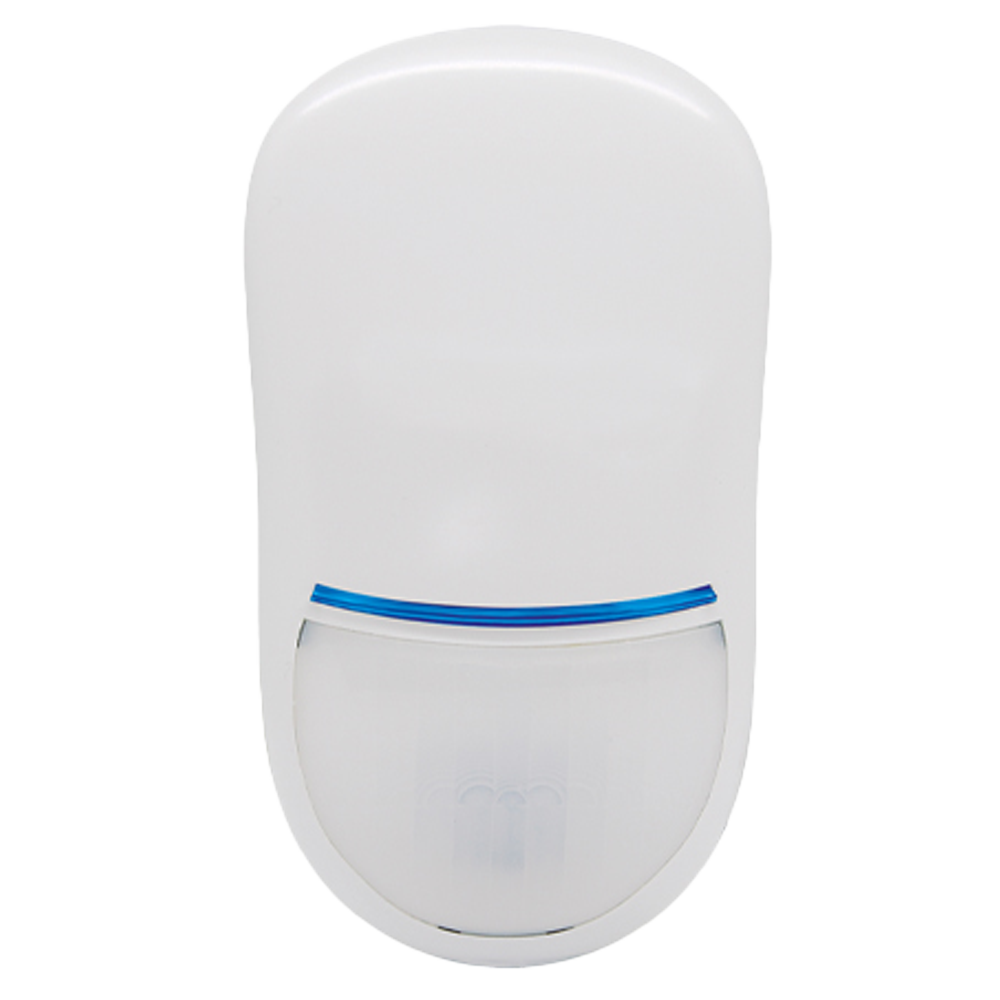

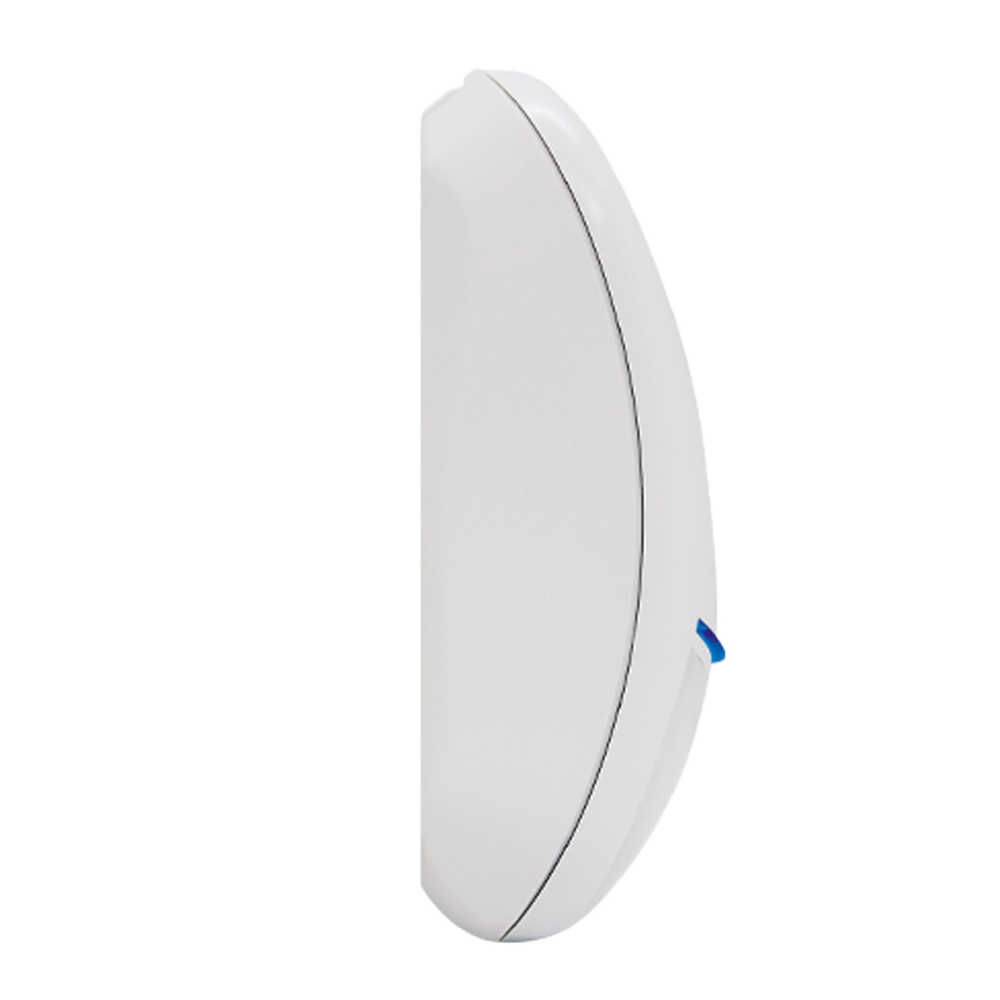

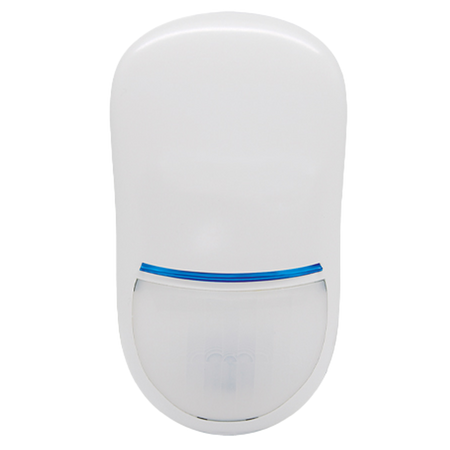

Dual technology PIR detector - Grade 3 certified - Pet immunity and antimasking - Wired - Detection range 15 m - Suitable for indoor use
📋 SPECIFICATIONS:
• Brand: AMC
• Technology: Volumetric PIR and microwave sensor
• Detection operation: AND (IR and microwave) / OR (IR or microwave)
• Security level: Grade 3
• Detection range: 15 m / 100º H
• Pet immune: ≤15 Kg
• Installation height: From 1.8 to 2.2 m
• Anti-masking: Available
• Microwave sensor: 9.3 - 9.9 - 10.5 GHz
• Microwave disable: Available. “BS” terminal to connect the alarm panel output and disable microwaves when disarmed
• Detection test: Available; PIR (flashing green LED); Microwave (flashing yellow LED)
• Self-test: Available

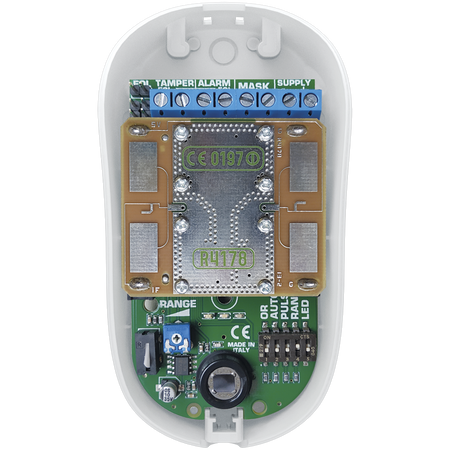

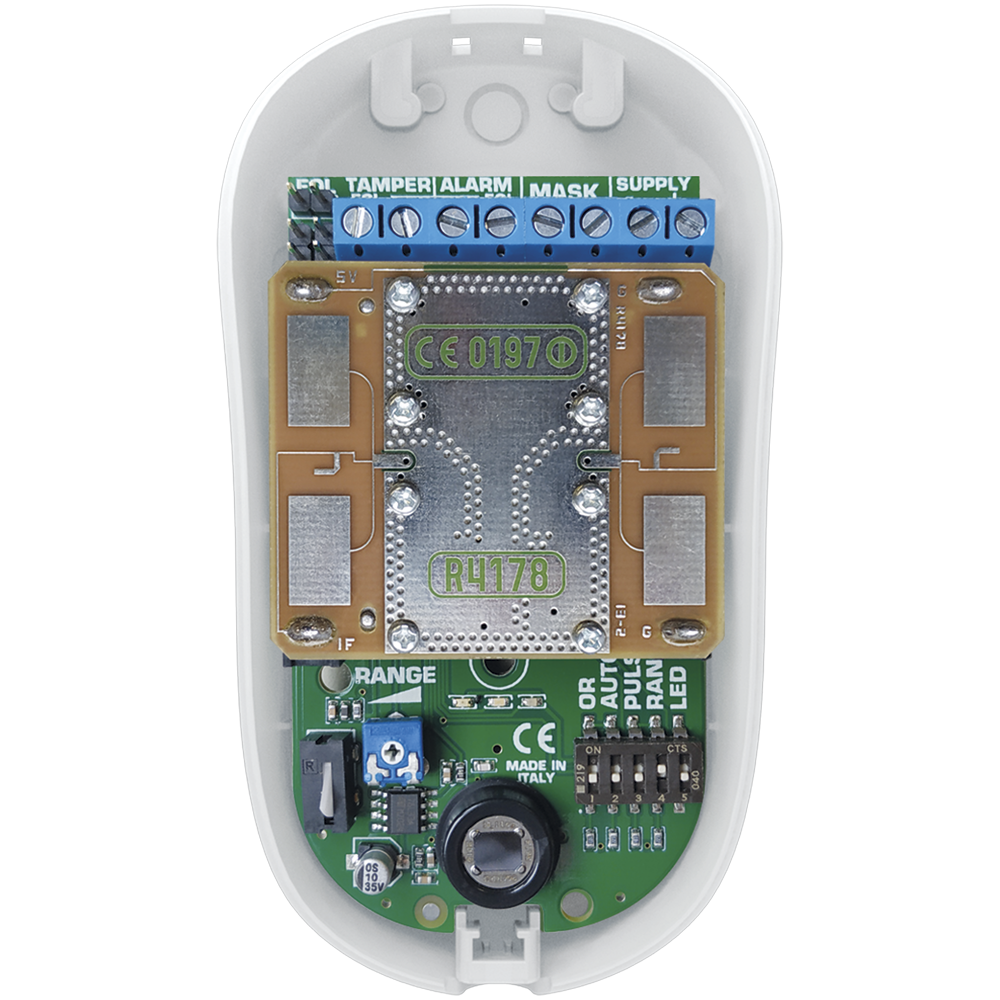

• DIP Switch configuration: 1 - LED (on/off); 2 - Distance: Off=15 m / On=7 m; 3 - Sensitivity: Off=1 pulse / On=2 pulses; 4 and 5 - OFF-OFF = AND / ON-OFF=OR / ON-ON=AUTO OR
• Microwave sensitivity: Adjustable (potentiometer)
• LED indication: Alarm (blue), PIR alarm (green), Microwave alarm (yellow)

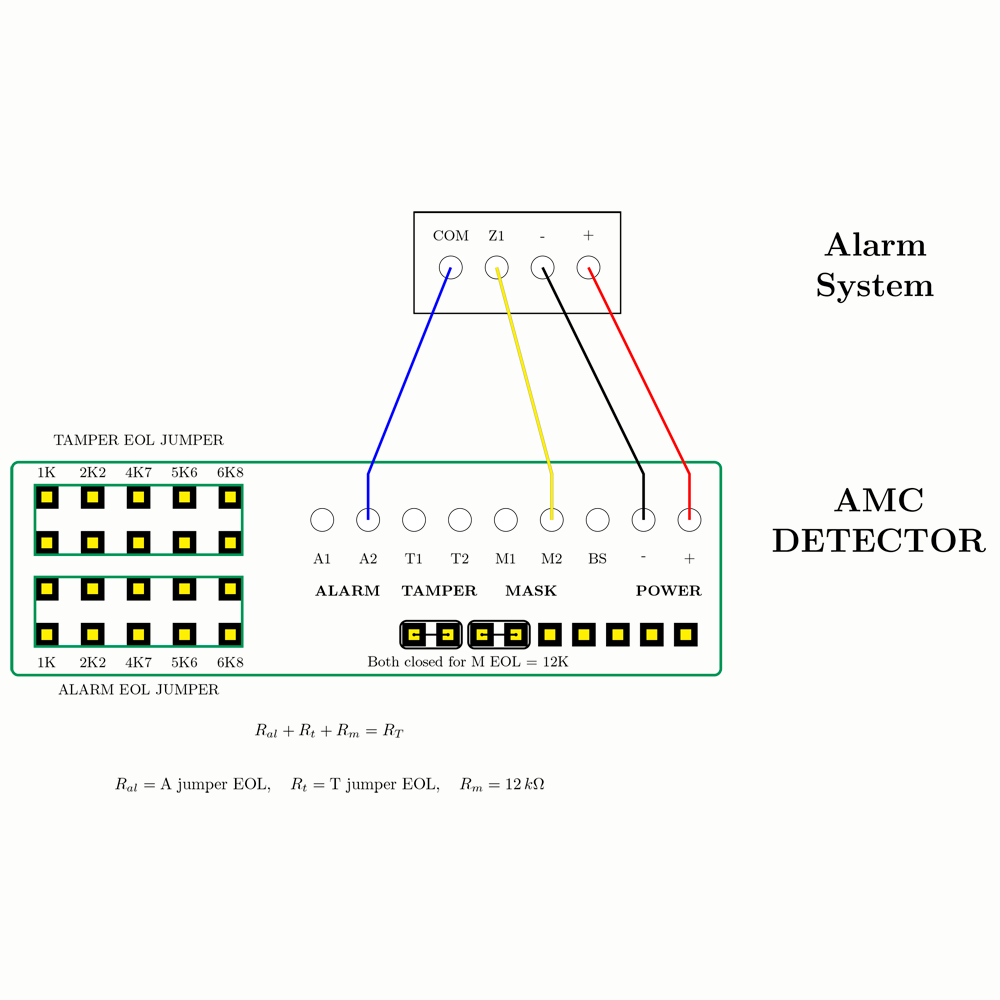

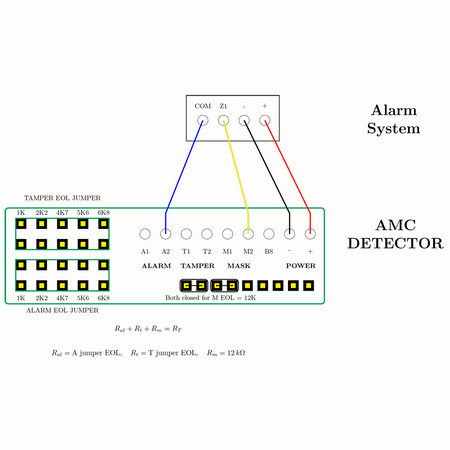

• Connection mode: End-of-line resistors: 2EOL / 3EOL
• End-of-line resistor values: 1k, 2k2, 4k7, 5k6, 6k8 (tamper and alarm)
• Installation: Wall mounting or with AM-SN1 wall bracket
• Power supply: 9~15 VDC / 32 mA
• Operating temp.: -10º C ~ 40º C
• Dimensions (without bracket): 114 (H) x 63 (W) x 40 (D) mm
• Colour: White
📦 INCLUDED:
• Indoor PIR detector• Jumpers
| Technology | Volumetric PIR and microwave sensor |
|---|---|
| Detection operation | AND (IR and microwave) / OR (IR or microwave) |
| Security level | Grade 3 |
| Detection range | 15 m / 100º H |
| Pet immune | ≤15 kg |
| Installation height | 1.8 to 2.2 m |
| Anti-masking | Available |
| Microwave sensor | 9.3 - 9.9 - 10.5 GHz |
| Microwave disable | Available. “BS” terminal to connect the alarm panel output and disable microwaves when disarmed |
| Detection test | Available PIR (flashing green LED) Microwave (flashing yellow LED) |
| Self-test | Available |
| DIP switch configuration | 1 - LED (on/off) 2 - Distance: Off=15 m / On=7 m 3 - Sensitivity: Off=1 pulse / On=2 pulses 4 and 5 - OFF-OFF = AND / ON-OFF=OR / ON-ON=AUTO OR |
| Microwave sensitivity | Adjustable (potentiometer) |
| LED indication | Alarm (blue), PIR alarm (green), microwave alarm (yellow) |
| Connection mode | End-of-line resistors: 2EOL / 3EOL |
| End-of-line resistor values | 1k, 2k2, 4k7, 5k6, 6k8 (tamper and alarm) |
| Installation | Wall mount or with AM-SN1 wall bracket |
| Power supply | 9~15 VDC / 32 mA |
| Operating temp. | -10º C ~ 40º C |
| Dimensions (without bracket) | 114 (H) x 63 (W) x 40 (D) mm |
| Color | White |
- User manual Link
