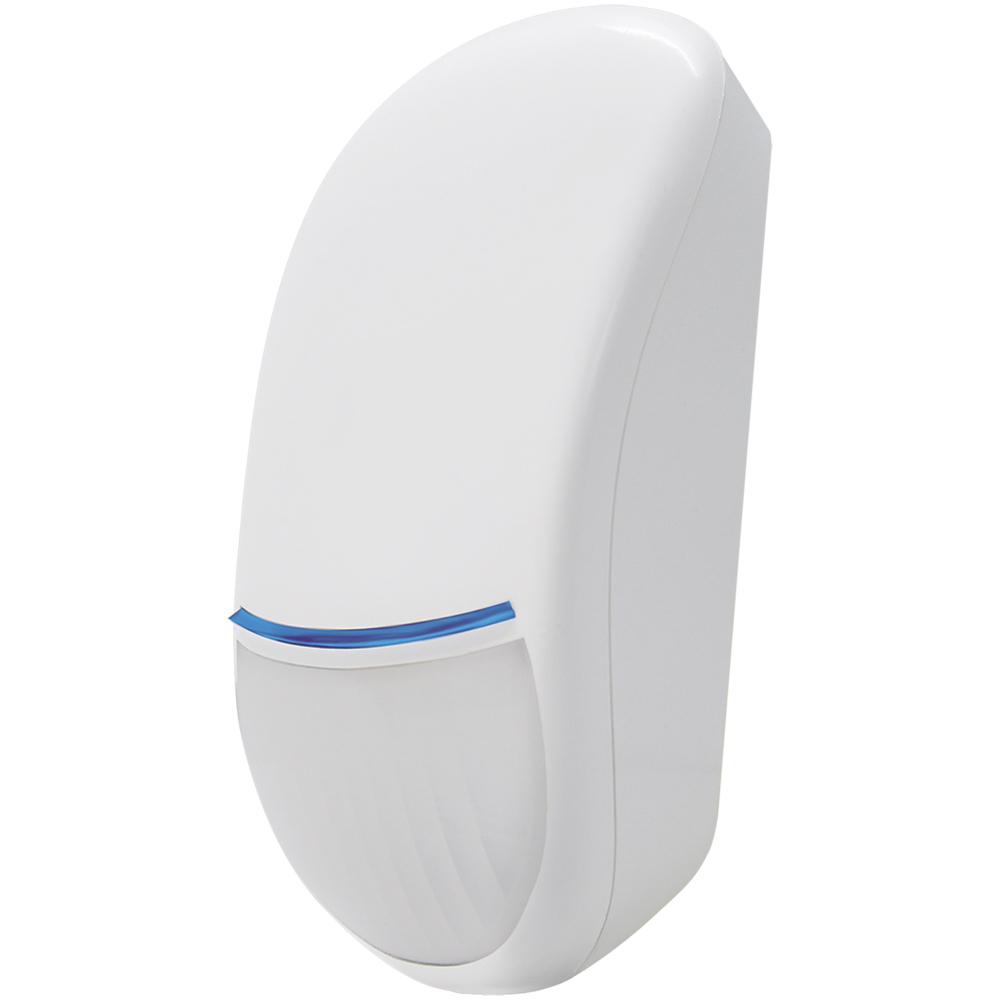

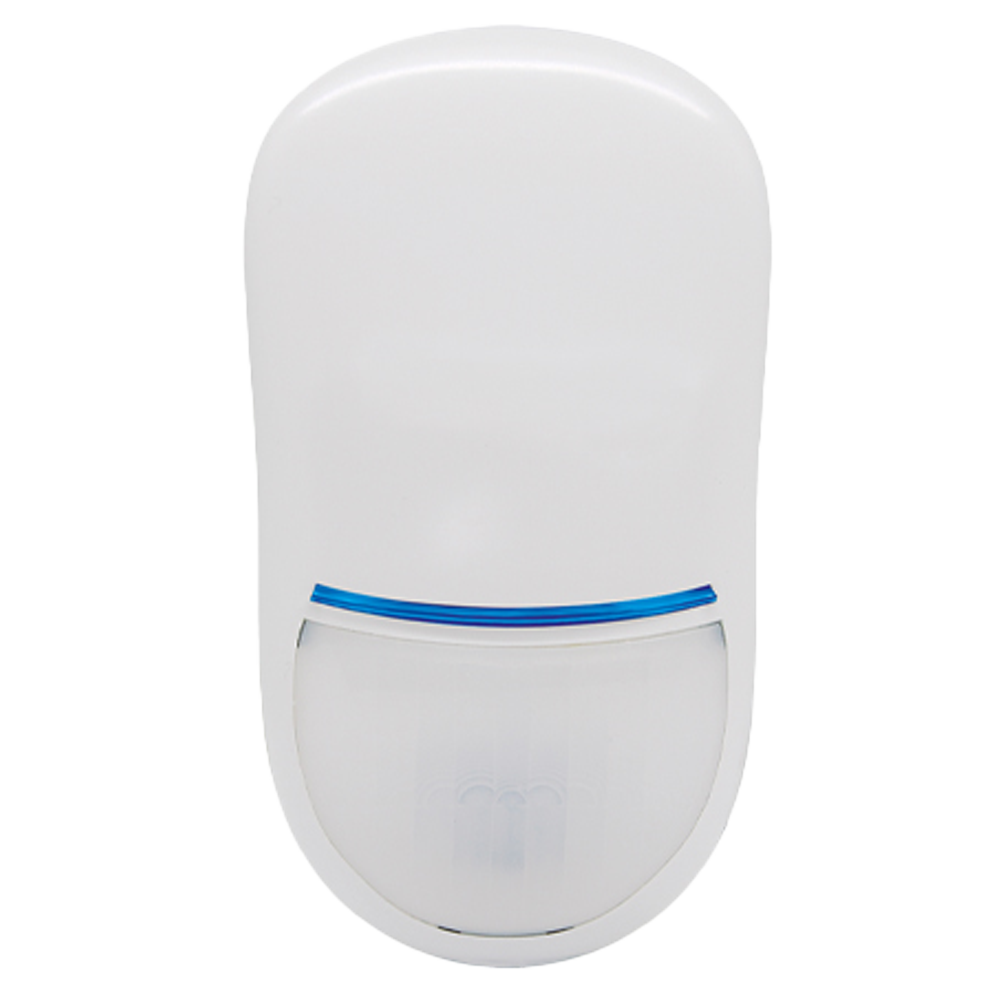

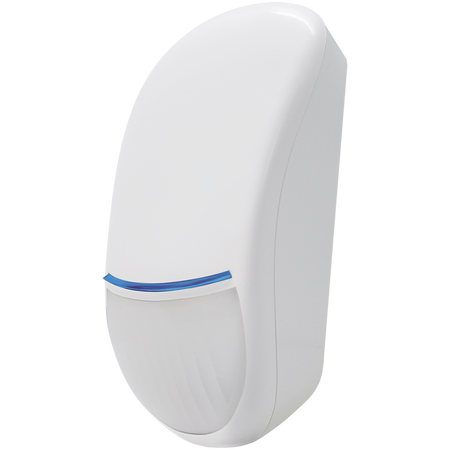

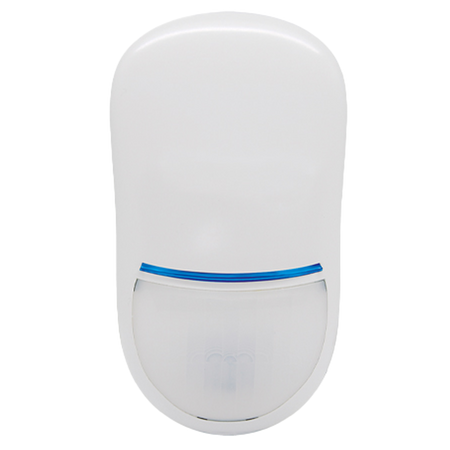

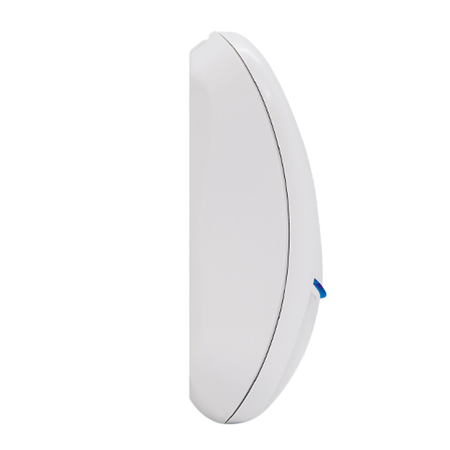

AMC dual technology PIR detector - Pet immunity
Regular price
€32,66
Final price
Regular price
-9%
€35,74
Sale price
€32,66
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Dual technology PIR detector - Grade 2 certified - Pet immune - Wired - Detection range 15 m - Suitable for indoor use
📋 SPECIFICATIONS:
• Brand: AMC
• Technology: Volumetric PIR and microwave sensor
• Detection operation: AND (IR and microwave) / OR (IR or microwave)
• Security level: Grade 2

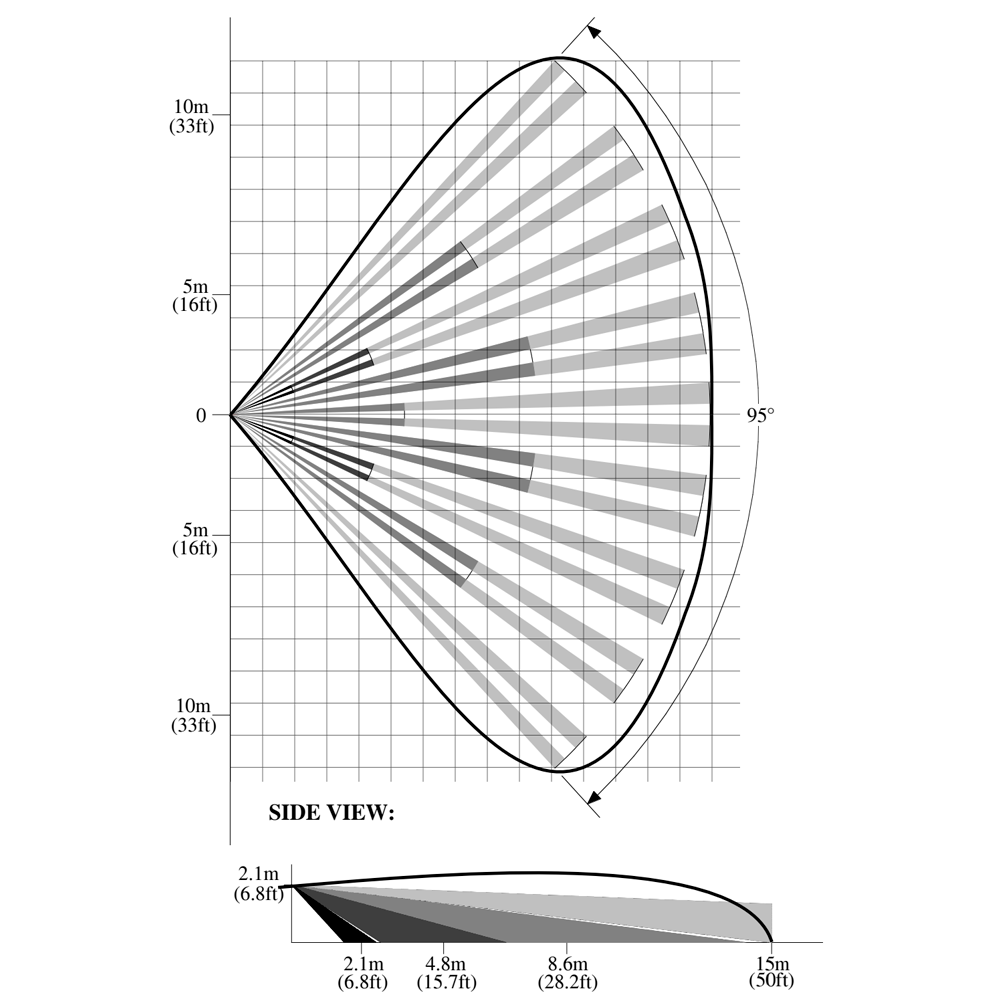

• Detection range: 15 m / 100º H
• Pet immune: ≤15 kg
• Installation height: From 1.8 to 2.2 m
• Anti-masking: Not available
• Microwave sensor: 9.3 - 9.9 - 10.5 GHz
• Detection test: Available; PIR (flashing green LED); Microwave (flashing yellow LED)
• Self-test: Not available

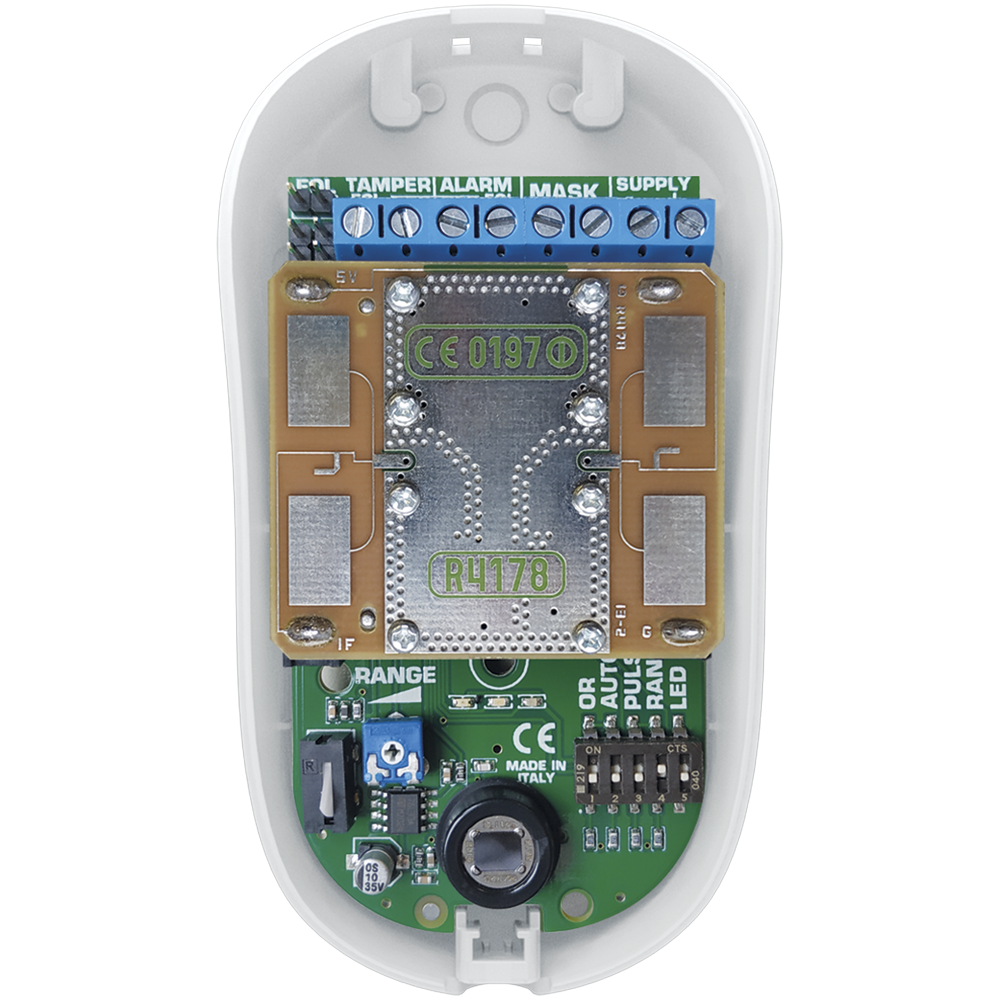

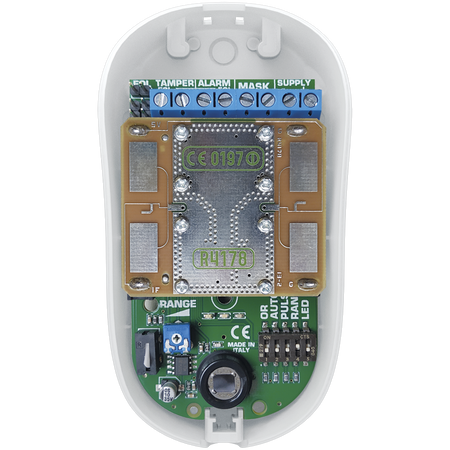

• DIP Switch configuration: 1 - LED (on/off); 2 - Distance: Off=15 m / On=7 m; 3 - Sensitivity: Off=1 pulse / On=2 pulses; 4 and 5 - OFF-OFF = AND / ON-OFF=OR / ON-ON=AUTO OR
• Microwave sensitivity: Adjustable (potentiometer)
• LED indication: Alarm (blue), PIR alarm (green), Microwave alarm (yellow)

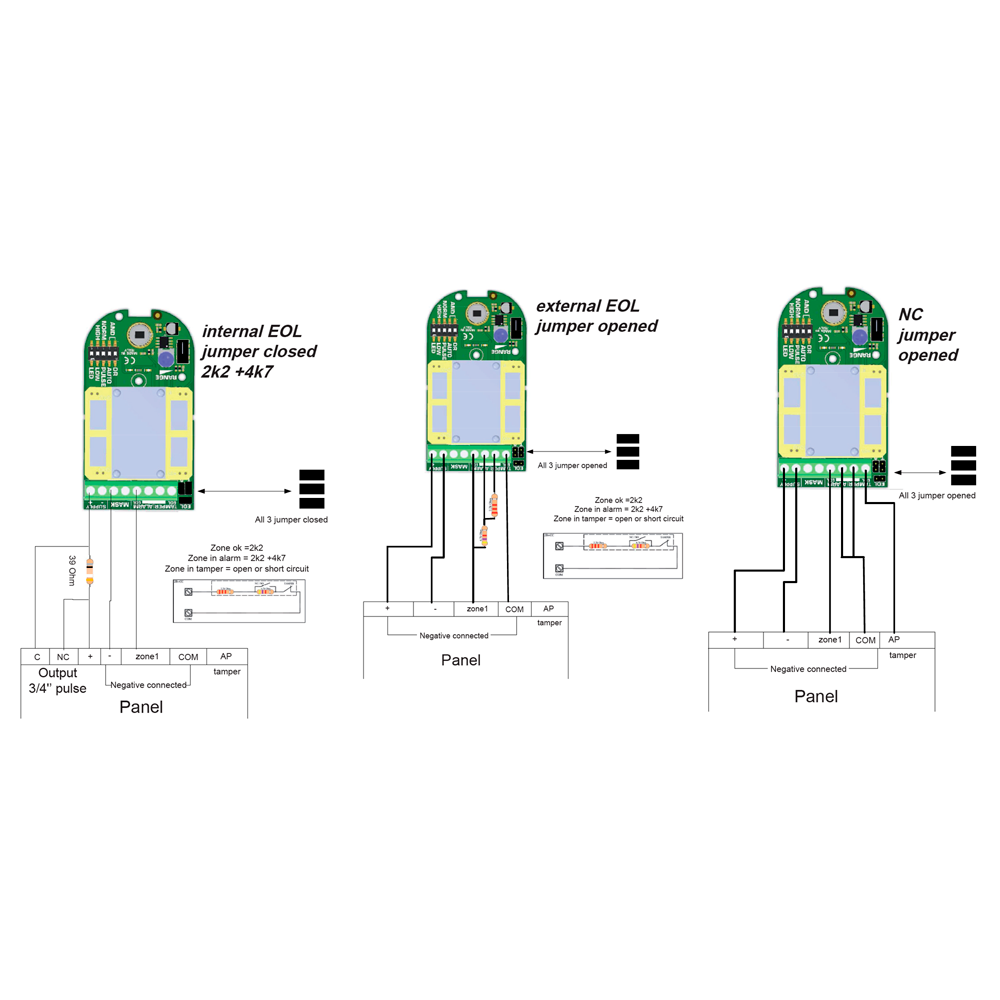

• Connection mode: End-of-line resistors: 2EOL
• End-of-line resistor values: With 3 jumpers: Standby 2k2; Alarm 2k2+4k7; Tamper for open circuit
• Installation: Wall mount or with AM-SN1 wall bracket
• Power supply: 9~15 VDC / 27 mA
• Operating temp.: -10º C ~ 40º C

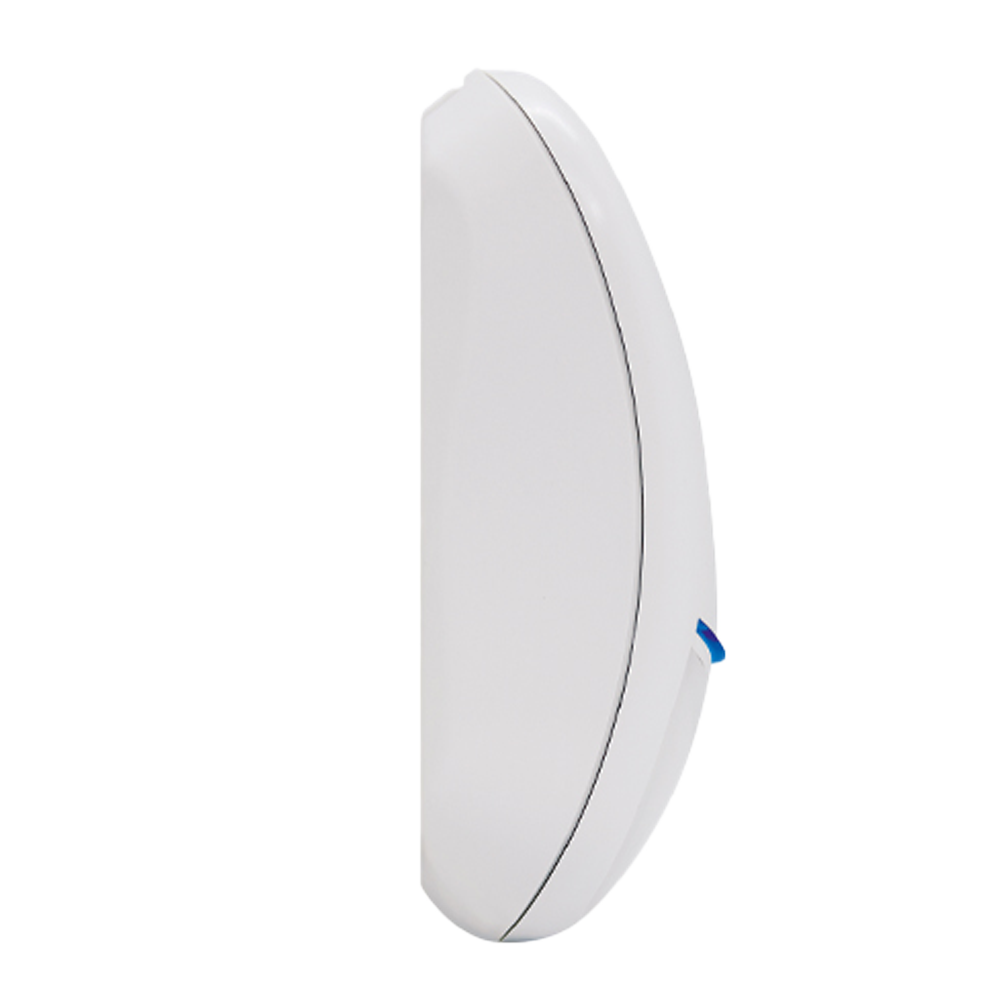

• Dimensions (without bracket): 114 (H) x 63 (W) x 40 (D) mm
• Colour: White
📦 INCLUDED:
• Indoor PIR detector• Jumpers
| Technology | Volumetric PIR and microwave sensor |
|---|---|
| Detection operation | AND (IR and microwave) / OR (IR or microwave) |
| Security level | Grade 2 |
| Detection range | 15 m / 100º H |
| Pet immune | ≤15 Kg |
| Installation height | 1.8 to 2.2 m |
| Anti-masking | Not available |
| Microwave sensor | 9.3 - 9.9 - 10.5 GHz |
| Detection test | Available PIR (flashing green LED) Microwave (flashing yellow LED) |
| Self-test | Not available |
| DIP switch configuration | 1 - LED (on/off) 2 - Distance: Off=15 m / On=7 m 3 - Sensitivity: Off=1 pulse / On=2 pulses 4 and 5 - OFF-OFF = AND / ON-OFF=OR / ON-ON=AUTO OR |
| Microwave sensitivity | Adjustable (potentiometer) |
| LED indication | Alarm (blue), PIR alarm (green), Microwave alarm (yellow) |
| Connection mode | End-of-line resistors: 2EOL |
| End-of-line resistor values | With 3 jumpers: Standby 2k2 Alarm 2k2+4k7 Tamper for open circuit |
| Installation | Wall mount or with AM-SN1 wall bracket |
| Power supply | 9~15 VDC / 27 mA |
| Operating temp. | -10º C ~ 40º C |
| Dimensions (without bracket) | 114 (H) x 63 (W) x 40 (D) mm |
| Color | White |
