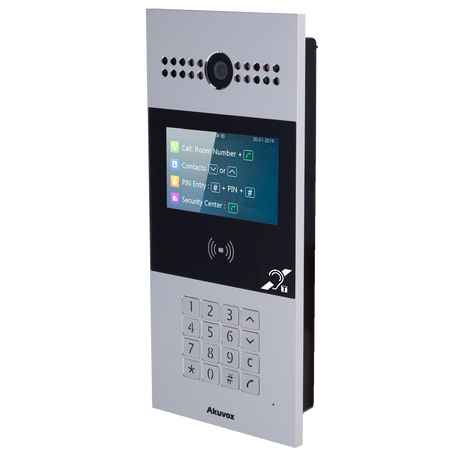

Akuvox 2 MP IP Video Intercoms
Regular price
€726,33
Final price
Regular price
-7%
€780,00
Sale price
€726,33
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

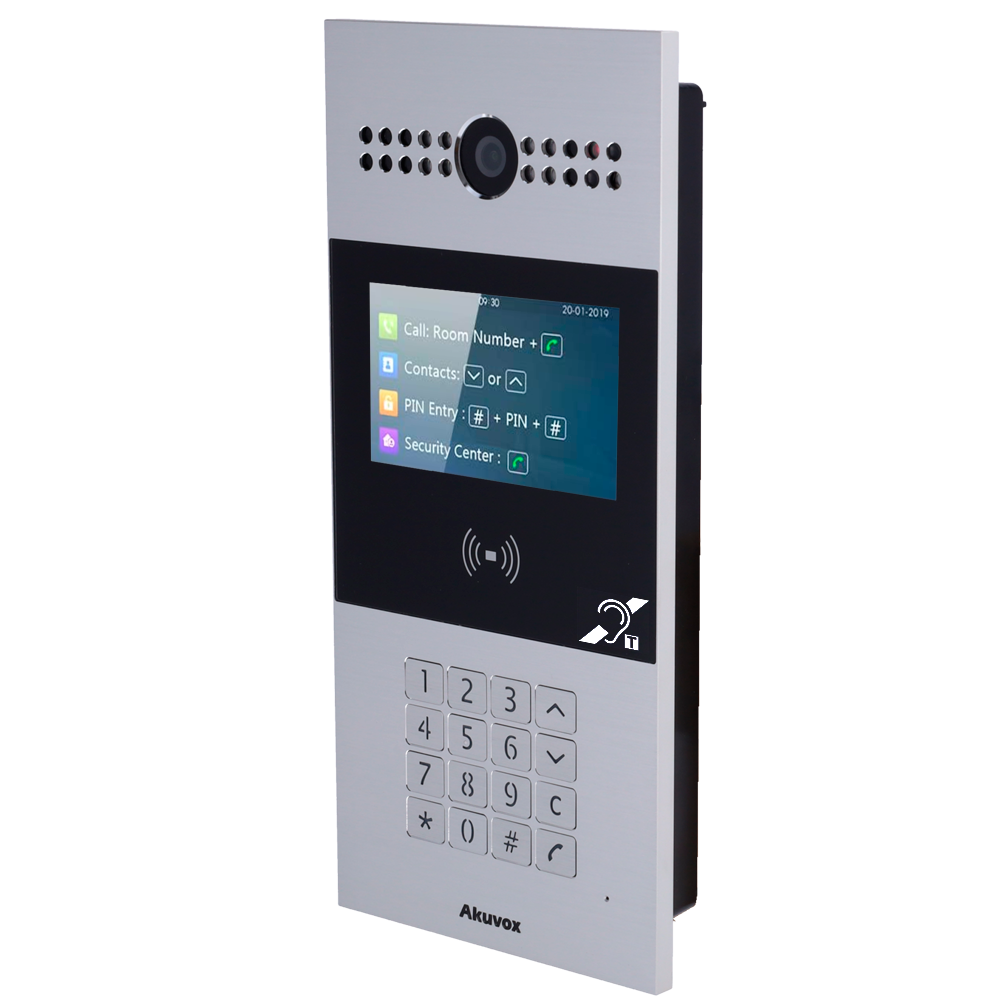

IP Video Intercoms - 2 Mpx Camera | Two-way audio and BIM - Access via EM/MF card and PIN | 3 relays - Apartments | IP, standard SIP - 4.3" TFT Display | Cloud maintenance - Cloud connection
📋 SPECIFICATIONS:
• Brand: Akuvox
• Model: R28A BIM

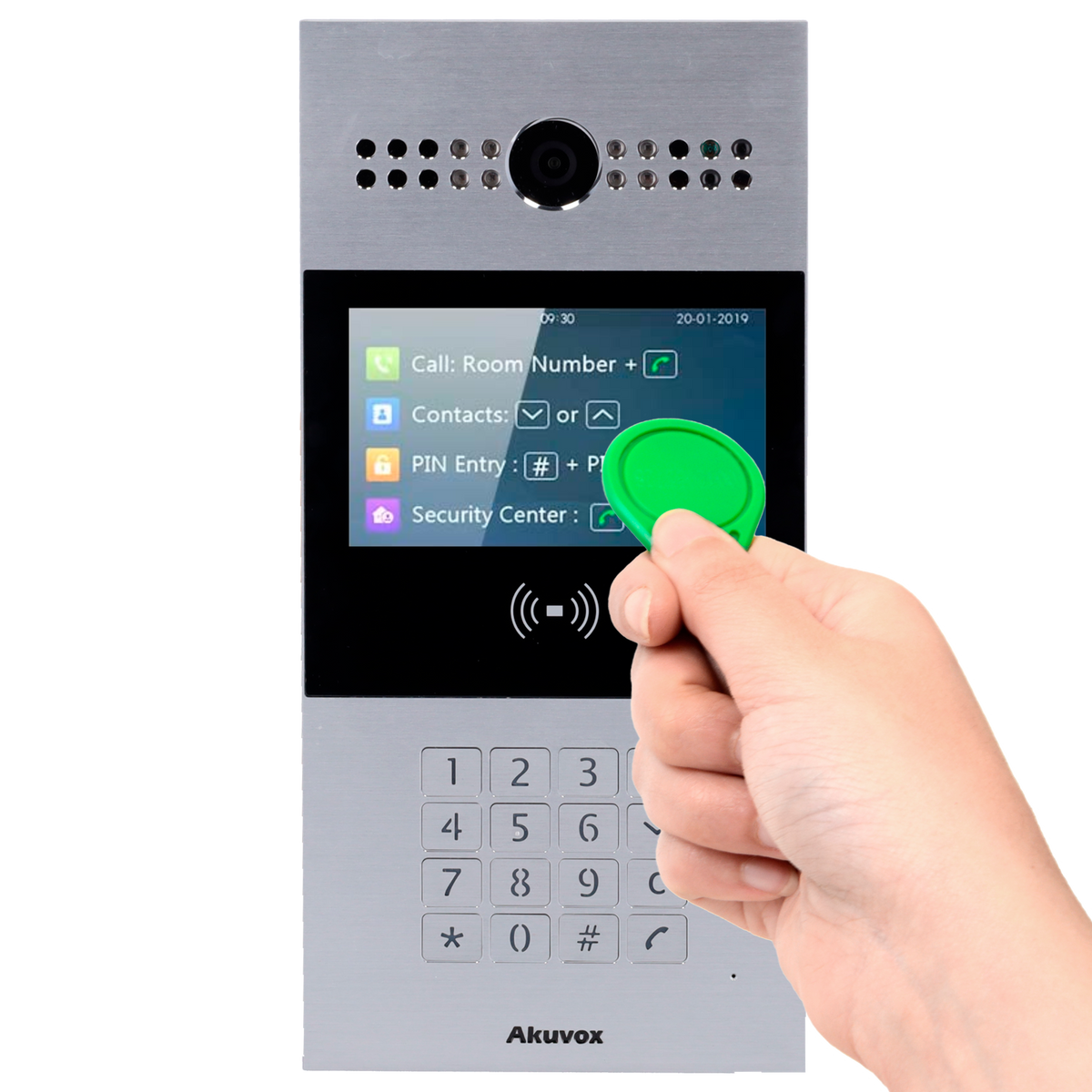

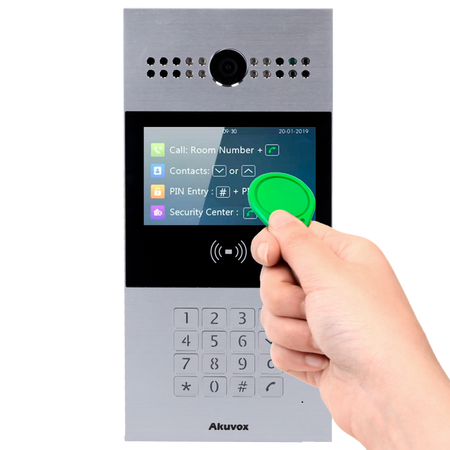

• Access control: Door opening with 125 kHz EM and 13.56 MHz MF RFID card and PIN, with logs
• Capacity: Contacts: 1,000; RFID users: 5,000 cards/passwords
• Keypad: Mechanical numeric keypad with configurable LED backlight
• Screen: 4.3" color TFT LCD

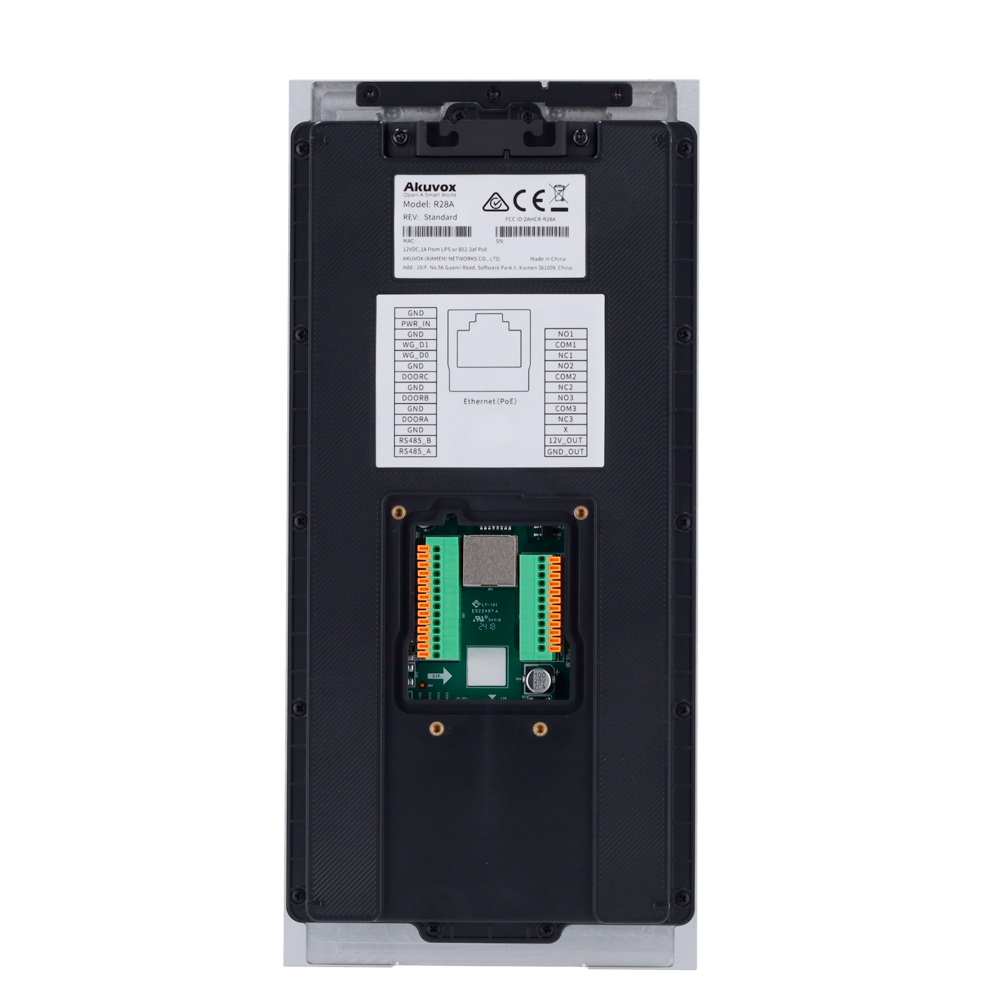

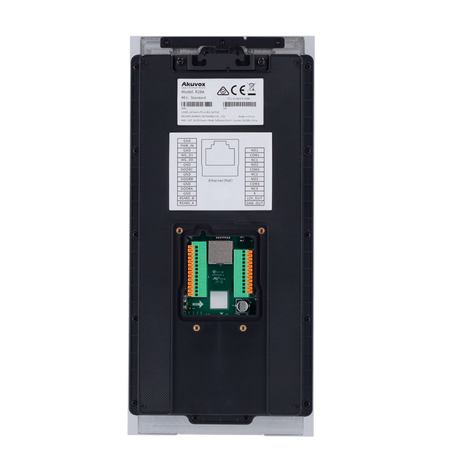

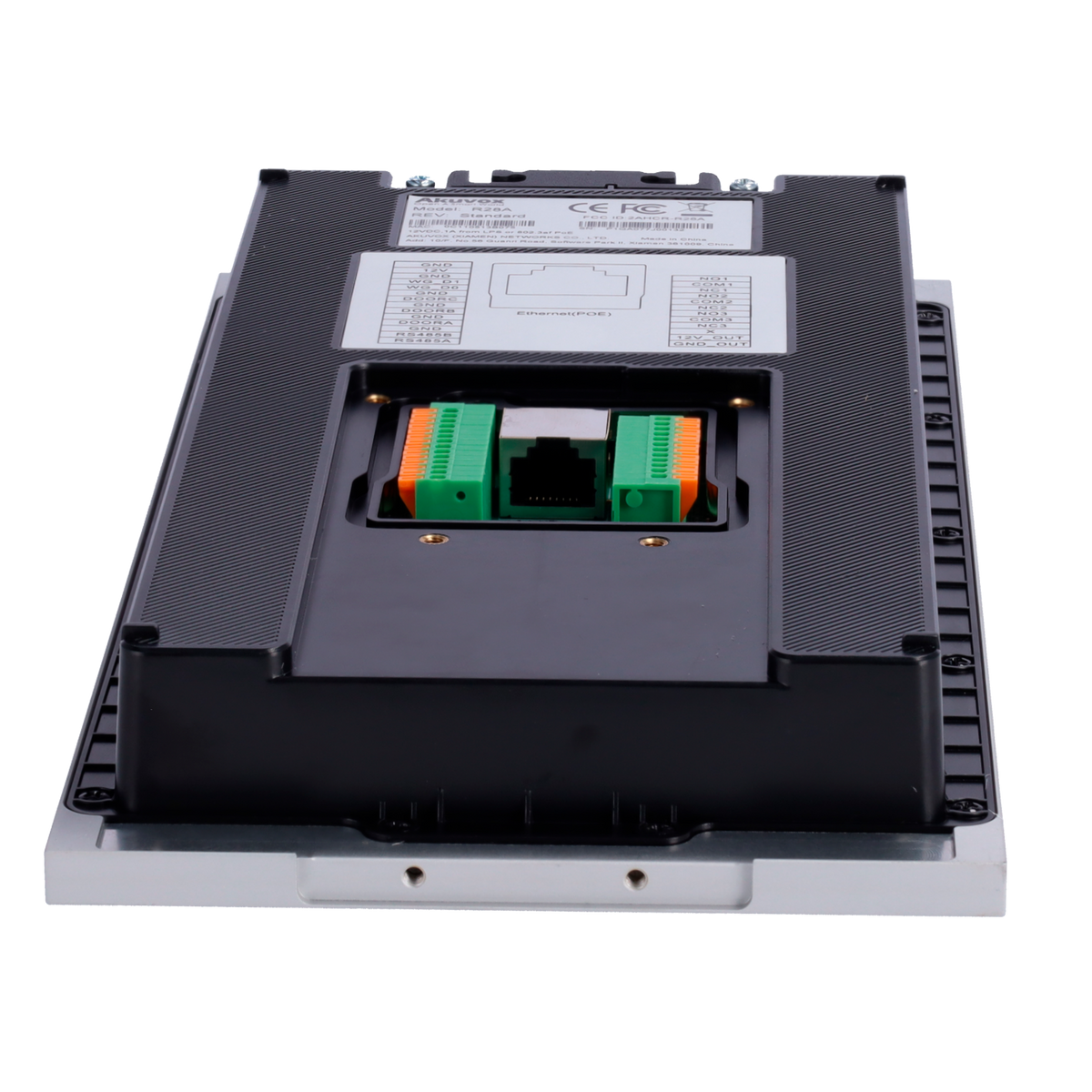

• Outputs: 3 x lock relays, 1 x Wiegand OUT and 1 x RS485
• Inputs: 3 x exit buttons and 1 x Wiegand IN
• Remote access: SmartPlus mobile app or configuration via WEB browser; Remote access via Cloud: yes
• Optical sensor: 1/2.7" 2 Megapixel CMOS with infrared and brightness sensor
• Viewing angle: 116° (H) / 60° (V)
• Camera resolution: 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video encoding: H.264 and H.265
• Audio: Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology; Integrated induction loop for people with hearing impairments
• Audio format: SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722; DTMF (RFC2833), SIP Info
• Network interface: Ethernet 10/100 BaseT / RS485 / RTSP

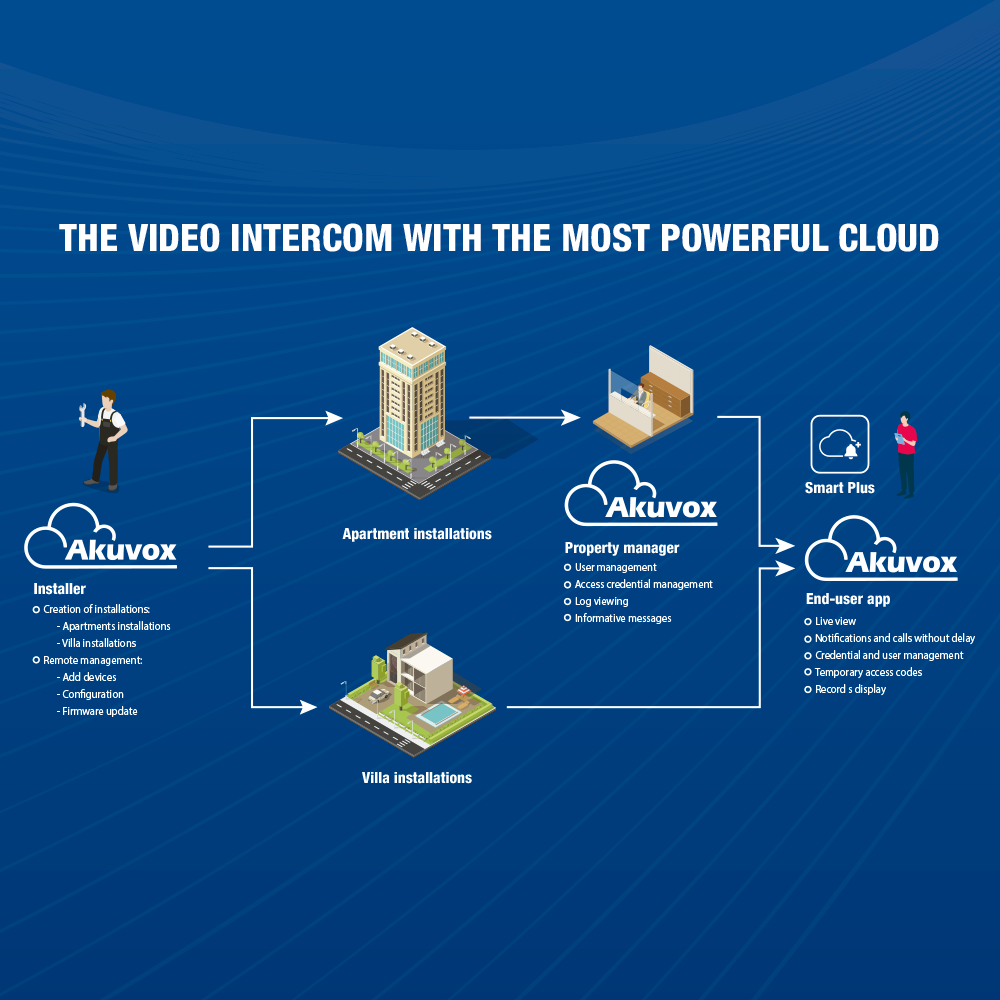

• Operating mode: Local network and/or via cloud on different networks
• Firmware updates: Remotely via cloud through installer account or locally via web browser
• Material: Aluminum alloy
• Protection rating: IP65
• Operating temp.: -40 ºC ~ +55 ºC

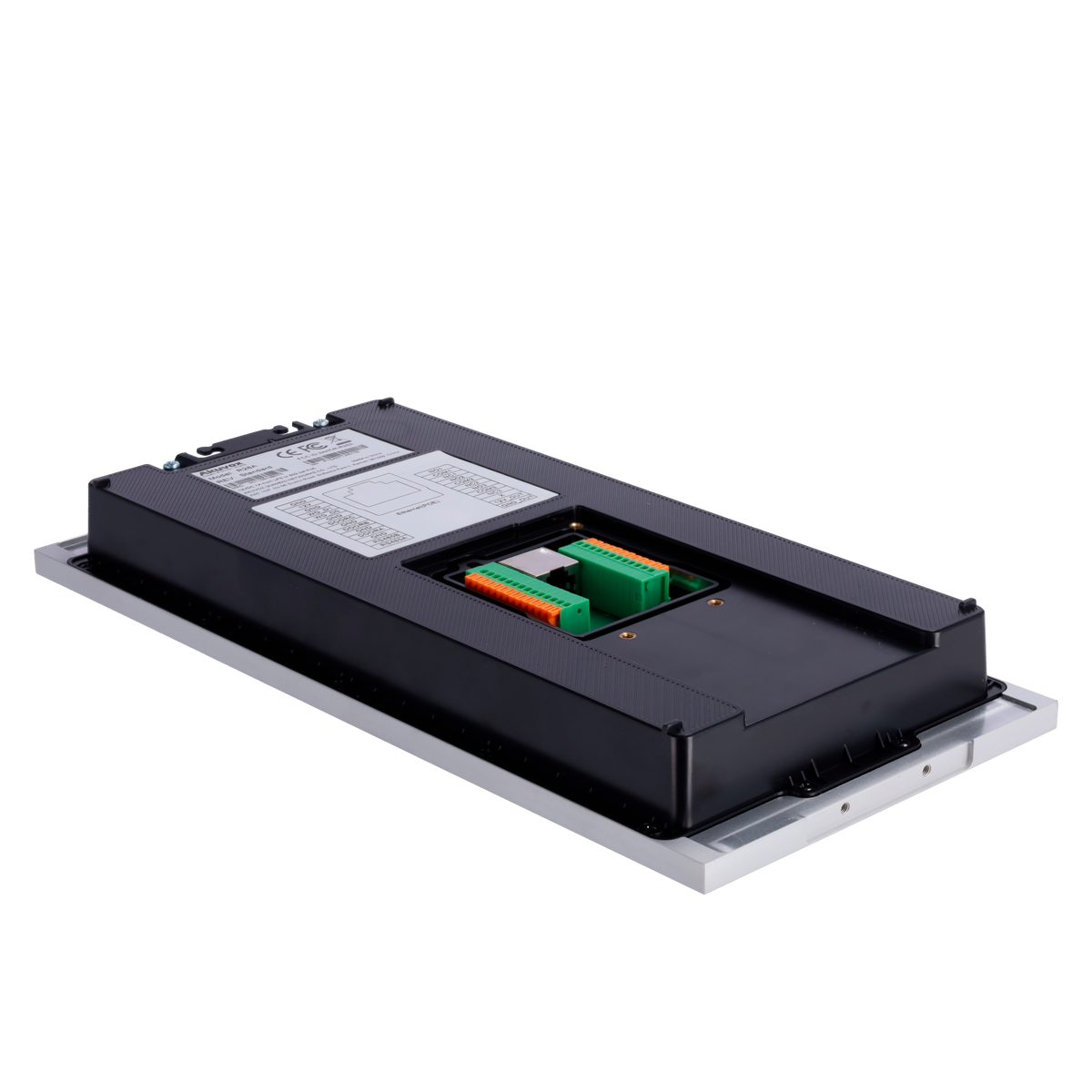

• Dimensions: With surface-mount bracket: 280 (W) x 130 (H) x 38 (D) mm; With flush-mount bracket: 280 (W) x 130 (H) x 68 (D) mm
• Power supply: DC 12 V / 2000 mA max.
• Weight: 1000 g
📦 INCLUDED:
• Akuvox video intercom outdoor station• User manual• Mounting hardware
| Model | R28A BIM |
|---|---|
| Access control | Door opening via 125 kHz EM and 13.56 MHz MF RFID card and PIN, with logs |
| Capacity | Contacts: 1,000 RFID Users: 5,000 cards/passwords |
| Keypad | Mechanical numeric keypad with configurable LED backlight |
| Screen | 4.3" TFT color LCD |
| Outputs | 3 x relay for lock, 1 x Wiegand OUT and 1 x RS485 |
| Inputs | 3 x exit button and 1 x Wiegand IN |
| Remote access | SmartPlus mobile application or configuration via WEB browser Remote access via Cloud: yes |
| Optical sensor | 1/2.7" 2 Megapixel CMOS with infrared and brightness sensor |
| Viewing Angle | 116° (H) / 60° (V) |
| Camera resolution | 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 and H.265 |
| Audio | Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology Integrated induction loop for the hearing impaired |
| Audio format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely with the cloud via installer account or locally via web browser |
| Material | Aluminum alloy |
| Protection rating | IP65 |
| Operating temp. | -40 ºC ~ +55 ºC |
| Dimensions | With surface mount bracket: 280 (W) x 130 (H) x 38 (D) mm With flush mount bracket: 280 (W) x 130 (H) x 68 (D) mm |
| Power supply | DC 12 V / 2000 mA max. |
| Weight | 1000 g |
