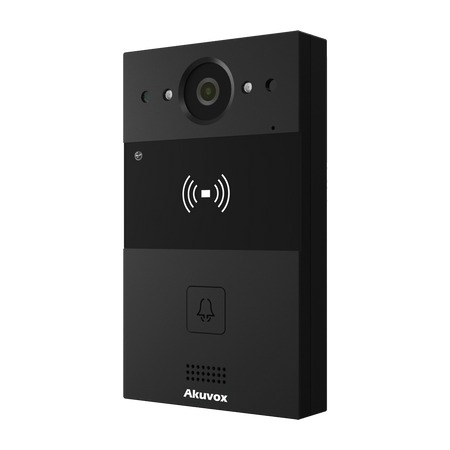

Akuvox IP wall-mounted video intercom - 2 MP camera | Two-way audio - PoE, standard SIP
Akuvox IP wall-mounted video intercom - 2 MP camera | Two-way audio - PoE, standard SIP
Regular price
€258,26
Final price
Regular price
-8%
€280,00
Sale price
€258,26
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

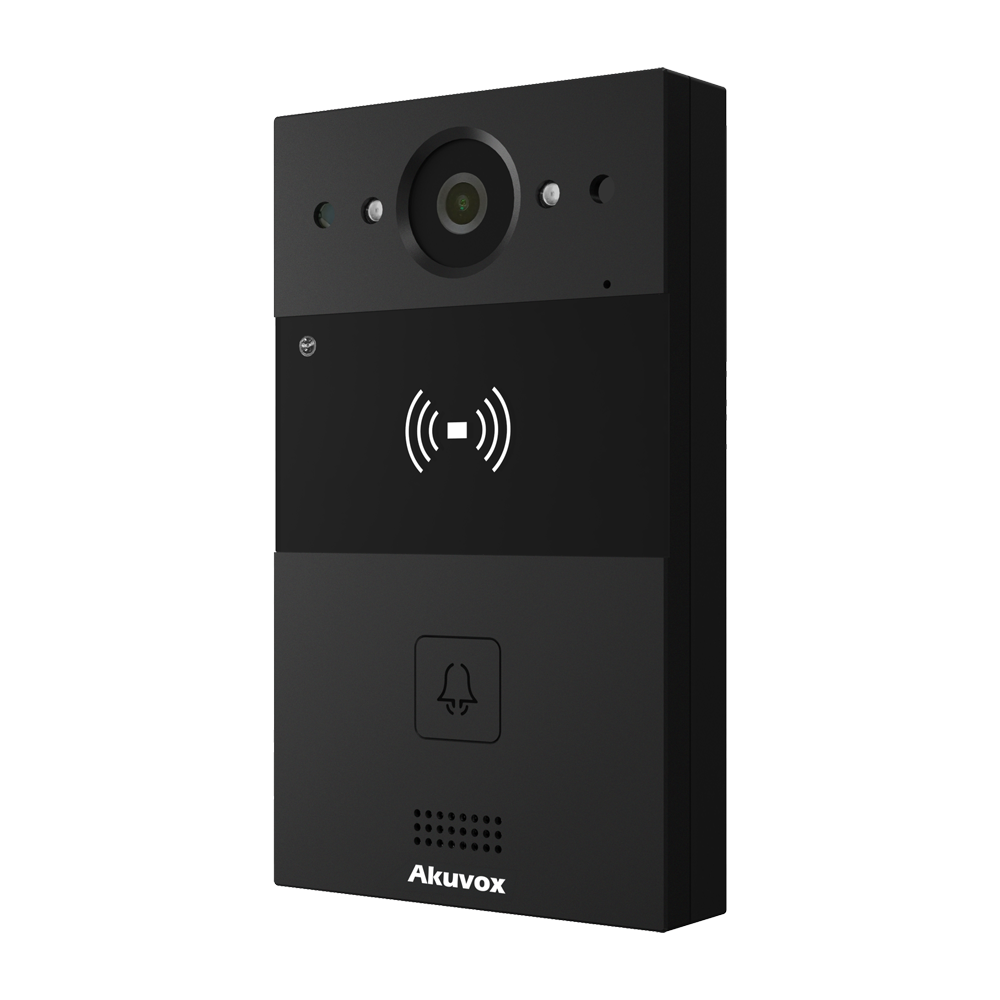

Wall-mounted IP video intercom - 2 MP camera | Two-way audio - Unlocking via EM/MF card and NFC | 2 relays - PoE, SIP standard - Cloud maintenance - Cloud connection | 12V output
📋 SPECIFICATIONS:
• Brand: Akuvox
• Model: R20A-BLACK

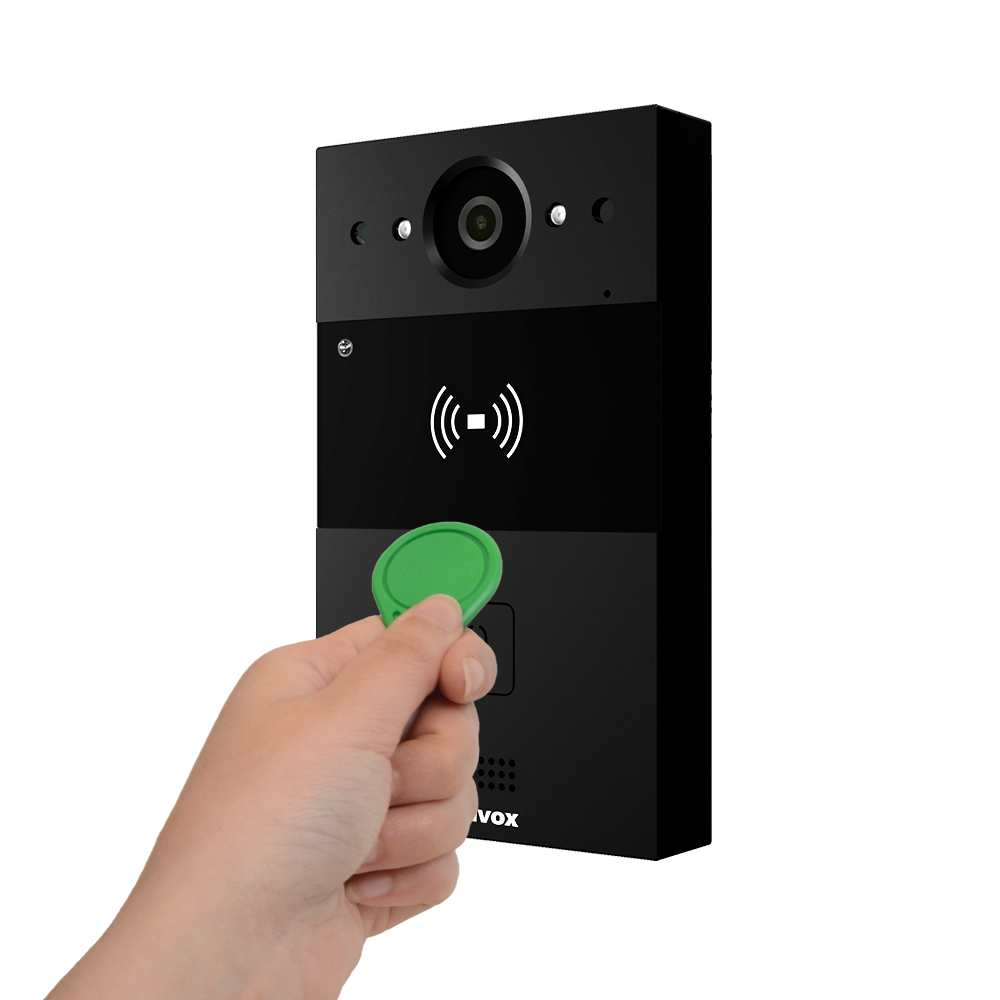

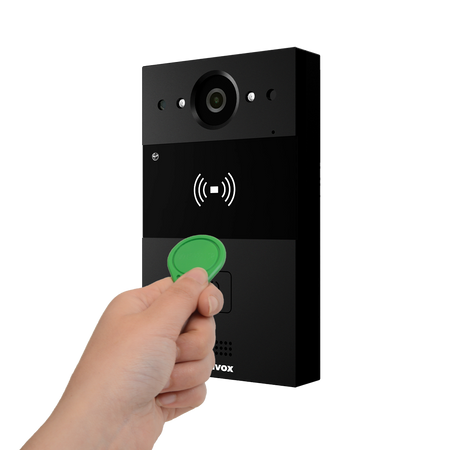

• Access control: Door opening with 125 kHz EM and 13.56 MHz MF RFID card and NFC, with logs
• Capacity: Contacts: 1,000; RFID users: 5,000 cards
• Keypad: Mechanical call button with configurable LED lighting

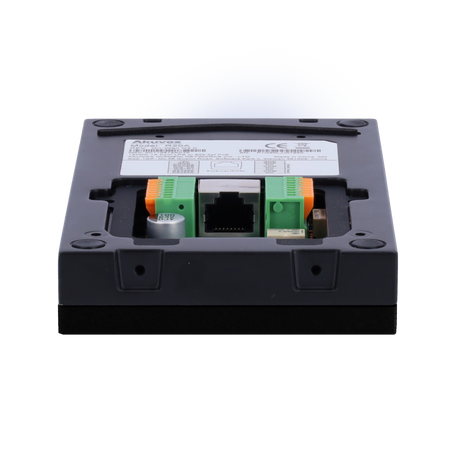

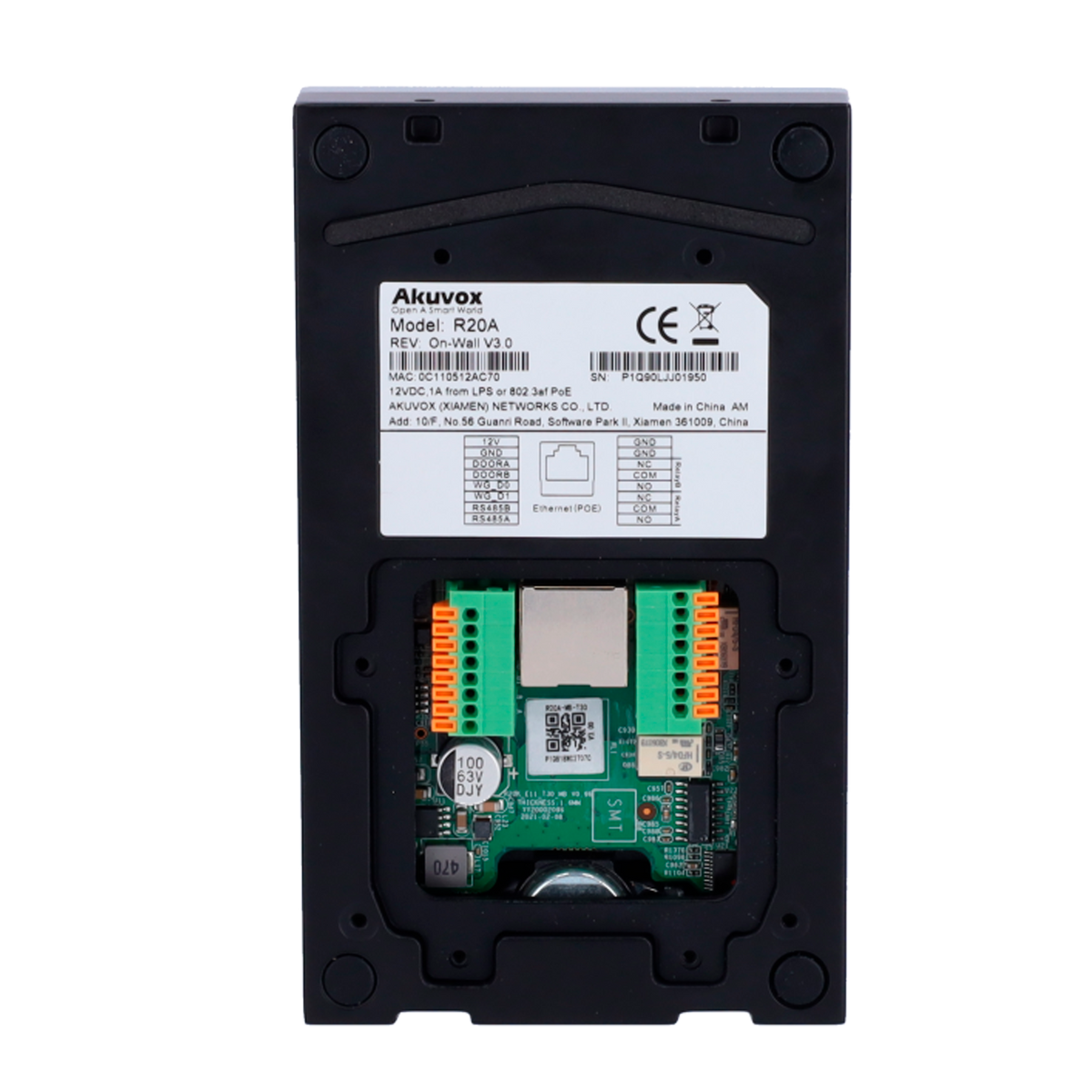

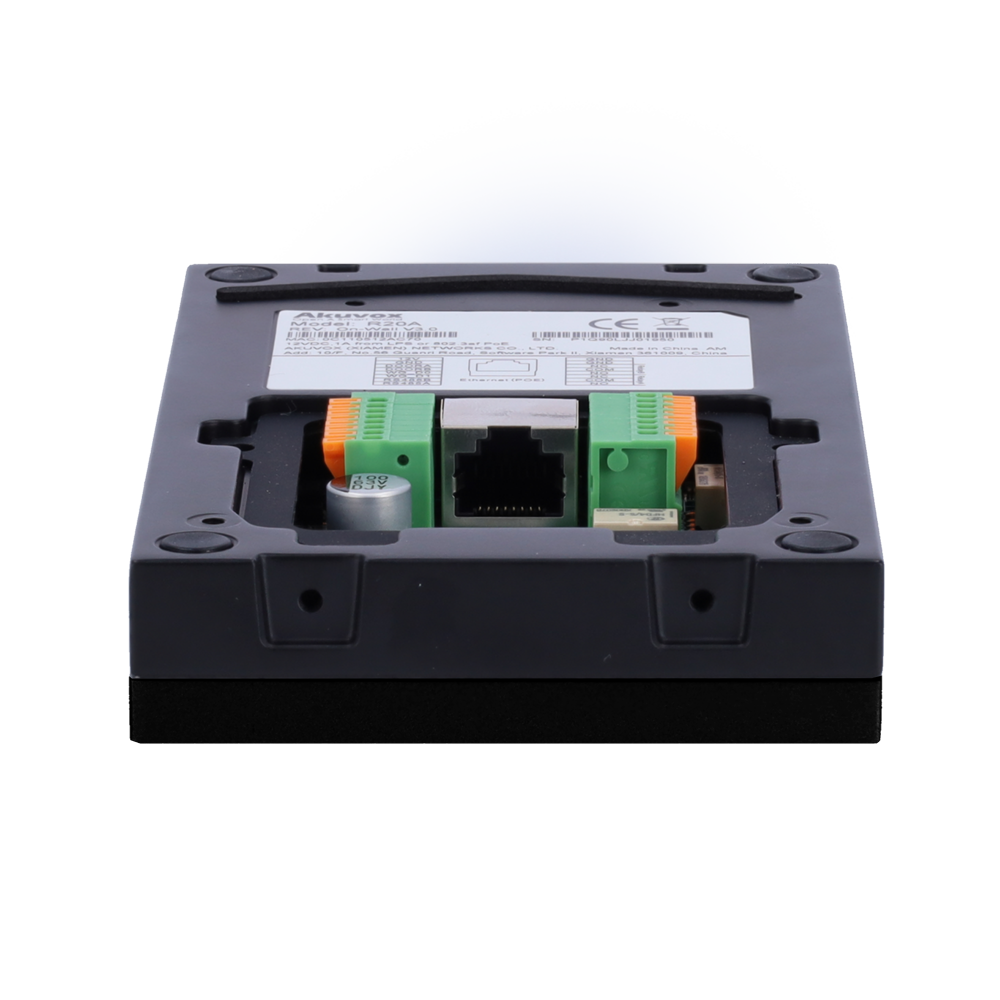

• Outputs: 2 x relays for lock (12V/400mA), 1 x Wiegand OUT and 1 x RS485
• Inputs: 2 x exit buttons and 1 x Wiegand IN
• Advanced access functions: Anti-passback (configurable via Cloud, in Office Projects)

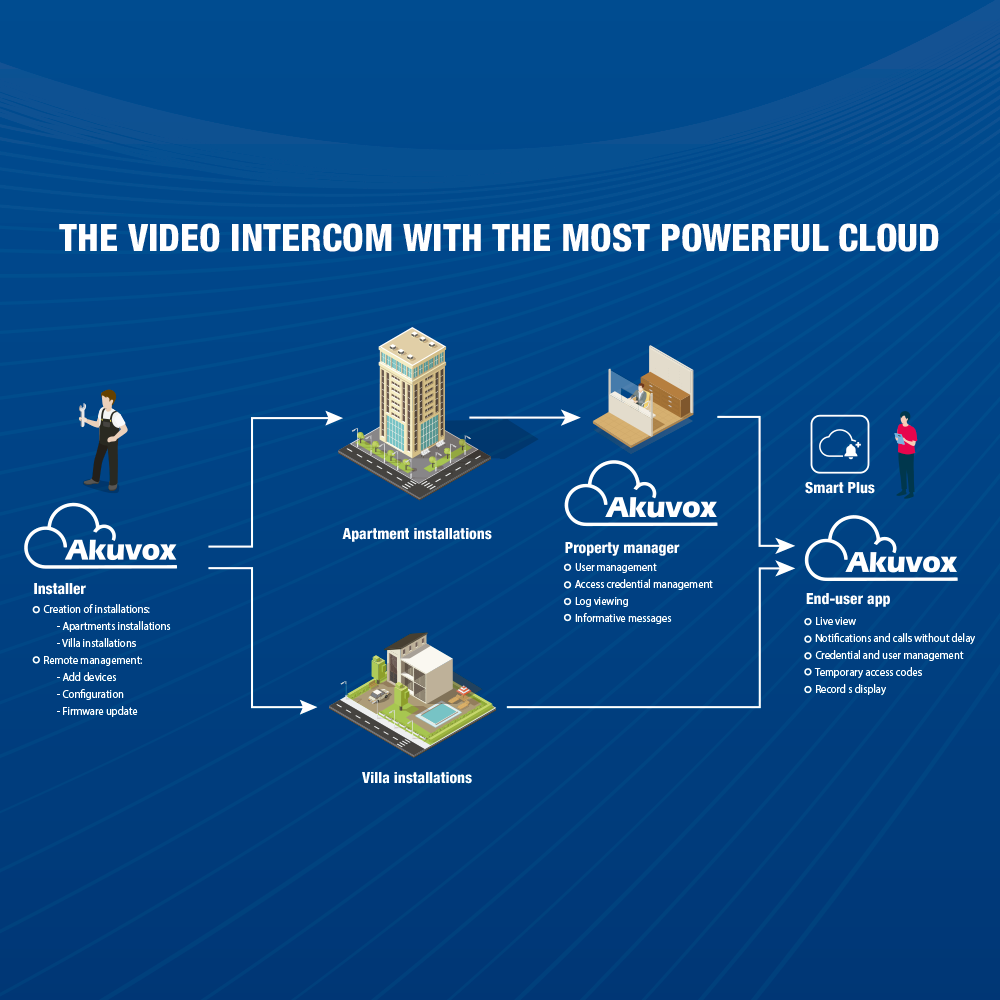

• Remote access: SmartPlus mobile application or WEB browser configuration; Remote access via Cloud: yes
• Optical sensor: 1/2.7" 2 Megapixel CMOS with infrared and light sensor
• Viewing angle: 110° (H) / 58° (V)
• Camera resolution: 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video encoding: H.264 and H.265
• Audio: Two-way audio with microphone and speaker featuring noise reduction and Crystal Clear Audio technology
• Audio format: SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722; DTMF (RFC2833), SIP Info
• Network interface: 10/100 BaseT Ethernet / RS485 / RTSP
• Operating mode: Local network and/or via cloud on different networks
• Firmware updates: Remotely via cloud with installer account or locally via web browser
• Material: Aluminum alloy
• Protection rating: IP65
• Operating temp.: -40 ºC ~ +65 ºC
• Dimensions: 145 (W) x 85 (H) x 28 (D) mm
• Power supply: DC 12 V / 1000 mA max. / PoE IEEE802.3af
• Weight: 800 g
• Color: Black
• Range: EasyAccess
📦 INCLUDED:

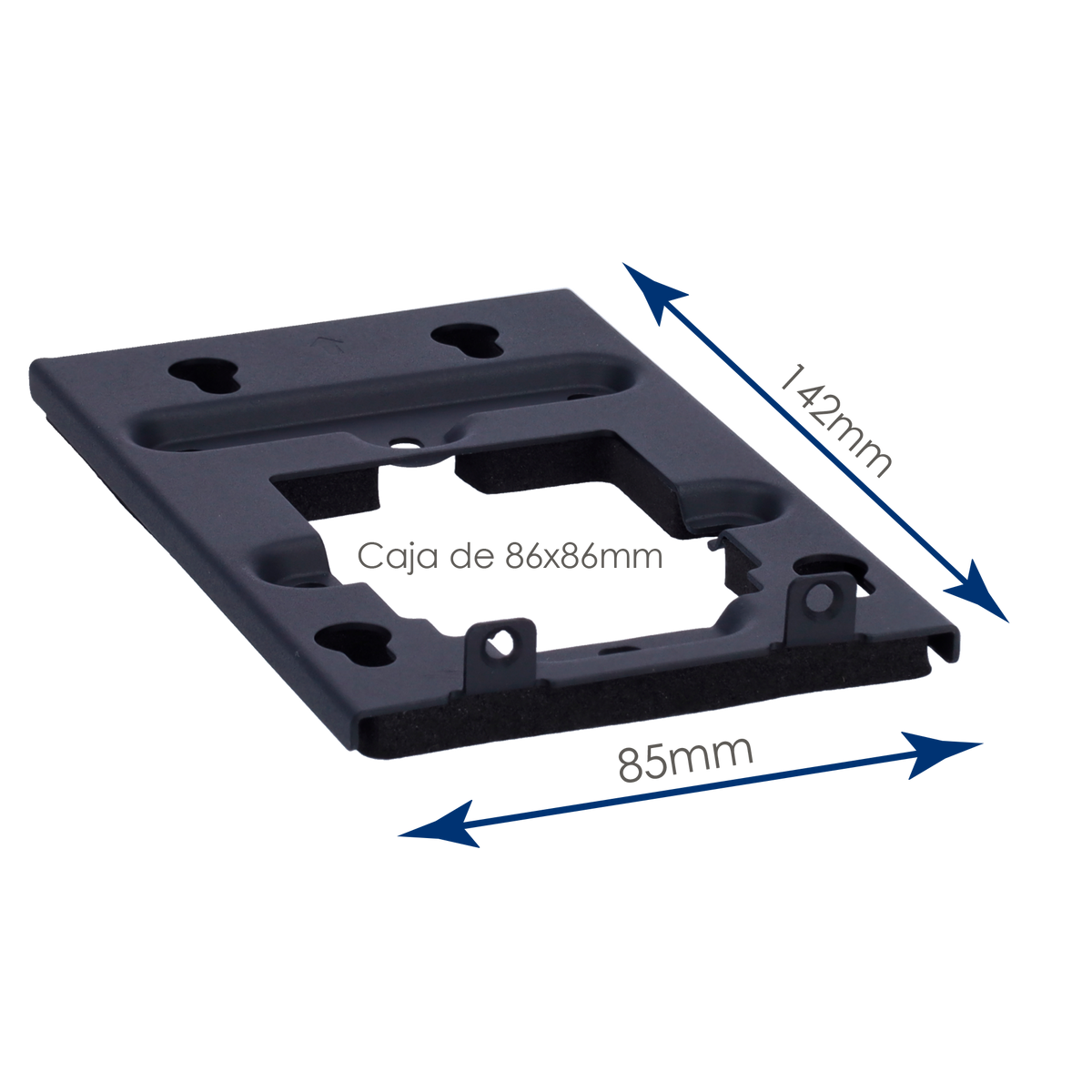

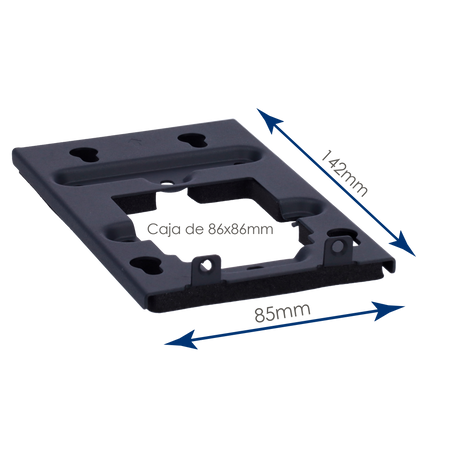

• Akuvox video intercom outdoor station• User manual• Mounting material
| Model | R20A-BLACK |
|---|---|
| Access control | Door opening via RFID EM 125 kHz and MF 13.56 MHz card and NFC, with logs |
| Capacity | Contacts: 1,000 RFID Users: 5,000 cards |
| Keypad | Mechanical call button with configurable LED lighting |
| Outputs | 2 x relays for lock (12V/400mA), 1 x Wiegand OUT and 1 x RS485 |
| Inputs | 2 x exit buttons and 1 x Wiegand IN |
| Advanced access functions | Anti-passback (configurable via Cloud, in Office Projects) |
| Remote access | SmartPlus mobile application or configuration via WEB browser Remote access via Cloud: yes |
| Optical sensor | 1/2.7" 2 Megapixel CMOS with infrared and brightness sensor |
| Viewing angle | 110° (H) / 58° (V) |
| Camera resolution | 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 and H.265 |
| Audio | Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology |
| Audio format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely with the cloud via installer account or locally via web browser |
| Material | Aluminum alloy |
| Protection rating | IP65 |
| Operating temp. | -40 ºC ~ +65 ºC |
| Dimensions | 145 (W) x 85 (H) x 28 (D) mm |
| Power supply | DC 12 V / 1000 mA max. / PoE IEEE802.3af |
| Weight | 800 g |
| Color | Black |
| Range | EasyAccess |
