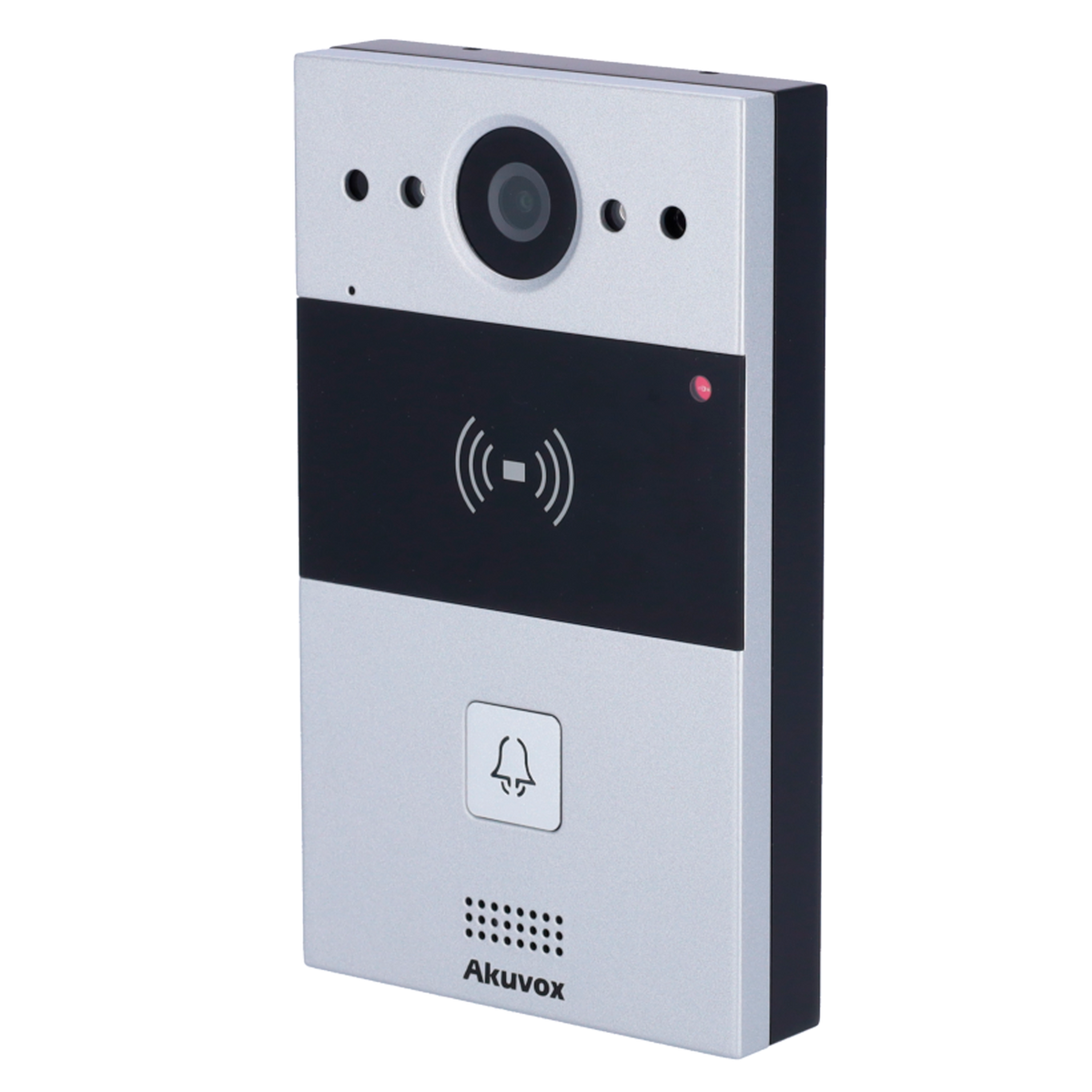

Akuvox 2-wire surface-mount video door phone - Access via EM/MF card and NFC | 1 relay
Akuvox 2-wire surface-mount video door phone - Access via EM/MF card and NFC | 1 relay
Regular price
€299,75
Final price
Regular price
-9%
€330,00
Sale price
€299,75
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
2-wire video door phone for surface mounting - 2 MP camera | Two-way audio - Access via EM/MF card and NFC | 1 relay - Standard SIP - Cloud maintenance - Connection of monitor and outdoor station via Cloud
📋 SPECIFICATIONS:
• Brand: Akuvox
• Model: R20A-2

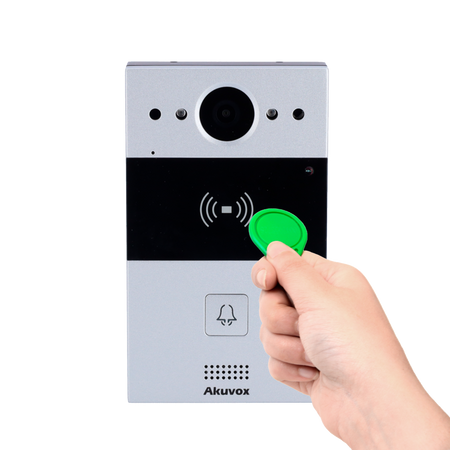

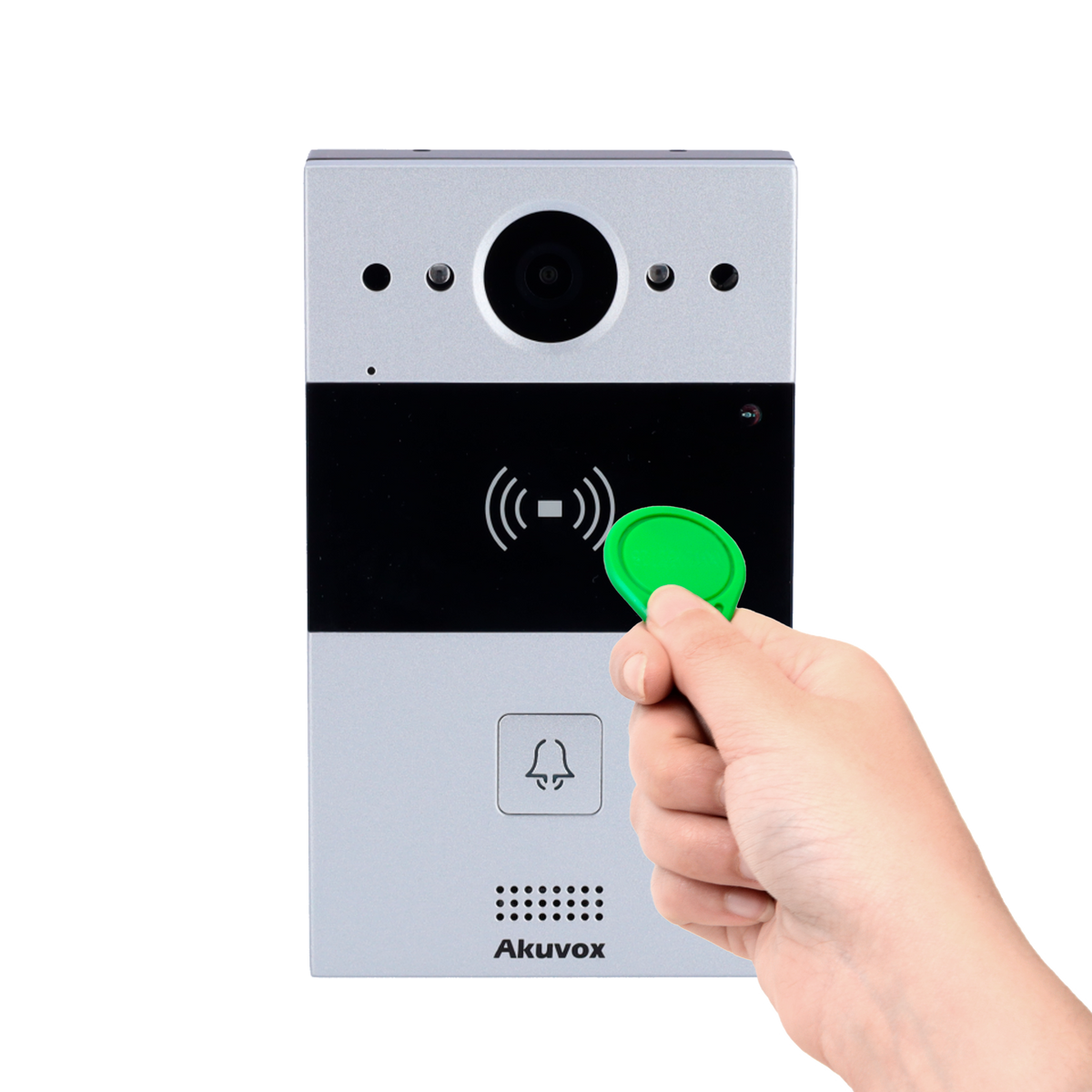

• Access control: Door opening with EM 125 kHz and MF 13.56 MHz RFID card and NFC, with logs
• Capacity: Contacts: 1,000; RFID users: 5,000 cards
• Keypad: Mechanical call button with configurable LED lighting
• Outputs: 1 x relay for lock, 1 x Wiegand OUT and 1 x RS485
• Inputs: 1 x exit button and 1 x Wiegand IN

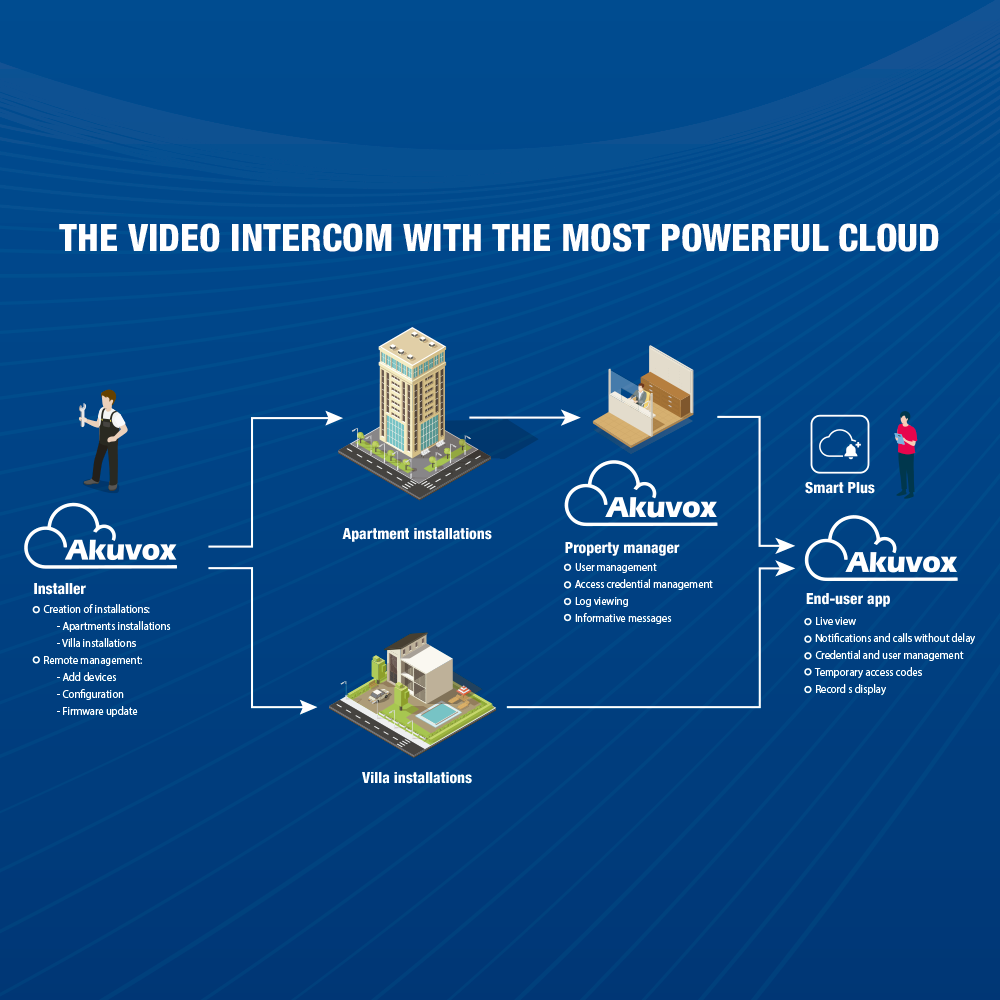

• Remote access: SmartPlus mobile application or configuration via WEB browser; Remote access via Cloud: yes
• Optical sensor: 1/2.7" 2 Megapixel CMOS with infrared and brightness sensor
• Viewing angle: 110° (H) / 58° (V)
• Camera resolution: 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video encoding: H.264 and H.265
• Audio: Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology
• Audio format: SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722, DTMF (RFC2833), SIP Info
• Network interface: RS485 / RTSP
• Operating mode: Local network and/or via cloud on different networks
• Firmware updates: Remotely with the cloud via installer account or locally via web browser
• Material: Aluminum alloy
• Protection rating: IP65
• Operating temp.: -30 ºC ~ +60 ºC
• Dimensions: 145 (W) x 85 (H) x 28 (D) mm
• Power supply: DC 24 V / 48 V | 1000 mA max.
• Weight: 800 g
📦 INCLUDED:
• Akuvox video door phone outdoor station• User manual• Mounting material
| Model | R20A-2 |
|---|---|
| Access control | Door opening with 125 kHz EM and 13.56 MHz MF RFID card and NFC, with logs |
| Capacity | Contacts: 1,000 RFID Users: 5,000 cards |
| Keypad | Mechanical call button with configurable LED lighting |
| Outputs | 1 x relay for lock, 1 x Wiegand OUT and 1 x RS485 |
| Inputs | 1 x exit button and 1 x Wiegand IN |
| Remote access | SmartPlus mobile application or configuration via WEB browser Remote access via Cloud: yes |
| Optical sensor | 1/2.7" 2 Megapixel CMOS with infrared and brightness sensor |
| Viewing angle | 110° (H) / 58° (V) |
| Camera resolution | 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 and H.265 |
| Audio | Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology |
| Audio format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722, DTMF (RFC2833), SIP Info |
| Network interface | RS485 / RTSP |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely via cloud through installer account or locally via web browser |
| Material | Aluminum alloy |
| Protection rating | IP65 |
| Operating temp. | -30 ºC ~ +60 ºC |
| Dimensions | 145 (W) x 85 (H) x 28 (D) mm |
| Power supply | DC 24 V / 48 V | 1000 mA max. |
| Weight | 800 g |
