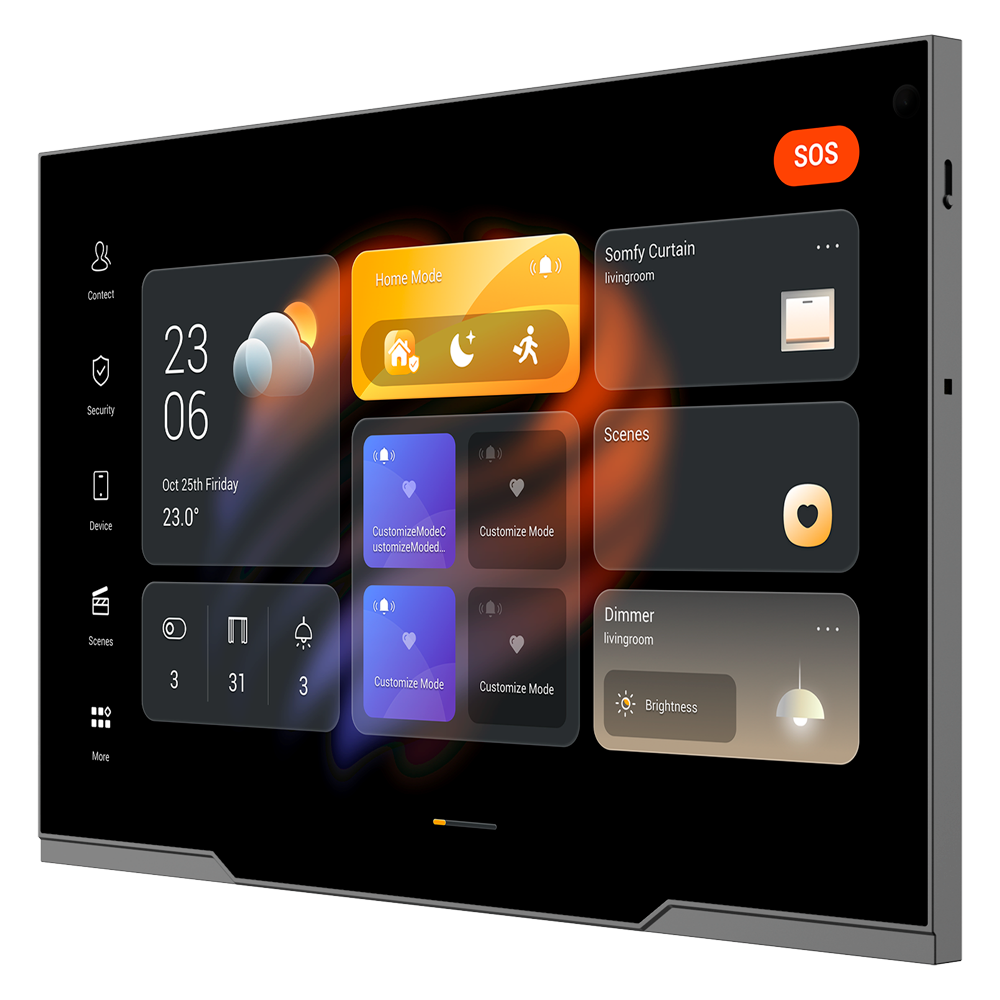

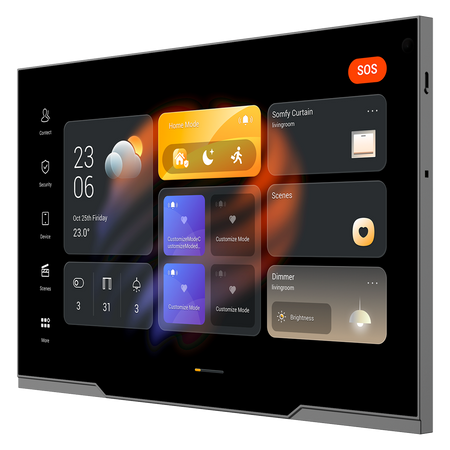

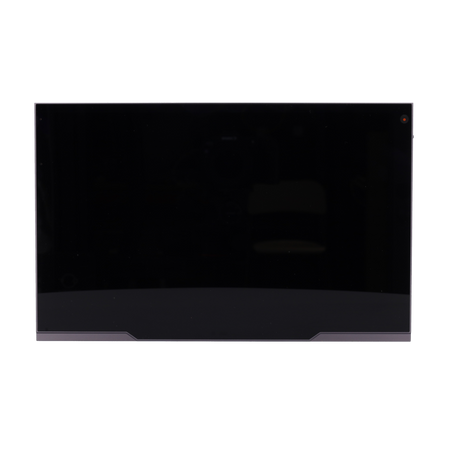

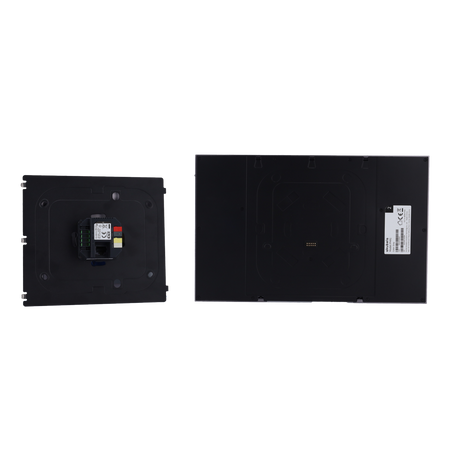

Akuvox 12.0" Android Home Automation Monitor - 12" TFT Screen | Third-party applications - PHX1-KNX-EU
Akuvox 12.0" Android Home Automation Monitor - 12" TFT Screen | Third-party applications - PHX1-KNX-EU
Regular price
€1.129,84
Final price
Regular price
-10%
€1.260,00
Sale price
€1.129,84
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Android 12.0 Smart Home Monitor - 12" TFT Screen | Third-party apps - Two-way audio | Video Intercom monitor - TCP/IP, WiFi, Bluetooth, ZigBee, KNX, SIP - 2-relay environmental sensors - Cloud connection
📋 SPECIFICATIONS:
• Brand: Akuvox; Akubela Range
• Model: PHX1-KNX-EU
• Operating system: Android 12.0
• Hardware: RAM: 4 GB | ROM: 32 GB
• LCD: 12.35" TFT 2560 x 1600 (2.5K UHD)
• Operation mode: Capacitive touch panel
• Inputs: 1 x digital input 0-5 V
• Outputs: 2 x relays (supporting up to 1500 W in total)
• Sensors: Proximity, light, temperature and humidity
• Functions: Smart home device search and management; Scene and smart automation management; Video intercom monitor
• Audio: Two-way audio with dual microphone and noise-canceling speaker with Crystal Clear Audio technology

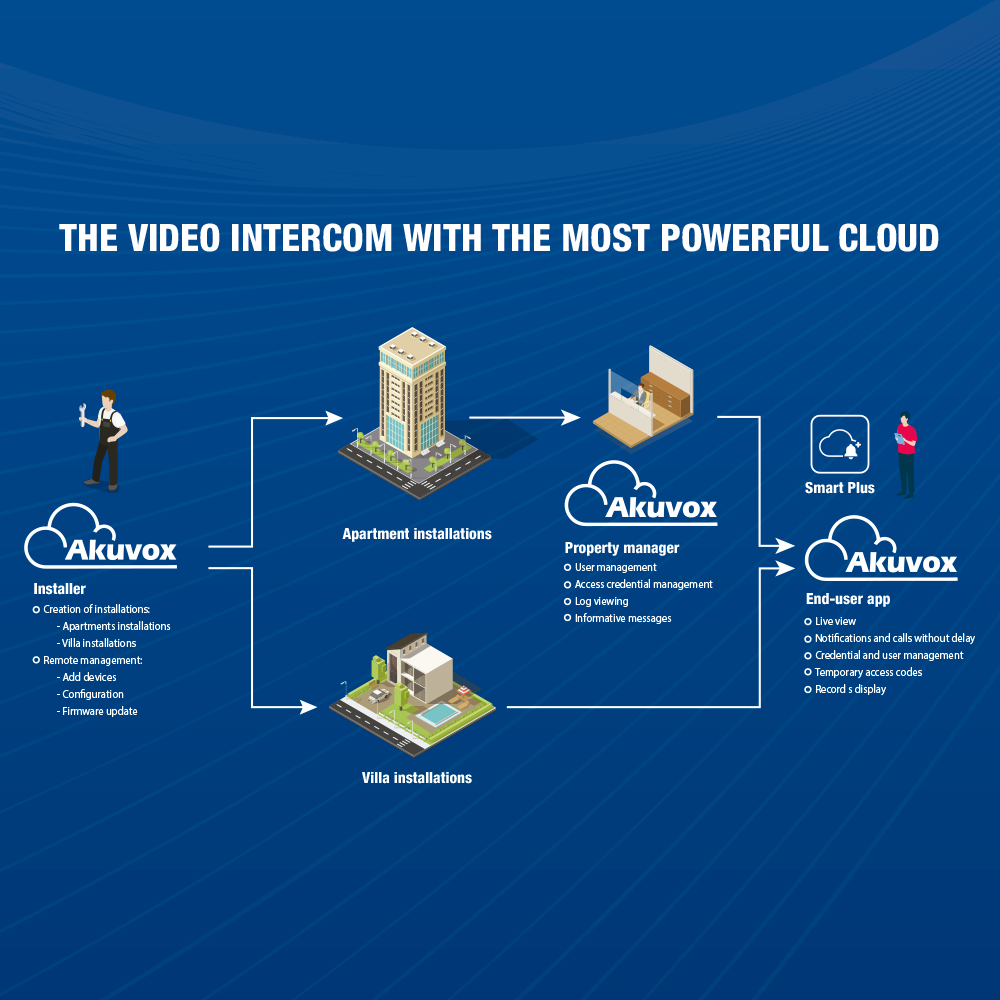

• Remote access: Configuration via WEB browser; Bela Home mobile app (scenes and automations) or SmartPlus (intercommunication); Remote access via Cloud: yes
• Operation mode: Local network and/or via cloud on different networks
• Firmware updates: Remotely with the cloud via installer account or locally via web browser
• Network interface: Ethernet 10/100 BaseT / WiFi 802.11b/g/n/ac/ax / Bluetooth 5.0 / ZigBee 3.0
• Power supply: DC 21-30 V (via power adapter or KNX bus)
• Operating temp.: -10 ºC ~ +50 ºC
• Dimensions: 296 (H) x 188 (W) x 41 (D) mm
• Weight: 800 g
• Material: Brushed aluminum frame
📦 INCLUDED:
• Akuvox smart home indoor monitor• Installation material• User instructions
| Model | PHX1-KNX-EU |
|---|---|
| Operating system | Android 12.0 |
| Hardware | RAM: 4 GB | ROM: 32 GB |
| LCD | 12.35" TFT 2560 x 1600 (2.5K UHD) |
| Operation mode | Capacitive touch panel |
| Inputs | 1 x digital input 0-5 V |
| Outputs | 2 x relays (supporting up to 1500 W in total) |
| Sensors | Proximity, light, temperature, and humidity |
| Functions | Home automation device search and management, scene and smart automation management, video intercom monitor |
| Audio | Two-way audio with dual microphone and speaker with noise reduction via Crystal Clear Audio technology |
| Remote access | Configuration via WEB browser, Bela Home mobile application (scenes and automations) or SmarPlus (intercommunication), Cloud remote access: yes |
| Operation mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely via cloud through installer account or locally via web browser |
| Network interface | Ethernet 10/100 BaseT / WiFi 802.11b/g/n/ac/ax / Bluetooth 5.0 / ZigBee 3.0 |
| Power supply | DC 21-30 V (via power supply or KNX bus) |
| Operating temp. | -10 ºC ~ +50 ºC |
| Dimensions | 296 (H) x 188 (W) x 41 (D) mm |
| Weight | 800 g |
| Material | Brushed aluminum frame |
