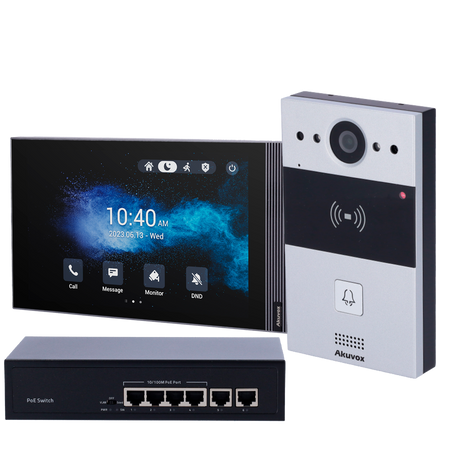

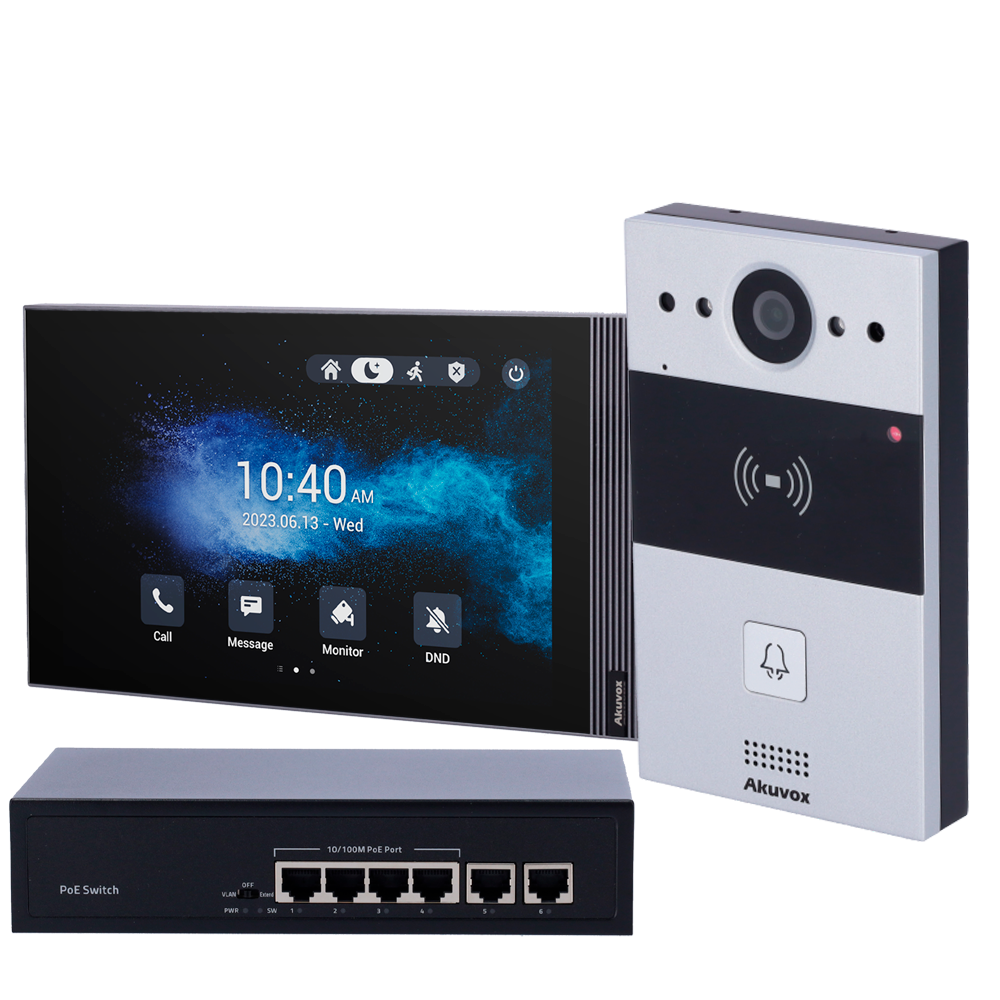

Akuvox LINUX-based video intercom kit - IP | Door station and monitor

LINUX-based video intercom kit - IP | Outdoor station and monitor - Crystal Clear two-way audio - EM/MF and NFC reader | Standard PoE - 2 relay outputs | Vandal-proof - Cloud connection

📋 SPECIFICATIONS:
• Brand: Akuvox

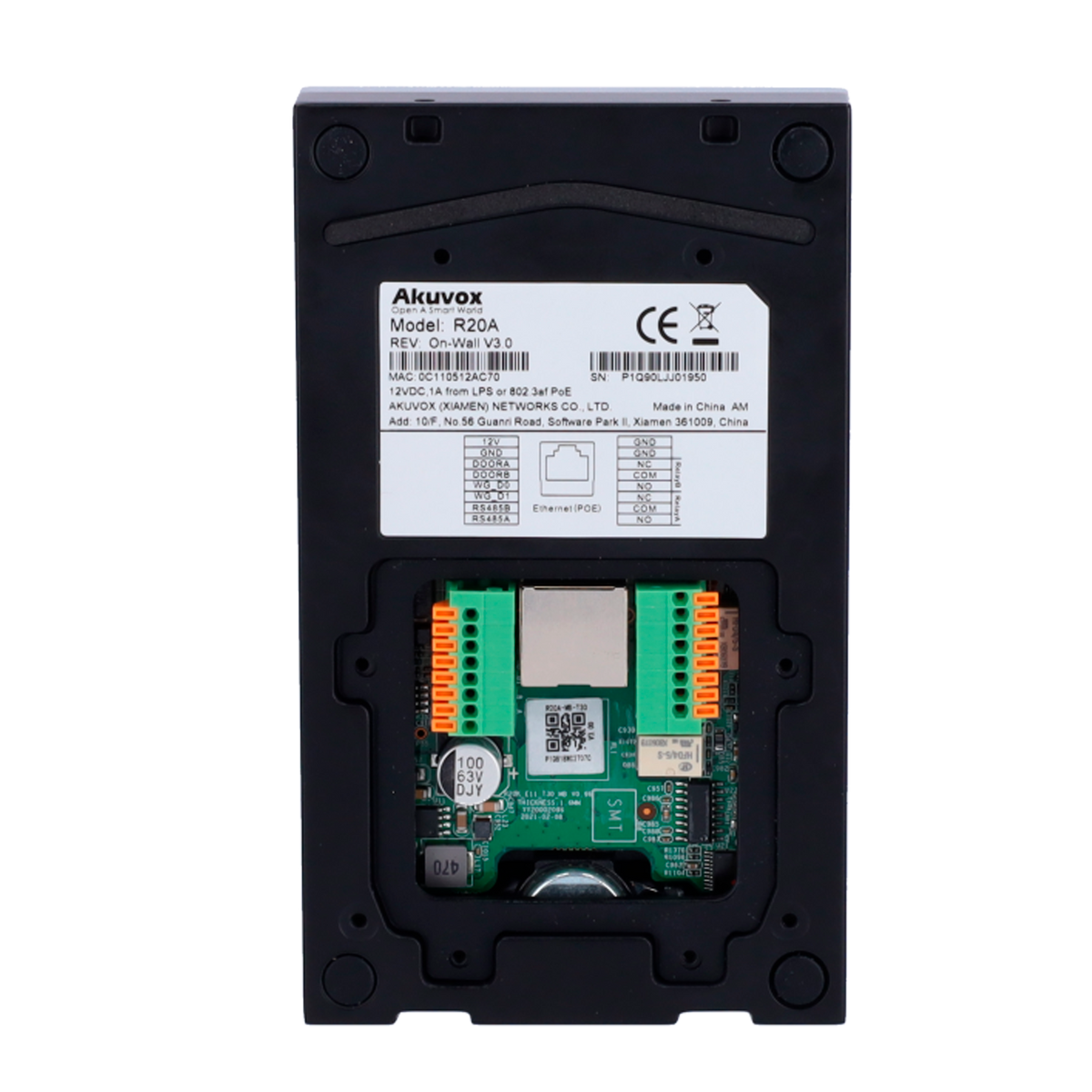

• Model: R20A
• Access control: Door opening via EM 125 kHz and MF 13.56 MHz RFID card and NFC, with logs
• Capacity: Contacts: 1,000; RFID users: 5,000 cards
• Keypad: Mechanical call button with configurable LED lighting
• Outputs: 2 x relay for lock (12V/400mA), 1 x Wiegand OUT and 1 x RS485
• Inputs: 2 x exit button and 1 x Wiegand IN
• Advanced access functions: Anti-passback (configurable via Cloud, in Office Projects)

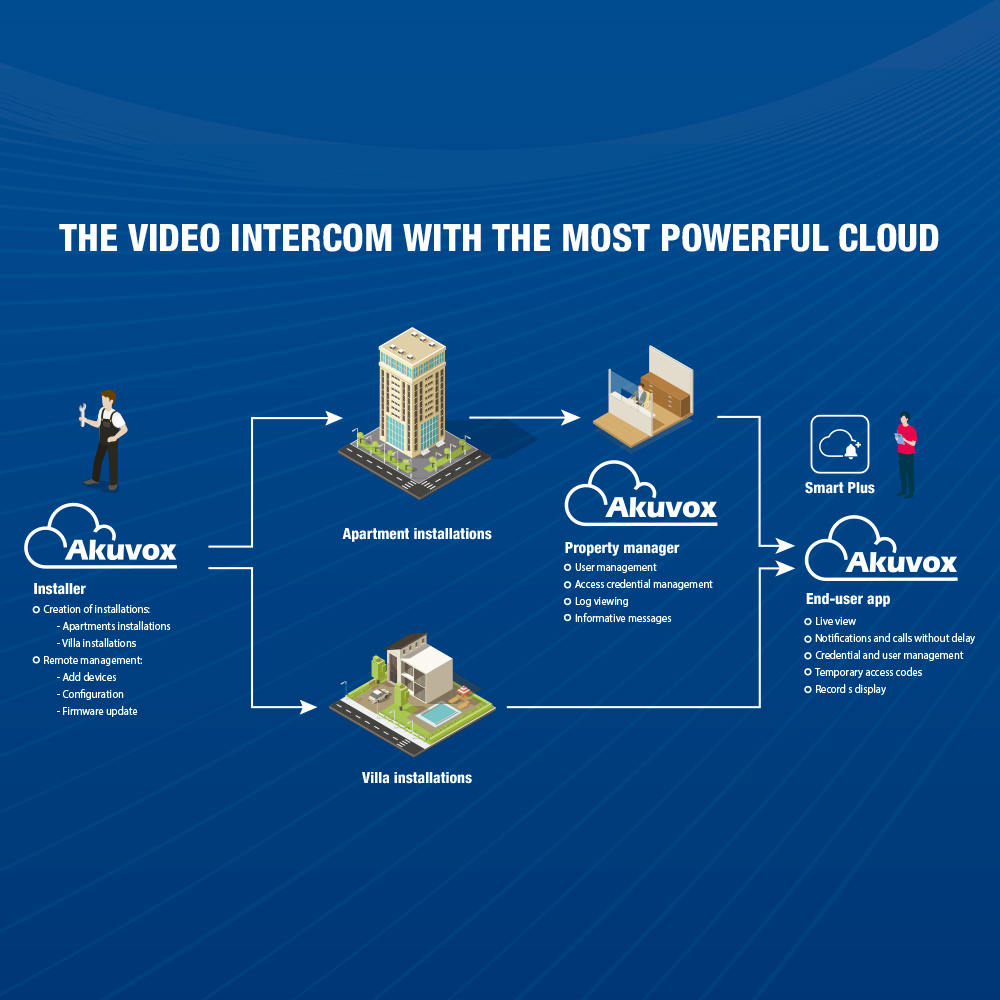

• Remote access: SmartPlus mobile application or WEB browser configuration; Remote access via Cloud: yes
• Optical sensor: 1/2.7" 2 Megapixel CMOS with infrared and brightness sensor
• Viewing angle: 110° (H) / 58° (V)
• Camera resolution: 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video encoding: H.264 and H.265
• Audio: Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology
• Audio format: SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722; DTMF (RFC2833), SIP Info
• Network interface: Ethernet 10/100 BaseT / RS485 / RTSP
• Operating mode: Local network and/or via cloud on different networks
• Firmware updates: Remotely with the cloud via installer account or locally via web browser
• Material: Aluminum alloy
• Protection rating: IP65
• Operating temp.: -40 ºC ~ +65 ºC
• Dimensions: 145 (W) x 85 (H) x 28 (D) mm
• Power supply: DC 12 V / 1000 mA max. / PoE IEEE802.3af
• Weight: 800 g
• Range: EasyAccess
• Brand: Akuvox

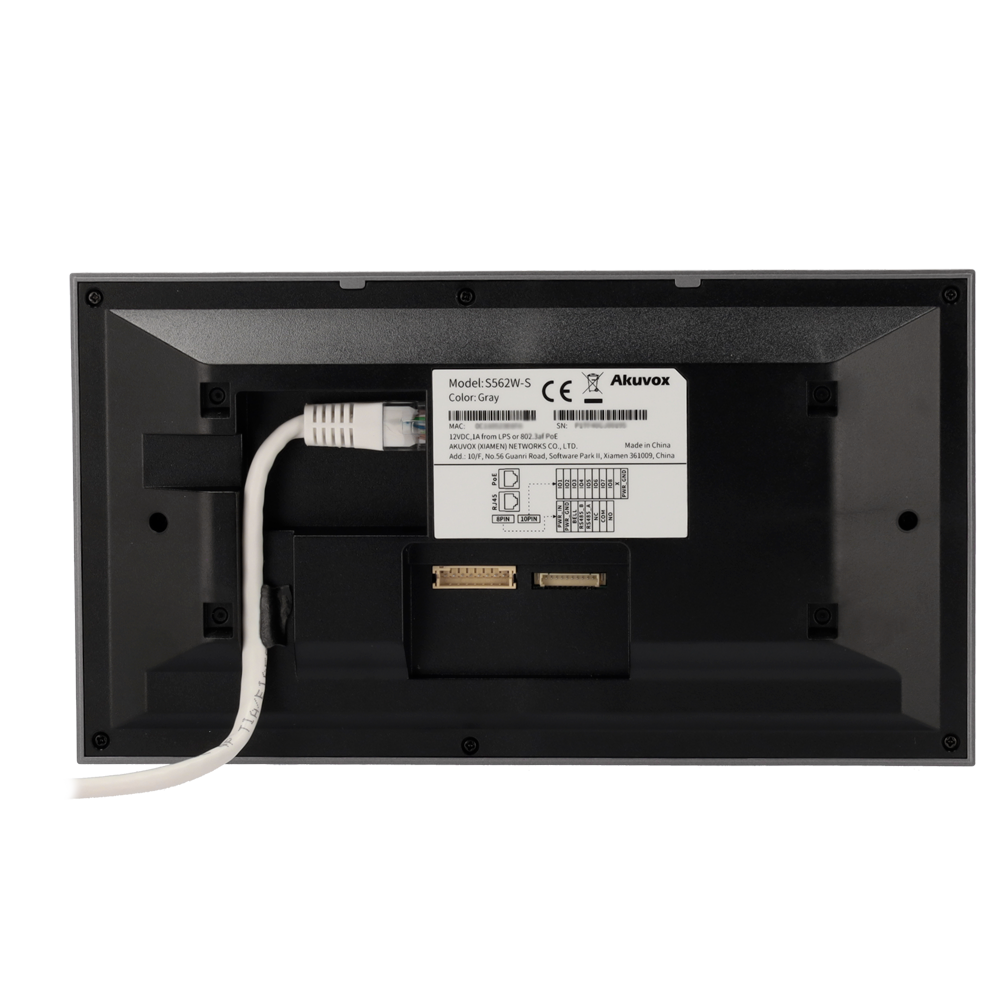

• Model: S562-S
• Operating system: LINUX OS
• Hardware: RAM: 128 MB | ROM: 128 MB
• LCD: 7" IPS 1024 x 600
• Capacity: Contacts: 500; Messages: 100; Call logs: 100
• Operating mode: Capacitive touch panel
• Inputs: 8 x configurable alarms, 1 x buzzer and 1 x RS485
• Outputs: 1 x relay
• Audio: Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology
• Audio format: SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722; DTMF (RFC2833), SIP Info
• Remote access: SmartPlus mobile application or WEB browser configuration; Remote access via Cloud: yes
• Operating mode: Local network and/or via cloud on different networks
• Firmware updates: Remotely with the cloud via installer account or locally via web browser
• Network interface: Ethernet 10/100 BaseT; RTSP / ONVIF
• Power supply: DC 12 V / 600 mA max.; Standard PoE (IEEE802.3af)
• Operating temp.: -10 ºC ~ +45 ºC
• Dimensions: 216 (H) x 119 (W) x 22 (D) mm
• Weight: 600 g

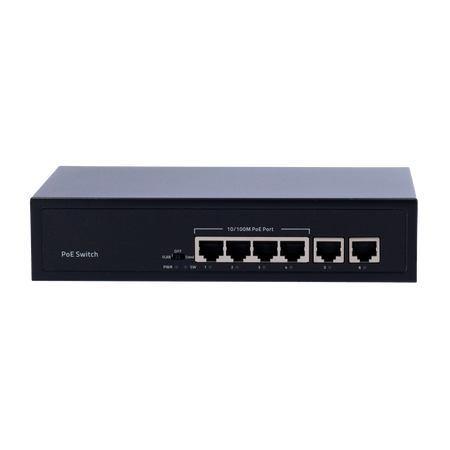

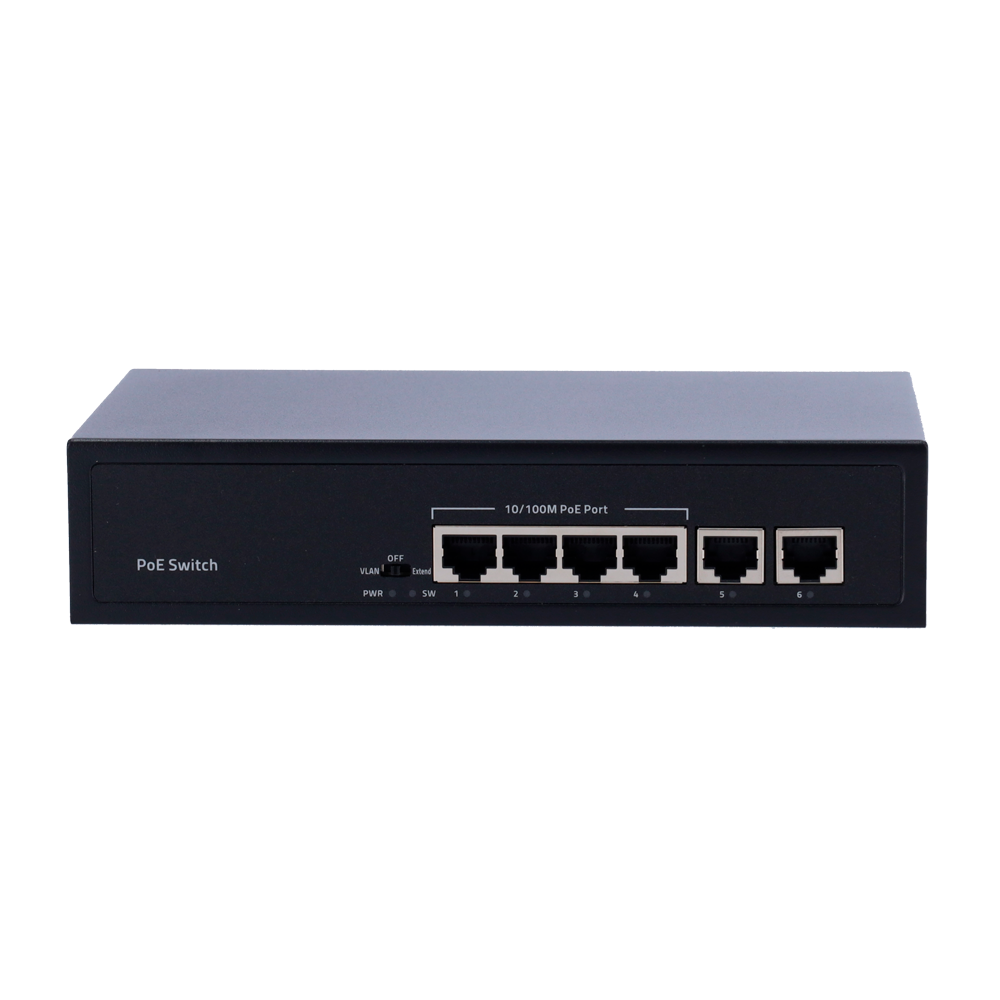

• Brand: Akuvox
• Type: Unmanaged PoE switch
• Interface: 6 x 10/100 Mbps RJ45 ports
• Compliant with IEEE 802.3 standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
• PoE features: 4 x 802.3af/at PoE+ ports; Up to 30 W per port; 60 W total PoE power
• Functions: VLAN mode; Default mode; Extend mode
• Packet Buffer: 768 Kbit
• Bandwidth: 1.2 Gbps
• Packet forwarding rate: 0.90 Mbps
• MAC table: 2K
• Supported technologies: Auto-negotiation / Auto MDI/MDIX mode
• Power supply: DC 52 V / 1.52 A max., powered by adapter (AC 100-240 V, 50/60 Hz)
• Maximum consumption: < 60 W
• Operating temperature: 0 ºC ~ + 40 ºC
• Dimensions: 200 (H) x 118 (W) x 44 (D) mm
• Weight: 300 g

📦 INCLUDED:
• Akuvox wall-mount outdoor station• Akuvox wall-mount indoor monitor• Standard PoE switch• 4 x MF key fobs
