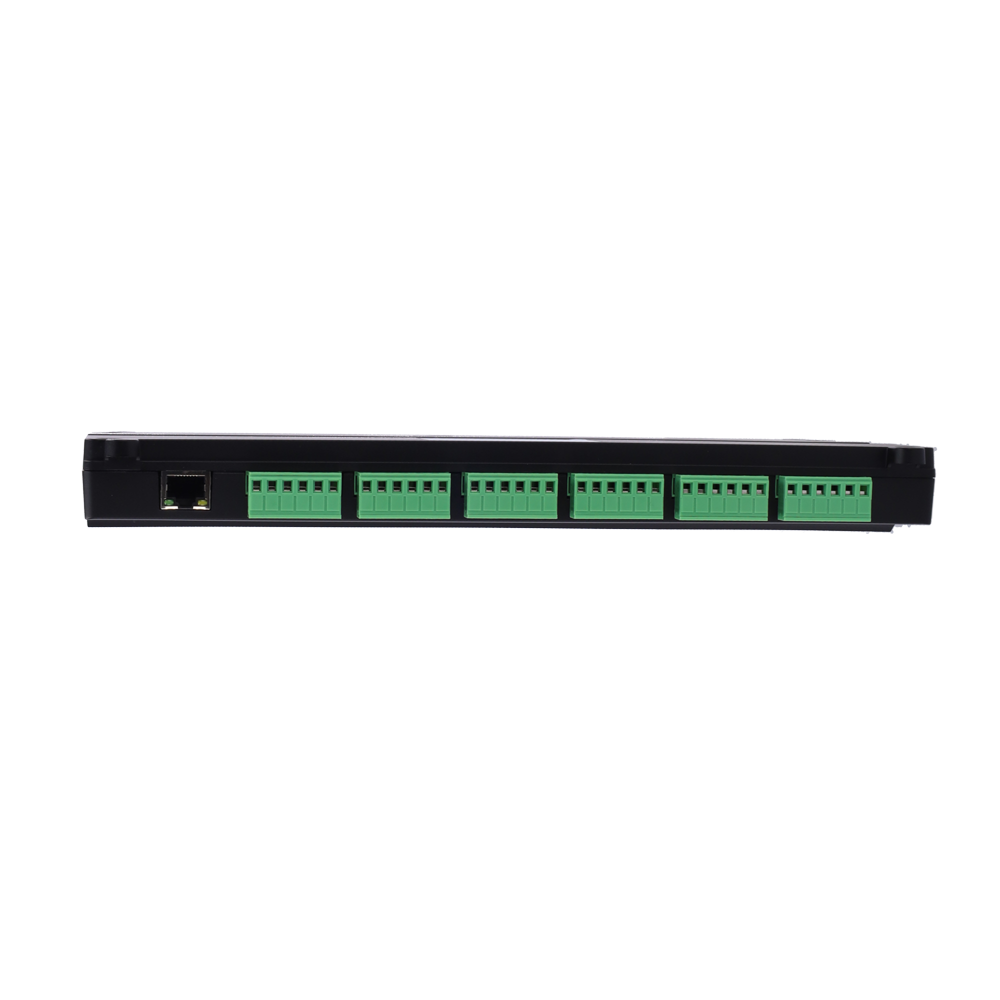

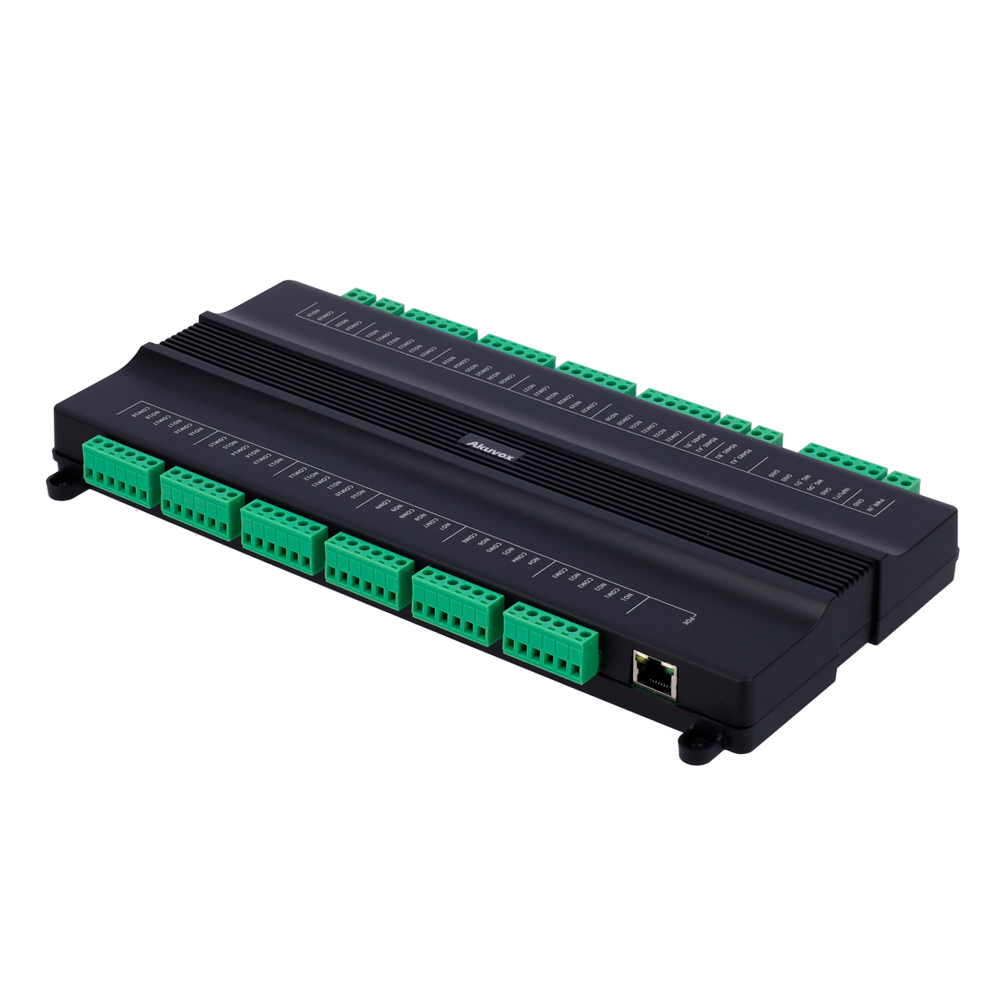

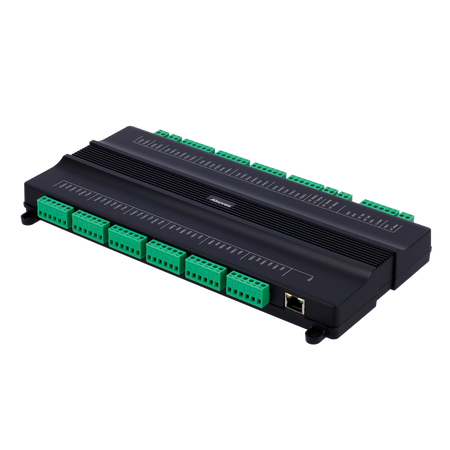

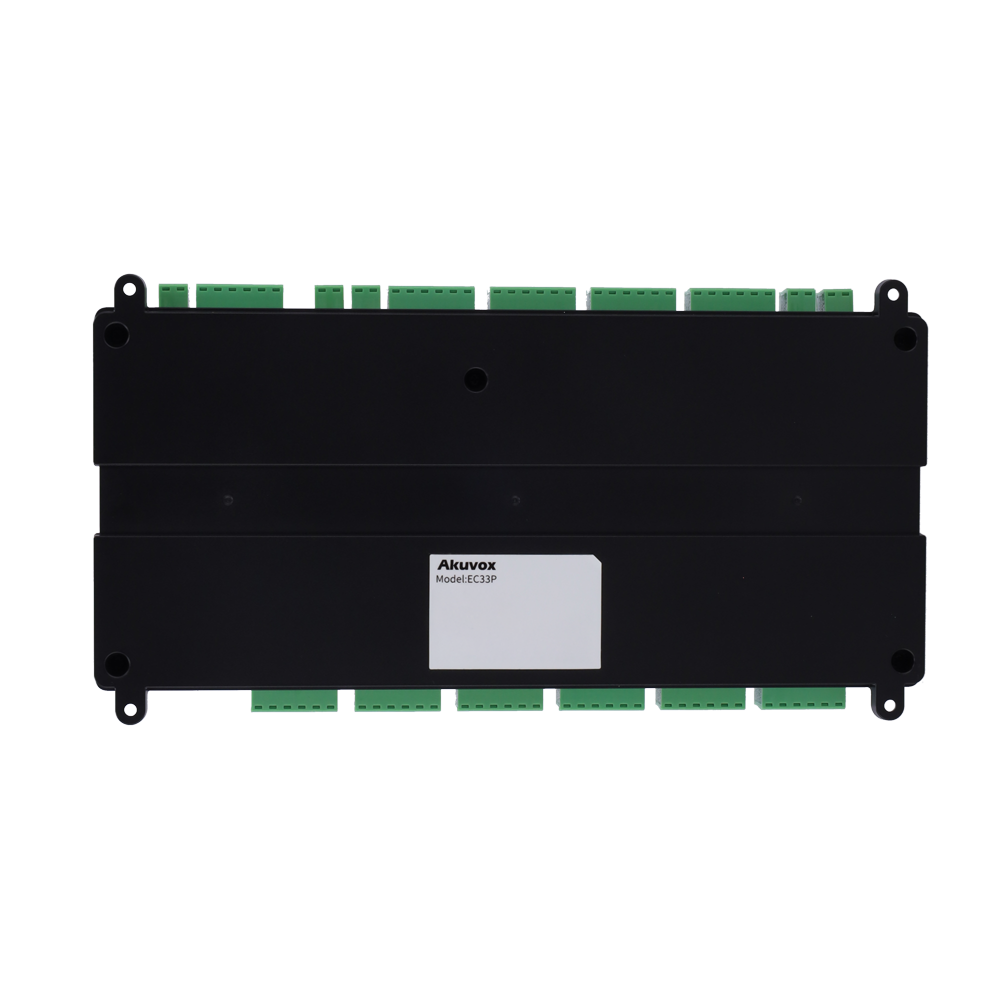

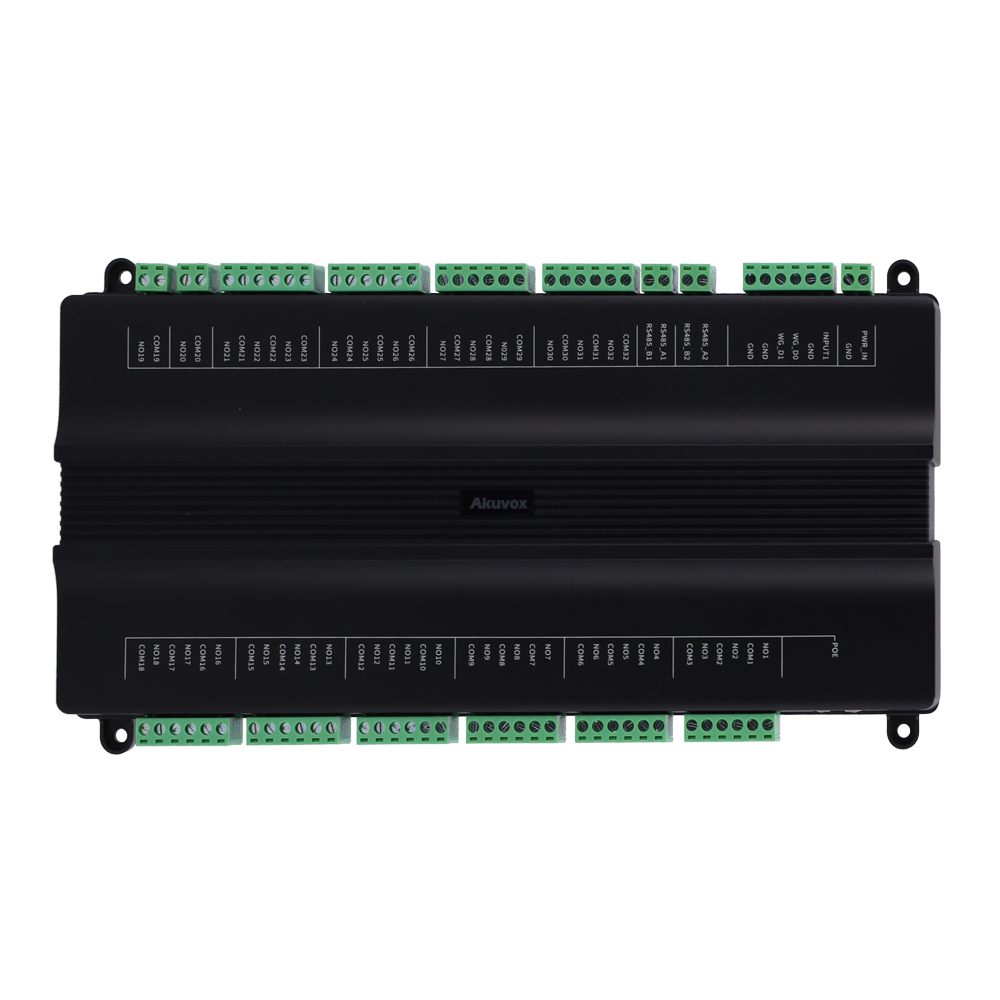

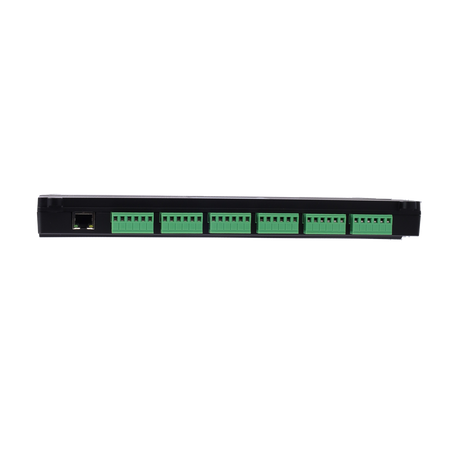

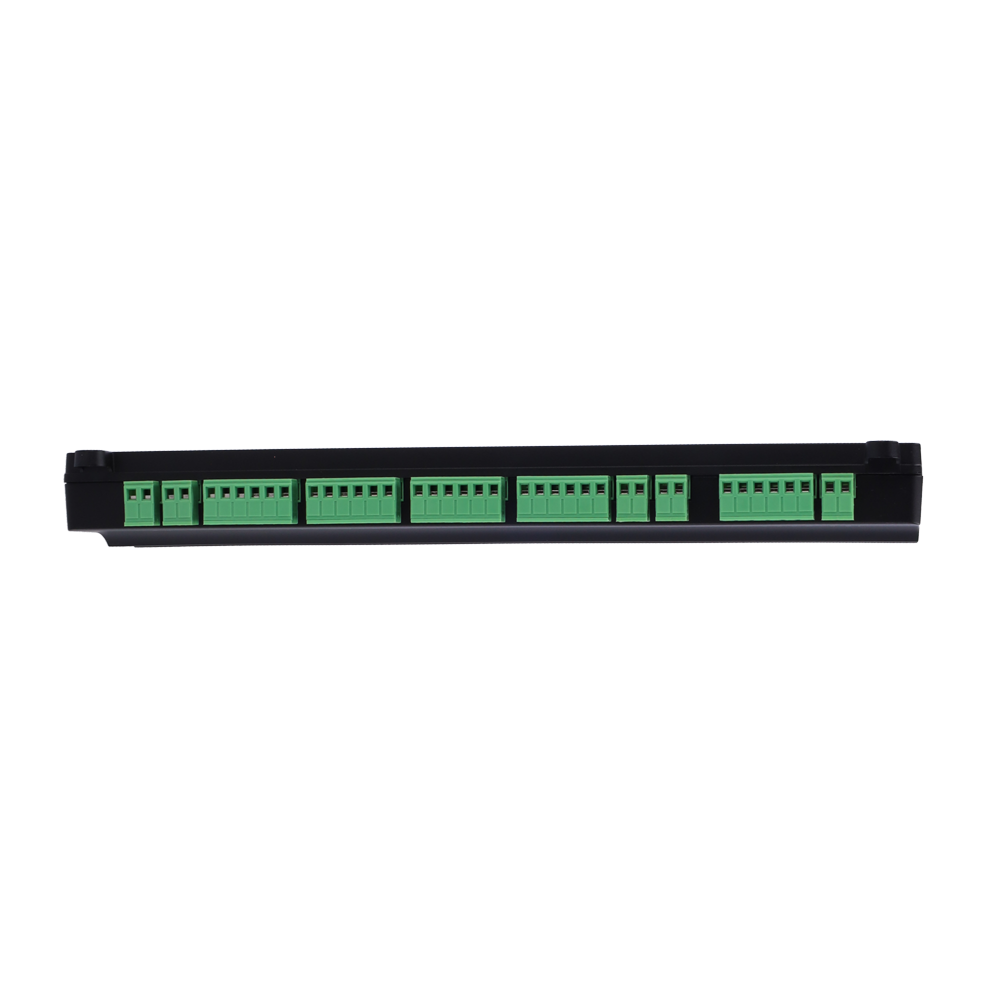

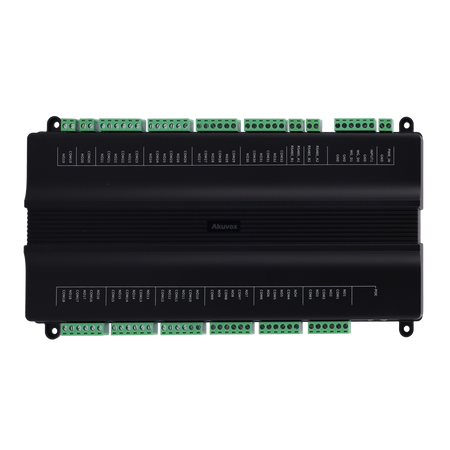

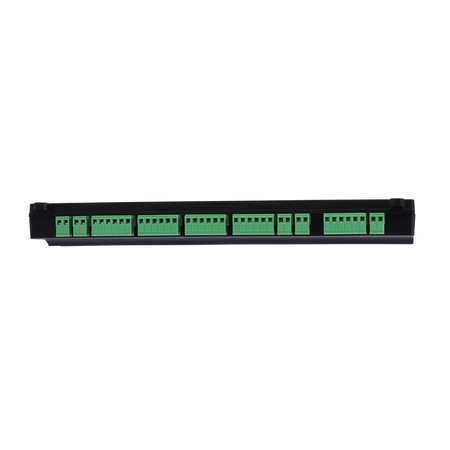

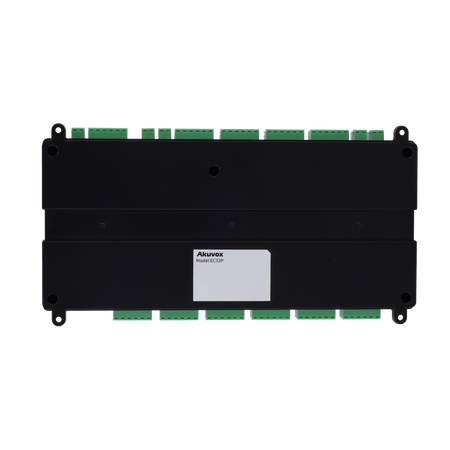

Akuvox PoE elevator controller
Regular price
€599,51
Final price
Regular price
-9%
€660,00
Sale price
€599,51
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
PoE Elevator Controller - Card and PIN - 20,000 users | 100,000 logs - 1 Wiegand reader - Relay for 32 floors | Manages up to 128 floors - Cloud connection
📋 SPECIFICATIONS:
• Brand: Akuvox
• CPU Model: EC33P
• Capacity: Up to 20,000 users
• Logs: Up to 100,000 logs
• Identification modes: Card and/or password
• Proximity card: EM (125 kHz), MF (13.56 MHz) and MF DESFire (13.56 MHz)
• Communication: TCP/IP and RS485
• Outputs: 32 x relay outputs
• Inputs: 1 x Wiegand 26/34, 1 x fire, 2 x RS485

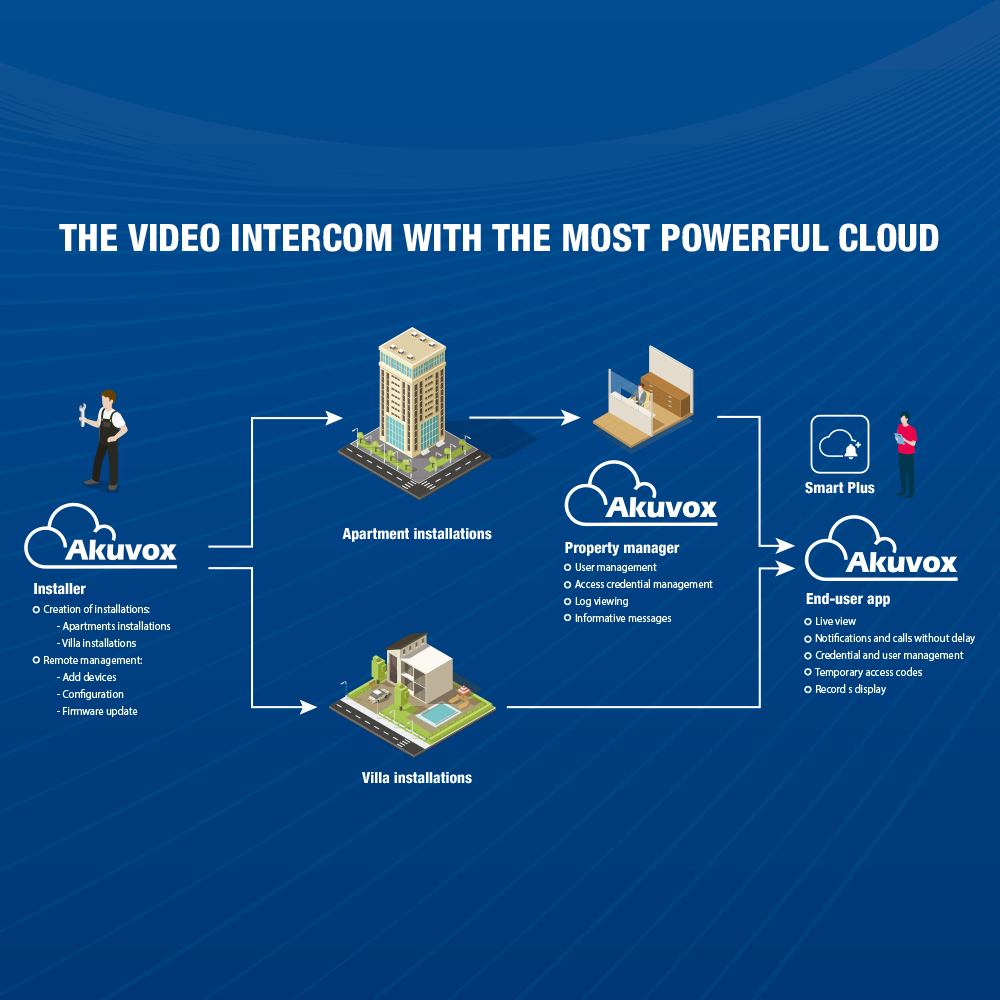

• Operating mode: Local network and/or via cloud on different networks
• Firmware updates: Remotely via cloud using installer account or locally via web browser
• Power supply: DC 12 V / 1 A max.; PoE IEEE802.3af
• Material: Plastic
• Operating temp.: 0º C ~ +45º C
• Dimensions: 292 (H) x 156 (W) x 32 (D) mm
• Weight: 750 g
📦 INCLUDED:
• Elevator controller• Mounting material• User instructions
| CPU Model | EC33P |
|---|---|
| Capacity | Up to 20,000 users |
| Logs | Up to 100,000 logs |
| Identification modes | Card and/or password |
| Proximity card | EM (125 kHz), MF (13.56 MHz) and MF DESFire (13.56 MHz) |
| Communication | TCP/IP and RS485 |
| Outputs | 32 x relay outputs |
| Inputs | 1 x Wiegand 26/34, 1 x fire alarm, 2 x RS485 |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely via cloud using installer account or locally via web browser |
| Power supply | DC 12 V / 1 A max. PoE IEEE802.3af |
| Material | Plastic |
| Operating temp. | 0º C ~ +45º C |
| Dimensions | 292 (H) x 156 (W) x 32 (D) mm |
| Weight | 750 g |
