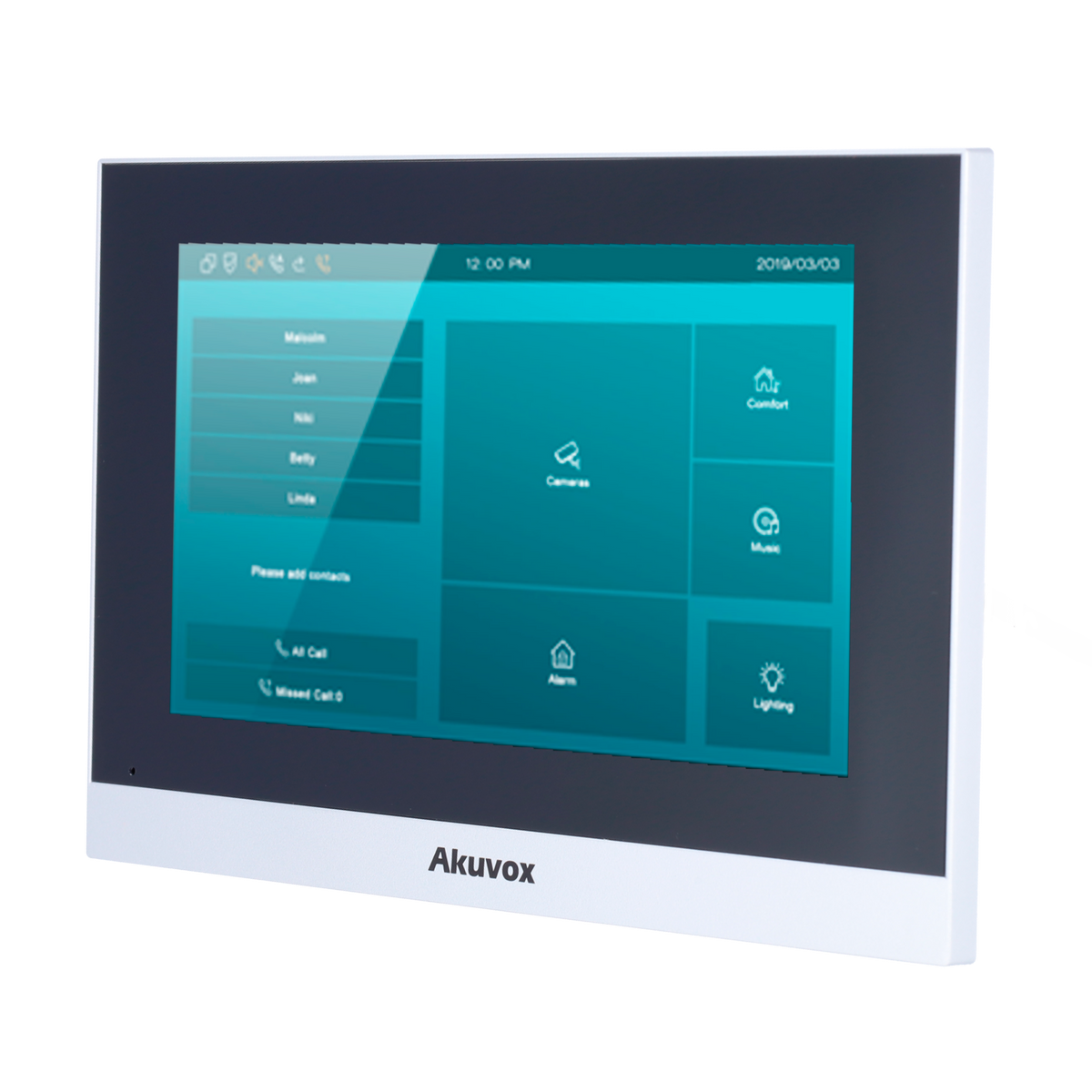

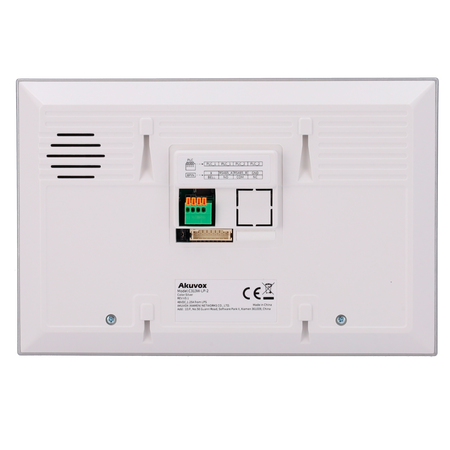

Linux monitor for Akuvox video door phone - 7" TFT screen - Crystal Clear two-way audio - C313W-LP-2
Linux monitor for Akuvox video door phone - 7" TFT screen - Crystal Clear two-way audio - C313W-LP-2
Regular price
€117,60
Final price
Regular price
-5%
€124,00
Sale price
€117,60
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Linux video intercom monitor - 7" TFT screen - Crystal Clear two-way audio - 2-wire LP, WiFi, standard SIP - Plug & Play local configuration - Connection and maintenance via Cloud
📋 SPECIFICATIONS:
• Brand: Akuvox
• Model: C313W-LP-2
• Operating system: LINUX OS
• Hardware: RAM: 128 MB | ROM: 128 MB

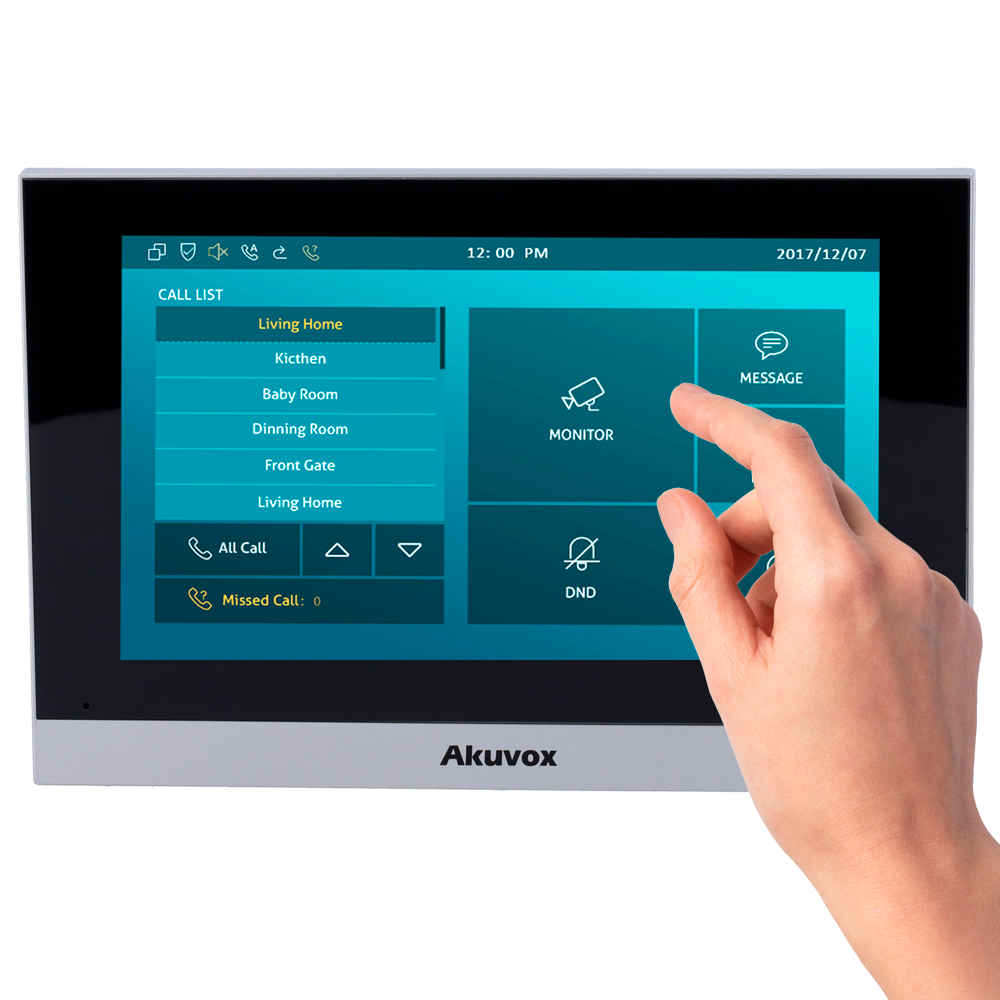

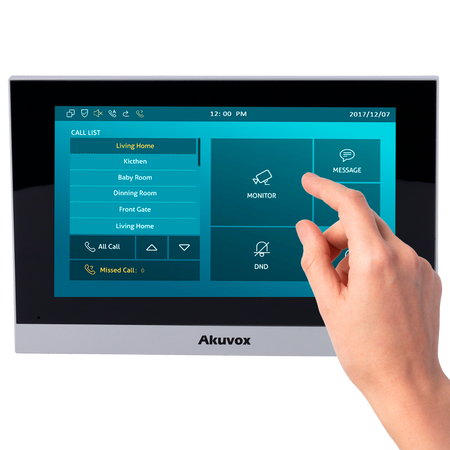

• LCD: Display type: 7" color touch TFT; Resolution: 1024 x 600
• Capacity: Contacts: 500; Messages: 100; Call logs: 100
• Operation mode: Capacitive touch panel

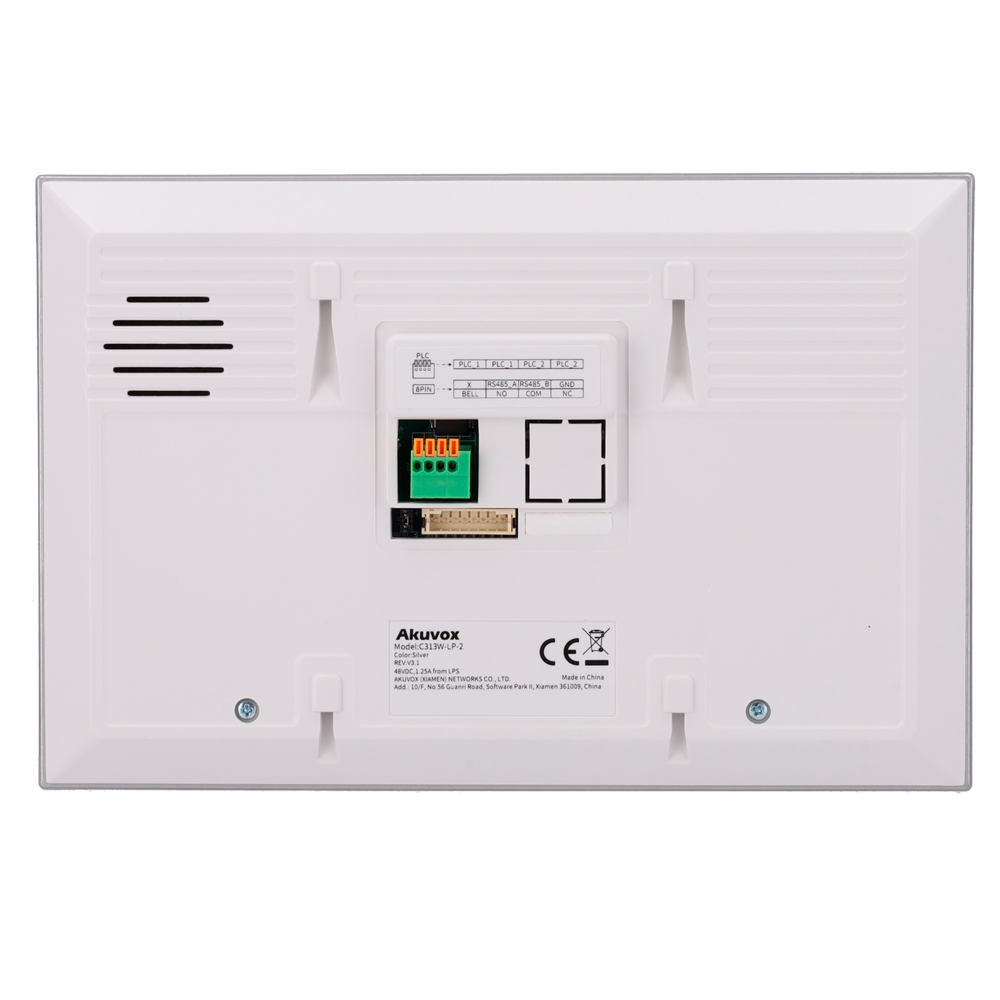

• Inputs: 1 x doorbell, 1 x RS485
• Outputs: 1 x relay
• Audio: Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology
• Audio format: SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722, DTMF (RFC2833), SIP Info

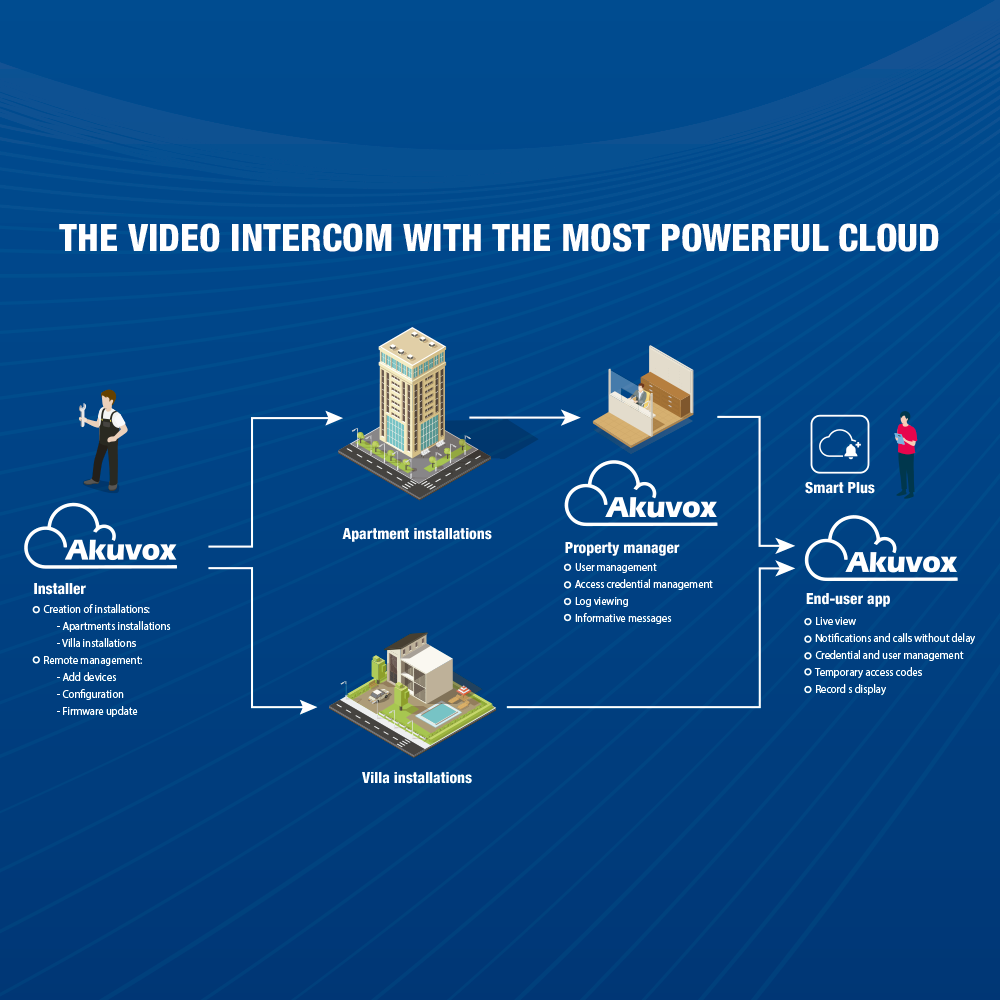

• Remote access: SmartPlus mobile app or configuration via WEB browser; Remote access via Cloud: Yes
• Operation mode: Local network and/or via cloud on different networks
• Firmware updates: Remotely via the cloud using an installer account or locally via web browser
• Network interface: WiFi 802.11b/g/n 2.4 GHz

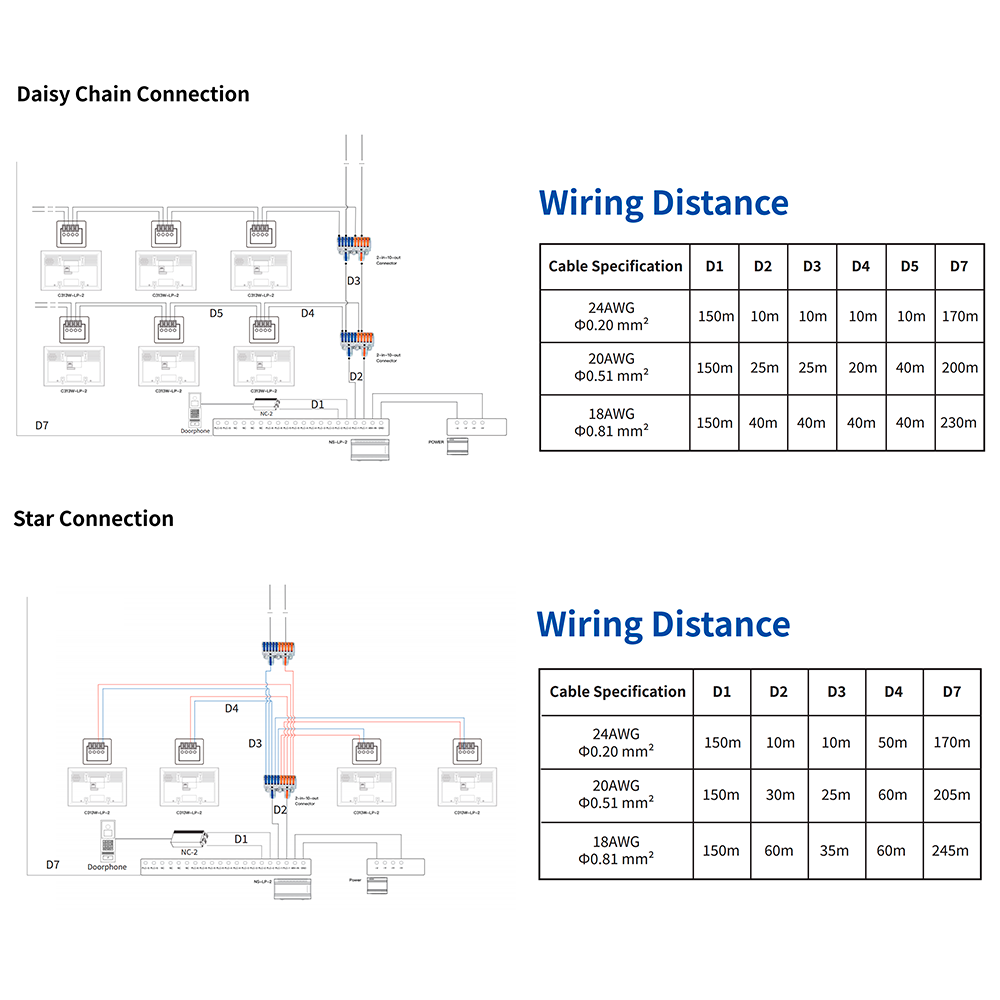

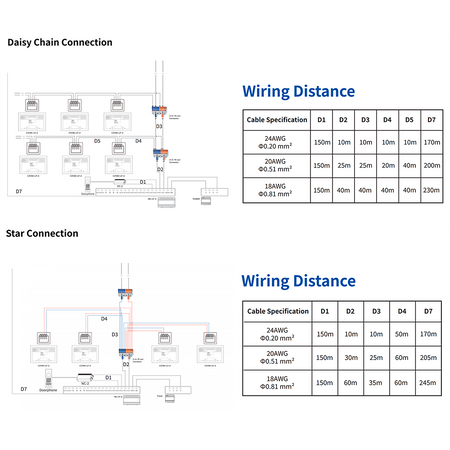

• 2-wire ports: 2 pairs of ports: self-powered and power from external panel or monitor
• Power supply: DC 48 V | 600 mA max.; Via AK-NS-LP-2 distributor specific for 2-wire LP video intercoms
• Operating temp.: -10 ºC ~ +45 ºC
• Dimensions: 200 (H) x 132 (W) x 27 (D) mm
• Weight: 600 g
📦 INCLUDED:

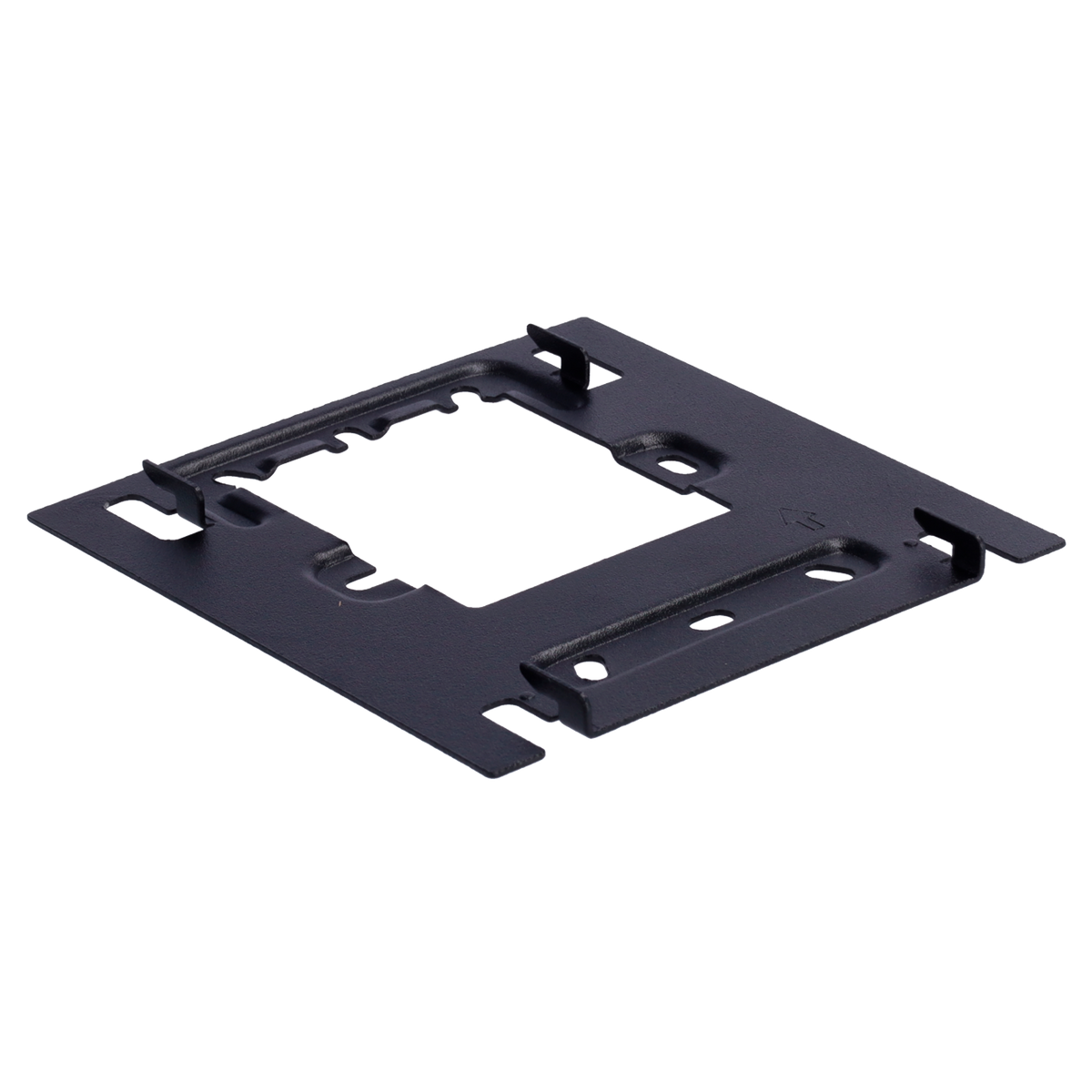

• Akuvox indoor video intercom monitor• Installation material• User instructions
| Model | C313W-LP-2 |
|---|---|
| Operating system | LINUX OS |
| Hardware | RAM: 128 MB | ROM: 128 MB |
| LCD | Display type: 7" color TFT touch screen Resolution: 1024 x 600 |
| Capacity | Contacts: 500 Messages: 100 Call logs: 100 |
| Operating mode | Capacitive touch panel |
| Inputs | 1 x doorbell, 1 x RS485 |
| Outputs | 1 x relay |
| Audio | Two-way audio with microphone and speaker with noise reduction and Crystal Clear Audio technology |
| Audio format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722, DTMF (RFC2833), SIP Info |
| Remote access | SmartPlus mobile application or configuration via WEB browser Remote access via Cloud: yes |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely with the cloud via installer account or locally via web browser |
| Network interface | WiFi 802.11b/g/n 2.4 GHz |
| 2-wire ports | 2 pairs of ports: own power supply and power supply from outdoor station or monitor |
| Power supply | DC 48 V | 600 mA max. Via specific AK-NS-LP-2 distributor for 2-wire LP video intercoms |
| Operating temp. | -10 ºC ~ +45 ºC |
| Dimensions | 200 (H) x 132 (W) x 27 (D) mm |
| Weight | 600 g |
