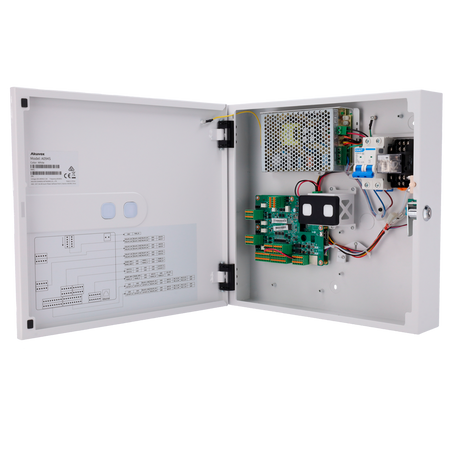

Akuvox Card, QR and PIN Access Controller - 4-door relay | Power supply
Akuvox Card, QR and PIN Access Controller - 4-door relay | Power supply
Regular price
€587,98
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Access Controller - Card, QR and PIN - 50,000 users | 100,000 logs - 4 Wiegand readers | 8 OSDP readers - 4-door relay - Power supply - Cloud connection | 12V outputs
📋 SPECIFICATIONS:
• Brand: Akuvox
• Model: A094S
• Capacity: Up to 50,000 users
• Logs: 100,000 logs
• Identification methods: Card, QR and/or password
• Proximity card: EM (125 kHz), MF (13.56 MHz) and MF DESFire (13.56 MHz)
• Communication: TCP/IP and RS485
• Outputs: 4 x relay outputs, 4 x auxiliary outputs, 4 x 12V/800mA outputs, 4 x OSDP OUT
• Inputs: 4 x Wiegand 26/34/58, 13 x auxiliary (door sensor and button), 4 x RS485/OSDP IN, 1 x tamper
• Advanced features: Anti-passback (configurable via web component or via Cloud, in Office Projects)
• Operating mode: Local network and/or via cloud on different networks
• Firmware updates: Remotely with the cloud via installer account or locally via web browser

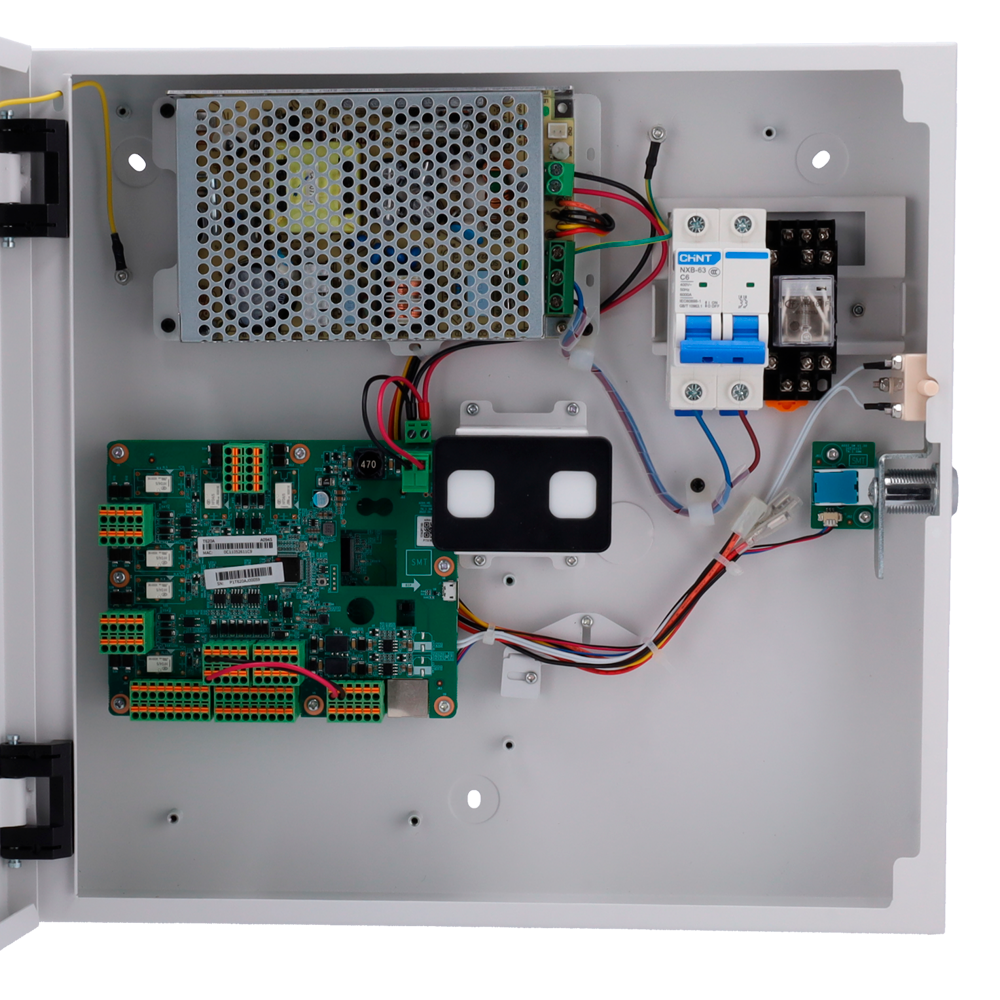

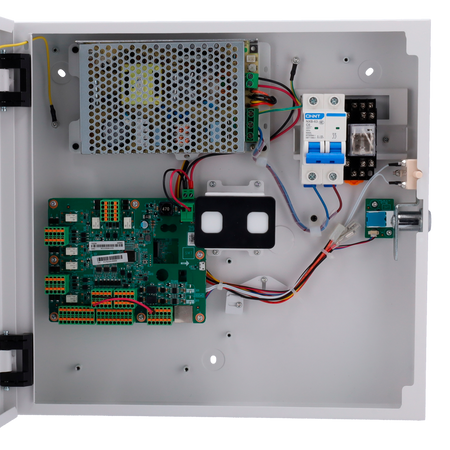

• Power supply: Power supply (DC 12 V / 1 A max.) with bipolar switch included, connected to 220 VAC
• Material: High-strength SGCC steel
• Operating temp.: -10 ºC ~ +55 ºC
• Dimensions: 365 (H) x 340 (W) x 85 (D) mm
• Weight: 3000 g
📦 INCLUDED:
• Akuvox access controller• Mounting material• User manual
| Model | A094S |
|---|---|
| Capacity | Up to 50,000 users |
| Logs | 100,000 logs |
| Identification modes | Card, QR and/or password |
| Proximity card | EM (125 kHz), MF (13.56 MHz) and MF DESFire (13.56 MHz) |
| Communication | TCP/IP and RS485 |
| Outputs | 4 x relay outputs, 4 x auxiliary outputs, 4 x 12V/800mA outputs, 4 x OSDP OUT |
| Inputs | 4 x Wiegand 26/34/58, 13 x auxiliary (door sensor and button), 4 x RS485/OSDP IN, 1 x tamper |
| Advanced features | Anti-passback (configurable via web component or via Cloud, in Office Projects) |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely with the cloud via installer account or locally via web browser |
| Power supply | Power supply (DC 12 V / 1 A max.) with bipolar switch included, connected to 220 VAC |
| Material | High-strength SGCC steel |
| Operating temp. | -10 ºC ~ +55 ºC |
| Dimensions | 365 (H) x 340 (W) x 85 (D) mm |
| Weight | 3000 g |
