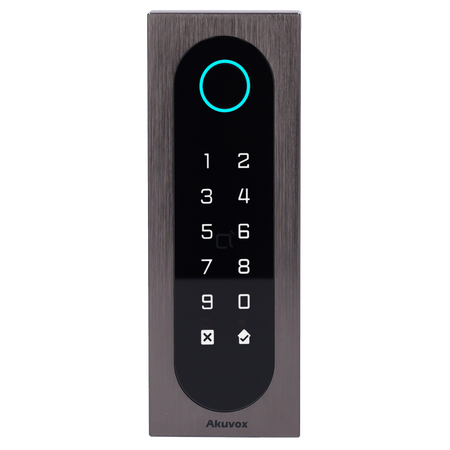

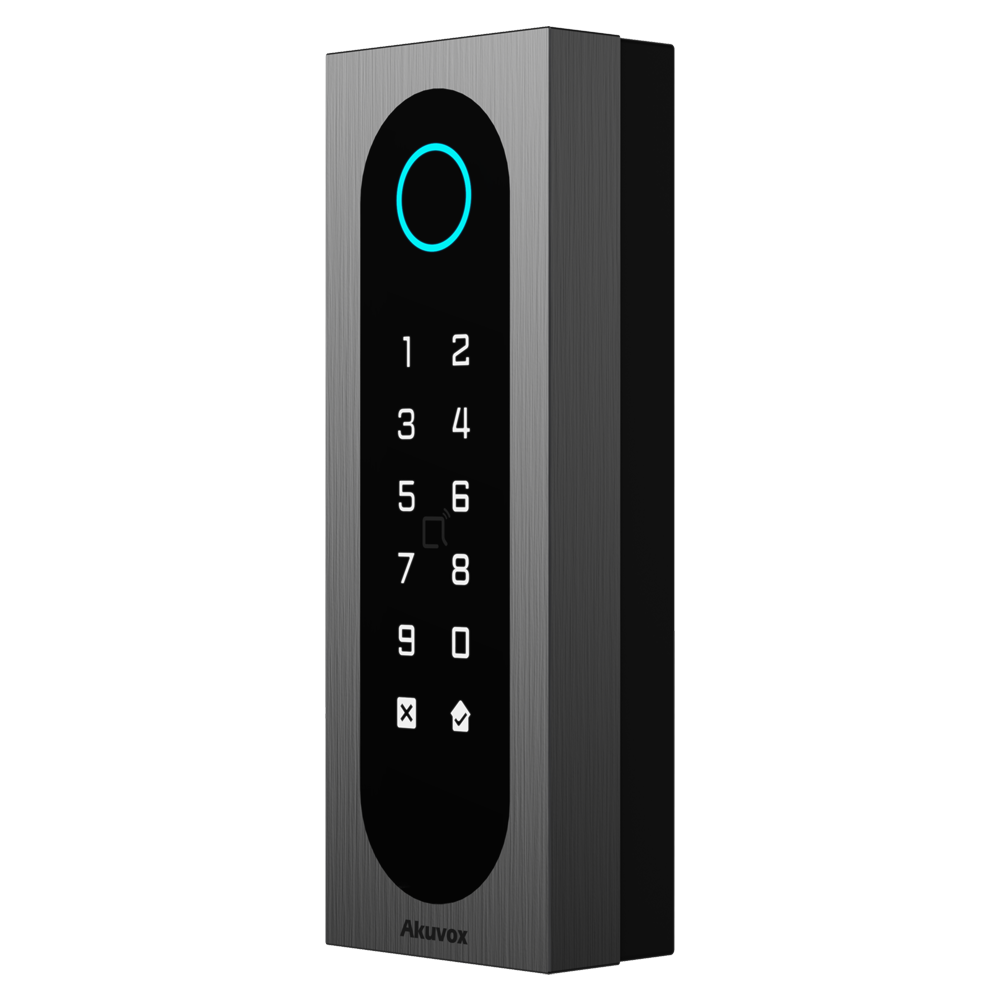

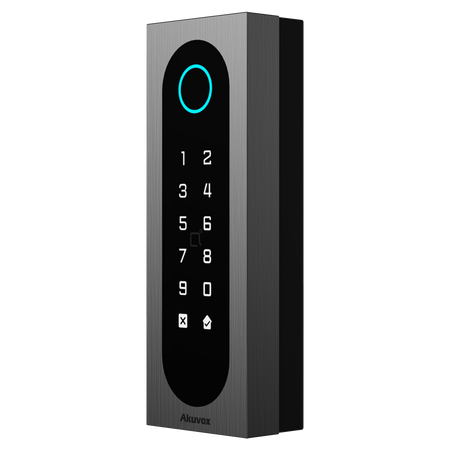

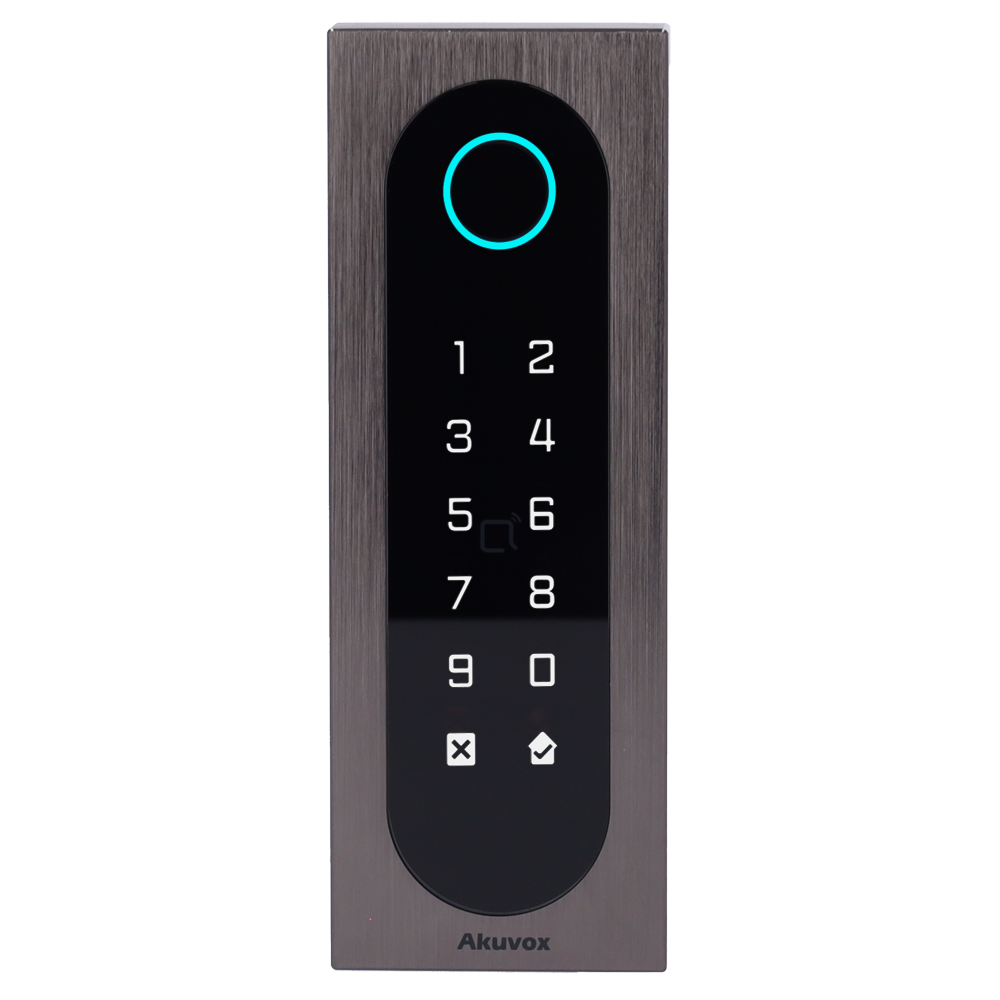

IK09 Access control - EM/MF card, NFC, BLE, PIN and QR reader | 1 relay - 20,000 users | 100,000 logs - Integrated controller | Wiegand 26/34 - Suitable for outdoor use IP65 | TCP/IP and PoE - Cloud connection | 12V output
📋 SPECIFICATIONS:
• Brand: Akuvox
• Model: A08S
• Access control: Door opening via EM 125 kHz and MF 13.56 MHz RFID card, NFC, PIN, Bluetooth and QR, with logs
• Capacity: Up to 20,000 users and 20,000 cards
• Logs: 100,000 logs
• Communication: TCP/IP, Wiegand

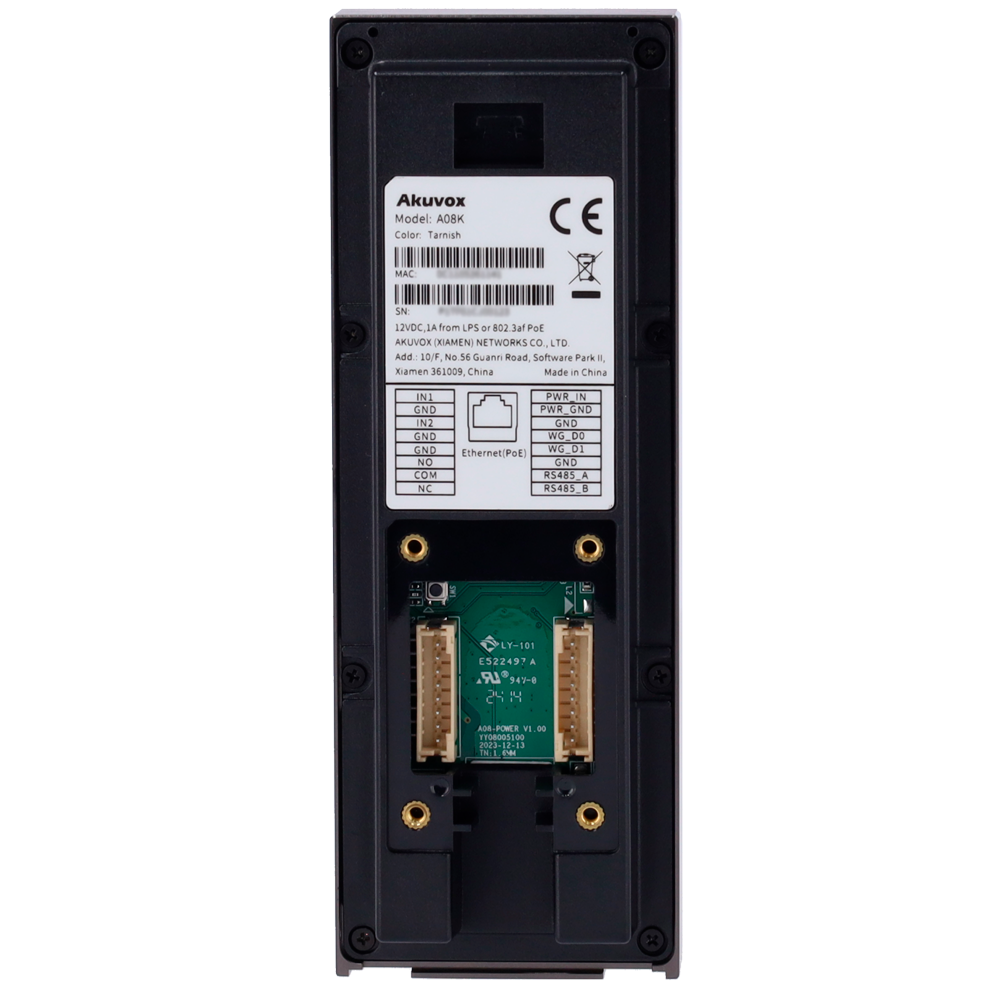

• Outputs: Wiegand OUT, 1 relay for main lock (12V/500mA) and RS485
• Inputs: Wiegand IN, 2 buttons, 1 tamper
• Advanced functions: Anti-passback (configurable via Cloud, in Office Projects)
• Remote access: SmartPlus mobile app or configuration via WEB browser; Remote access via Cloud: yes

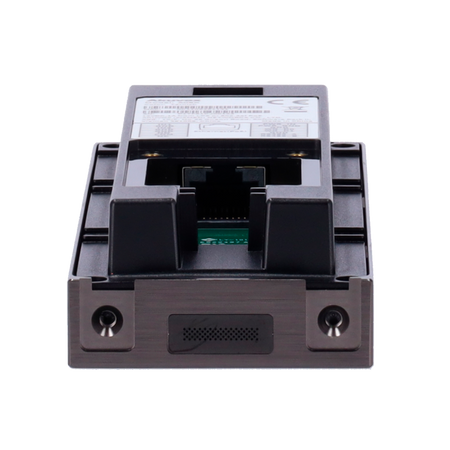

• Audio: Speaker for opening messages
• Network interface: Ethernet 10/100 BaseT
• Operating mode: Local network and/or via cloud on different networks
• Firmware updates: Remotely via cloud using installer account or locally via web browser
• Material: Plastic (body), aluminum alloy (frame) and tempered glass (front panel)
• Protection rating: IP65 and IK09
• Operating temp.: -20 ºC ~ +55 ºC

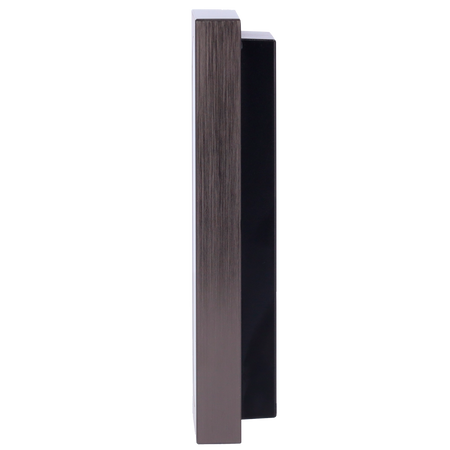

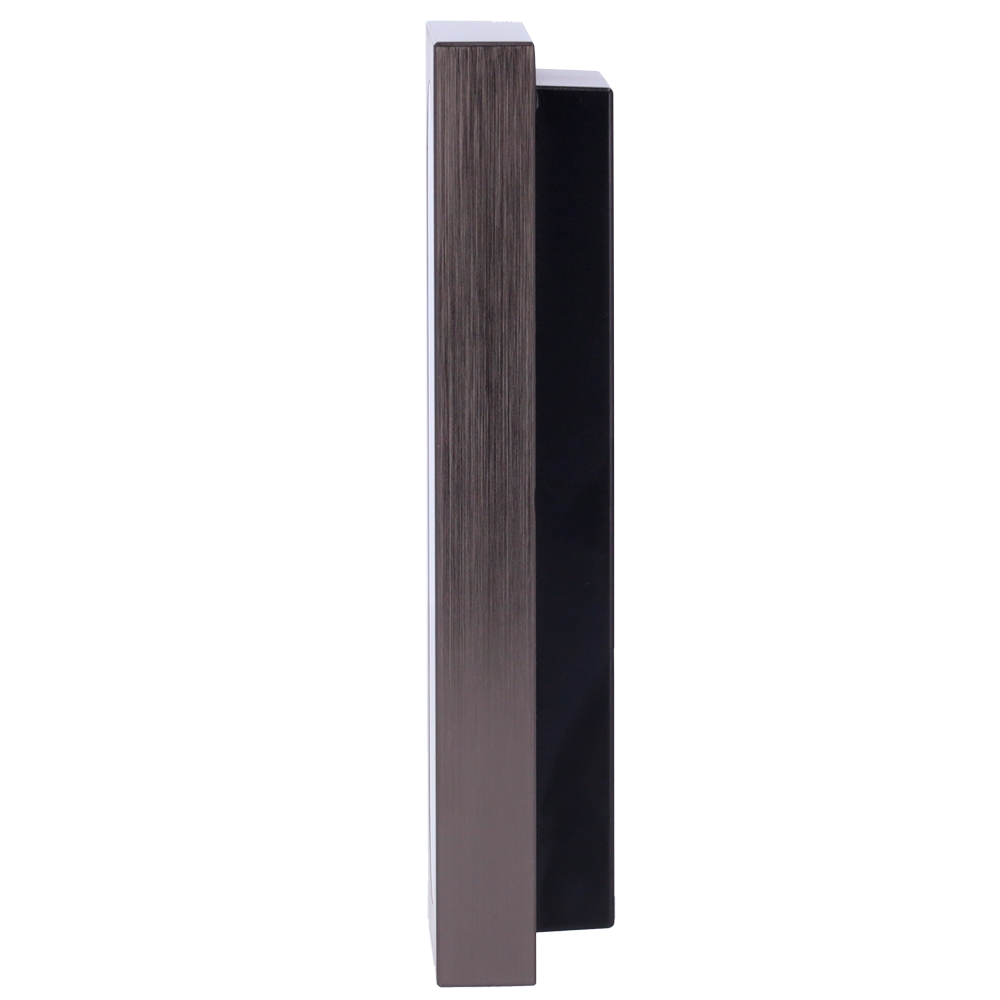

• Dimensions: 140 (W) x 50 (H) x 27 (D) mm
• Power supply: DC 12 V / 1000 mA max. / PoE IEEE802.3af
• Weight: 325 g
📦 INCLUDED:
• Akuvox access device• User instructions• Mounting material
| Model | A08S |
|---|---|
| Access control | Door opening with 125 kHz EM and 13.56 MHz MF RFID card, NFC, PIN, Bluetooth and QR, with logs |
| Capacity | Up to 20,000 users and 20,000 cards |
| Logs | 100,000 logs |
| Communication | TCP/IP, Wiegand |
| Outputs | Wiegand OUT, 1 relay for main lock (12V/500mA) and RS485 |
| Inputs | Wiegand IN, 2 buttons, 1 tamper |
| Advanced features | Anti-passback (configurable via Cloud, in Office Projects) |
| Remote access | SmartPlus mobile application or configuration via WEB browser Remote access via Cloud: yes |
| Audio | Speaker for opening messages |
| Network interface | Ethernet 10/100 BaseT |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely with the cloud via installer account or via web browser locally |
| Material | Plastic (body), aluminum alloy (frame) and tempered glass (front panel) |
| Protection rating | IP65 and IK09 |
| Operating temp. | -20 ºC ~ +55 ºC |
| Dimensions | 140 (W) x 50 (H) x 27 (D) mm |
| Power supply | DC 12 V / 1000 mA max. / PoE IEEE802.3af |
| Weight | 325 g |
