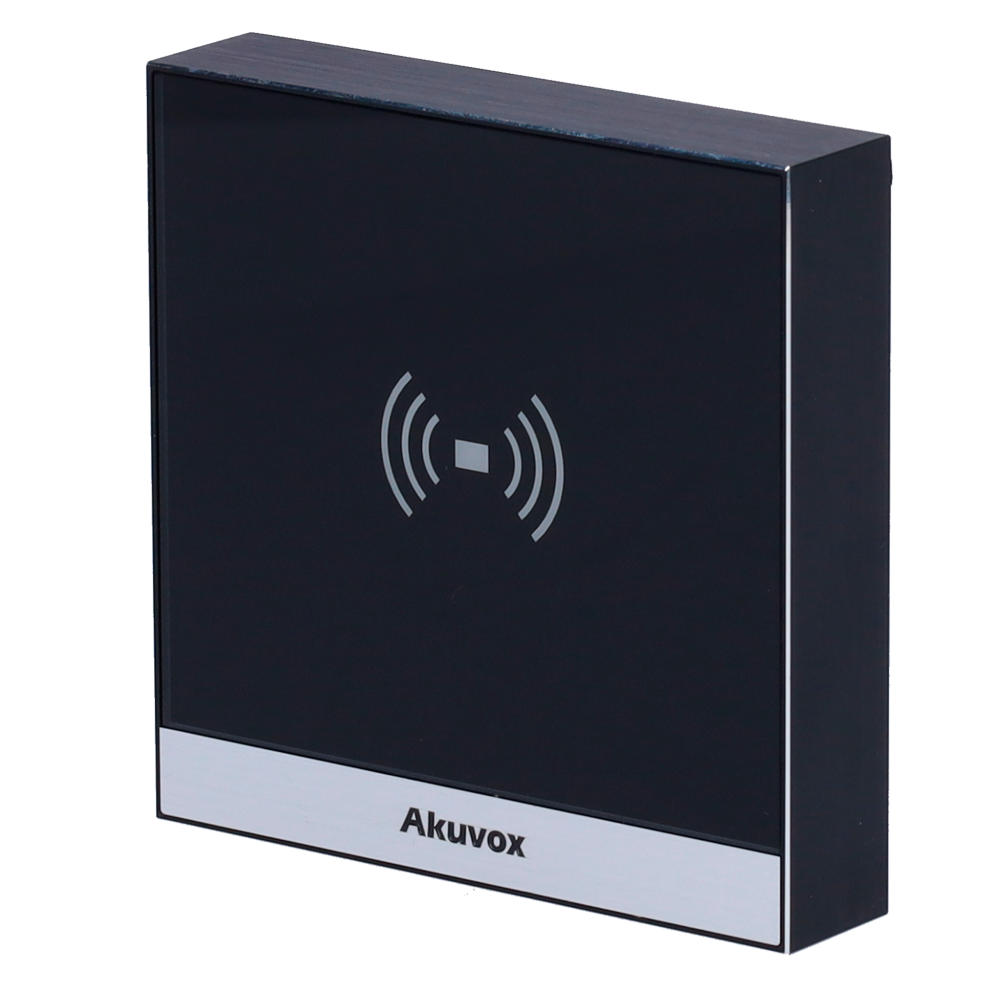

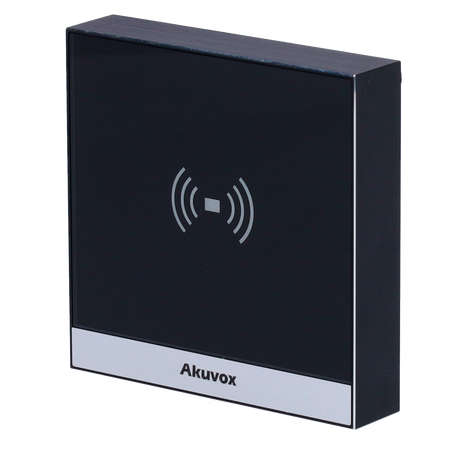

IK07 Access Control, EM/MF and NFC Akuvox Card Reader
Regular price
€172,94
Final price
Regular price
-8%
€188,00
Sale price
€172,94
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Access control IK07 - EM/MF card and NFC | 1 relay - 20,000 users | 100,000 logs - Integrated controller | Wiegand 26/34 - Suitable for outdoor use IP65 | TCP/IP and PoE - Cloud connection | 12V output
📋 SPECIFICATIONS:
• Brand: Akuvox
• Model: A01S

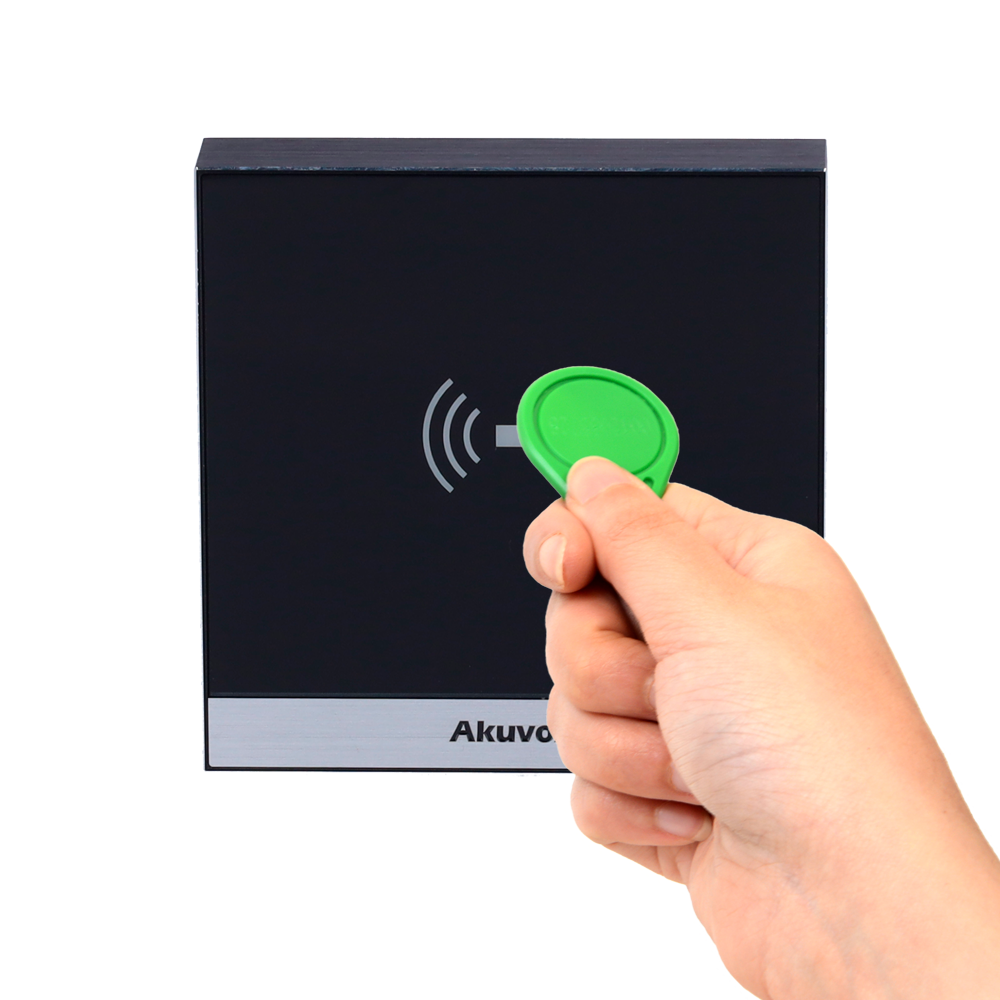

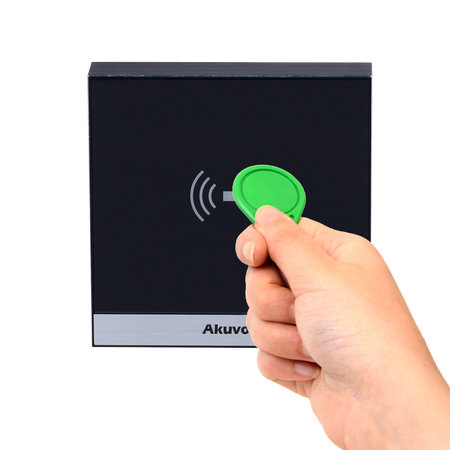

• Access control: Door opening with EM 125 kHz and MF 13.56 MHz RFID card and NFC, with logs
• Capacity: Up to 20,000 users and 20,000 cards
• Logs: 100,000 logs
• Communication: TCP/IP and Wiegand

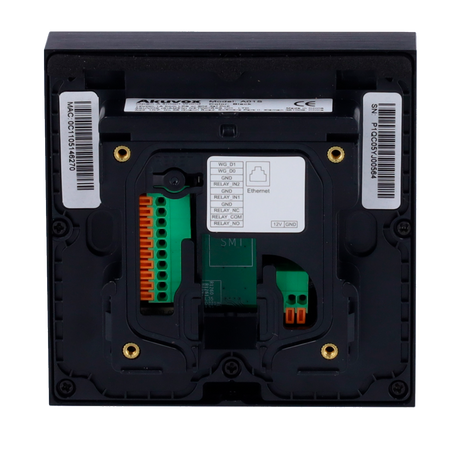

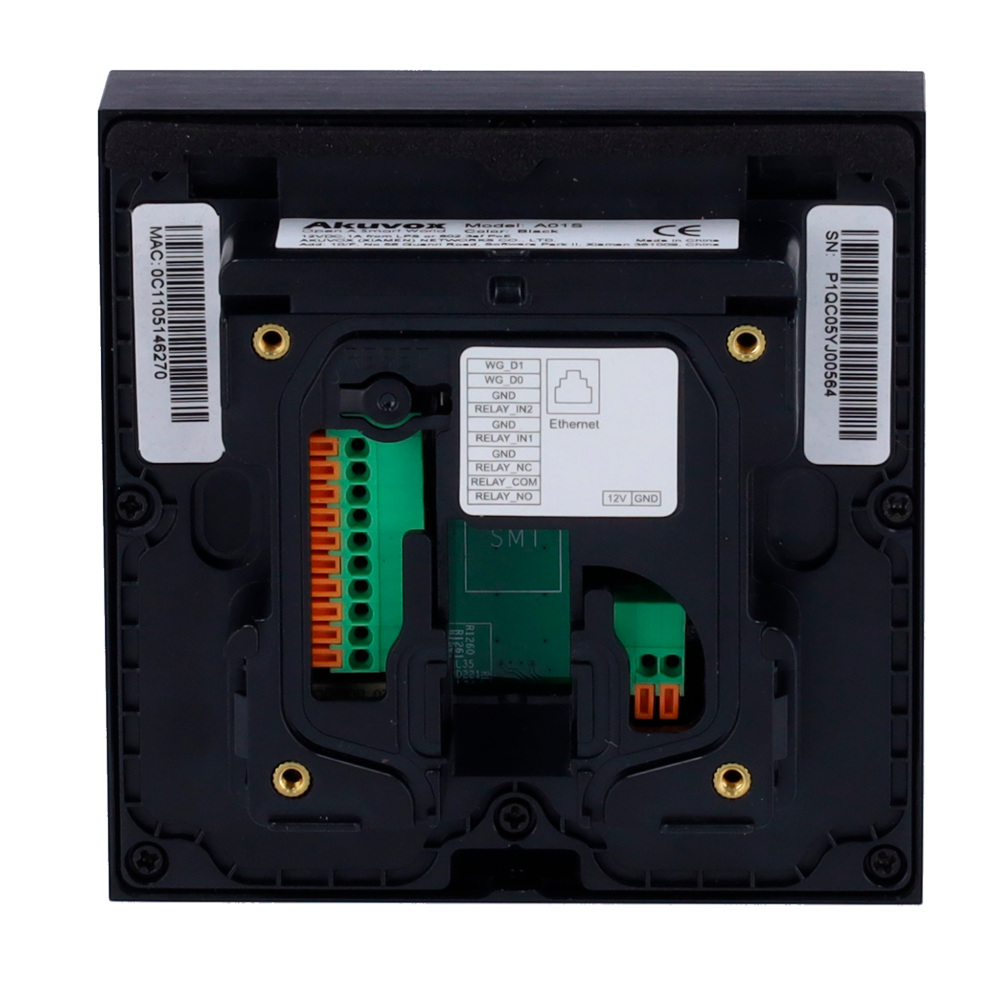

• Outputs: Wiegand OUT, 1 relay output for main lock (12V/500mA)
• Inputs: Wiegand IN, 2 buttons, 1 tamper
• Advanced features: Anti-passback (configurable via Cloud, in Office Projects)

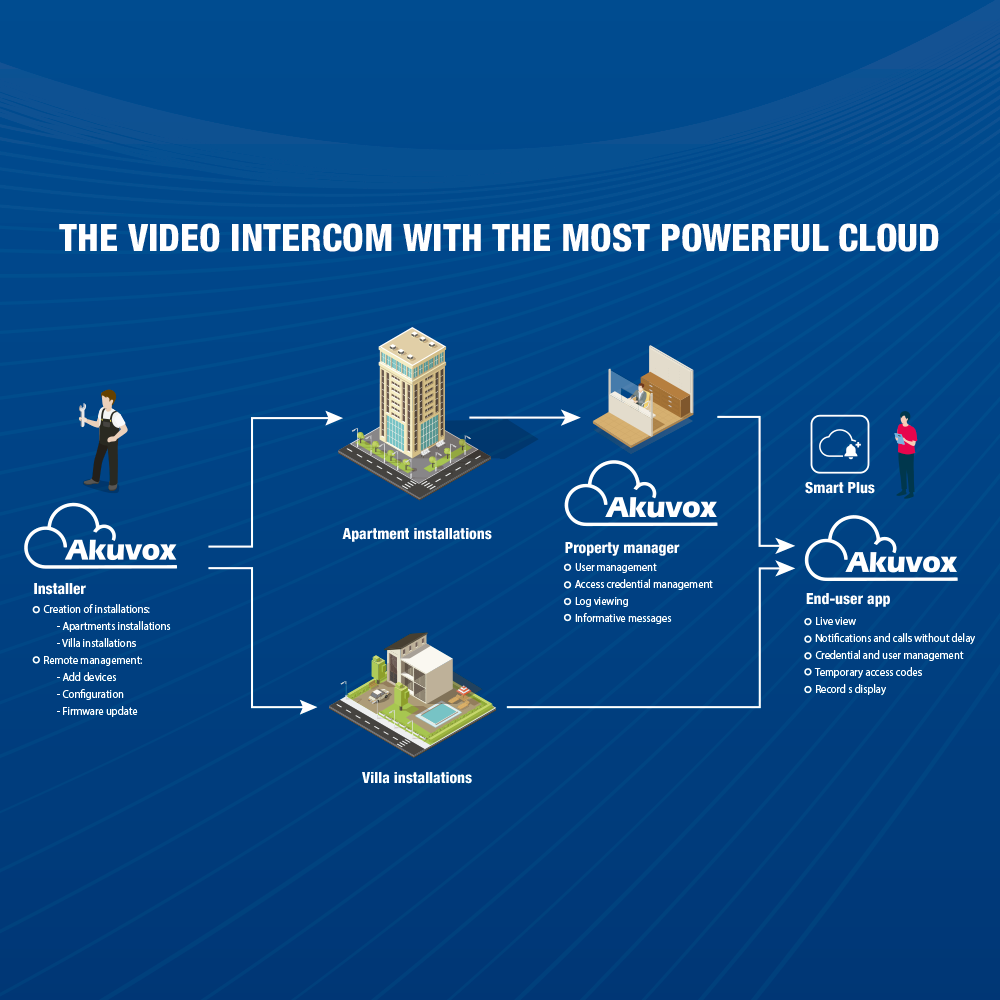

• Remote access: SmartPlus mobile app or configuration via WEB browser; Remote access via Cloud: yes
• Audio: Speaker for opening messages
• Network interface: Ethernet 10/100 BaseT
• Operating mode: Local network and/or via cloud on different networks
• Firmware updates: Remotely via cloud through installer account or locally via web browser
• Material: Plastic (body), aluminum alloy (frame), and tempered glass (front panel)
• Protection rating: IP65 and IK07
• Operating temp.: -20 ºC ~ +55 ºC
• Dimensions: 86 (W) x 86 (H) x 33 (D) mm
• Power supply: DC 12 V / 1000 mA max. / PoE IEEE802.3af
• Weight: 206 g
📦 INCLUDED:
• Access device• User manual• Mounting hardware
| Model | A01S |
|---|---|
| Access control | Door opening with 125 kHz EM and 13.56 MHz MF RFID card and NFC, with logs |
| Capacity | Up to 20,000 users and 20,000 cards |
| Logs | 100,000 logs |
| Communication | TCP/IP and Wiegand |
| Outputs | Wiegand OUT, 1 relay output for the main lock (12V/500mA) |
| Inputs | Wiegand IN, 2 buttons, 1 tamper |
| Advanced features | Anti-passback (configurable via Cloud, in Office Projects) |
| Remote access | SmartPlus mobile application or configuration via WEB browser Remote access via Cloud: yes it has |
| Audio | Speaker for opening messages |
| Network interface | Ethernet 10/100 BaseT |
| Operating mode | Local network and/or via cloud on different networks |
| Firmware updates | Remotely with the cloud via installer account or locally via web browser |
| Material | Plastic (body), aluminum alloy (frame) and tempered glass (front panel) |
| Protection rating | IP65 and IK07 |
| Operating temp. | -20 ºC ~ +55 ºC |
| Dimensions | 86 (W) x 86 (H) x 33 (D) mm |
| Power supply | DC 12 V / 1000 mA max. / PoE IEEE802.3af |
| Weight | 206 g |
