Ajax professional alarm kit - Ethernet and dual SIM 4G (LTE) communication

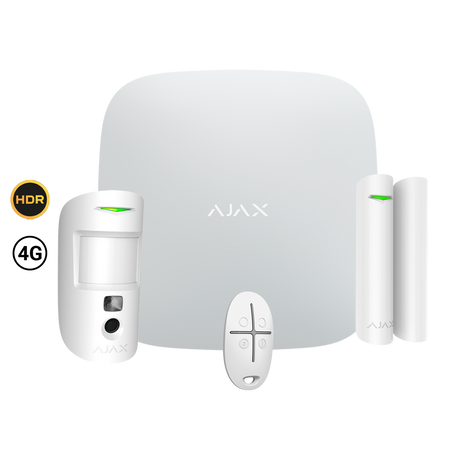

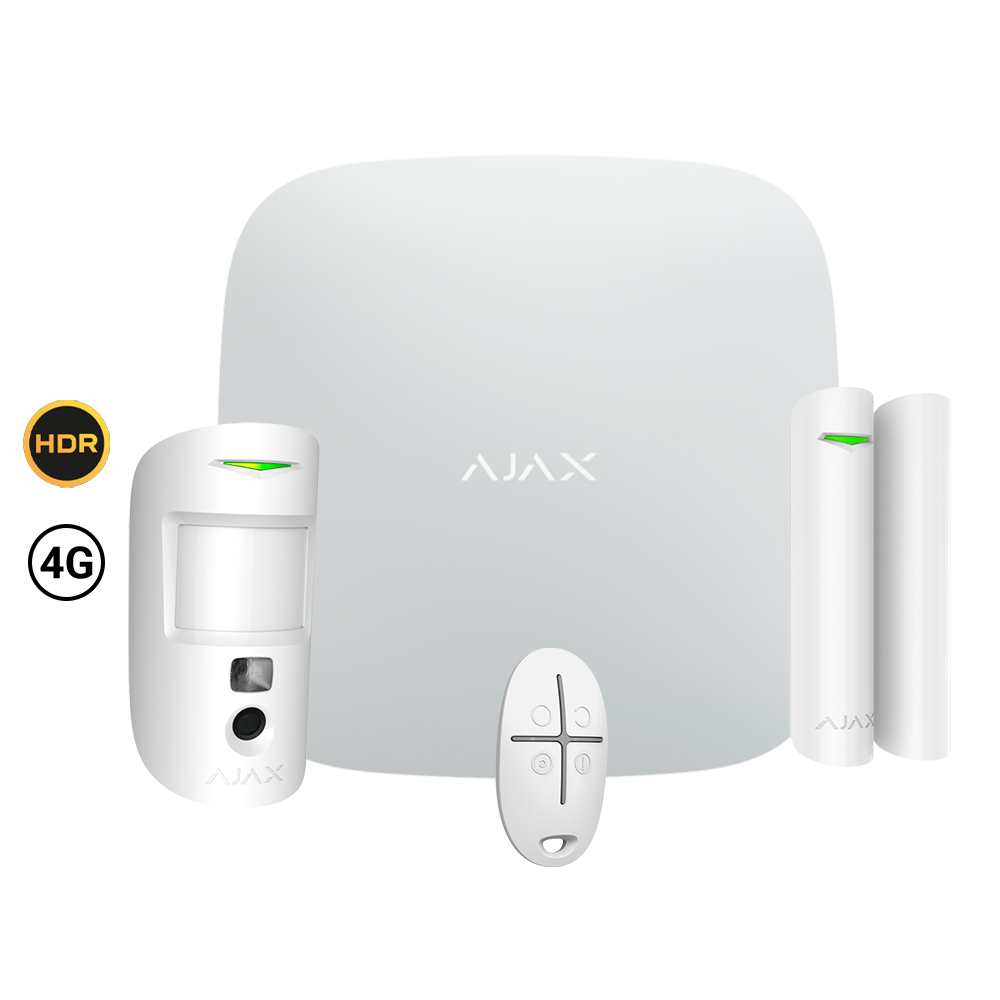

Professional alarm kit - Grade 2 certified - Ethernet and dual SIM 4G (LTE) communication - 868 MHz Jeweller and Wings wireless - Ajax HUB 2, 1 PIRCAM HDR - 1 magnetic contact and 1 remote control

📋 SPECIFICATIONS:
• Brand: Ajax
• Security level: Grade 2
• Functions: Armed, disarmed, partial and panic
• Frequency: 868 MHz Jeweller
• Transmission distance: ≤ 1300 m in open space
• Battery: 1 CR2032 3.0 V battery (estimated life 5 years)
• Housing material: ABS plastic
• Operating temp.: -20º C ~ 50º C
• Dimensions: 65 (W) x 37 (H) x 10 (D) mm
• Colour: White

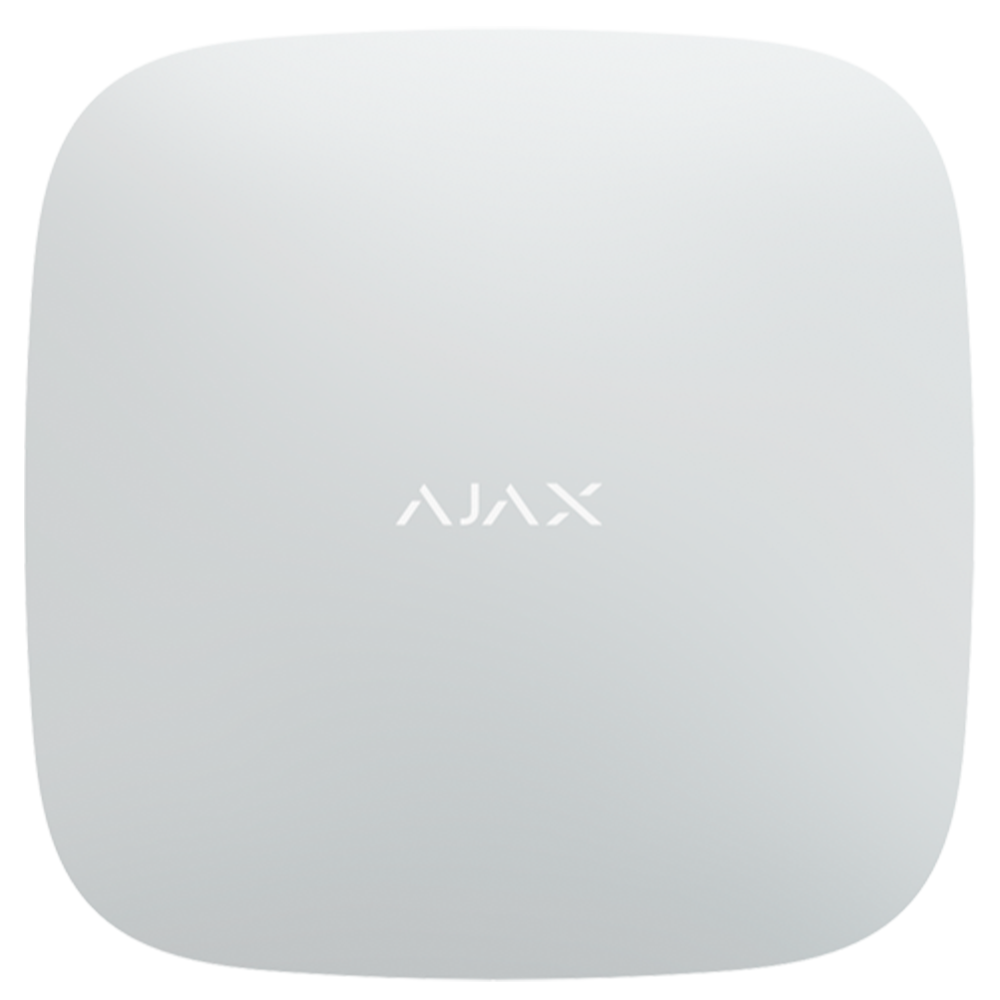

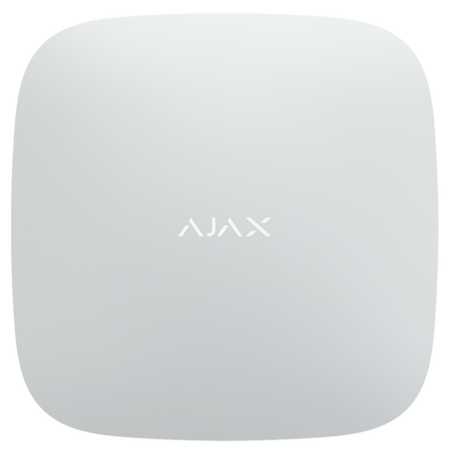

• Brand: AJAX
• RF frequency: 868 MHz. Jeweller and Wings radio protocol
• Security level: Grade 2
• Internal security: Anti-opening tamper
• Internal siren: Not available
• Communication: Ethernet / Dual SIM 4G (LTE)
• Device compatibility: Check compatibility in 'Download -- Manuals -- Compatibility table of Ajax devices with control panels'
• Maximum devices: 100 (max. 10 between sirens and wireless KeyPad TouchScreen)
• Video integration: Up to 25 IP cameras or DVR channels
• Number of users: Up to 50
• Communication with CMS: Contact ID / SIA
• Compatibility: NOT compatible with ocBridge and uartBridge
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Housing material: ABS plastic
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: Lasts up to 16 hours
• Operating temp.: +5º C ~ 40º C
• Dimensions: 163 (W) x 163 (H) x 36 (D) mm
• Colour: White
• Brand: Ajax
• Security level: Grade 2
• Communication protocols: 868 MHz Jeweller and Wings
• Transmission distance: ≤ 1700 m in open space
• Compatibility with control panels and range extenders: Check compatibility in 'Download -- Manuals -- Compatibility table of Ajax devices with control panels'
• Firmware update: Not available

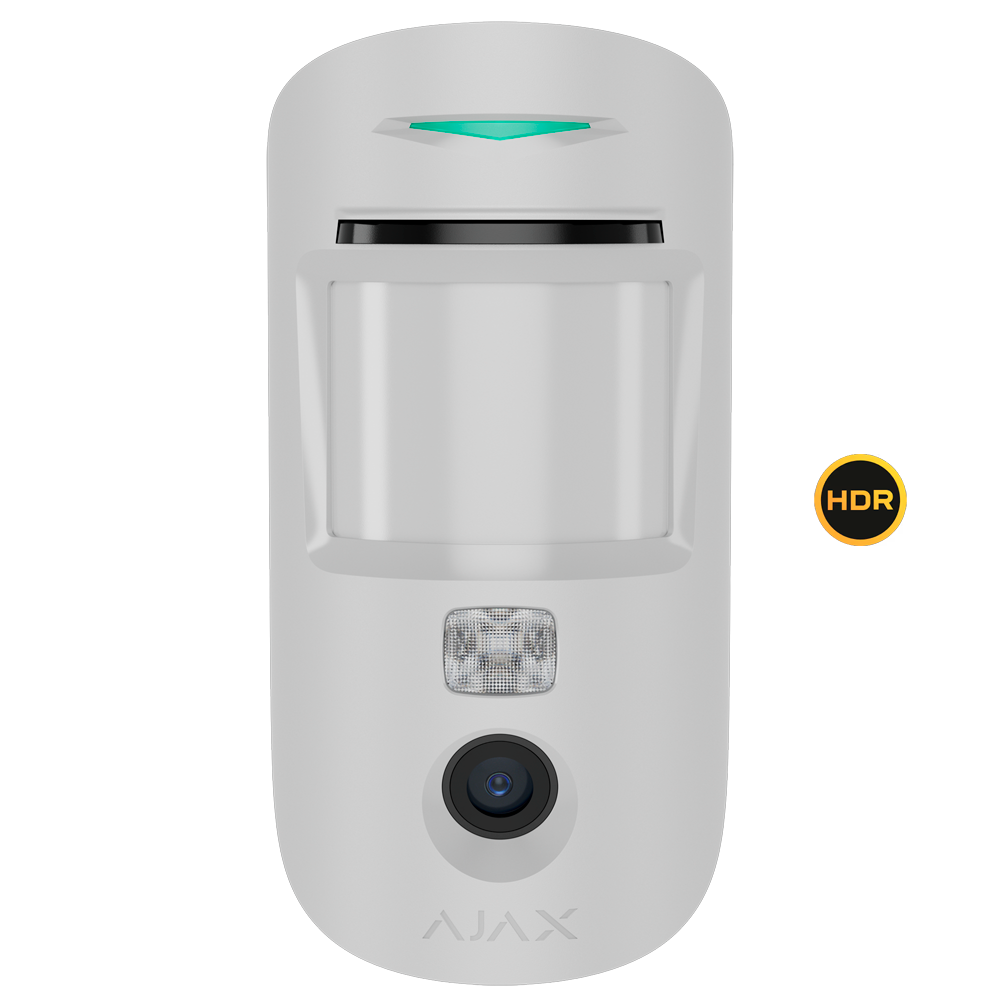

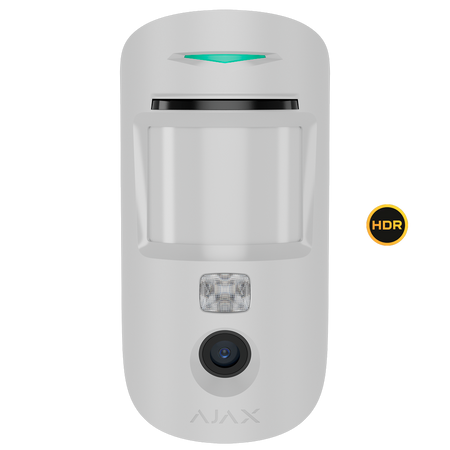

• Technology: Volumetric PIR with HDR camera
• PIR lens: 24 zones and 6 planes
• Detection range: 12 m / H: 88.5º / V: 80º
• Recommended installation height: 2.4 meters
• Sensitivity: Adjustable: 3 levels (low, medium and high)
• Detection speed: From 0.3 to 2.0 m/s
• False alarm prevention: SmartDetect software algorithm
• Temperature compensation: -10º C ~ +40º C
• Pet immunity: ≤ 20 kg, ≤ 50 cm
• Photo resolution: Up to VGA (640 x 480)
• HDR technology: Available. Improves detail sharpness in light and dark scenes
• IR backlight: Available. Taking photos at night or in low-light conditions
• Privacy management: Management by the end customer of permissions for image requests
• Photo series: From 1 to 5 photos per detection
• Photo delivery times: When the Hub is connected via Ethernet or 4G and the Wings signal strength is 2-3 bars:; 7 sec: 160 × 120 px resolution; 9 sec: 320 × 240 px resolution
• Sending photos: By alarm
• Anti-tamper: Tamper
• Power supply: 2 CR123A 3.0 V Duracell Procell batteries
• Lifespan: Up to 4 years
• Operating temp.: -10º C ~ 40º C
• Operating humidity: Up to 75%
• Protection grade: IP50
• Dimensions: 135 (W) x 70 (H) x 60 (D) mm
• Weight: 170 g
• Colour: White
• Brand: Ajax
• Security level: Grade 2
• Communication protocol: 868 MHz Jeweller
• Transmission distance: ≤ 1200 m in open space
• Compatibility with control panels and range extenders: Check compatibility in 'Download -- Manuals -- Compatibility table of Ajax devices with control panels'
• Firmware update: Not available

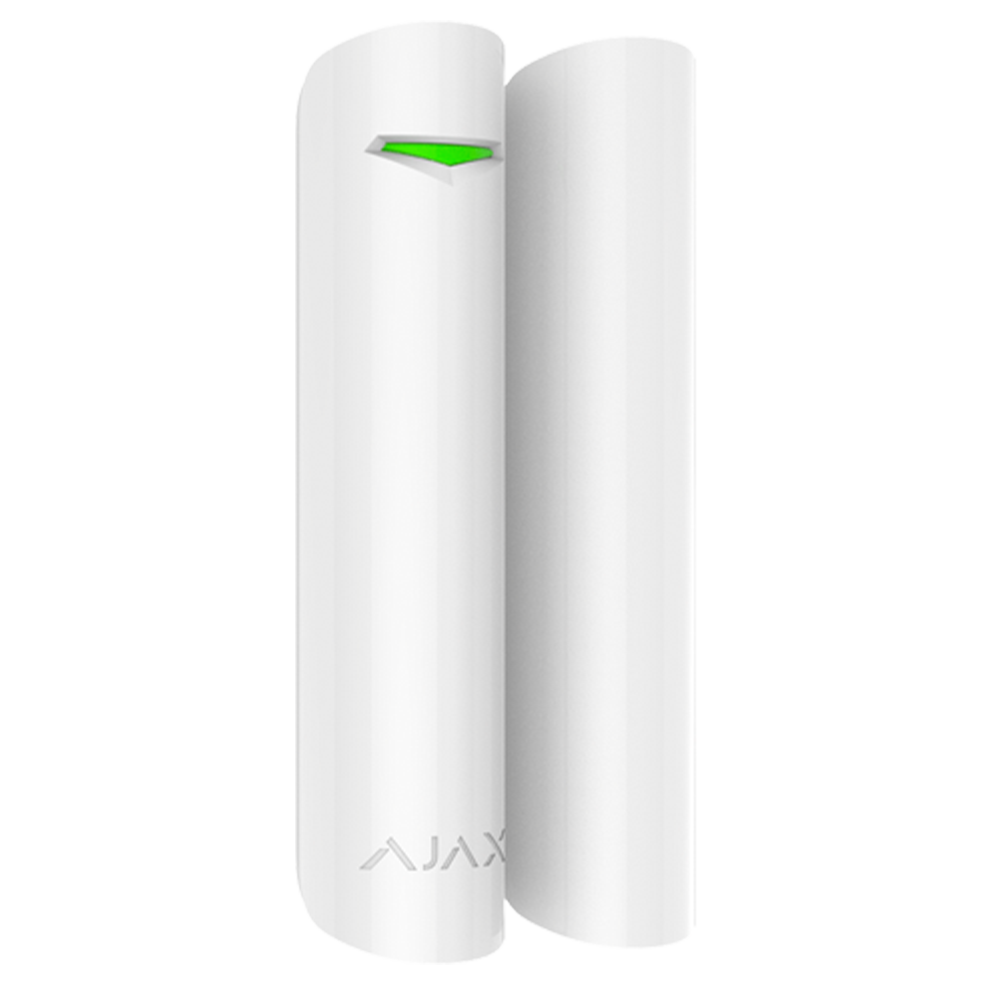

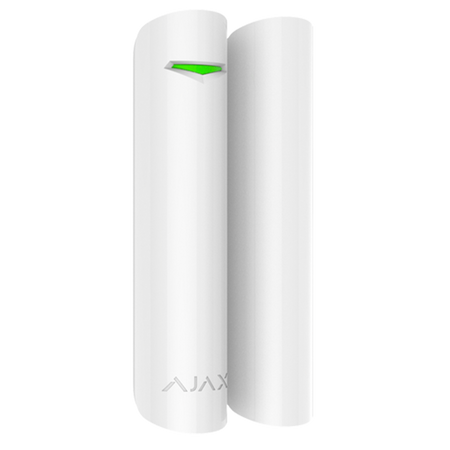

• Sensor: 1 reed switch
• Input for third-party wired detector: Wired detectors with normally closed (NC) contact
• LED indicators: Alarm, tamper, signal
• Chime mode: When the system is disarmed, the siren emits a special acoustic signal to indicate that the opening sensors have been triggered
• Anti-tamper: 1 anti-tamper switch
• Power supply: 1 CR123A 3.0 V battery (approx. 7 years lifespan)
• Standby consumption: 17.5 μA
• Maximum consumption: 21.4 mA
• Operating temp.: -10º C ~ 40º C
• Operating humidity: Up to 75%
• Protection grade: IP50
• Transmitter dimensions: 90 (H) × 20 (W) × 20 (D) mm
• Magnet dimensions: 90 (H) × 20 (W) × 20 (D) mm
• Weight: 29 g
• Colour: White

📦 INCLUDED:

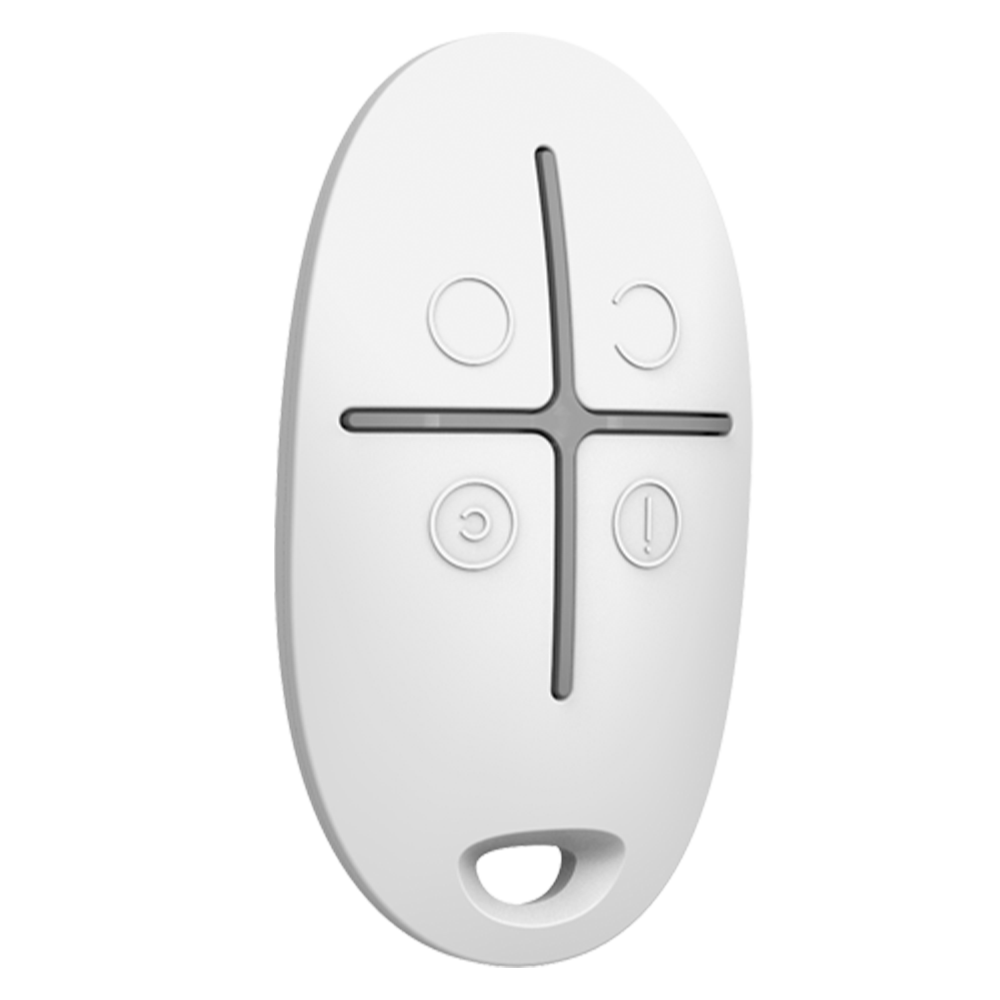

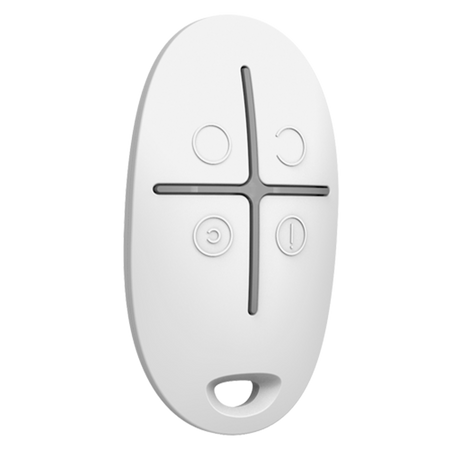

• AJ-HUB2G-4G-W control panel• AJ-MOTIONCAM-HDR-W photo-verification detector• AJ-DOORPROTECT-W magnetic door/window contact• AJ-SPACECONTROL-W remote control• User manual
