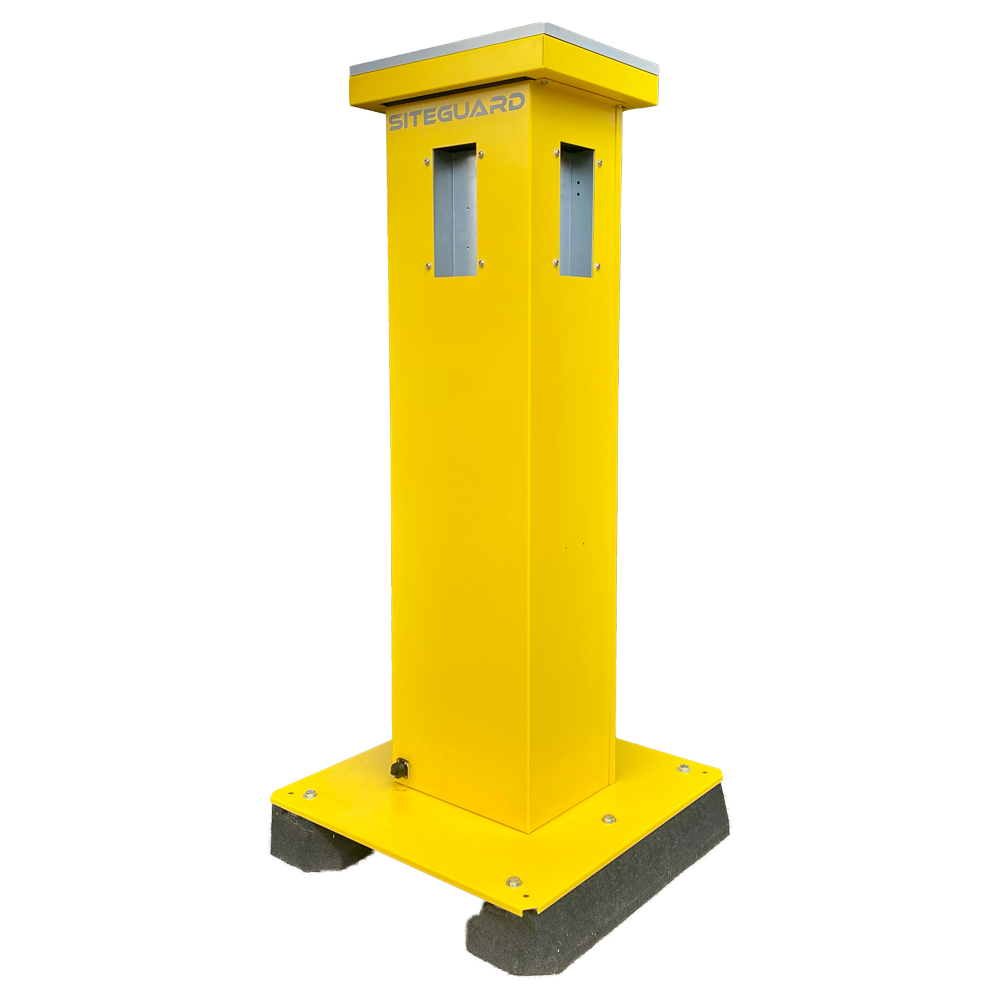

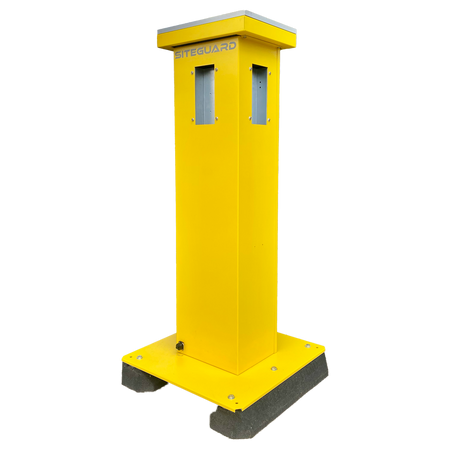

Siteguard 360º perimeter protection tower - Yellow

360º perimeter protection tower - Solar power / Photo-verification - Includes solar panel and MPPT controller - Base with 2 anti-vibration blocks - Connection for 12 V lead-acid backup battery - Compatible with the Ajax system

📋 SPECIFICATIONS:
• Brand: SiteGuard Ajax Ready
• Use: 360º perimeter protection tower with instant photo verification
• Included devices: Solar Panel; MPPT Controller; Structure; 2 anti-vibration blocks screwed to the tower base; Connection for lead-acid backup battery installation; External power connector for indoor use (optional)

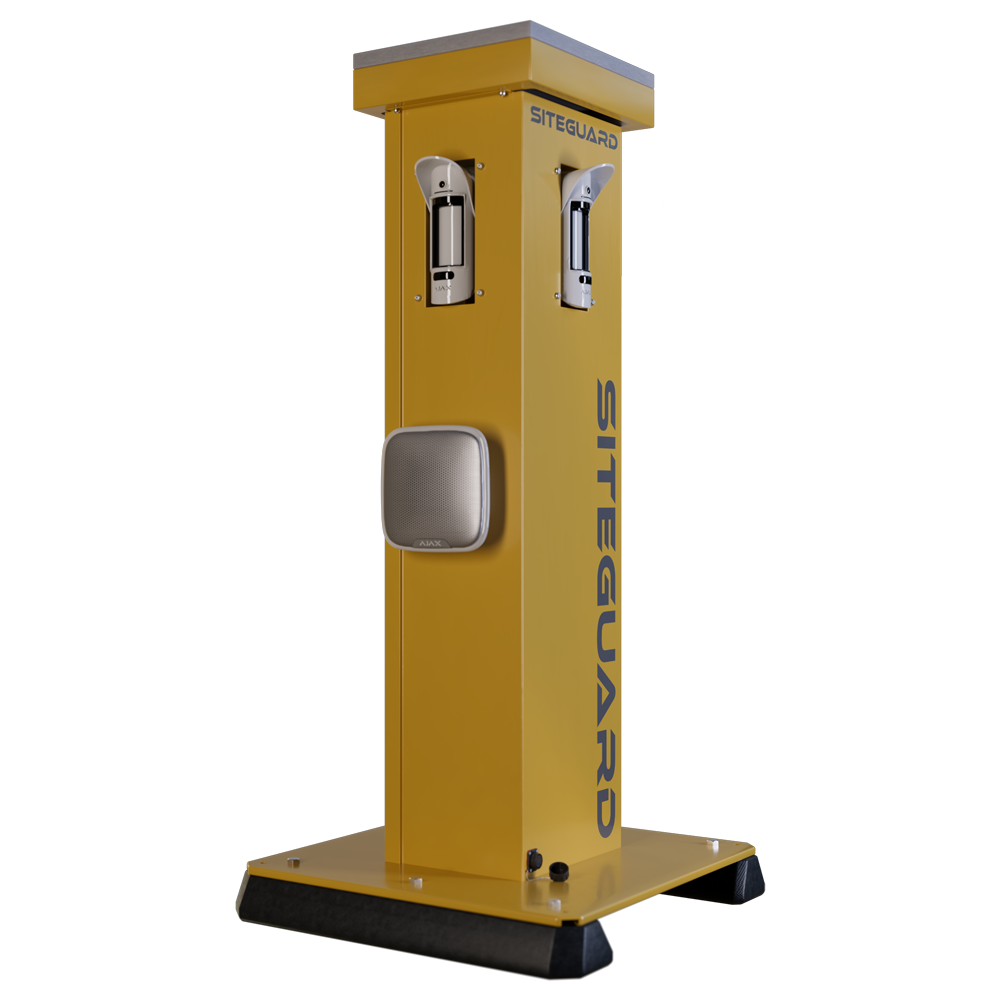

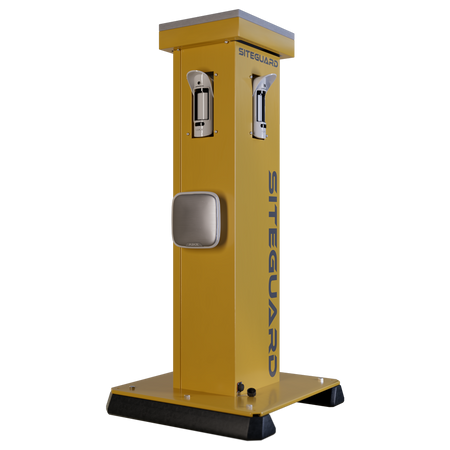

• Recommended Ajax devices: Control panel: 1 x AJ-HUB2-W/B or AJ-HUB2-4G-W/B; Power supply module: 1 x AJ-DC1224V-PCB2; Outdoor PIRCam: 4 x AJ-MOTIONCAMOUTDOOR-W or AJ-MOTIONCAMOUTDOOR-PHOD-W; Outdoor siren: 2 x AJ-STREETSIREN-W/B; Tilt and impact detector: 1 x AJ-DOORPROTECTPLUS-W/B or AJ-DOORPROTECTPLUS-S-W/B (tamper detection); Relay: 1x AJ-RELAY (solar panel power control)

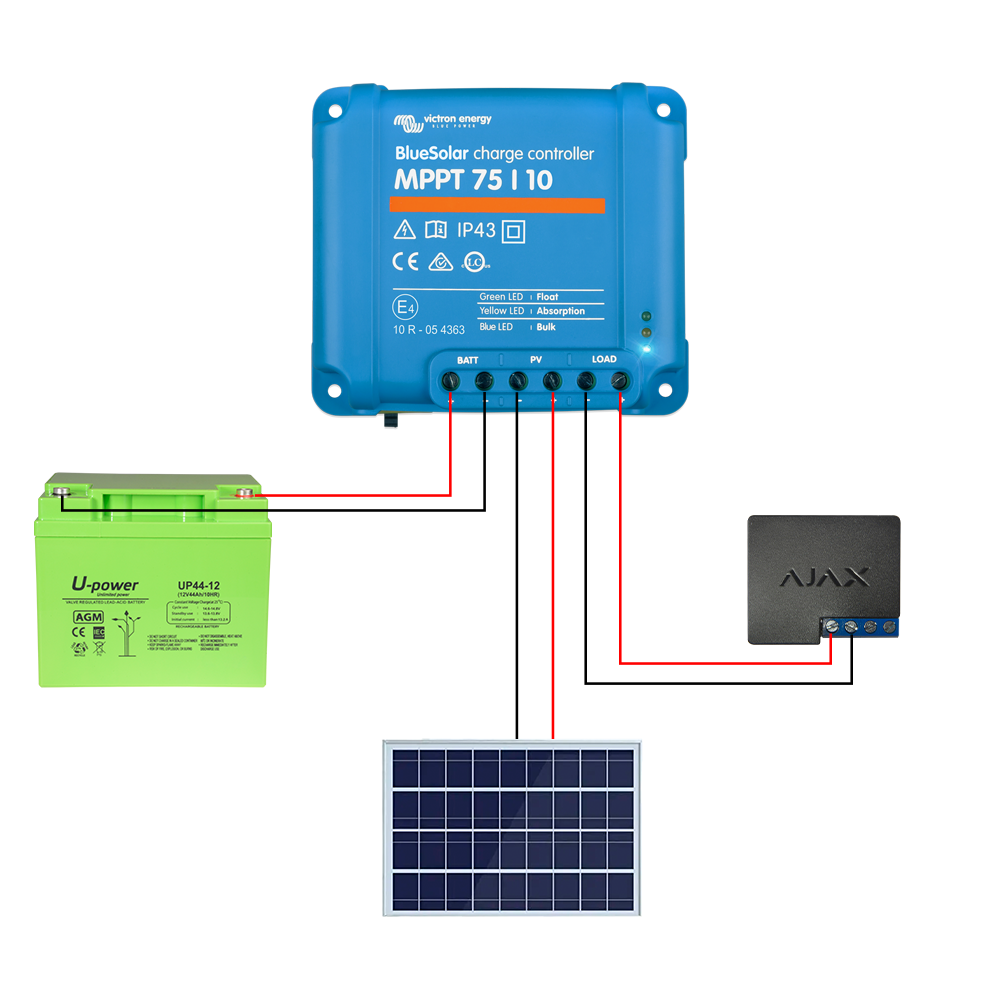

• Connection to backup battery: Connection for 12 V lead-acid battery installation (up to 85 Ah)
• Recommended backup battery: BATT-1244-U
• Tower material: Galvanized steel

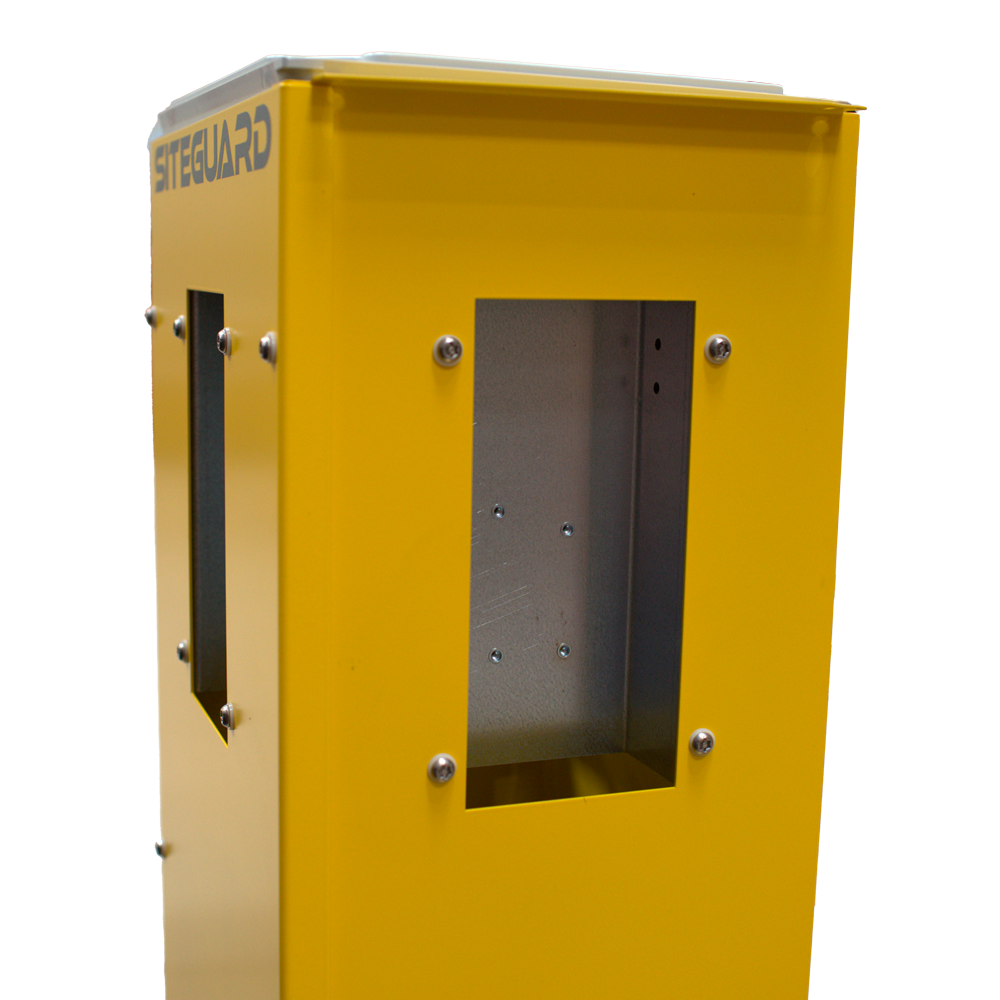

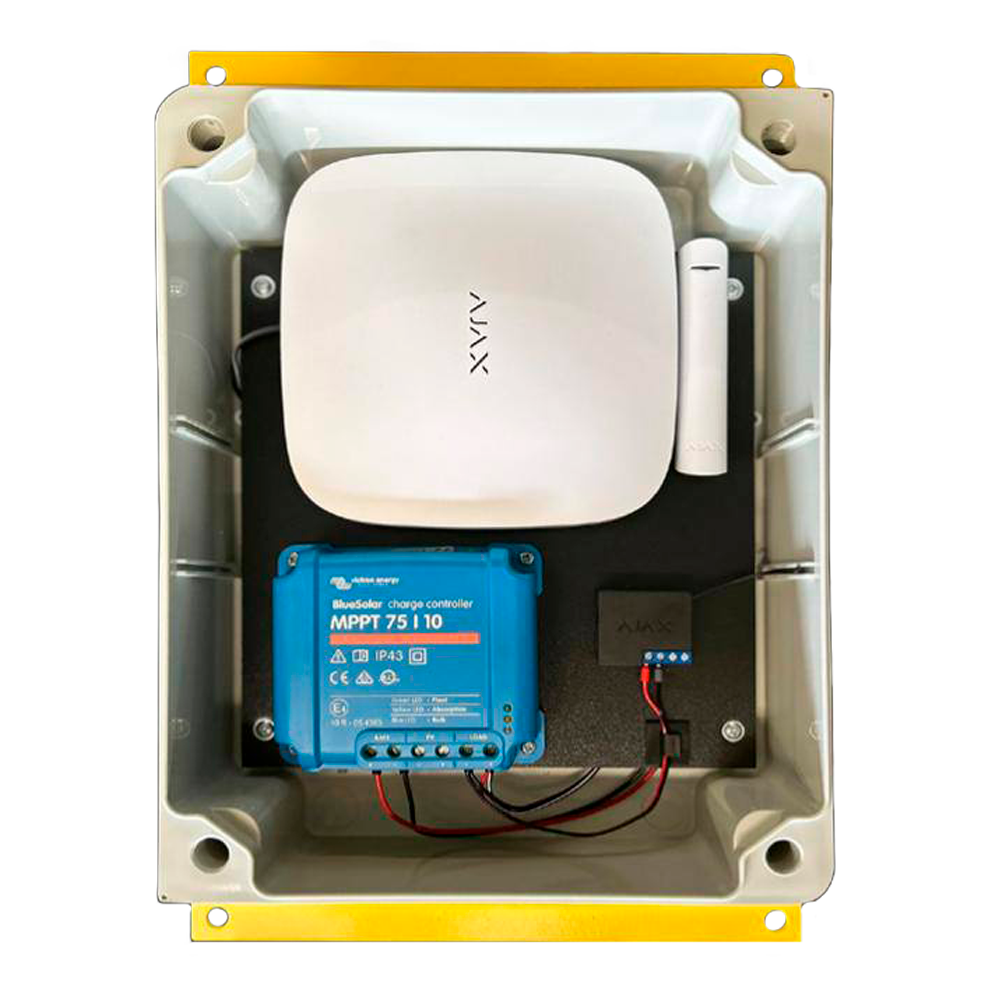

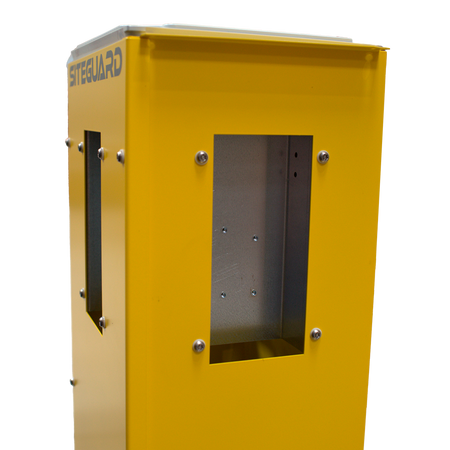

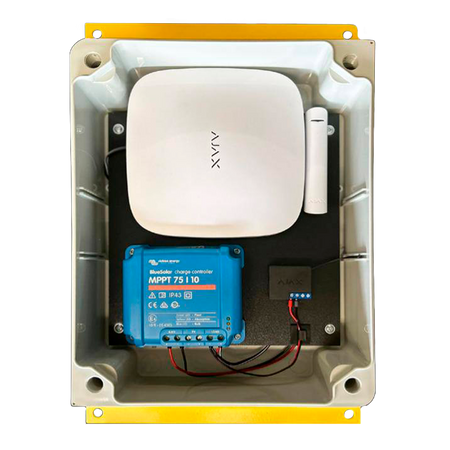

• Junction box: Available for device storage. IP65 protection
• Dimensions: Height: 138 cm; Base: 68 (W) x 68 (D) cm
• Bolts: TX30 M6 x 12 mm
• Weight (without battery): 37 kg
• Color: Yellow

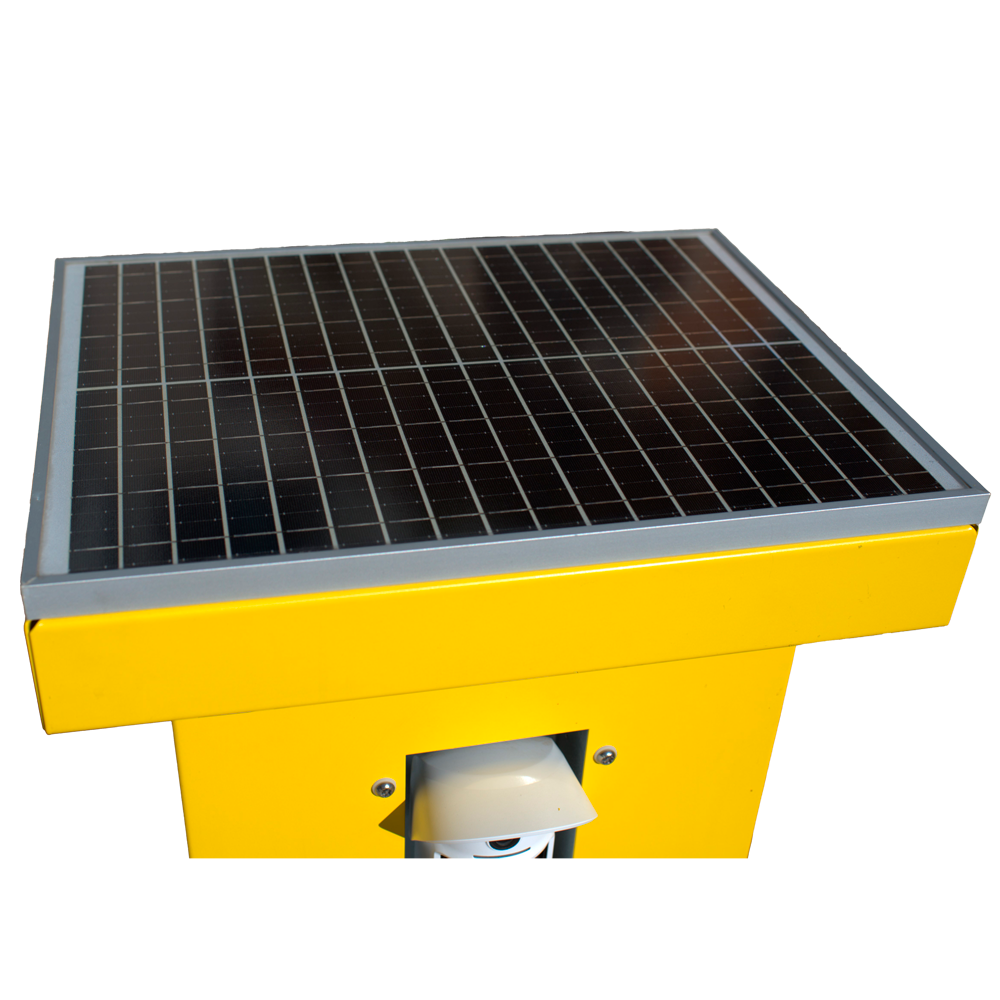

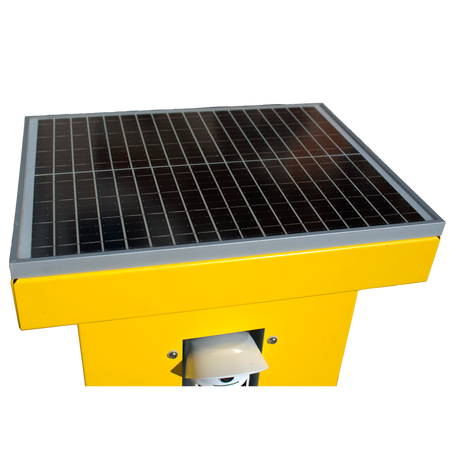

• Rated power: 25 W
• Solar cell type: Monocrystalline
• Maximum power voltage (Vmp): 18 V
• Open circuit voltage (Voc): 22.41 V
• Short circuit current: 1.54 A
• Maximum current: 1.4 A
• Dimensions: 421 (W) x 320 (H) x 20 (D) mm
• Weight: 0.75 kg
• Material: Tempered glass
• Lifespan: >20 years
• Junction box protection rating: IP65

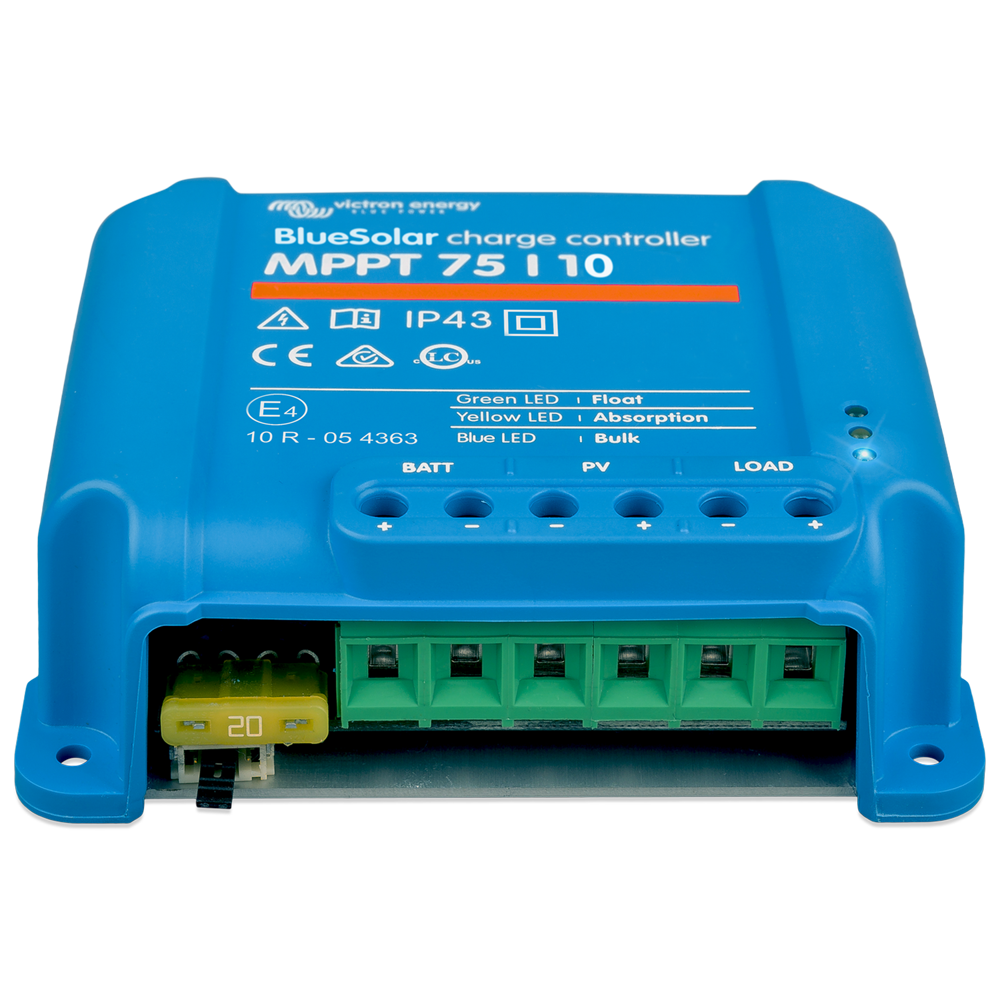

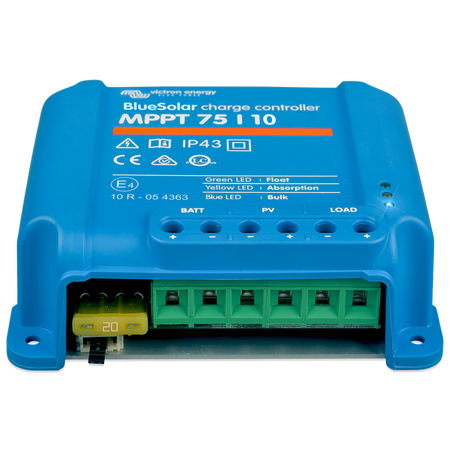

• Brand: Victron Energy
• Battery voltage: 12 V (preset for lead-acid battery)
• Rated charge current: 10 A
• Nominal power: 145 W (@12 V)
• Maximum solar short-circuit current: 13 A
• Automatic load disconnection: Available
• Maximum efficiency: 98%
• Charging algorithm: Adaptive multi-stage to optimize charging cycles and maintain charge for long periods
• Maximum continuous charge current: 15 A
• Load disconnect voltage: 11.1 - 11.8 V
• Load reconnect voltage: 13.1 - 14 V
• Protection: Short-circuit, over-temperature, and fuse to protect against battery reverse polarity
• Operating temperature: -30ºC to +60ºC
• Dimensions: 100 (W) x 113 (H) x 40 (D) mm
• Weight: 0.15 kg

📦 INCLUDED:
• Galvanized steel tower• Solar panel• MPPT controller• 2 anti-vibration blocks at the base• Connection for backup battery installation• Power connector for indoor use• Mounting hardware
