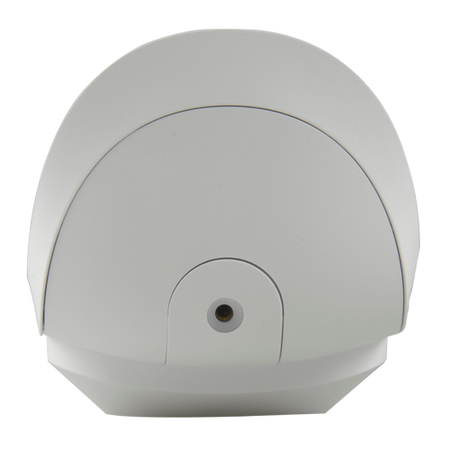

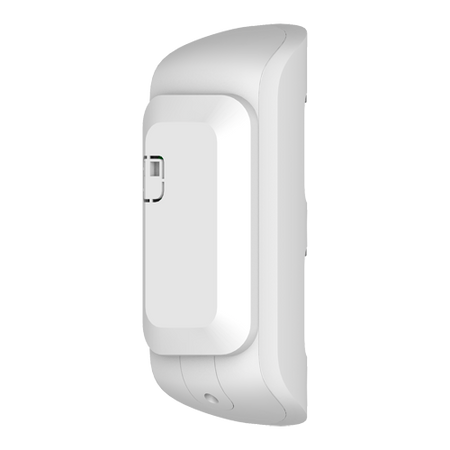

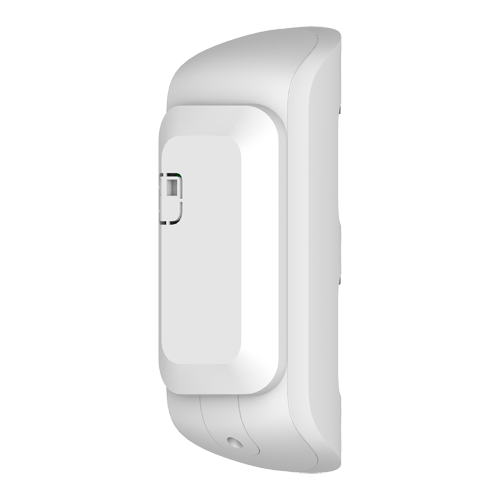

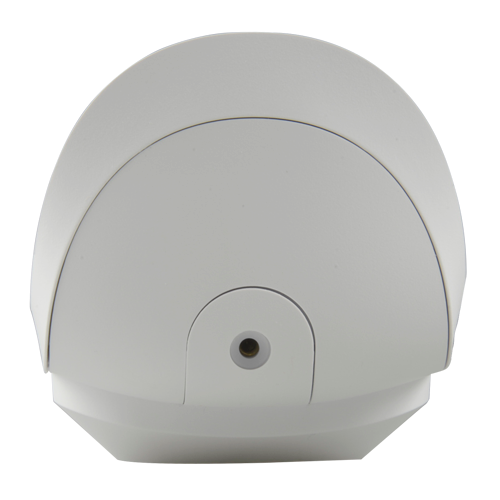

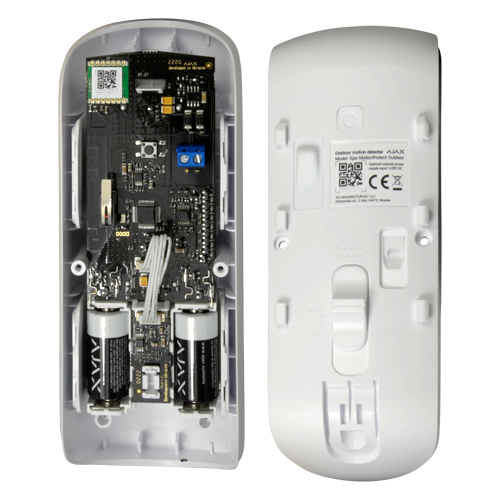

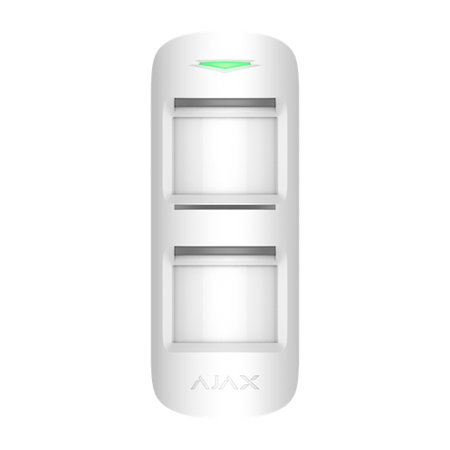

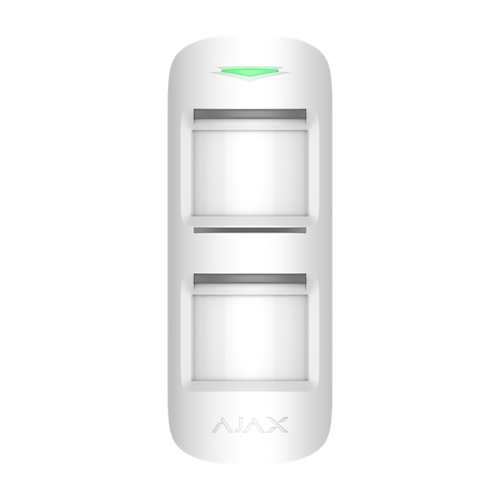

Ajax outdoor PIR detector
Regular price
€232,34
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Outdoor PIR detector - Grade 2 - Dual PIR sensor - Wireless 868 MHz Jeweller - Anti-masking - Pet Immunity / 15 m detection - Outdoor IP55
📋 SPECIFICATIONS:
• Brand: Ajax
• Technology: Dual volumetric PIR
• PIR lens: 16 zones

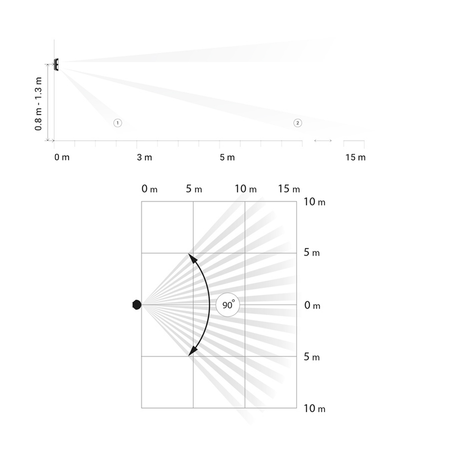

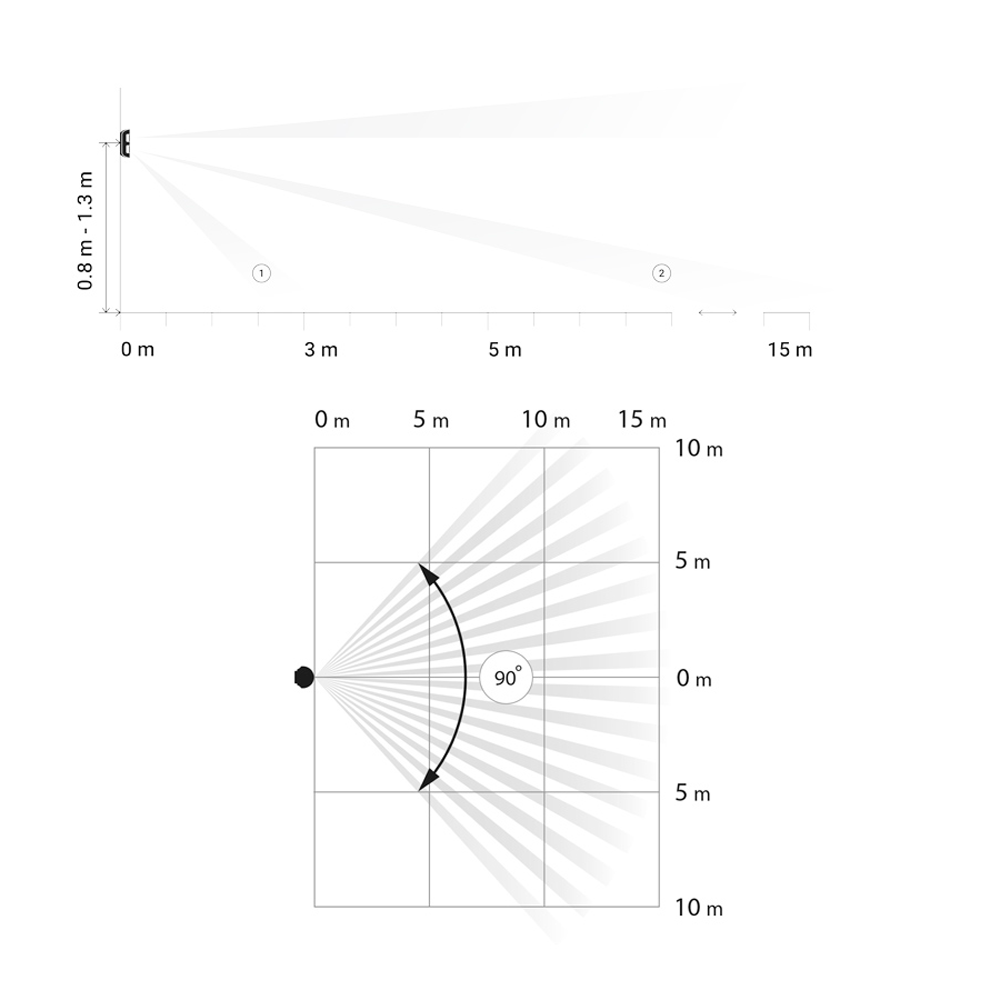

• Detection range: 15 m / 90º / Installation 0.8~1.3 m
• Frequency: 868 MHz Jeweller
• Transmission distance: ≤ 1200 m in open space
• Pet immunity: Available ≤ 80 cm
• Anti-masking: Available
• Sensitivity: Adjustable. 3 levels (high, medium, low)
• Tamper-proof: Available
• LED indication: Alarm, tamper, signal
• Power supply: 2 CR123A 3.0 V batteries (estimated life 5 years)
• Optional power supply: 5~28 V at 200 mA with external power supply
• Operating temp.: -25 ºC ~ 60 ºC
• Protection rating: IP55
• Dimensions: 184 (W) x 70 (H) x 60 (D) mm
• Colour: White
📦 INCLUDED:
• Outdoor PIR detector• Instruction manual• Mounting material¡ERROR! FORMATO INADECUADO
| Technology | Dual volumetric PIR |
|---|---|
| PIR lens | 16 zones |
| Detection range | 15 m / 90º / Installation 0.8~1.3 m |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 1200 m in open space |
| Pet immunity | Available ≤ 80 cm |
| Anti-masking | Available |
| Sensitivity | Adjustable. 3 levels (high, medium, low) |
| Tamper protection | Available |
| LED indication | Alarm, tamper, signal |
| Power supply | 2 CR123A 3.0 V batteries (approx. 5-year battery life) |
| Optional power supply | 5~28 V at 200 mA with external power supply |
| Operating temp. | -25 ºC ~ 60 ºC |
| Protection rating | IP55 |
| Dimensions | 184 (W) x 70 (H) x 60 (D) mm |
| Color | White |
- User manual Link
