Ajax video surveillance kit - 4 x 4 Mpx Safire Smart Dual Light turret cameras
Ajax video surveillance kit - 4 x 4 Mpx Safire Smart Dual Light turret cameras
Regular price
€544,10
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

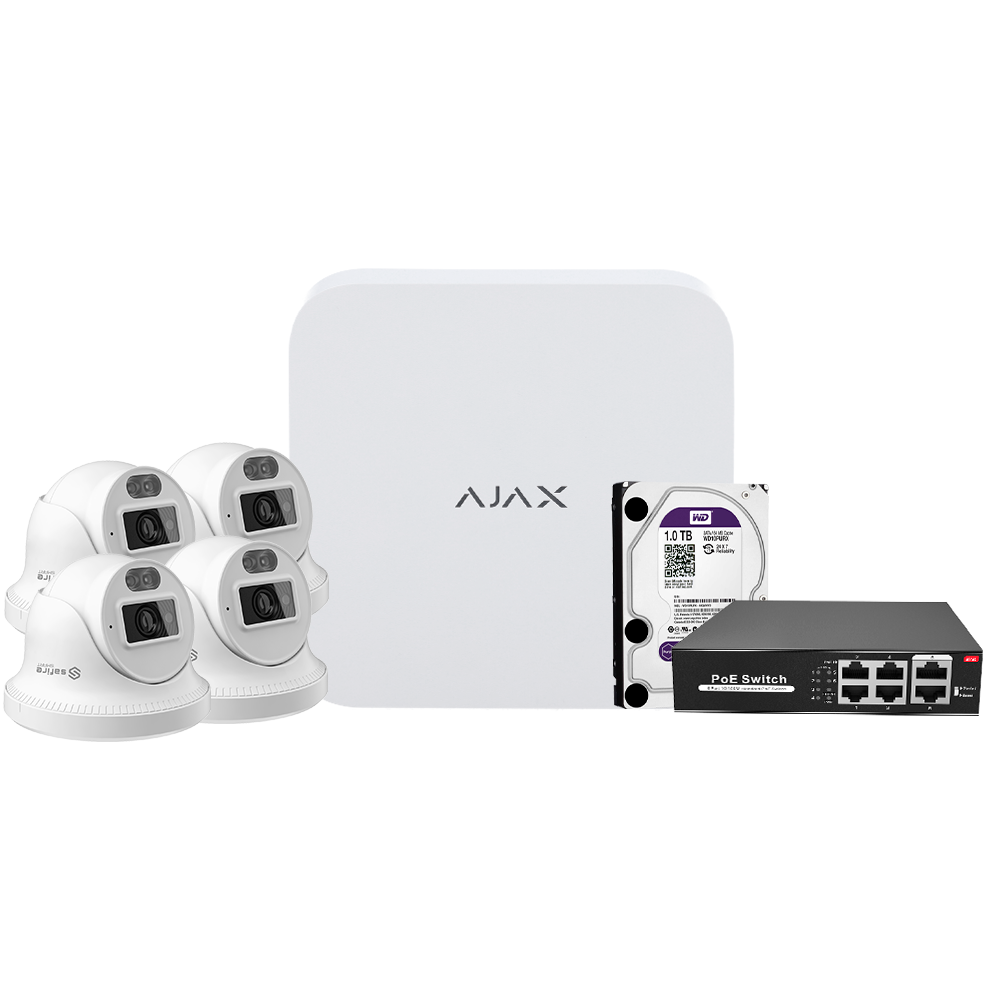

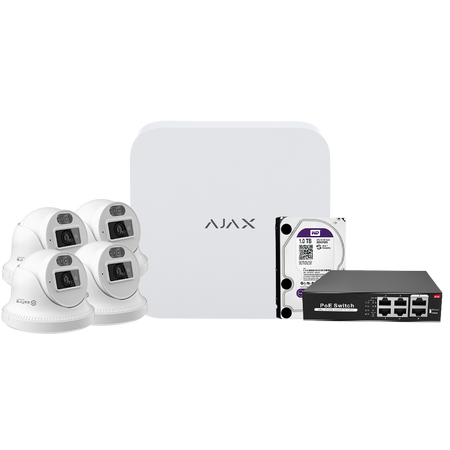

Ajax video surveillance kit - 8-channel Ajax video recorder - 4 x 4 Mpx Safire Smart Dual Light turret cameras - 4-channel PoE switch - 1 TB hard drive - Integration via ONVIF
📋 SPECIFICATIONS:

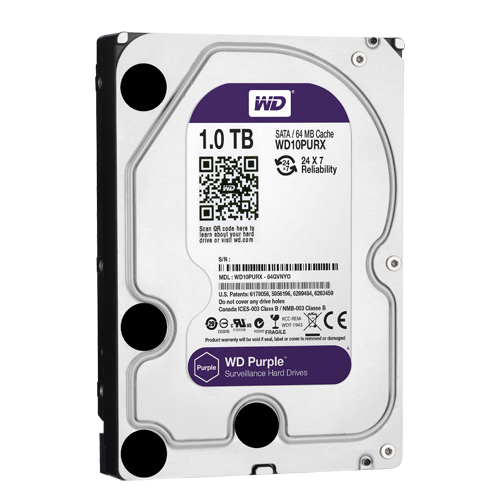

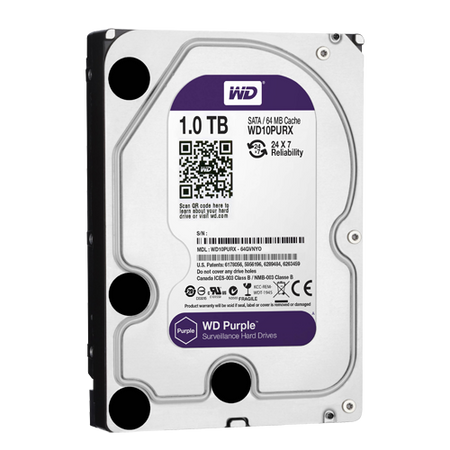

• Brand: Western Digital
• Capacity: 1 TB
• Interface: SATA
• Size: 3.5"
• Transfer speed: Up to 110 MB/s
• Model: WD10PURZ
• Buffer size: 64 MB
• Hard drive speed: 5400 RPM
• MTBF (Mean Time Between Failures): Up to 1 million hours
• Workload: Up to 180 TB/year
• Operating temp.: 0º C ~ +65º C
• Dimensions: 147 mm (D) x 101.6 mm (W) x 26.1 mm (H)
• Weight: 0.45 kg

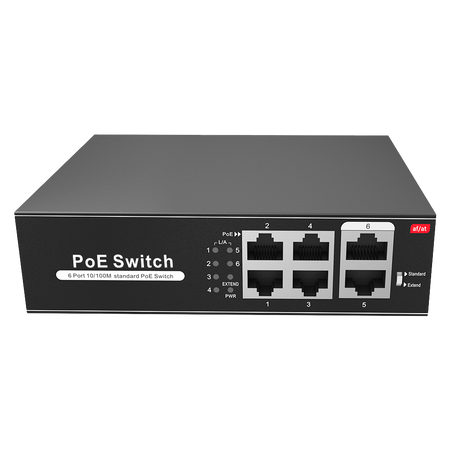

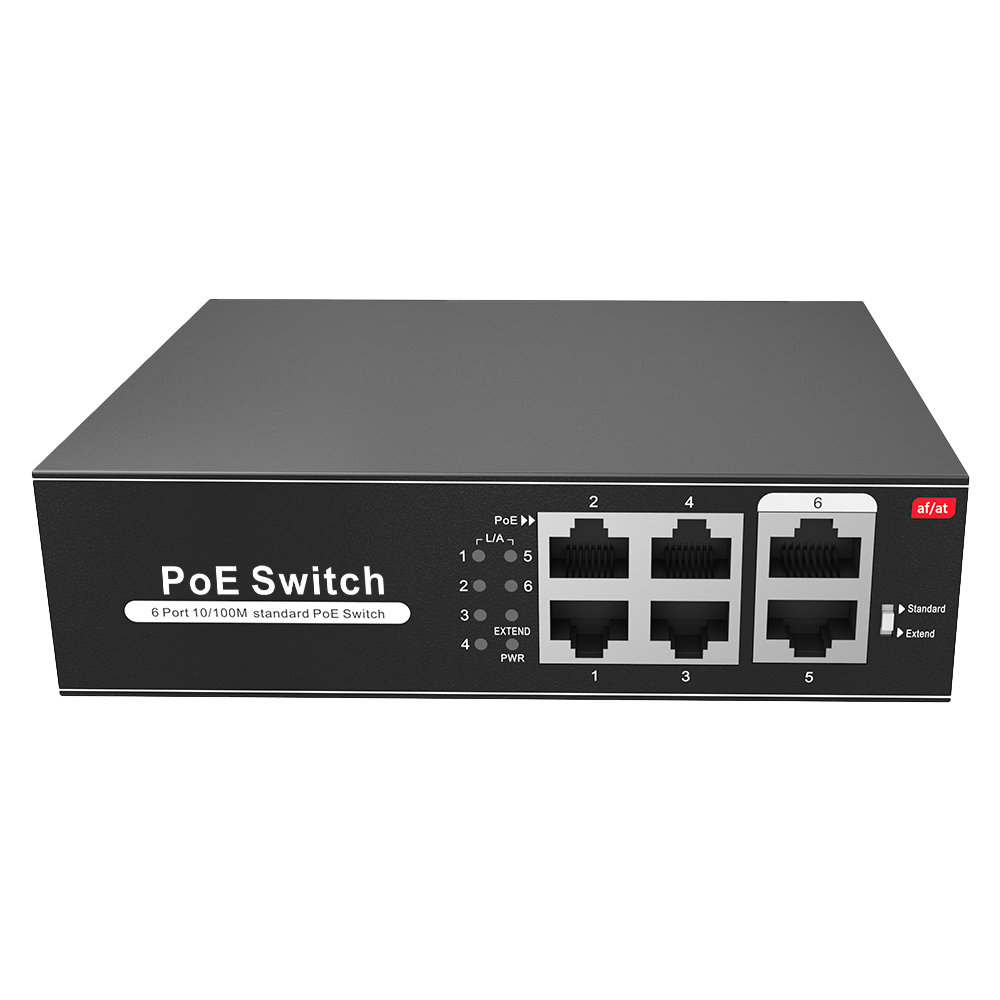

• Interface: 4 PoE RJ45 ports + 2 Uplink RJ45
• Port speed: 10/100 Mbps
• Bandwidth: Up to 1.2Gbps
• Power supply: 65 W total for all ports
• PoE features: Complies with IEEE 802.3af/at PoE standard
• Transmission distance: CCTV mode up to 250m for 10Mbps
• Power supply: AC 220 V
• Operating temperature: -20º C ~ 50º C
• Dimensions / Weight: 142 (D) x 40 (W) x 114.5 (H) mm / 600 g

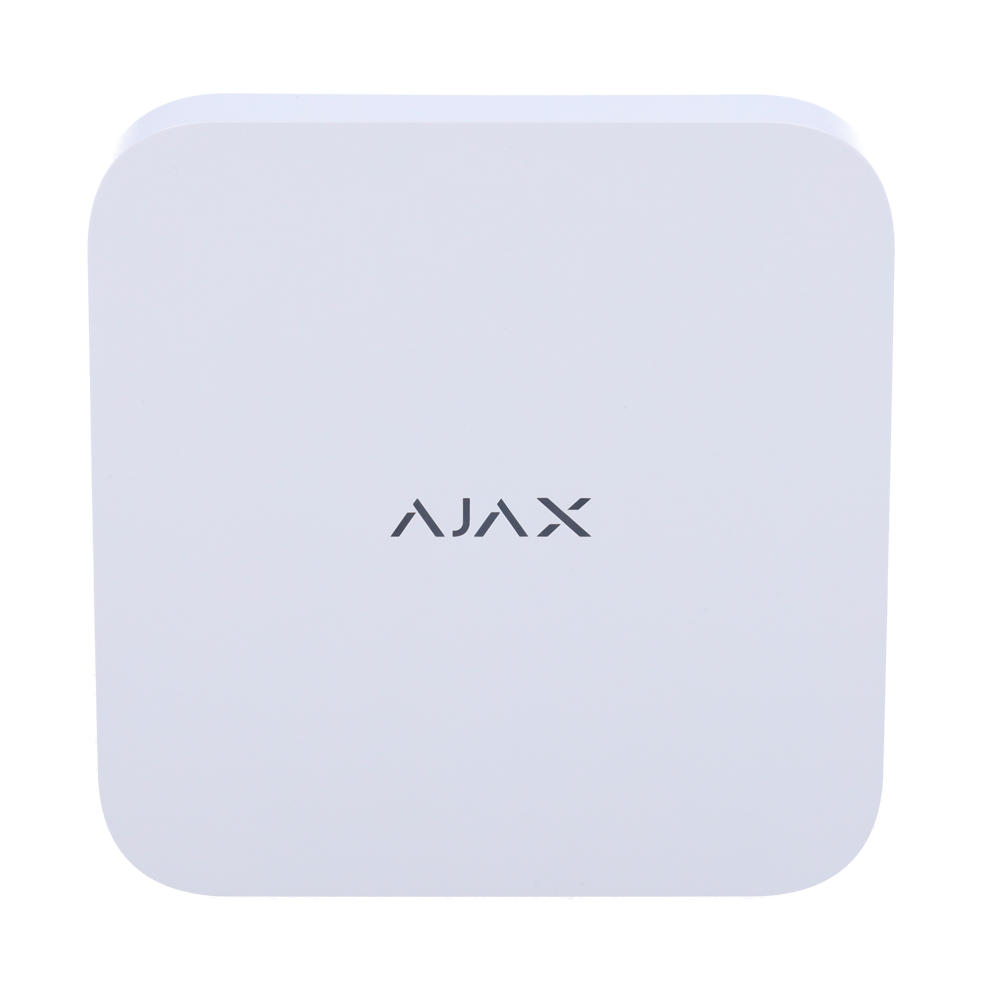

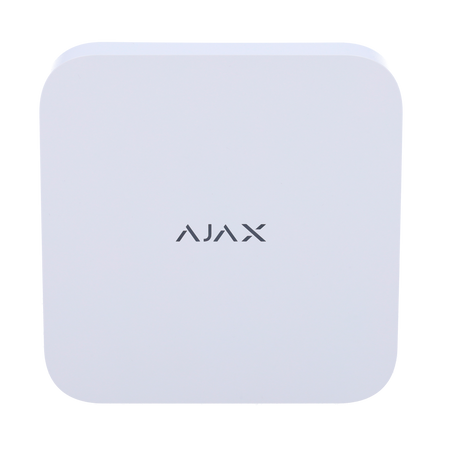

• Brand: Ajax
• Channels: 8
• Compatible cameras: ONVIF / RTSP
• Resolution: Up to 4K (25/30 FPS)
• Video compression format: H.265 / H.264
• Total bandwidth: Up to 100 Mbps
• Recording method: Scheduled, motion detection
• Internal storage: 1x 3.5" SATA HD up to 16 TB (not included)
• Communication: RJ45 (Ethernet)
• Remote access: Ajax Smartphone App
• Firmware update: Available. OTA (Over-the-air) remote updates
• Power supply: DC 230V (50 Hz)
• Operating temperature: 0ºC ~ 40ºC
• Operating humidity: 75%
• Dimensions: 200 (W) x 200 (H) x 45(D) mm
• Weight: 700 g
• Color: White

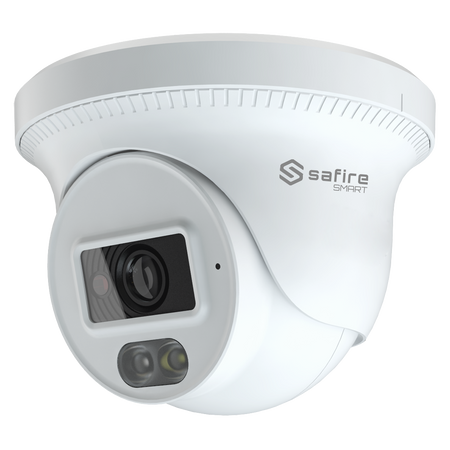

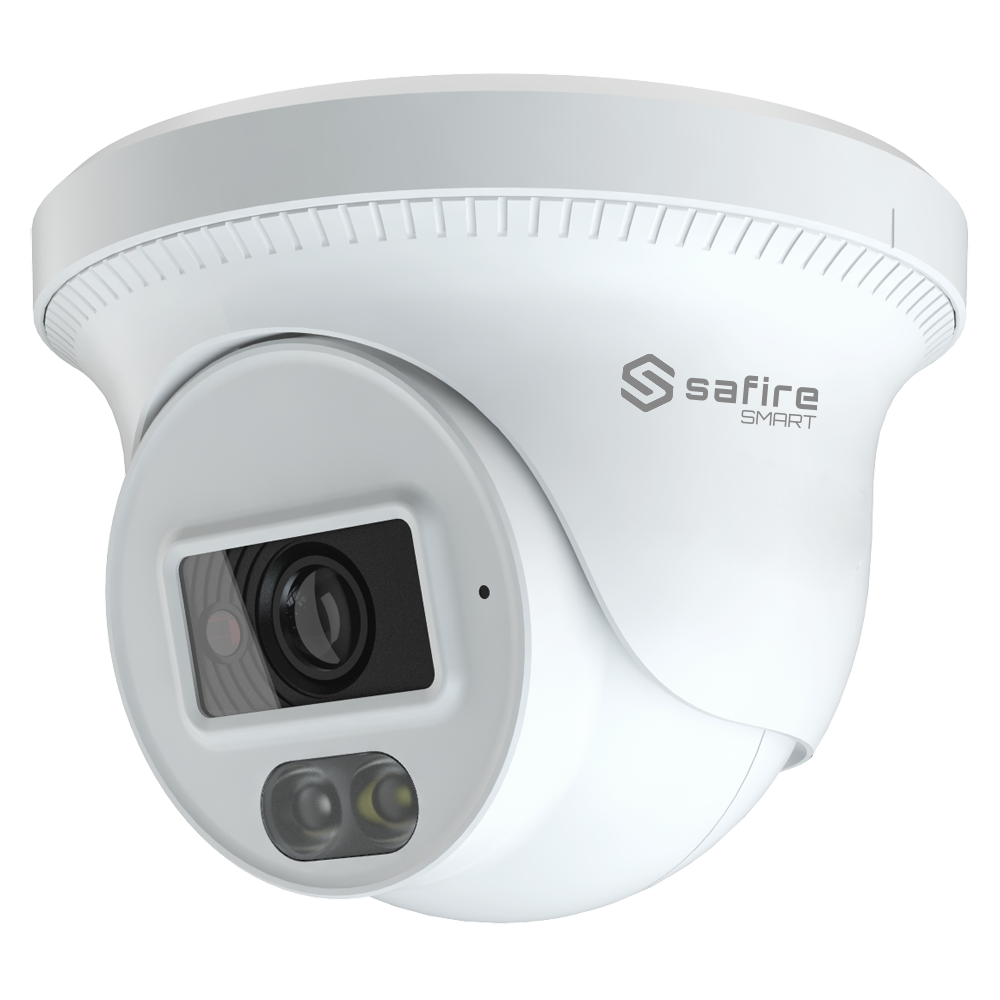

• Brand: Safire Smart
• Range: B1
• Optical sensor: 1/3" Progressive Scan CMOS
• Maximum resolution: 4 Mp (2560x1440)
• Minimum illumination: Color: 0.009 Lux @(F2.2, AGC ON), 0 Lux with lighting on
• Lighting range: Dual lighting: IR up to 20m; White LED up to 20m
• Day/night: Removable mechanical ICR filter
• Electronic Shutter: 1/3~1/100.000 s
• Main Stream frame rate: 25 FPS (4Mpx, 3Mpx, 1080P, 720P)
• Sub Stream frame rate: 25 FPS (720P, D1, CIF)
• Third Stream frame rate: 25 FPS (D1, 480x240, CIF)
• Compression: H.265 / H.264
• Bitrate: 64 Kbps ~ 8 Mbps
• Lens: 2.8 mm
• Field of View (FOV): H: 98°, V: 53°, D: 116°
• DORI: 56 m (D), 22 m (O), 11 m (R), 5 m (I)
• Image enhancements: DWDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI
• Advanced motion detection: Smart Motion Detection: Motion detection based on people and filtering all other objects in the scene
• Smart functions: Area intrusion, Line crossing, Object abandoned, Object removed, Video exceptions (scene change, video loss, ...)
• Audio: Built-in microphone
• Audio compression: G711A / U
• Network interface: Ethernet 10 / 100M BaseT
• Internal storage: Not available
• Remote access: Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software
• Interoperability: ONVIF
• Power supply: DC 12 V / 292 mA / 5 W max. / PoE IEEE802.3af
• Protection rating: Waterproof IP67
• Material: Plastic
• Operating temp.: -20º C ~ +55º C
• Dimensions: 94.8 (ø) x 82.8 (W) mm
• Weight: 280 g
📦 INCLUDED:
• 8-channel Ajax NVR video recorder• 4 x 2 Mpx Safire Smart turret camera • Four-channel PoE switch• 1 TB hard drive
| Capacity | 1 TB |
|---|---|
| Interface | SATA |
| Size | 3.5" |
| Transfer speed | Up to 110 MB/s |
| Model | WD10PURZ |
| Buffer size | 64 MB |
| Hard disk speed | 5400 RPM |
| MTBF (Mean Time Between Failures) | Up to 1 million hours |
| Workload | Up to 180 TB/year |
| Operating temp. | 0º C ~ +65º C |
| Dimensions | 147 mm (D) x 101.6 mm (W) x 26.1 mm (H) |
| Weight | 0.45 kg |
| Interface | 4 PoE RJ45 ports + 2 RJ45 Uplinks |
| Port speed | 10/100 Mbps |
| Bandwidth | Up to 1.2Gbps |
| Power supply | 65 W total for all ports |
| PoE features | Compliant with IEEE 802.3af/at PoE standard |
| Transmission distance | CCTV mode up to 250m for 10Mbps |
| Power supply | AC 220 V |
| Operating temperature | -20º C ~ 50º C |
| Dimensions / Weight | 142 (D) x 40 (W) x 114.5 (H) mm / 600 g |
| Channels | 8 |
| Compatible cameras | ONVIF / RTSP |
| Resolution | Up to 4K (25/30 FPS) |
| Video compression format | H.265 / H.264 |
| Total bandwidth | Up to 100 Mbps |
| Recording method | Scheduled, motion detection |
| Internal memory | 1x HD 3.5" SATA up to 16 TB (not included) |
| Communication | RJ45 (Ethernet) |
| Remote access | Ajax Smartphone App |
| Firmware update | Available. Remote OTA (Over-the-air) updates |
| Power supply | DC 230V (50 Hz) |
| Operating temperature | 0ºC ~ 40ºC |
| Operating humidity | 75% |
| Dimensions | 200 (W) x 200 (H) x 45 (D) mm |
| Weight | 700 g |
| Color | White |
| Range | B1 |
| Optical sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Mp (2560x1440) |
| Minimum illumination | Color: 0.009 Lux @(F2.2, AGC ON), 0 Lux with illumination activated |
| Illumination range | Dual illumination: IR up to 20m, white LED up to 20m |
| Day/night | Removable mechanical ICR filter |
| Electronic Shutter | 1/3~1/100,000 s |
| Main Stream frame rate | 25 FPS (4Mpx, 3Mpx, 1080P, 720P) |
| Sub Stream frame rate | 25 FPS (720P, D1, CIF) |
| Third Stream frame rate | 25 FPS (D1, 480x240, CIF) |
| Compression | H.265 / H.264 |
| Bitrate | 64 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 98°, V: 53°, D: 116° |
| DORI | 56 m (D), 22 m (O), 11 m (R), 5 m (I) |
| Image enhancements | DWDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI |
| Advanced motion detection | Smart Motion Detection: Motion detection based on people and filtering of all other objects in the scene |
| Intelligent functions | Area intrusion, Line crossing, Abandoned object, Removed object, Video exceptions (scene change, video loss, ...) |
| Audio | Built-in microphone |
| Audio compression | G711A / U |
| Network interface | Ethernet 10 / 100M BaseT |
| Internal memory | Not available |
| Remote access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| Power supply | DC 12 V / 292 mA / 5 W max. / PoE IEEE802.3af |
| Protection rating | Waterproof IP67 |
| Material | Plastic |
| Operating temp. | -20º C ~ +55º C |
| Dimensions | 94.8 (ø) x 82.8 (W) mm |
| Weight | 280 g |
