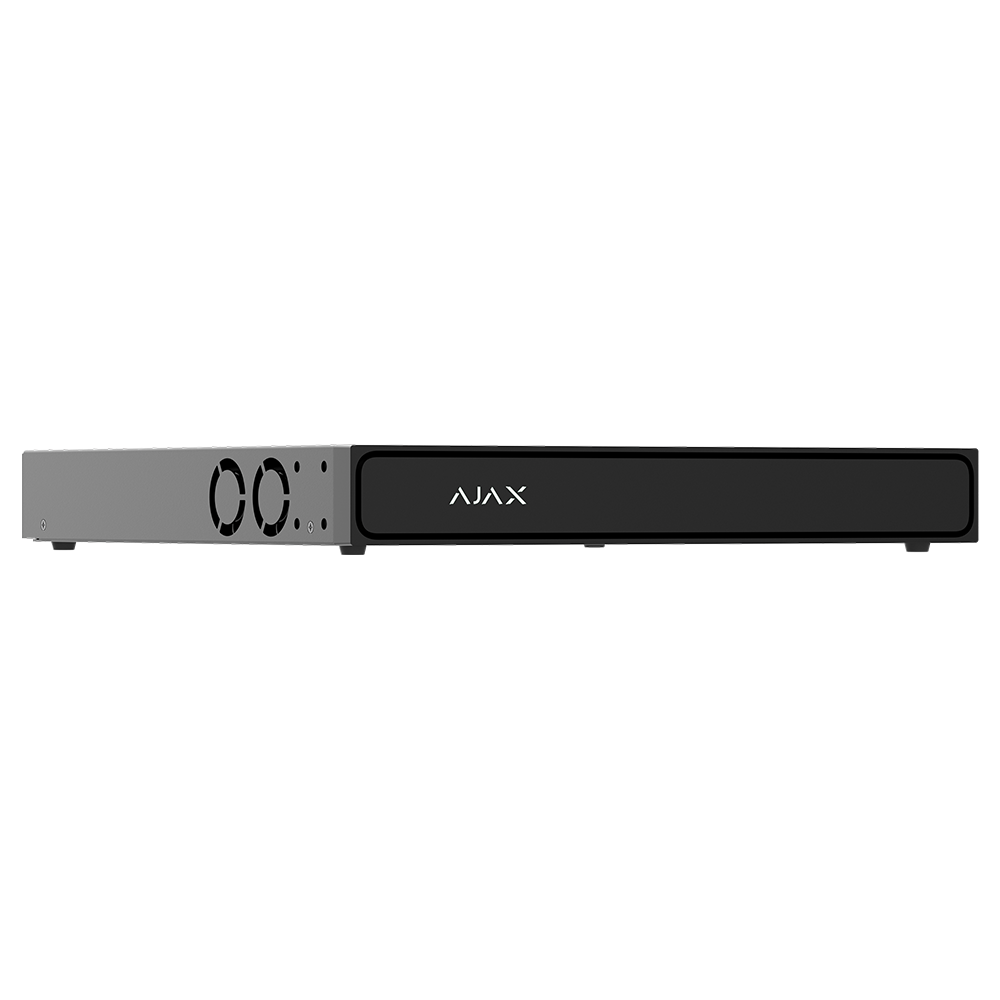

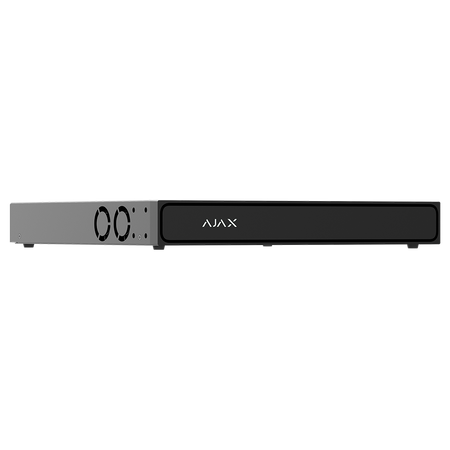

Superior Ajax NVR video recorder - 32 channels | 16 PoE ports IEEE802.3af/at - AC 100~240V (50/60 Hz)

SKU: AJ-NVR232-HAC-AI-16P-S-B
(0)
Out of stock
€1.299,32 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Superior NVR Video Recorder - 32 channels | 16 PoE ports IEEE802.3af/at - H.265/H.264 compression | JetSparrow - Resolution up to 12MP | AI | RJ45 | HDMI - 384Mbps bandwidth | IP20 protection - Space for 2 HDDs up to 24 TB

📋 SPECIFICATIONS:
• Brand: Ajax
• Channels: 32
• PoE ports: 16 × IEEE 802.3af/at; Power up to 25W per port; Total maximum power up to 200W
• Compatible cameras: ONVIF / RTSP
• Resolution: 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
• HDMI output: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 px
• Video compression format: H.265 / H.264; JetSparrow
• Decoding capacity: 2 × channel at 4096 × 4096 px (25 fps); 4 × channel at 3840 × 2160 px (25 fps); 8 × channel at 2880 × 1620 px (25 fps); 10 × channel at 2560 × 1440 px (25 fps); 18 × channel at 1920 × 1080 px (25 fps); 24 × channel at 1280 × 720 px (25 fps); 32 × channel at 1024 × 576 px (25 fps); For third-party cameras with AI enabled:; 1 × channel at 4096 × 4096 px (25 fps); 2 × channel at 3840 × 2160 px (25 fps); 4 × channel at 2880 × 1620 px (25 fps); 5 × channel at 2560 × 1440 px (25 fps); 9 × channel at 1920 × 1080 px (25 fps); 12 × channel at 1280 × 720 px (25 fps); 16 × channel at 1024 × 576 px (25 fps)
• Total bandwidth: Incoming: Up to 384 Mbps; Outgoing: Up to 384 Mbps
• Recording method: Scheduled, motion detection
• Internal memory: 2 × 3.5" SATA HDD up to 24 TB (not included)
• Communication: 1 × self-adaptive RJ-45 Ethernet (10/100/1000 Mbps) + 802.3af/at PoE fast RJ-45 Ethernet (10/100 Mbps)
• Smart functions: Motion detection via Ajax camera up to 32 channels; Motion detection via Ajax NVR up to 32 channels; AI object detection: People, pets, vehicles, and line crossing; AI-based analysis for third-party cameras up to 12 channels
• Remote access: Ajax smartphone app
• Power supply: AC 100~240V (50/60 Hz)
• Operating temperature: 0ºC ~ 50ºC
• Operating humidity: 75%
• USB: Rear panel: 2 × USB 2.0 (type A); Front panel: 1 × USB 2.0 (type A)
• Protection: IP20
• Dimensions: 330 (W) x 330 (H) x 44 (D) mm
• Weight: 3300 g
• Color: Black

📦 INCLUDED:
• Ajax NVR video recorder• 2 x rack mount bracket• Ethernet cable• Power cable• Installation kit• Quick start guide
Channels 32
PoE ports 16 × IEEE 802.3af/at Power up to 25W per port Total maximum power up to 200W
Compatible cameras ONVIF / RTSP
Resolution 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI output 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 px
Video compression format H.265 / H.264 JetSparrow
Decoding capacity 2 × 4096 × 4096 px channel (25 fps) 4 × 3840 × 2160 px channel (25 fps) 8 × 2880 × 1620 px channel (25 fps) 10 × 2560 × 1440 px channel (25 fps) 18 × 1920 × 1080 px channel (25 fps) 24 × 1280 × 720 px channel (25 fps) 32 × 1024 × 576 px channel (25 fps) For third-party cameras with AI enabled: 1 × 4096 × 4096 px channel (25 fps) 2 × 3840 × 2160 px channel (25 fps) 4 × 2880 × 1620 px channel (25 fps) 5 × 2560 × 1440 px channel (25 fps) 9 × 1920 × 1080 px channel (25 fps) 12 × 1280 × 720 px channel (25 fps) 16 × 1024 × 576 px channel (25 fps)
Total bandwidth Incoming: Up to 384 Mbps Outgoing: Up to 384 Mbps
Recording method Scheduled, motion detection
Internal memory 2 × 3.5" SATA HDD up to 24 TB (not included)
Communication 1 × self-adaptive RJ-45 Ethernet (10/100/1000 Mbps) + 802.3af/at PoE fast RJ-45 Ethernet (10/100 Mbps)
Smart features Motion detection via Ajax camera up to 32 channels Motion detection via Ajax NVR up to 32 channels AI object detection: People, pets, vehicles, and line crossing AI-based analysis for third-party cameras up to 12 channels
Remote access Ajax smartphone app
Power supply AC 100~240V (50/60 Hz)
Operating temperature 0ºC ~ 50ºC
Operating humidity 75%
USB Rear panel: 2 × USB 2.0 (type A) Front panel: 1 × USB 2.0 (type A)
Protection IP20
Dimensions 330 (W) x 330 (H) x 44 (D) mm
Weight 3300 g
Color Black
